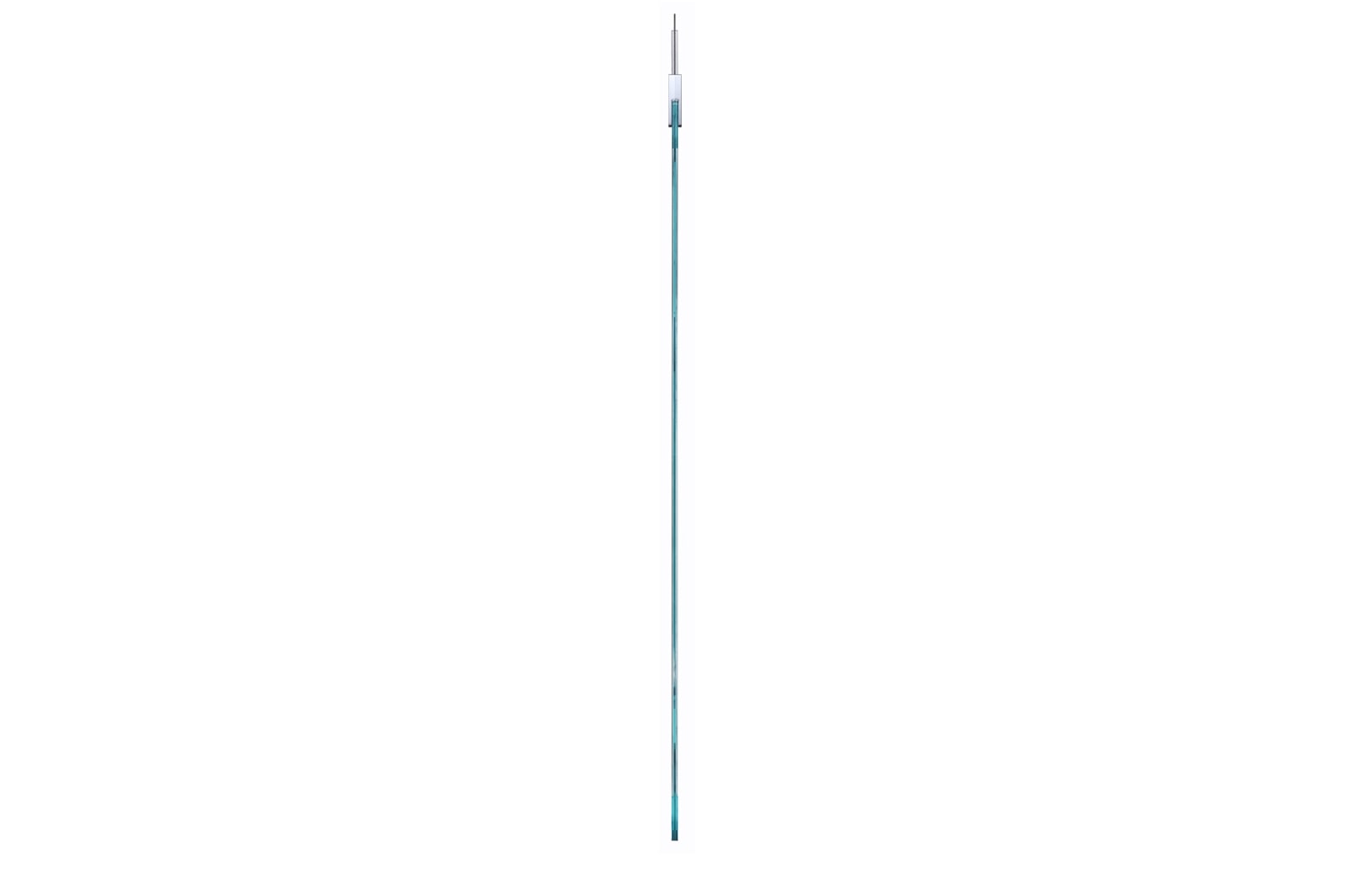

*Hanging wires not included.
All Spec
PANEL
Screen Size
55"
Panel Technology
OLED
Aspect Ratio
16 : 9
Native Resolution
1,920 × 1,080 (FHD)
Brightness (Typ.)
400/150 cd/m<sup>2</sup> (APL 25%/100%)
Viewing Angle (H × V)
178 × 178
Surface Treatment
Hard Coating (2H), Anti-reflection Treatment of the Front Polariser (Reflectance Typ. 1.2%)
Lifetime (Typ.)
30,000 Hrs
Operation Hours
18 Hrs / 7 Days *Moving Video Only
Orientation
Portrait
CONNECTIVITY
Input
HDMI, DP, USB (2)
Output
DP, Audio
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
PHYSICAL SPECIFICATION
Bezel Colour
Black
Bezel Width
104.4 mm (T) / 83.7 mm (B/L) / 84.4 mm (R) *Off-bezel, w/ Glass 108.3 mm (T) / 87.6 mm (B) / 93.3 mm (L) / 88.3 mm (R) *On-bezel, w/ Glass 3.5 mm (T/B/L) / 6.9 mm (R) * On-bezel, w/o Glass
Dimension (W × H × D)
(Head) 861.3 × 1,406.2 × 13 mm *w/o Hanging Acc. (Signage Box) 413 × 353 × 57.3 mm
Weight
(Head) 28.5 kg, (Signage Box) 3.5 kg
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption - Typ.
309 W *8 Colour Bar
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950,CB Scheme
EMC
AS/NZS CISPR32,RCM(Class A)
Energy Rating
No
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
No
External Media Player Attachable
Yes
To access more technical documentation and resources, please visit the LG B2B partner portal.
