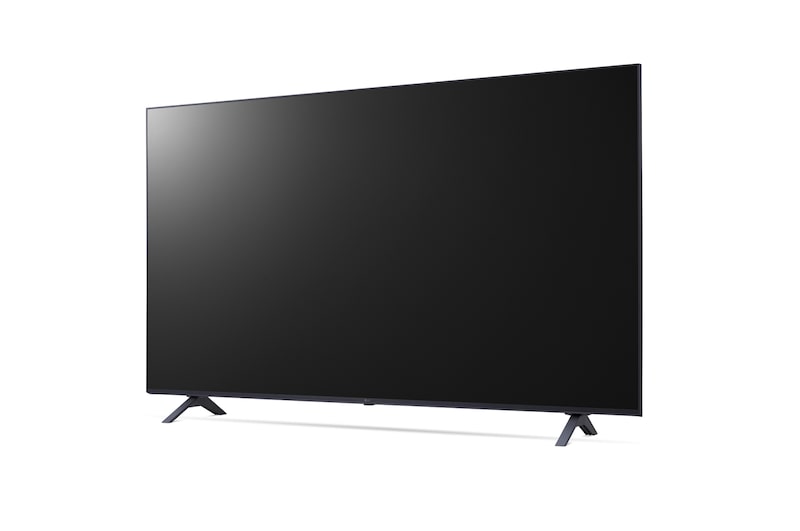

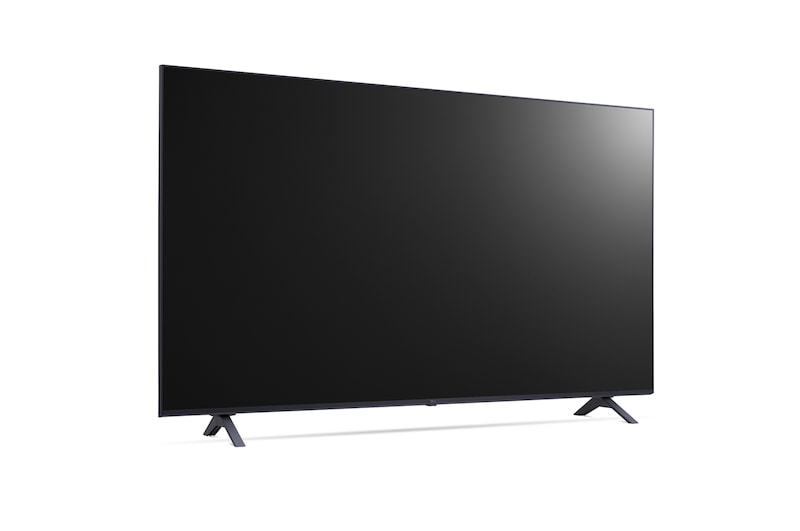

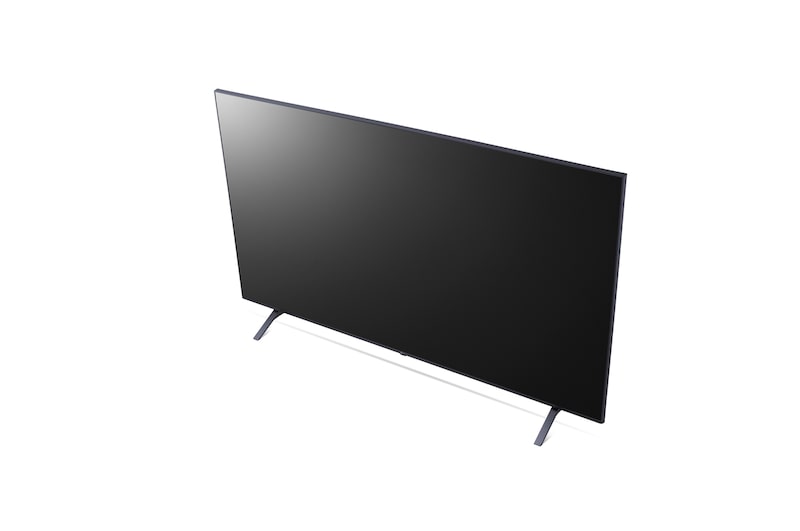

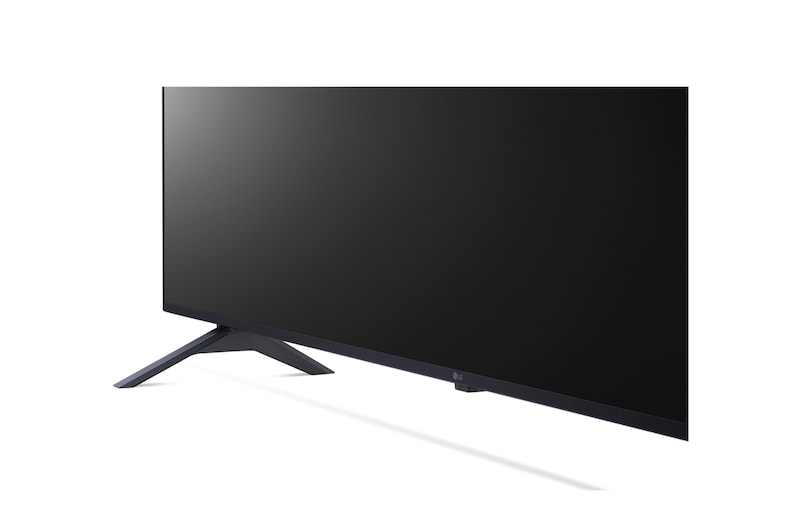

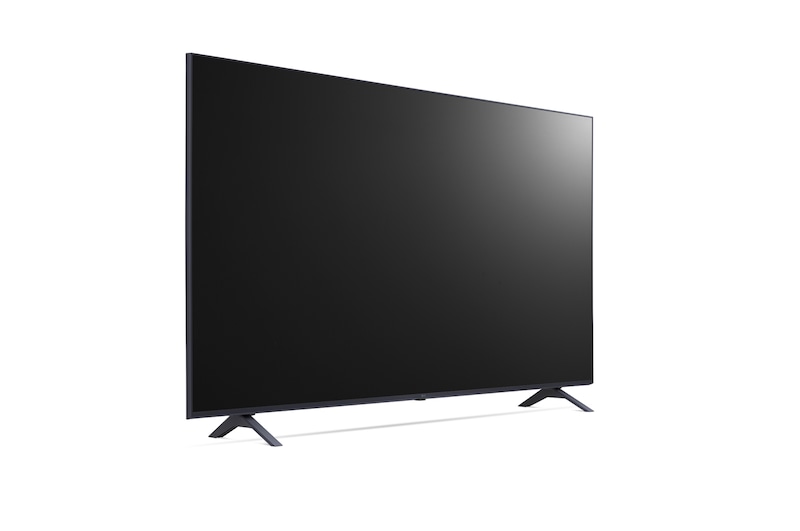

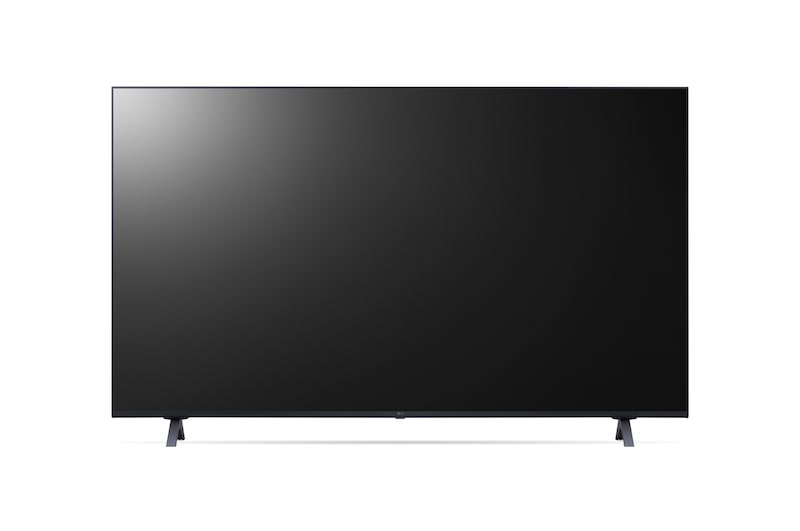

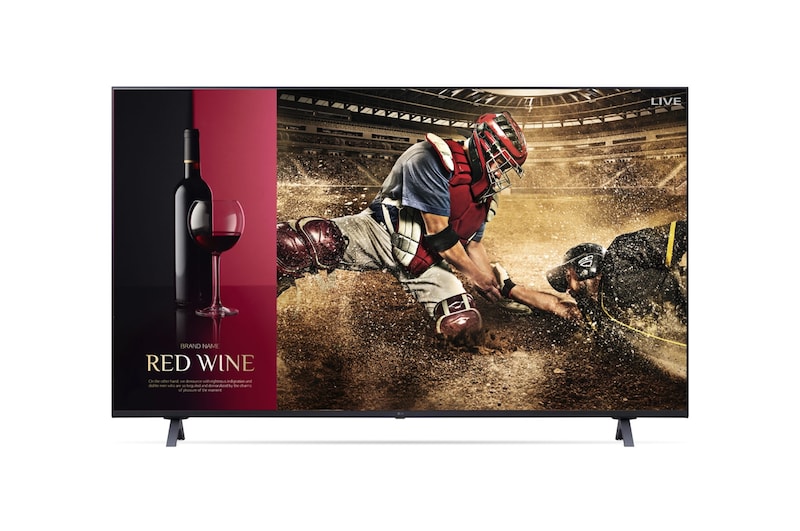

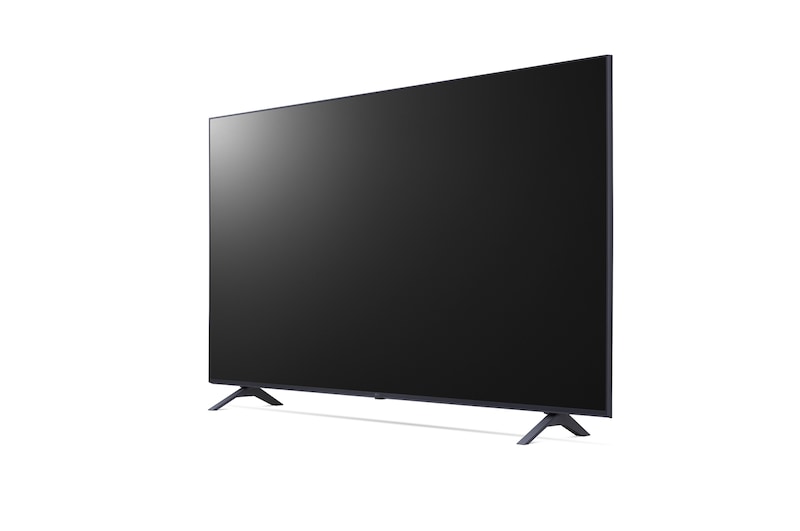

LG UHD Signage for Live TV & Promotion
Power Cable
YES (1.8m, Straight Type)
Remote type
L-Con
Speaker (Audio Output)
20W
Analog (NTSC / SECAM / PAL)
NTSC
Digital
ATSC, Clear QAM
Digital Audio Out (Optical)
YES
HDMI In
YES (3ea)
LG SVC only (Phone jack type)
YES
RF In
YES (1ea)
RJ45 (Usage Purpose)
YES (LAN)
RS-232C (D-Sub 9pin / Phone jack)
YES (Phone jack)
USB (Ver.)
YES (1ea / 2.0)
Front Color
Ashed Blue

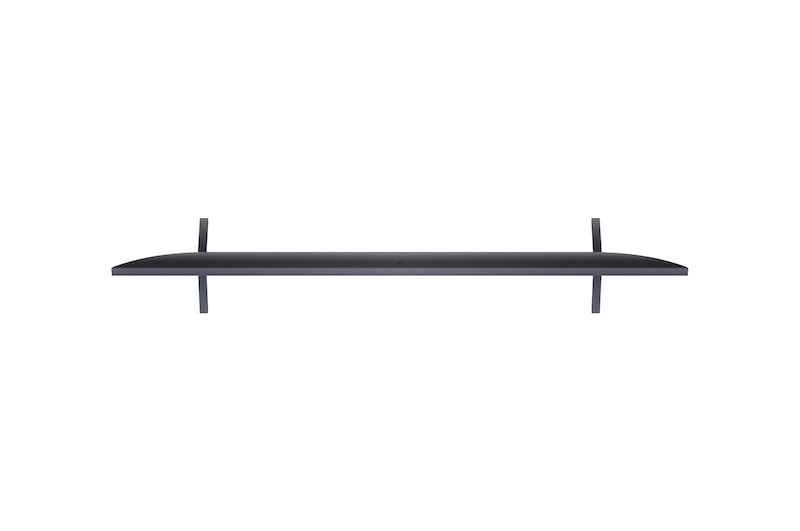

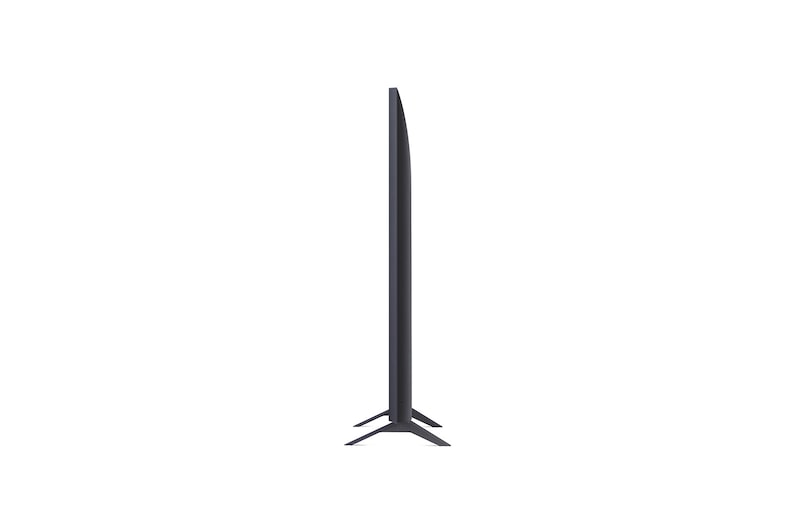

Stand Type
2 Pole
Tool Name
UP8000

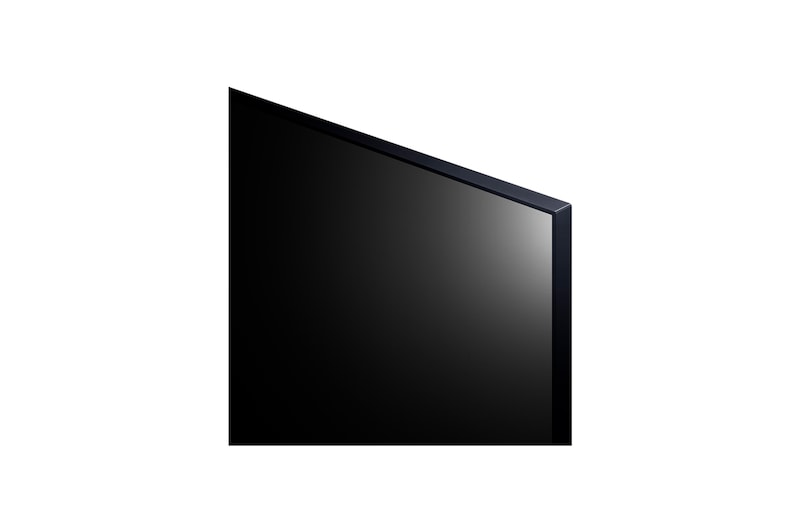

Bezel Width (L/R/U/B, Off Bezel)
6.8/6.8/6.8/18.4mm
Bezel Width (L/R/U/B, On Bezel)
12.8/12.8/12.8/19.9mm
Dimension in Shipping (W x H x D)
1600 x 970 x 172mm
Dimension without Stand (W x H x D)
1454 x 838 x 57.7mm
Dimension with Stand (W x H x D)
1454 x 899 x 271mm
Weight in Shipping
27.8kg
Weight without Stand
21.5kg
Weight with Stand
21.8kg
Brightness (Typ.)
400 nit
Resolution
4K Ultra HD (3,840 x 2,160)
Size (Inch)
65
Diagnostics
YES (Self Diagnostics(USB))
Energy Saving mode
YES
Hotel Mode / PDM / Installer Menu
YES
HTNG-CEC (Version)
YES
Insert Image
YES
Lock mode
YES (Limited)
Multi IR Code
YES
RJP (Remote Jack Pack) Compatibility
YES
Simplink(HDMI-CEC) (Version)
YES (1.4)
SNMP
YES
USB Auto playback / playback+
YES (USB Auto playback)
USB Cloning
YES
Welcome Screen (Splash Image)
YES
Welcome Video
YES
WOL
YES
Category
Commercial lite
Kensington Lock
YES
VESA Compatible
300 x 300mm
Power Consumption(Max)
174.4W
Power Consumption(Typ)
148.3W
Power Supply (Voltage, Hz)
AC 120V, 50/60Hz
Standby Power Consumption
Under 0.5W
webOS version
webOS 6.0
HDMI-ARC
YES (HDMI2)
EMC
FCC
Others
EPEAT, ISTA6
Safety
UL
Control / Control Plus
YES / -
Crestron Certi. Compatibility
YES
DPM (Digital Power Management)
YES
NTP sync timer
YES
Time scheduler
YES
HDR_HDR 10 Pro
YES
HDR_HLG (Hybrid Log Gamma)
YES
