World’s First True Wireless TV 77 inch LG OLED evo AI M4 with 4K 144Hz Video & Audio Transfer

For secure and seamless wall installation of your LG OLED M4 TV, follow these guidelines:

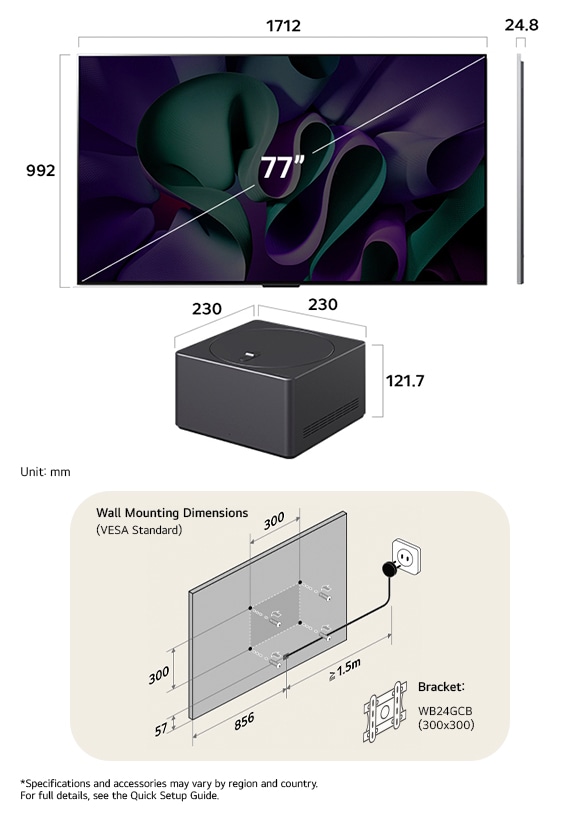

Compatible Wall Mount Brackets & VESA Sizes¹:

∙ 97” model: WB22E97G or WB24GD (VESA 1586*(226×60) / 600×400)²

∙ 83” model: WB22EG or WB24GC (VESA 180×55 / 400×400)

∙ 77” model: WB22EG or WB24GC (VESA 180×55 / 300×300)

∙ 65” model: WB22EG or WB24GC (VESA 180×55 / 300×300)

Installation Steps:

1. Ensure the wall has sufficient strength and load-bearing capacity for your TV and bracket.³

2. Mark and drill holes according to the VESA pattern and the instructions provided in the Quick Setup Guide and Owner’s Manual.

3. Attach the bracket securely to the wall using appropriate anchors and screws.

4. Connect all required cables to the Zero Connect Box before mounting the TV for easier access.

5. Carefully mount the TV onto the bracket.

Professional installation is strongly recommended by LG to ensure safety, optimal alignment, and to protect your TV—especially for larger screen sizes.

Note:

LG provides clearly illustrated, multilingual installation guides with the product and online. Always refer to the correct guide for your TV model and screen size.⁴

¹Please check the exact VESA pattern and compatible bracket for your specific model and screen size. Wall-mount bracket and included accessories may vary by model and region. Please check your product package and local LG website for details. If the bracket is not included in your package, ensure that you use a compatible bracket with the exact VESA pattern for your specific model and screen size.

²For 97” models, special VESA dimensions (1586*(226×60) / 600×400) may apply. Please check the exact VESA pattern and compatible bracket for your specific model and screen size.

³The strength and suitability of the installation wall and anchors are the responsibility of the customer. LG is not liable for damage or injury caused by improper installation or insufficient wall strength.

⁴Installation procedures and supported accessories may differ depending on your country, TV size, and model year. Always follow the instructions in the official LG Owner’s Manual and Quick Setup Guide for your specific product.

The LG OLED M4 TV is available in the following screen sizes:

97", 83", 77", and 65".¹

¹Product lineup and availability may vary by country or region. Please refer to your local LG website for the latest information.

LG OLED evo TVs are equipped with screen protection features to help prevent image retention and reduce the risk of burn-in. The key technology is Pixel Cleaning, which refreshes the OLED pixels to maintain optimal picture quality and panel longevity.

∙ Automatic Operation: Pixel Cleaning runs automatically after a certain period of accumulated usage, usually when the TV is turned off but remains plugged in.¹

∙ Manual Operation: You can also manually start Pixel Cleaning at any time by navigating to:

[Settings] → [General] → [OLED Care] → [OLED Panel Care] → [Pixel Cleaning] on your TV’s menu.

These features help keep your OLED panel in the best condition for long-term use.

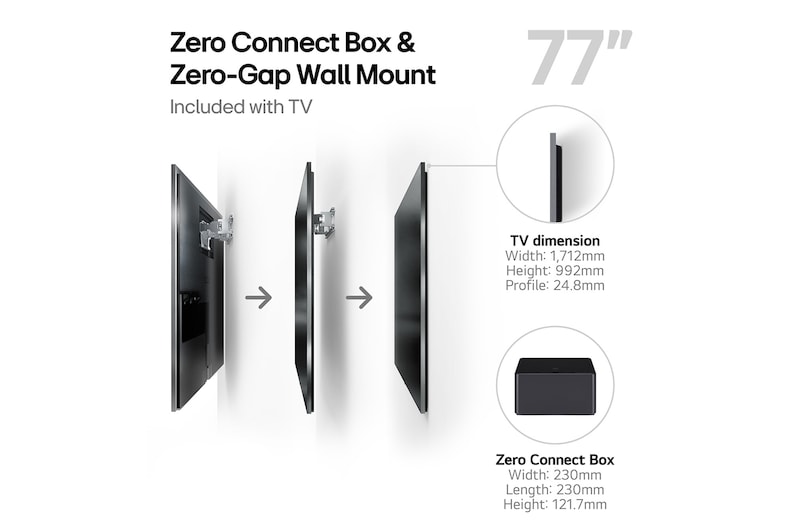

The LG OLED evo M4 TV uses a Zero Connect Box for all input connections, including HDMI.

HDMI 2.1 Ports: 3 (on the Zero Connect Box)¹

Supported Features:

 • Variable Refresh Rate (VRR) up to 144Hz (83", 77", 65"), up to 120Hz (97"),²

 • G-SYNC & AMD FreeSync Premium

 • ALLM (Auto Low Latency Mode)

 • QMS (Quick Media Switching)

 • eARC (Enhanced Audio Return Channel)

 • HGiG for HDR gaming

All HDMI ports on the Zero Connect Box support HDMI 2.1 bandwidth for the latest gaming and AV equipment.

¹The number of HDMI ports and some features may vary by model, region, or Zero Connect Box version. Always check your Owner’s Manual and local LG website for your specific model.

²Maximum VRR depends on model: 83"/77"/65" support up to 144Hz, 97" supports up to 120Hz. Please refer to your local LG website for full model specifications.
