86UU640C component-copyModelName

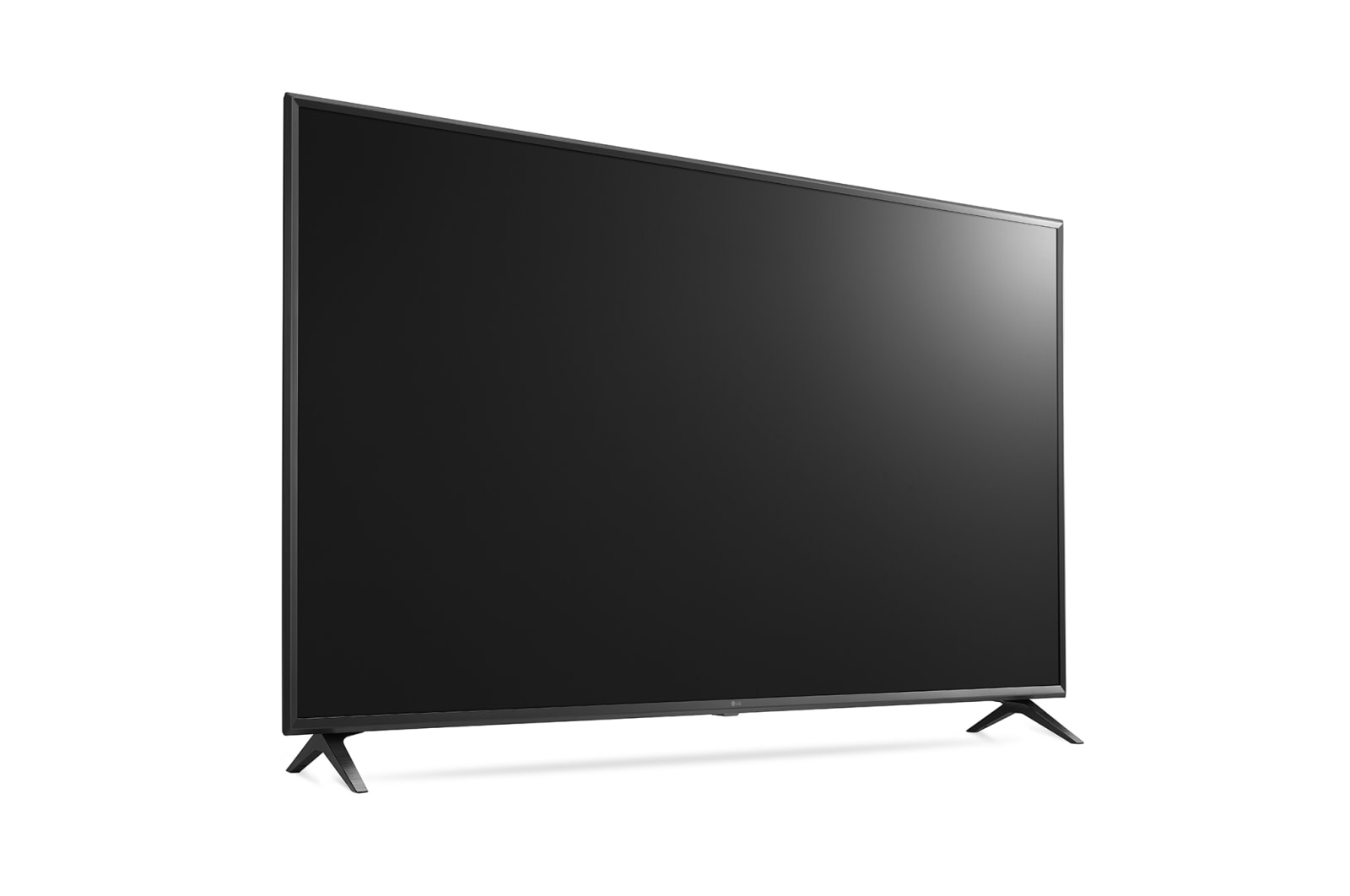

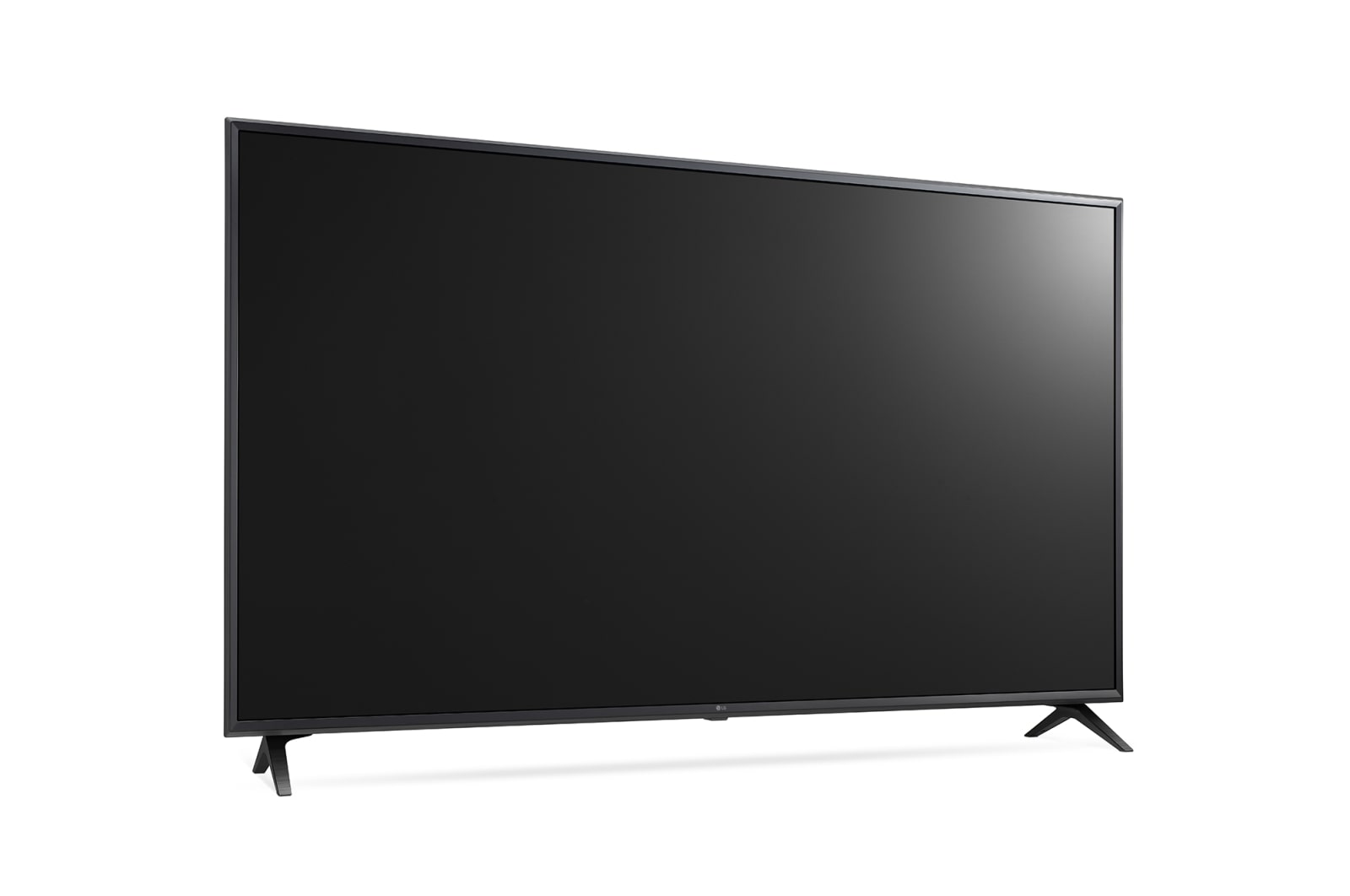

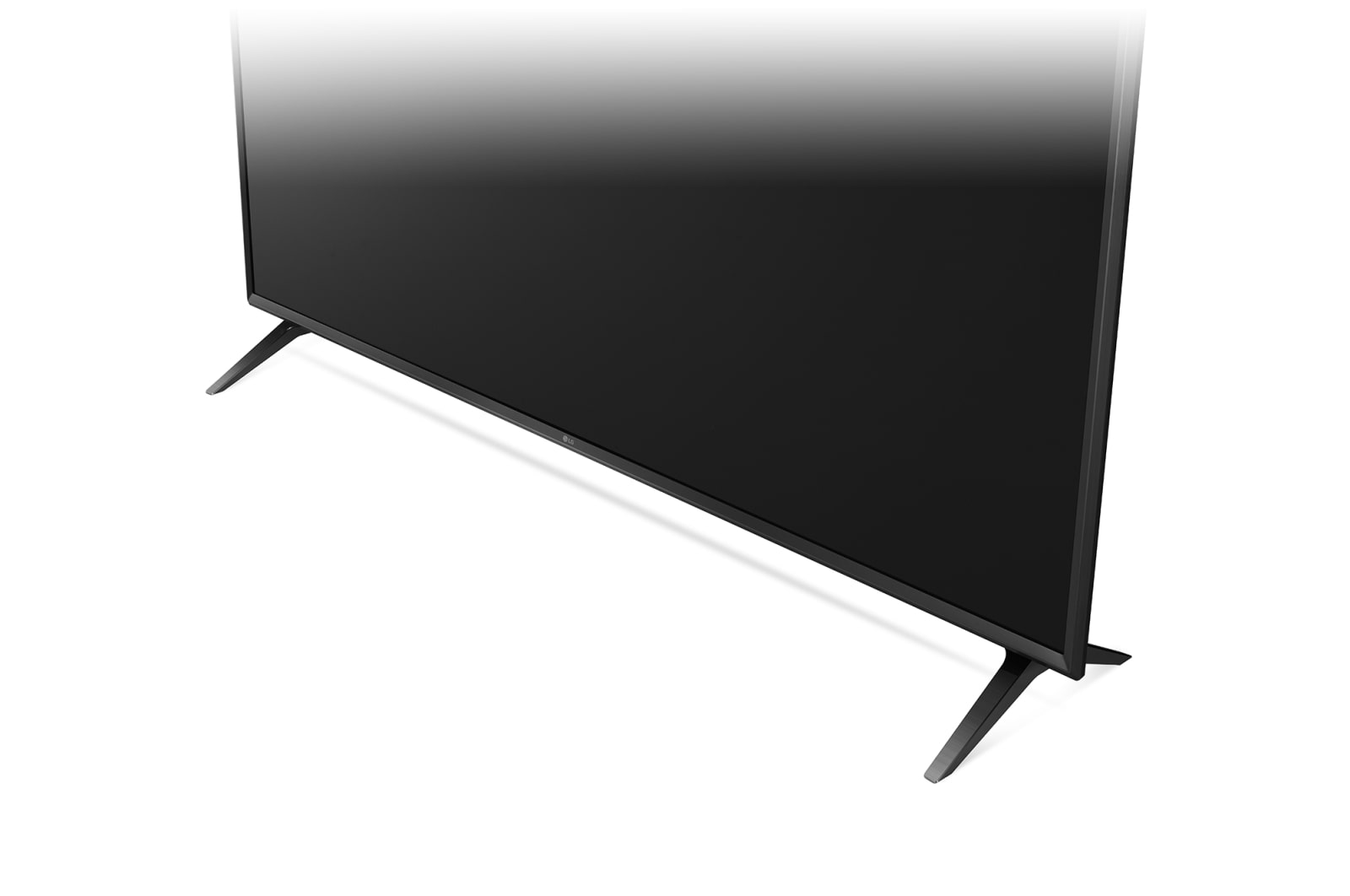

86'' UHD Commercial TV

Key Features

Choose your Size

Find a Dealer
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

86" UHD Commercial TV
Enquire To Buy
Close
PANEL
  • Screen Size
    86"
    Backlight Type
    LED
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    350
  • Static (Panel) Contrast Ratio
    1400:1
    Viewing Angle Degree
    178 x 178
  • Response Time (G to G, ms)
    5
BROADCASTING SYSTEM
  • Analogue
    PAL/SECAM
    Digital
    DVB-T2/C
VIDEO
  • XD Engine
    Yes
    Aspect Ratio
    5 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    Yes / No
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    Clear Voice III
  • Dolby Atoms
    No
    Adaptive Sound Control
    Yes
  • One Touch Sound Tuning
    No
    Audio Channel
    Yes
SMART FEATURE
  • Smart Feature
    webOS 4.0, Commercial Smart Home (Launcher Bar), Web Browser, Pre-loaded App (YouTube Only), Soft AP, Wi-Fi (ac), Screen Share (Miracast), DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay, Music Player
SUPERSIGN SW COMPATIBILITY1)
  • Supersign sw Compatibility1)
    Content Management Software (CMS), Control and Monitoring Software (Control/Control+), Simple Editor
FUNCTION
  • Function
    USB Cloning, WOL (Magic Packet Only), SNMP, Diagnostics, SI Compatible, HDMI-CEC (1.4), HTNG-CEC (1.4), IR Out, Multi IR Code, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
HOSPITALITY FEATURES
  • Hospitality Features
    Hotel Mode / PDM / Installer Menu, Lock Mode (Limited), Welcome Screen, Insert Image, One Channel Map, RJP Compatibility, Crestron Connected® (Network Based Control), RJP Interface, DPM, Time Scheduler, RTC, BEACON, Healthcare Headphone Mode, Embedded Content Manager / Group Manager
JACK INTERFACE
  • Set Side
    HDMI In 2.0 (2), USB 2.0, CI Slot
    Set Rear
    RF In, Digital Audio Out (Optical), HDMI/HDCP Input 2.0, RS-232C (Control & Service, phone jack type), Headphone Out, RJ45, Debug
DIMENSION(UNIT: MM)
  • VESA Compatible
    600 x 400
    W x H x D / Weight (with stand)
    1,943 x 1,188 x 345 / 45kg
  • W x H(H') x D / Weight (without stand) *H': Set
    1,943 x 1,113 (1,118) x 77.9 (SPK 93.3) / 44.2kg
    W x H x D / Weight (Packing)
    2,116 x 1,261 x 285 / 59kg
POWER(UNIT : WATTS)
  • Voltage, Hz
    100 ~ 240 V, 50/60 Hz
    Max
    320.8
  • Typical
    306.4
    Energy saving (Min/Med/Max)
    199 / 130 / 54
  • Stand-by
    0.5 ↓

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
