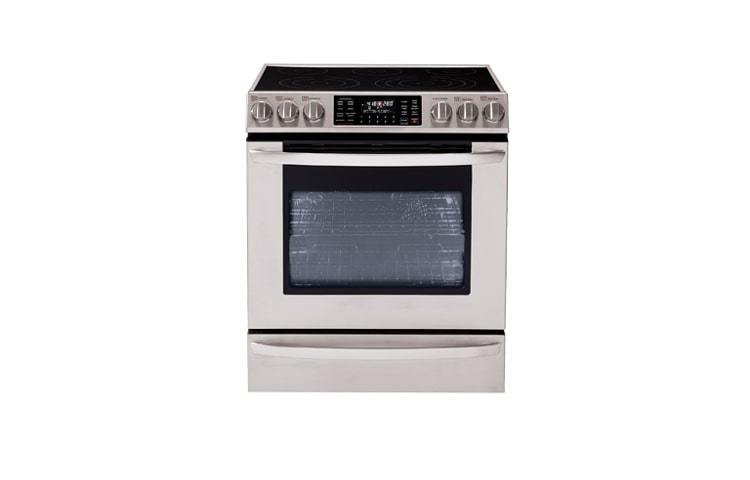

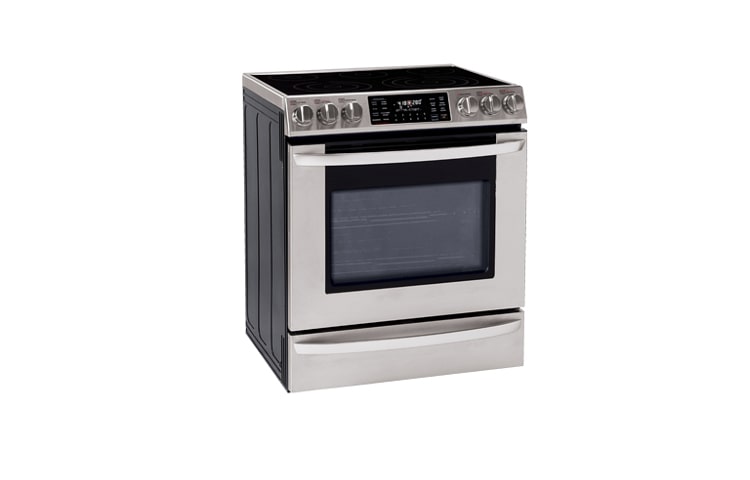

5.4 cu. ft. Large Capacity Slide-In Electric Range with Dual True Convection System

5.4 cu. ft. Large Capacity Slide-In Electric Range with Dual True Convection System

All Spec

GENERAL

  • Type

    Electric Slide-In

  • Capacity

    5.4 cu.ft.

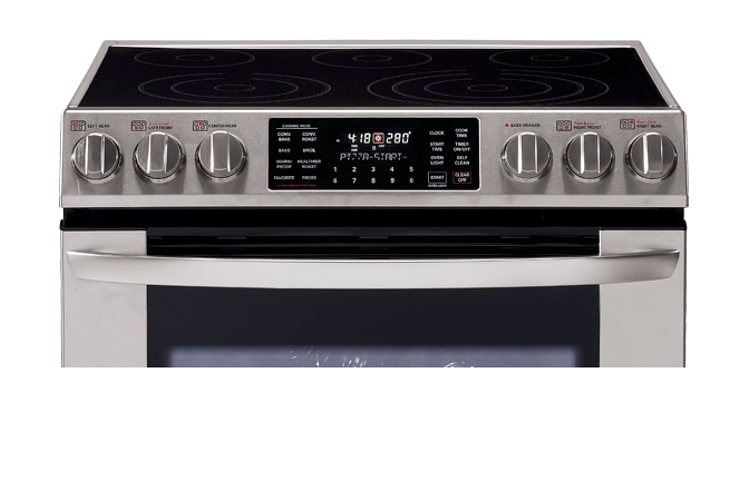

CONTROLS

  • Oven / Cooktop

    SmoothTouch™ / Knobs

  • Display

    White VFD

  • Electronic Clock & Timer

    Yes

  • Control Lock Function

    Yes

  • Audible Preheat Signal

    Yes

  • Special Functions

    Temperature Unit of Measure (F/C), Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off

  • Door Lock

    Yes

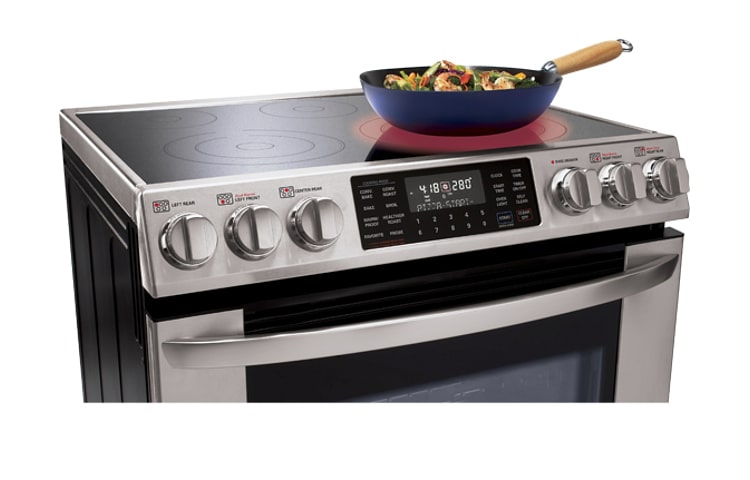

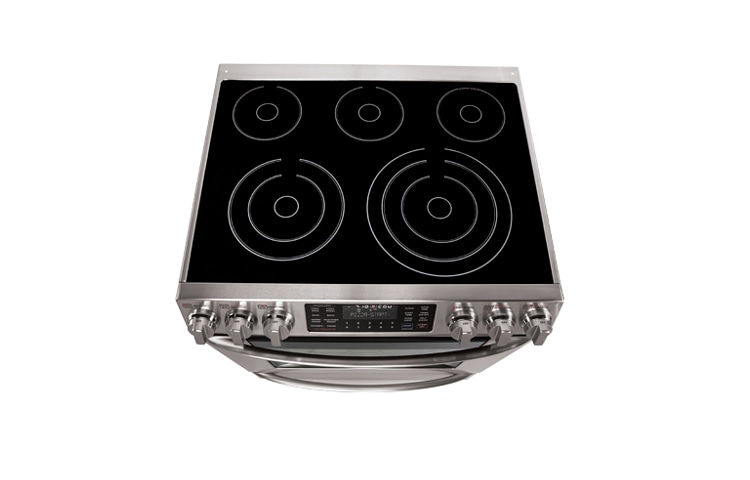

COOKTOP

  • Type

    Radiant

  • Warming Zone

    Yes

  • No of Radiant Elements

    5

ELEMENT SIZE AND WATTAGE

  • Left Front

    6”, 9”/1400W & 3000W

  • Right Front

    6”, 9”, 12”/1100W, 2200W, 3000W

  • Left Rear

    6" / 1200W

  • Right Rear

    6" / 1200W

  • Centre Rear (Warming Zone)

    7"/ 100W

OVEN

  • Self-Cleaning

    Yes

  • Variable Cleaning Time

    2 hr, 3 hr & 4 hr

  • Broil Element

    6 Pass / 4000W

  • Bake Element

    6 Pass / 3400W

  • Convection Conversion

    Yes

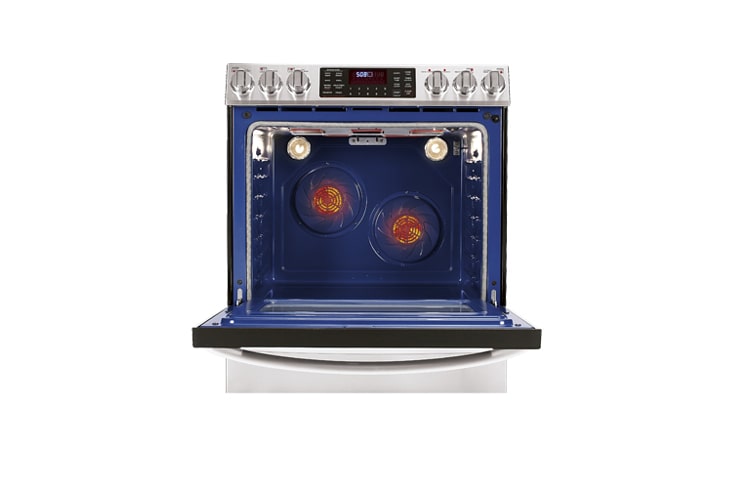

  • Convection System

    Dual True Convection

  • Convection Bake

    Yes

  • Convection Roast

    Yes

  • WideView™ Window

    Yes

  • Automatic Shut-Off

    After 12 hours

  • GoCook™ Smart Oven Light

    Yes

  • Delay Clean

    Yes

  • Delay Bake

    12 Hours

  • Interior Oven Light Adjustment

    1, Auto/Manual

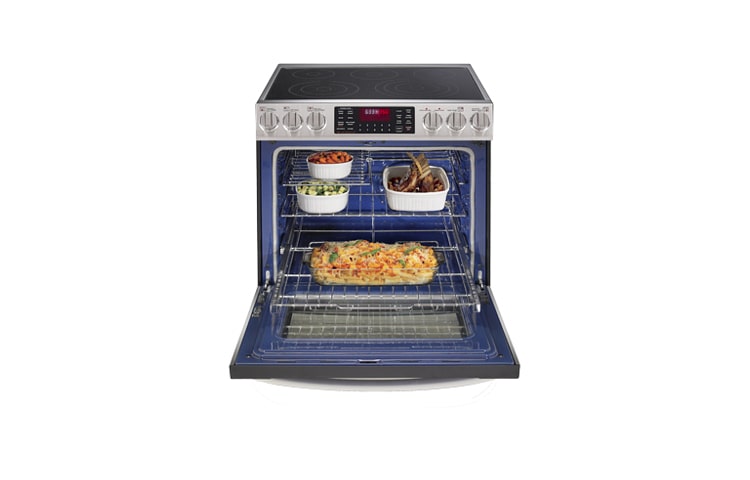

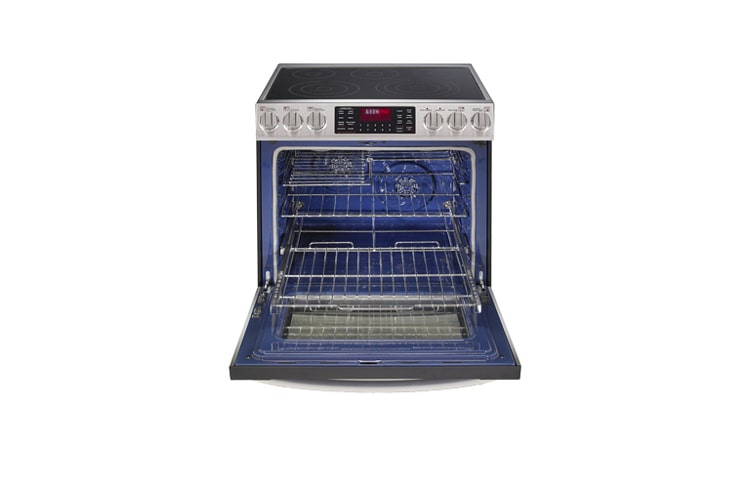

  • No. of Racks/Positions

    2 Full, 1 Gliding, 1 Split/7

  • Healthier Roast Convection

    Yes

DRAWER

  • Type

    Bake Drawer

  • Capacity

    1.0 cu.ft.

MATERIALS/FINISHES

  • Available Colours

    Stainless Steel (ST)

  • Oven Interior

    Brilliant Blue

  • Knobs

    Matching Metal

  • Handles

    Matching Commercial Handle

POWER SOURCE

  • Requirements

    120/240 VAC, 120/208 VAC, 15.3kW/40A, 11.5kW/40A

DIMENSIONS

  • Width

    29 7/8"

  • Height (to top of cooktop)

    36"

  • Oven Capacity (WxHxD)

    24 1/2" x 19 11/16" x 19 3/8"

  • Drawer (WxHxD)

    22 1/4” x 5” x 16 1/2”

  • WideView™ Window (WxH)

    20 1/4" x 12 1/4"

  • Depth (including handle)

    28 7/8”

  • Net Weight

    181 lbs

  • Depth (including door)

    26 3/8”

UPC CODE

  • LSE3092ST

    772454 051043

WARRANTY

  • Warranty

    1 Year Parts and Labour, 5 Years Limited on Cooktop and Radiant Surface Units
