- DC Inverter Technology
- BLDC Fan Technology
- Powerful BLDC Compressor
- Night Quiet Operation
All Spec

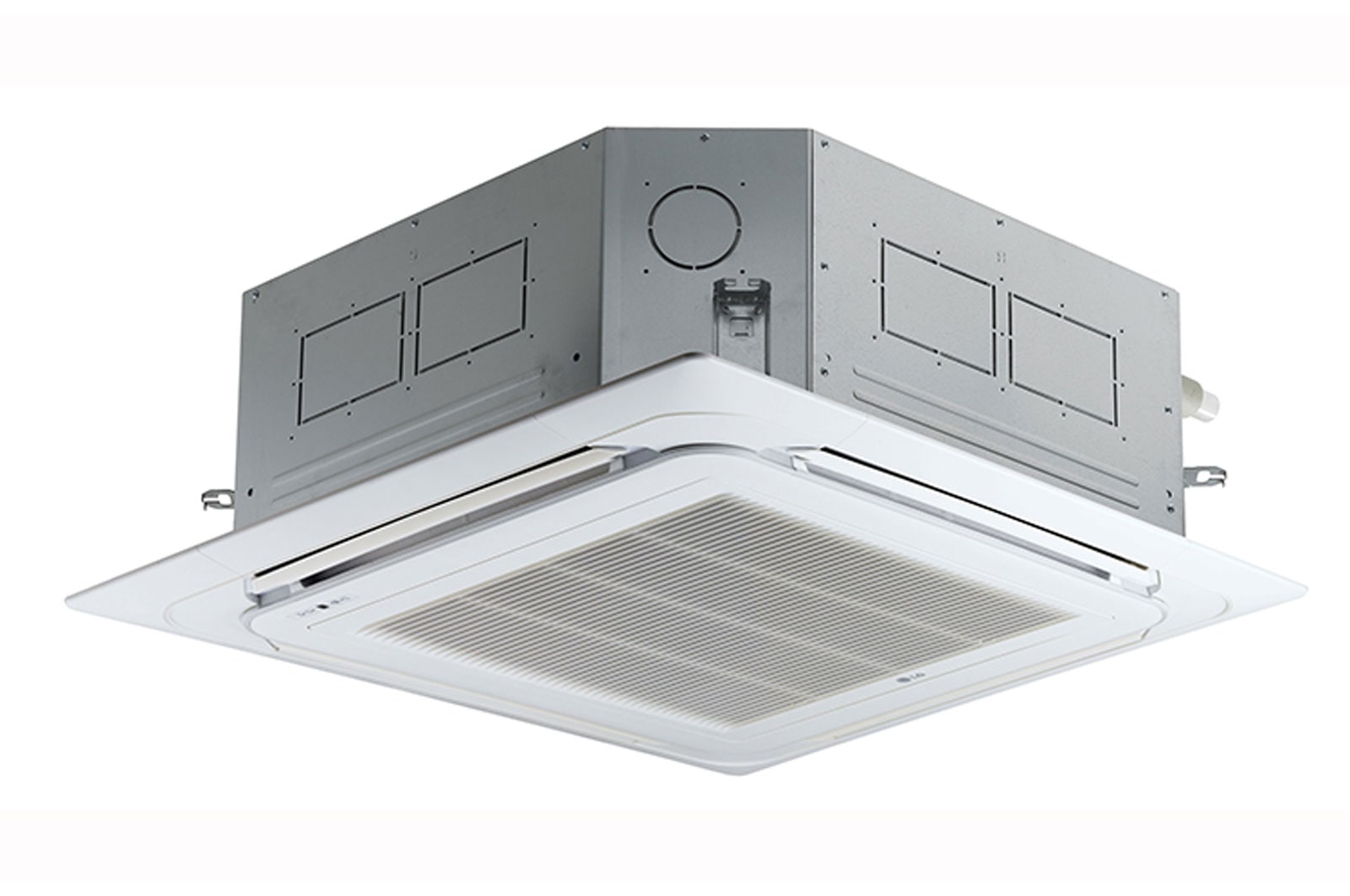

INDOOR SPECIFICATIONS
Front Panel
PT-UMC1
Power Supply (V/ø/Hz)
220~240 / 1 / 50
Capacity Cooling (Min/Rated/Max)
4.5 / 9.5 / 13.0 kW
Capacity Heating (Min/Rated/Max)
5.0 / 10.8 / 13.7 kW
Fan
Air Flow Rate (l/s): 500/416/333(High/Medium/Low)
Dimensions (WxHxD)
840 x 288 x 840 mm / [Decorative Panel (WxHxD) (950 x 25 x 950 mm)]
Net Weight
24.6kg Indoor
Sound Level (High/Medium/Low)
46/43/40 dBA
Piping Connection
[Liquid (ø 9.52 mm)] / [Gas (ø 15.88 mm)] / [Drain (ø 32/25 mm)]
Referigerant
R32

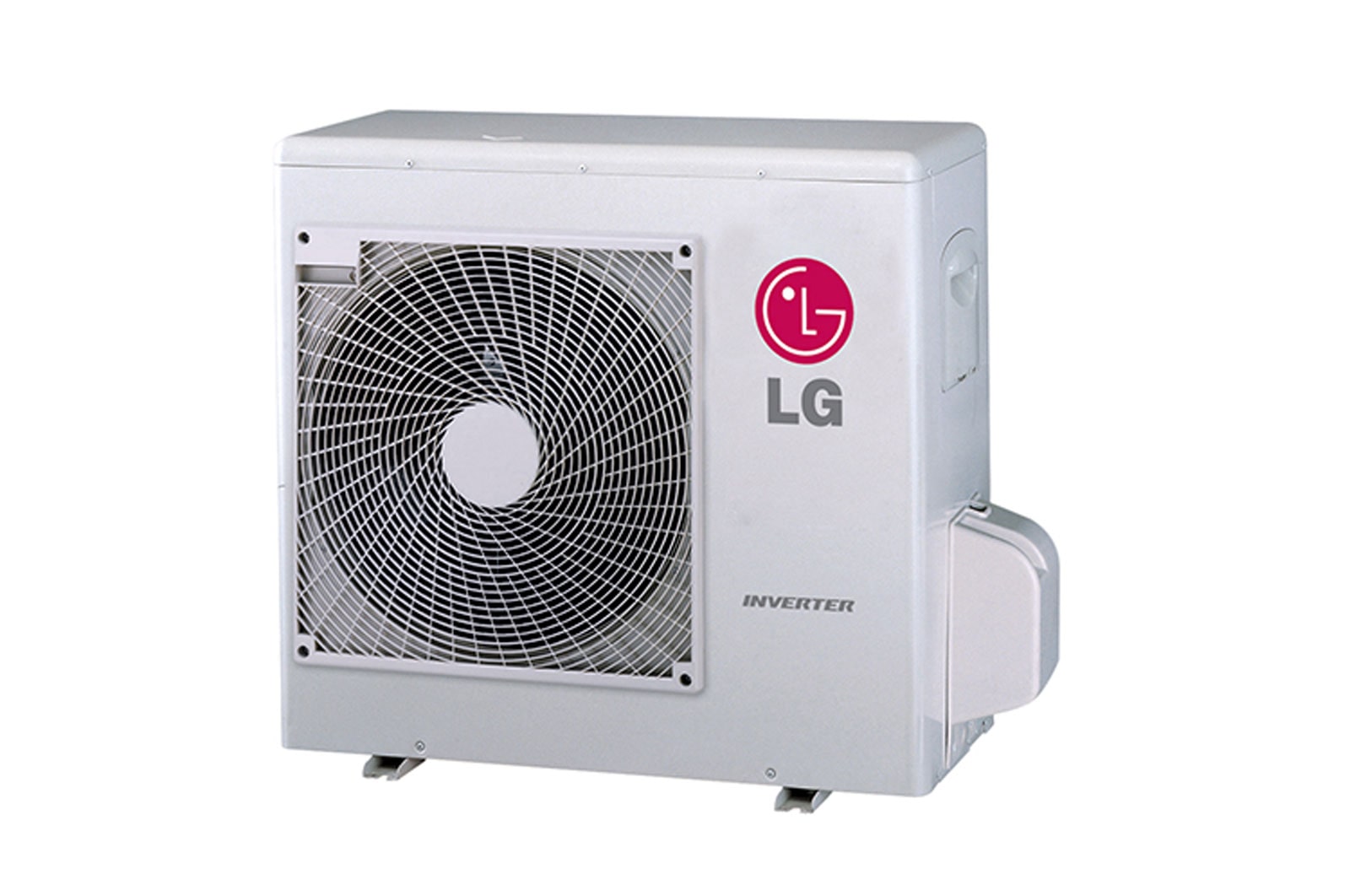

OUTDOOR SPECIFICATIONS
Power Supply (ø/V/Hz)
220 ~ 240 / 1 / 50
Dimensions (WxHxD)
950 x 1,380 x 330 mm
Net Weight
87.5 kg
Compressor
LG Inverter Scroll
Sound Level (Max Power)
66 dBA
Sound Pressure (Cooling/Heating) (Rated)
52 dBA / 54 dBA
Piping Length Total
85mm
