LAE Standard-Q
LAE-Q Standard
The LAE-Q Standard series is suitable for a variety of indoor installations, with precision-machined aluminium die-cast frames than enable easy and near seamless screen building.

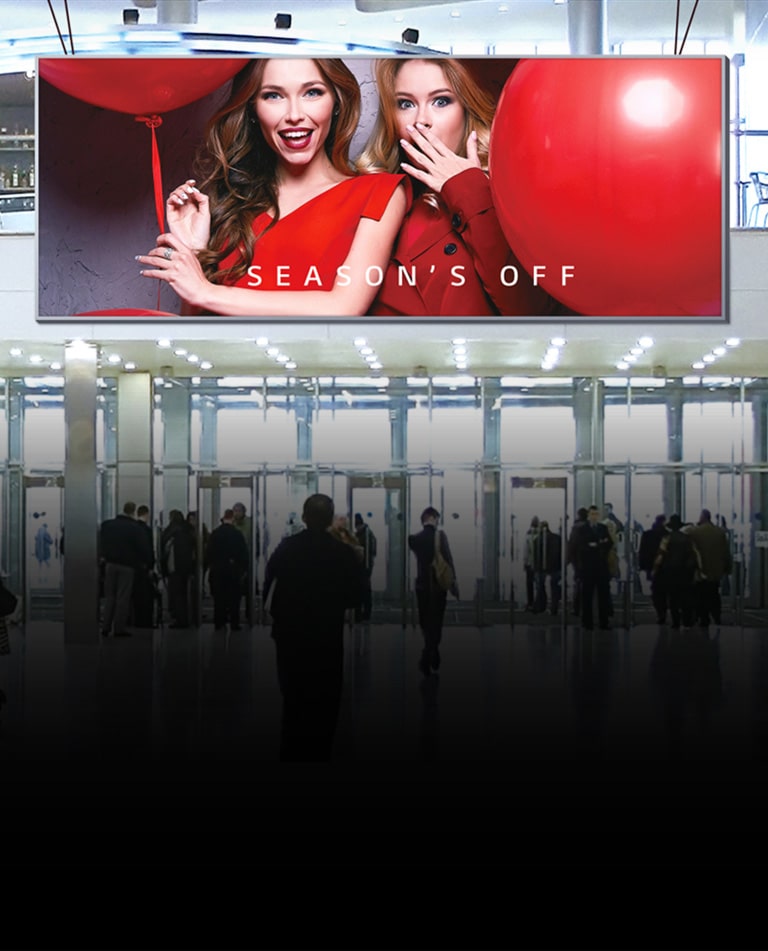

1,200nit High Brightness
Installed in a large venue with natural or indoor lighting, this high-brightness product immediately captures the audience’s attention and effectively delivers your message.

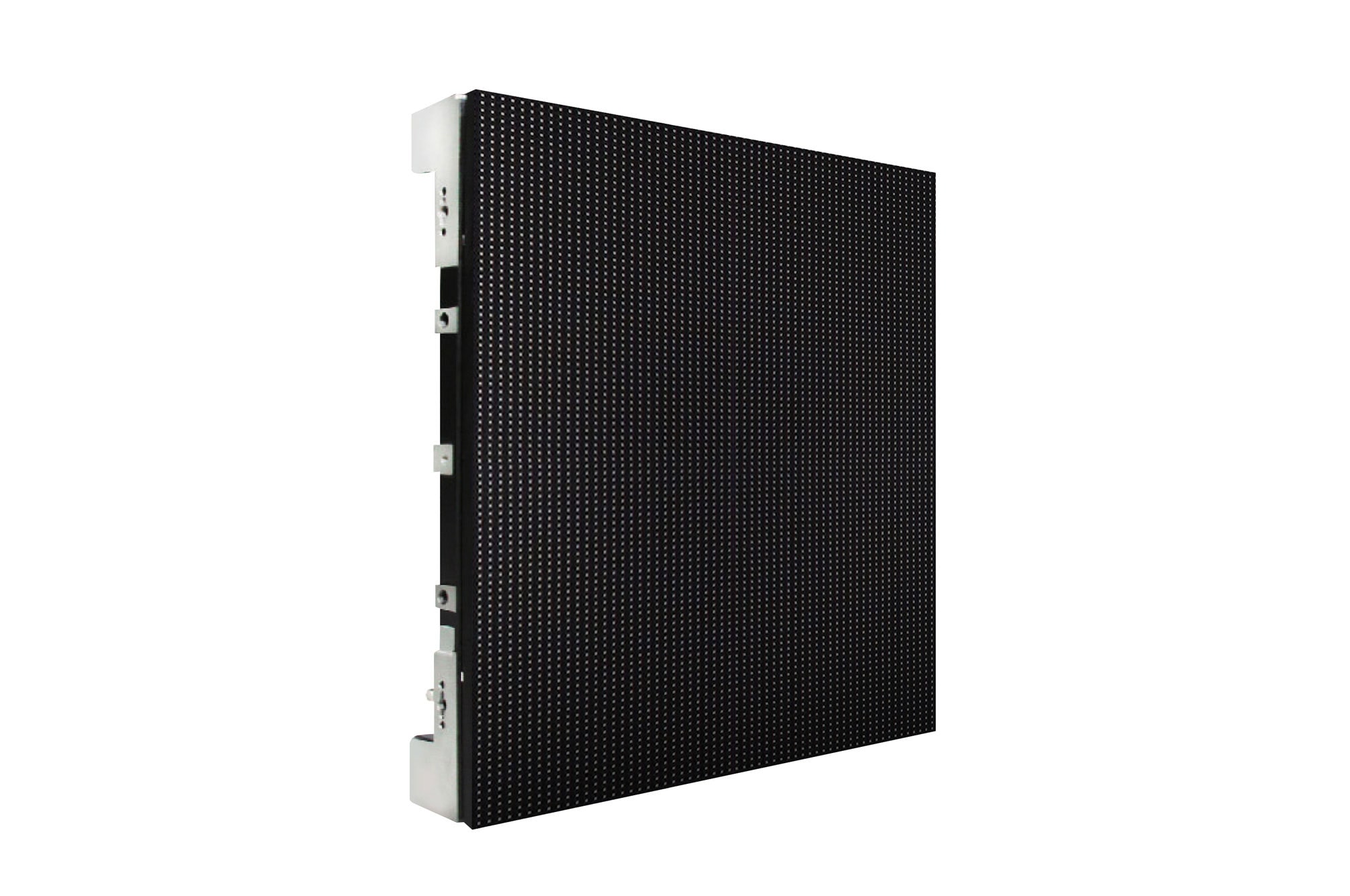

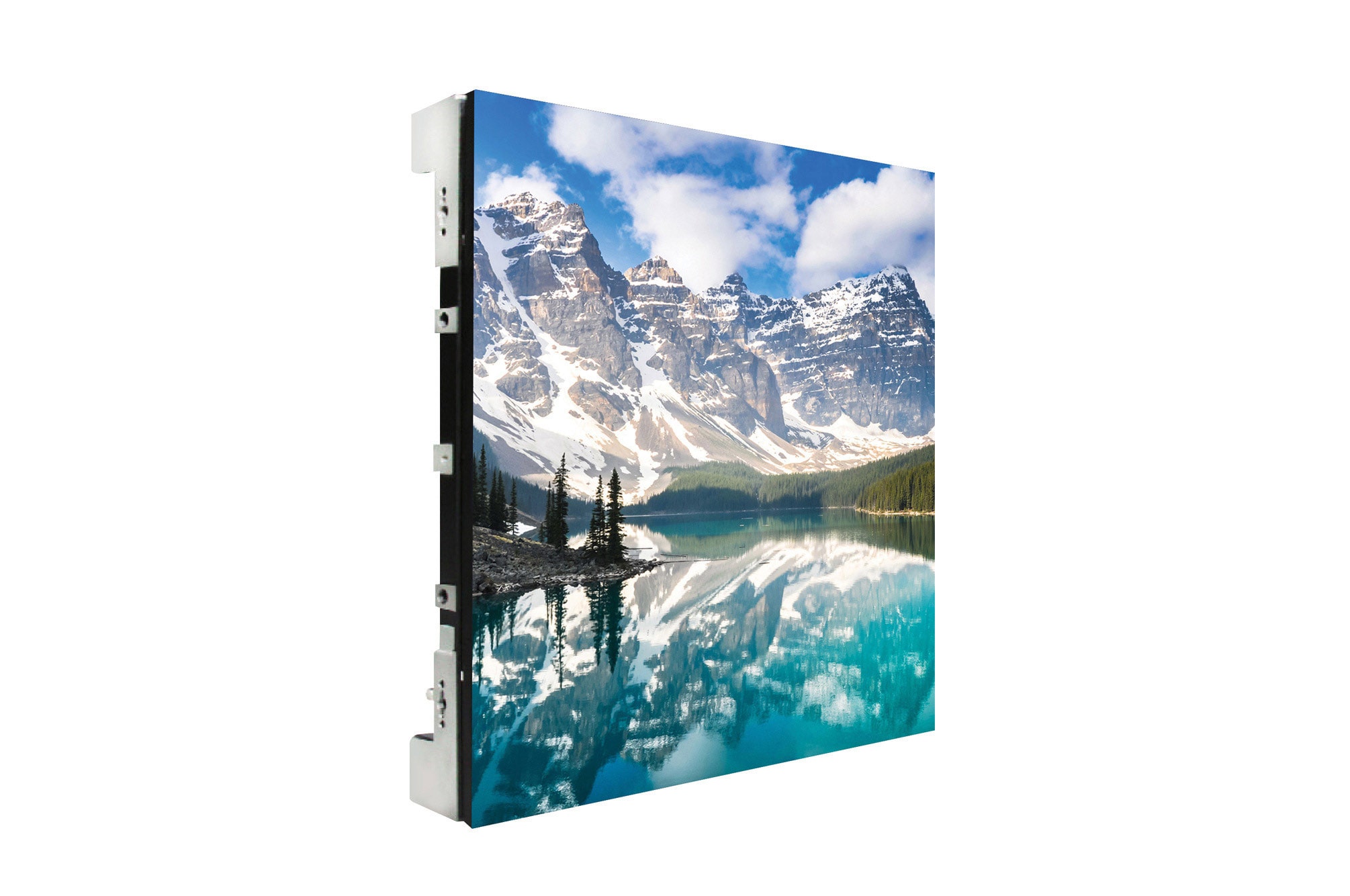

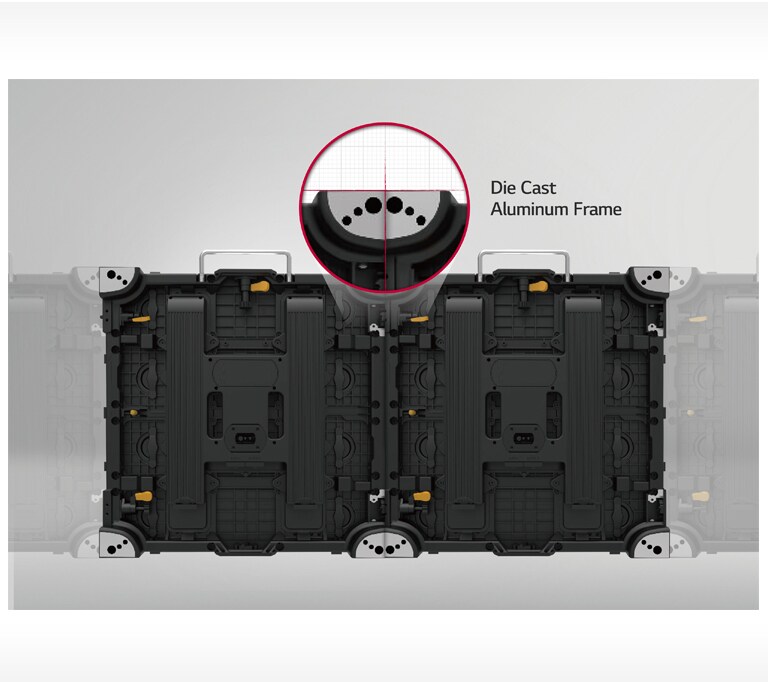

Die Cast Aluminum Frame Design
The unit cases come in clean angles and finishes to help ensure near seamless screens every time.

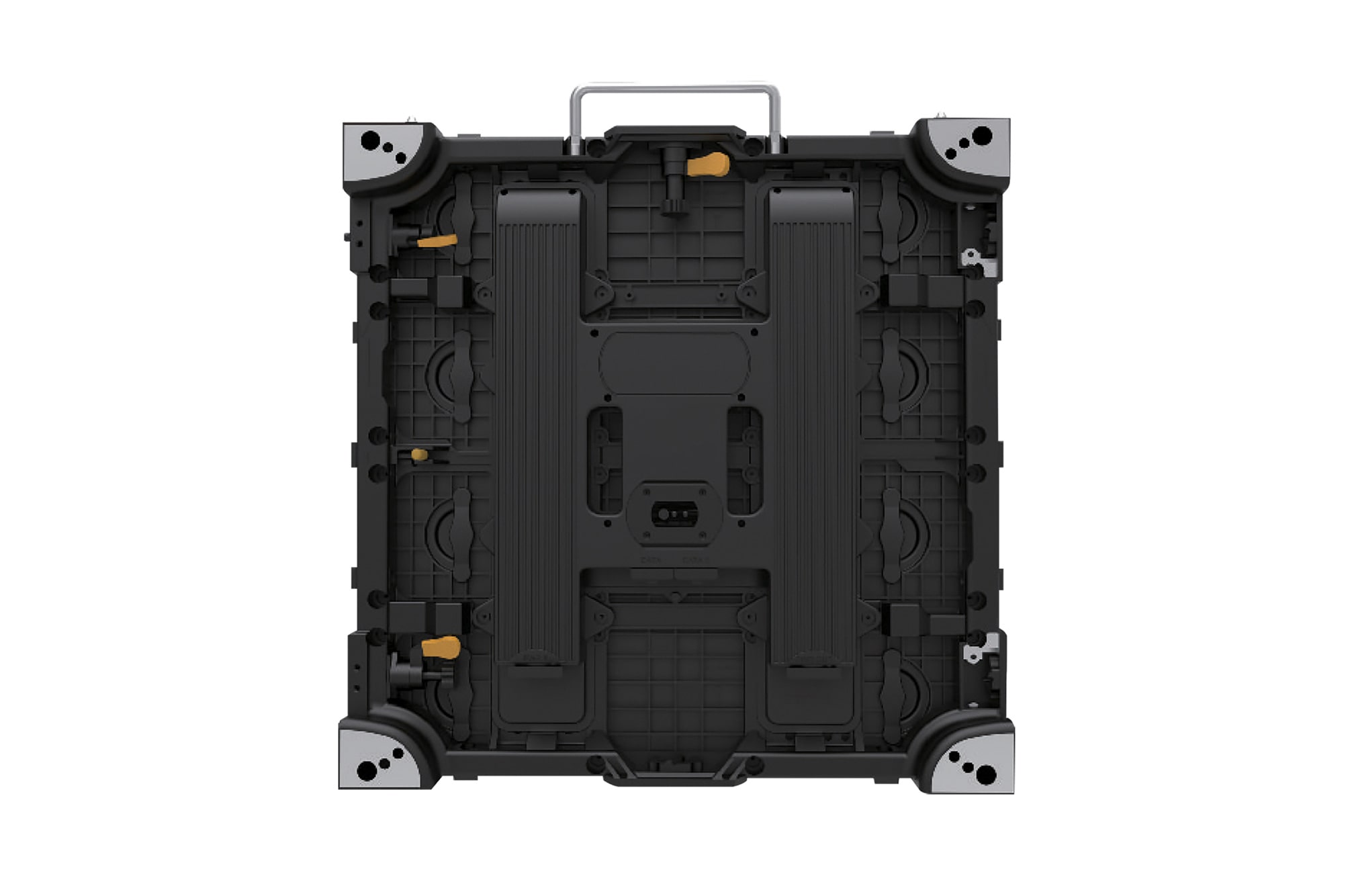

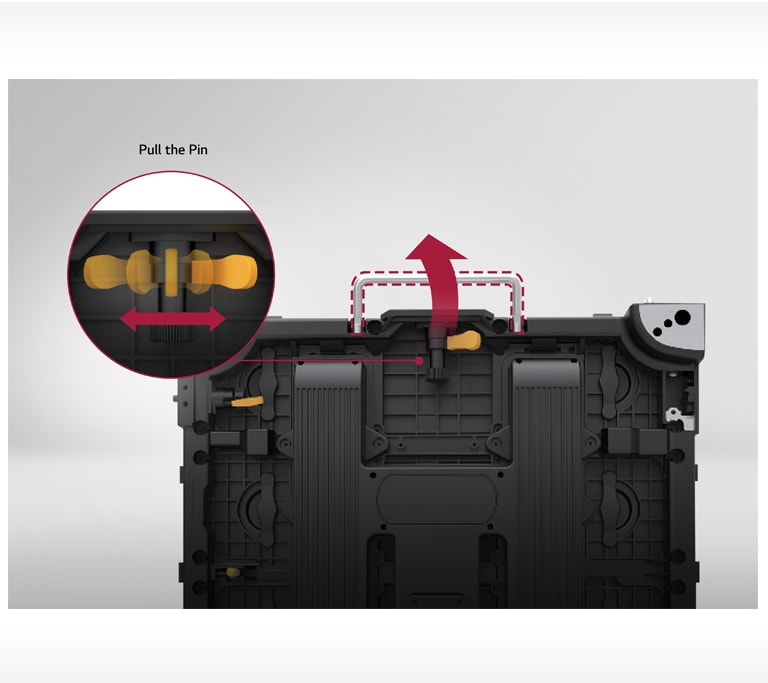

Simple Locking System
No extra tools are needed; each unit case has a lever on the back that easily locks into the unit cases joined to the top and left.

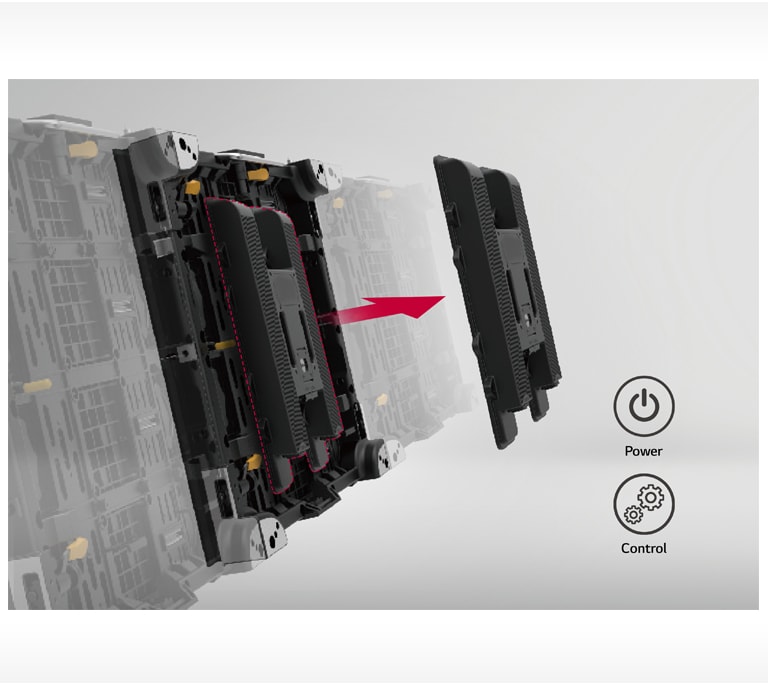

Attachable Power and Control Modules
Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

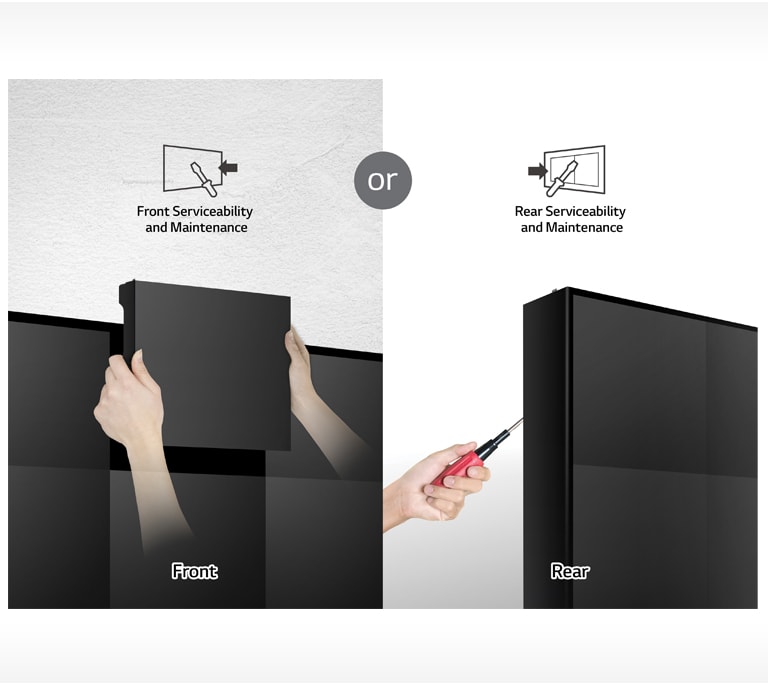

Front or Rear Serviceability and Maintenance
The product offers both front access or rear access, allowing customers to choose according to their installation environment and minimising limitations in installation and maintenance.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides near seamless content with high brightness uniformity.
*Images dramatised for illustrative purposes only.
Vividness with Colour Accuracy
LG LED signage reproduce accurate and consistent colours, with minimal distortion.
*Images dramatised for illustrative purposes only.
| Model Name | LAE026DD4-Q | LAE039DD4-Q |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch (mm) | 2.60 | 3.91 |
| Unit Case Resolution (W × H) | 192 × 192 | 128 × 128 |
| Unit Case Dimensions (W × H × D) | 500 × 500 × 81 | 500 × 500 × 81 |
| Weight per Unit Case/ Square Meter (kg) | 7.5/30.0 | 7.5/30.0 |
| Service access | Front or Rear | Front or Rear |
| Brightness (After Calibration) | 1,200 cd/㎡ | 1,200 cd/㎡ |
| Colour Temperature | 6,500 | 6,500 |
| Viewing Angle (H × V) | 160/160 | 160/160 |
| Brightness Uniformity | 97％ | 97％ |
| Colour Uniformity | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 |
| Processing Depth (bit) | 13 | 13 |
| Power Consumption per unit (Avg W/Max W) | 56/168 | 56/168 |
| Power Consumption per m² (Max W) | 672 | 672 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 1,920 | 1920 |
| Lifetime Hrs (Half Brightness)* | 50,000 | 50,000 |
| Operating Temperature (°C) / Humidity | -10° to 45°/0-80％RH | -10° to 45°/0-80％RH |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
