Stretch Signage

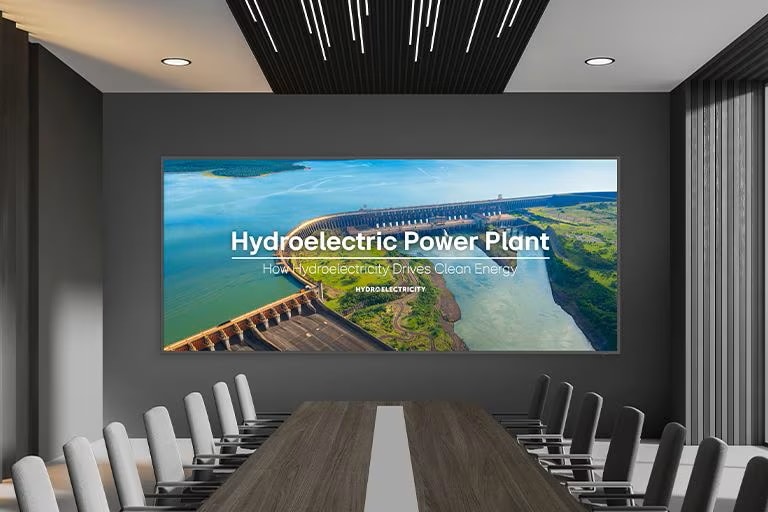

A wide display is installed on the wall of the spacious conference hall, and presentation is prominently and clearly displayed on the large screen.
*Images are for illustrative purposes only.
With support for a 21:9 widescreen aspect ratio, 105BM5N provides an immersive viewing experience with a wider screen than a 16:9 display. Its screen specialisation helps display 21:9 content including widescreen videoconferencing platforms with natural details.

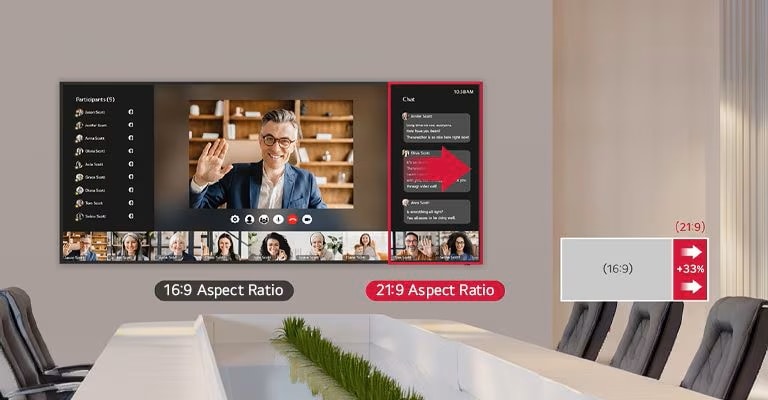

The 105BM5N screen with a 21:9 ratio is installed in a meeting room, providing more information than a 16:9 screen.
* Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.
The 105BM5P offers versatile usage, with the ability to be used in both vertical and horizontal orientations. This flexibility allows it to adapt to various installation and usage scenarios.
* Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.
USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

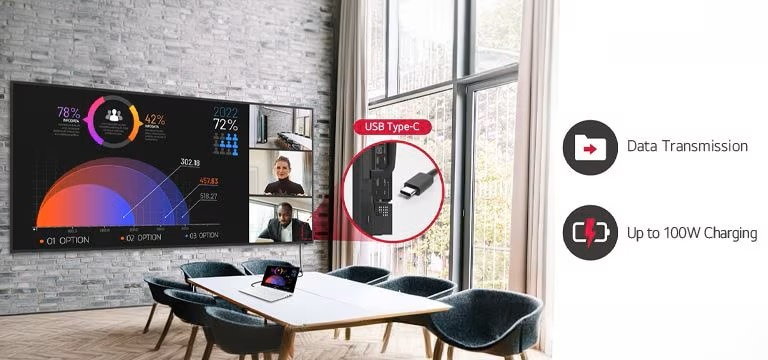

A laptop is connected to the 105BM5N in a meeting room. The 105BM5N supports USB Type-C, allowing simultaneous data transfer and charging through a single cable, promoting a seamless meeting environment.
* USB Type-C cables are sold separately.
Using the LG CreateBoard Share allows for the seamless wireless screensharing of presentation materials, eliminating the clutter of wires and leading to a more streamlined meeting space. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.

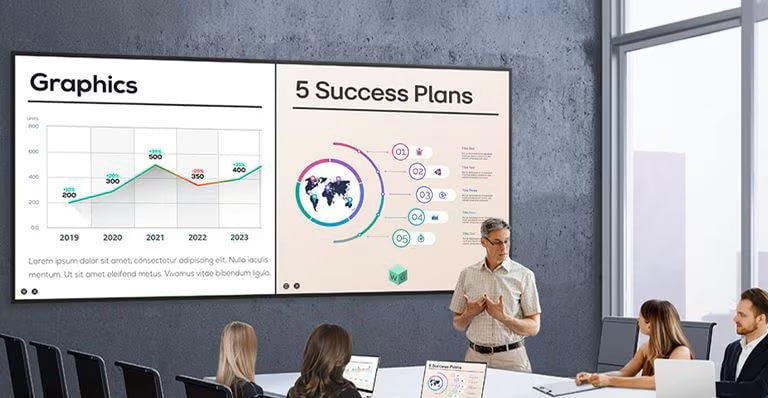

The screens of meeting participants are wirelessly shared on the 105BM5N widescreen, allowing multiple people to share their materials simultaneously on a single screen without any cable interference.
* LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network..
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

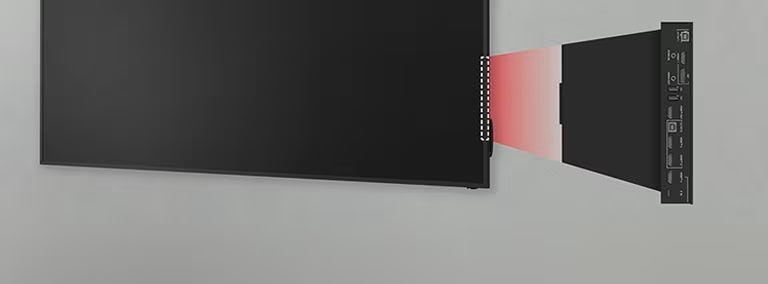

105BM5P supports OPS slots, allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5P.
Through the OPS slots, users can conveniently mount the OPS Module on the 105BM5N, enabling various PC functions and Windows software on the 105BM5N.
* OPS : Open Pluggable Specification
* OPS Player for 105BM5P supports 4K output and is sold separately.
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of devices. This feature enables IT managers to manage important resources on operating devices without physically visiting sites.
* LG ConnectedCare DMS needs to be purchased separately.
* LG Connected Care DMS is available in Australia. For more details, please contact your local LG sales representative.
* LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3DK, TR3DJ, TR3PJ) and Stretch Signage (105BM5N) under a cloud environment.
The IT administrator can remotely control and set up devices within the meeting room via LG ConnectedCare DMS.
Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.

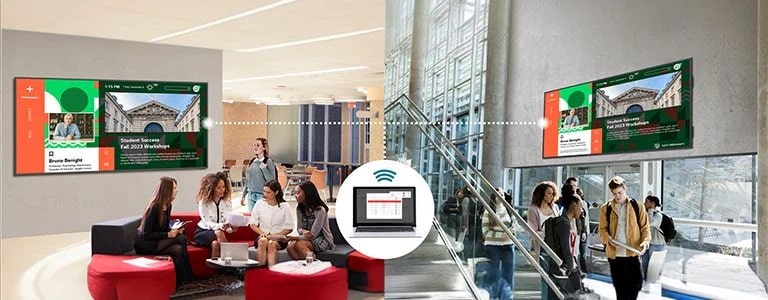

Company announcements and schedules are being displayed on the wide screen in the company's lobby. With LG ConnectedCare DMS, IT manager can remotely broadcast the content to specific devices.
Messages and a range of other content can be sent from the main system's hub to individual devices connected to LG ConnectedCare DMS and you can easily display important company notices or schedules right on your device. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which helps people promptly take a safety action.
Screen Size (Inch)
105"
Panel Technology
IPS(ADS)
Aspect Ratio
21:9

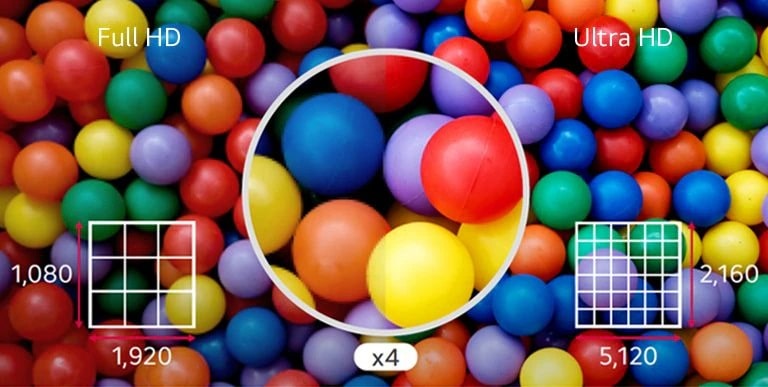

Native Resolution
5120 X 2160 (5K)
Refresh Rate
60Hz
Brightness
440nit (typ.),385nit (Min.)
Contrast Ratio
1200:1
Dynamic CR
5000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
10bit(8bit + FRC)
Response Time
8ms
Surface Treatment (Haze)
25%
Life time
50,000 Hours (Min)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
Yes / Yes
HDMI In
Yes (4) HDCP 2.3 ※ O(1, HDMI2.1), O(3, HDMI2.0)
DP In
Yes (1) HDCP 2.3
Audio In
Yes (1)
RS232C In
Yes (1)
RJ45(LAN) In
Yes (1)
USB In
USB Type C(1)(100W PD, DP-Alt)
USB3.0 Type A(4)
USB2.0 Type A(3)
USB2.0 Type B out (3)
DP Out
No, HDMI Out (1)
Audio Out
Yes (1, Optical 1(SPDIF))
RJ45(LAN) Out
Yes (1)
Bezel Color
Black
Bezel Width
T/R/L/B : 18/18/18/18mm
Weight (Head)
54.1Kg
Packed Weight
75.9Kg
Monitor Dimensions (W x H x D)
2490 X 1074 X 77mm
Carton Dimensions (W x H x D)
2668×280×1233mm
Handle
Yes
VESA Standard Mount Interface
1000 X 600mm
Internal Memory (eMMC)
64GB
Wi-Fi/BT (Built-in)
Yes (Slot type)
Auto Brightness Sensor
Yes
Power Indicator
Yes
Local Key Operation
Yes (Power Key)
OS Ver. (webOS)
Android 13.0 (AOSP)
USB Plug & Play
Yes
Fail over
Yes
PIP
Yes (1 external source)
Screen Share
Yes (LG CreateBoard Share)
Crestron Connected
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
HDMI-CEC
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 90 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
412W
Max.
632W
BTU (British Thermal Unit)
1406 BTU/Hr(Typ.), 2156 BTU/Hr(Max)
DPM
≤0.5W
Power off
≤0.5W
Speaker (Built-in)
Yes (16W x 2 + 15W)
Safety
CB / NRTL (cULus)
EMC
FCC Class "A" / CE
ERP / Energy Star
Yes / Yes
OPS Type compatible
Yes (Slot)
OPS Power Built-in
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil) Russian, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Swedish, Finnish, Norwegian, Danish
Basic
Power cord, HDMI Cable, Remote Controller
Remote battery, SI07B, Wall Mount
Optional
OPSJ-5LDJA(4K)
