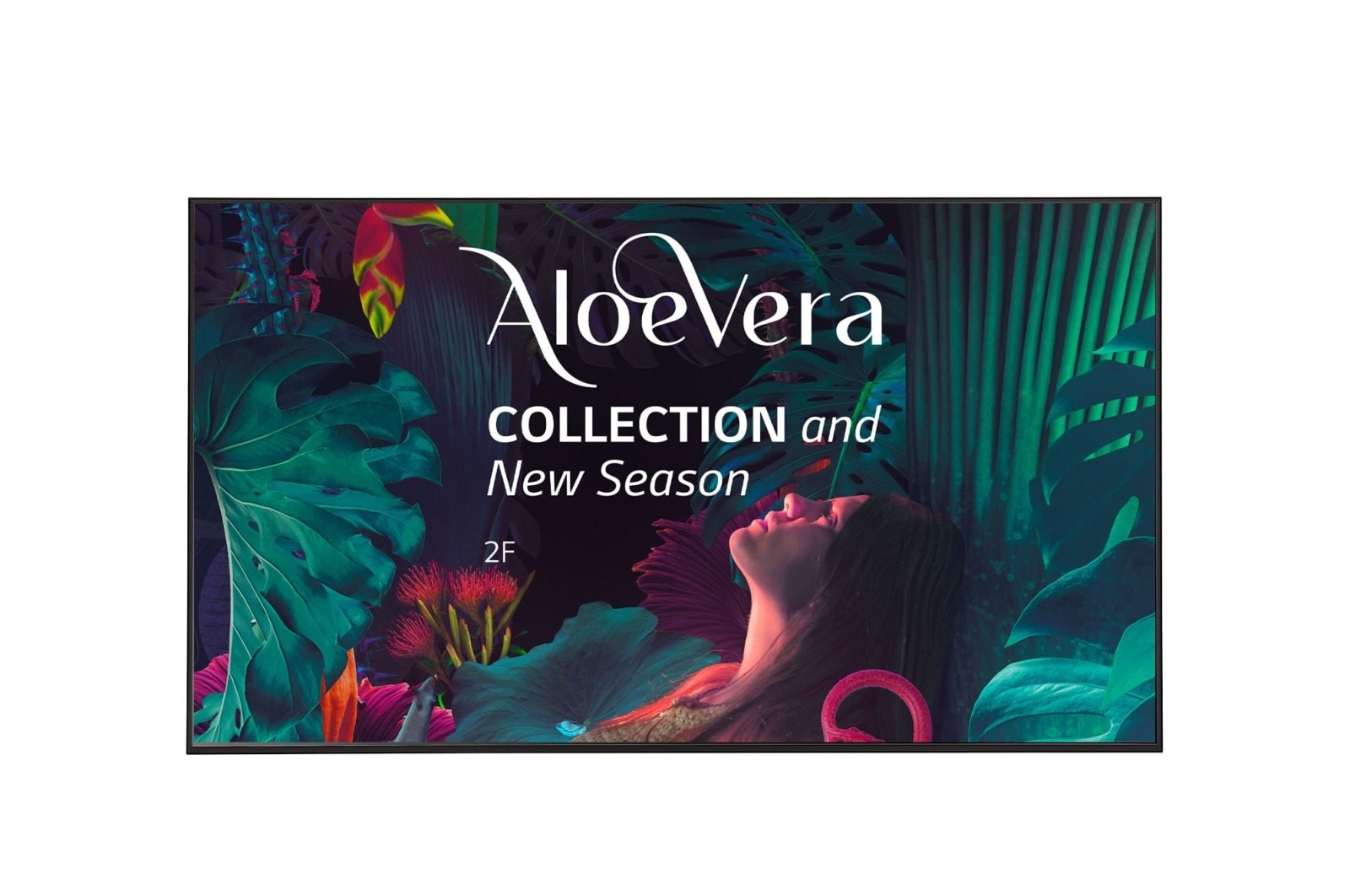

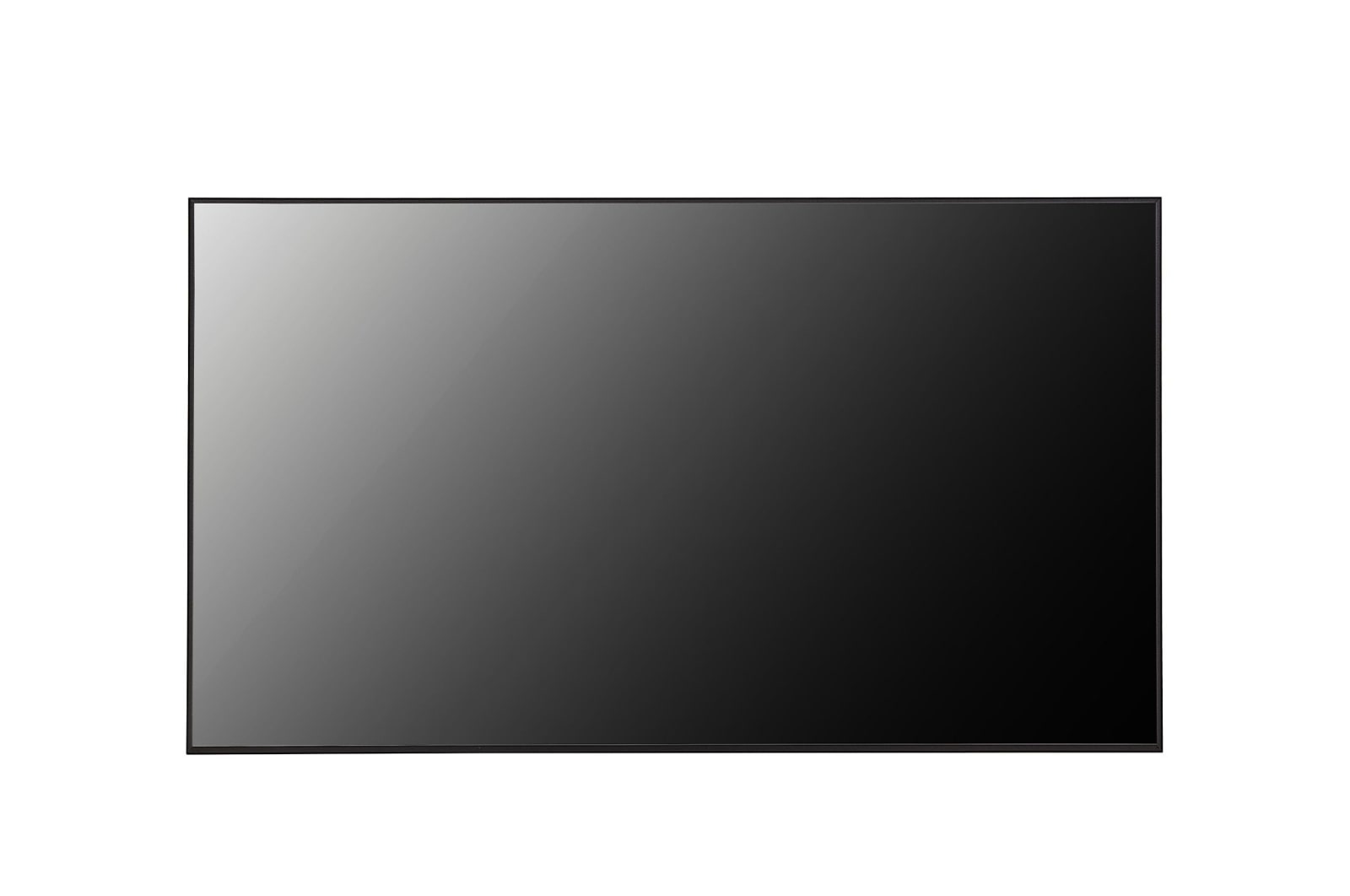

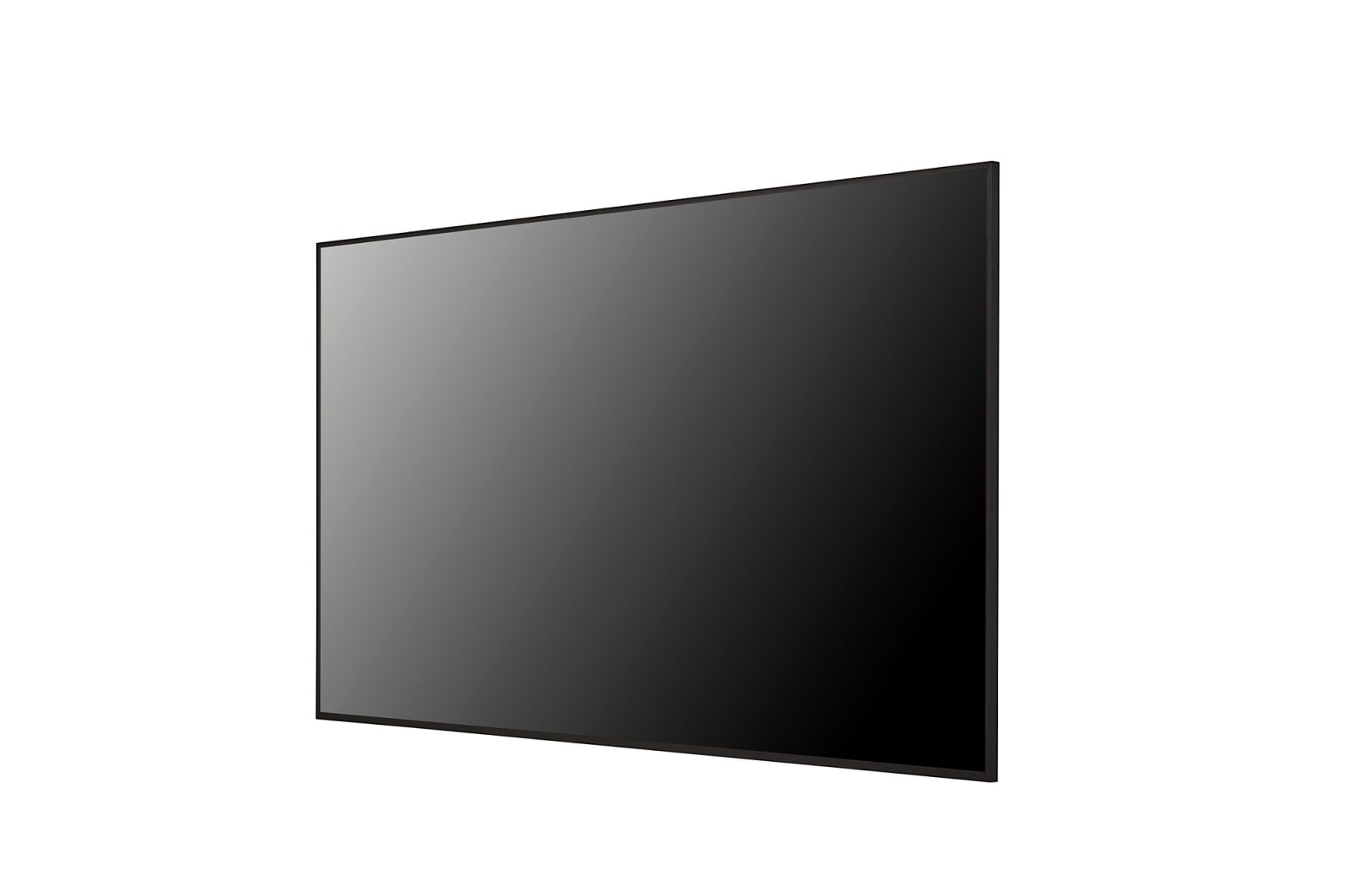

UHD Signage Display

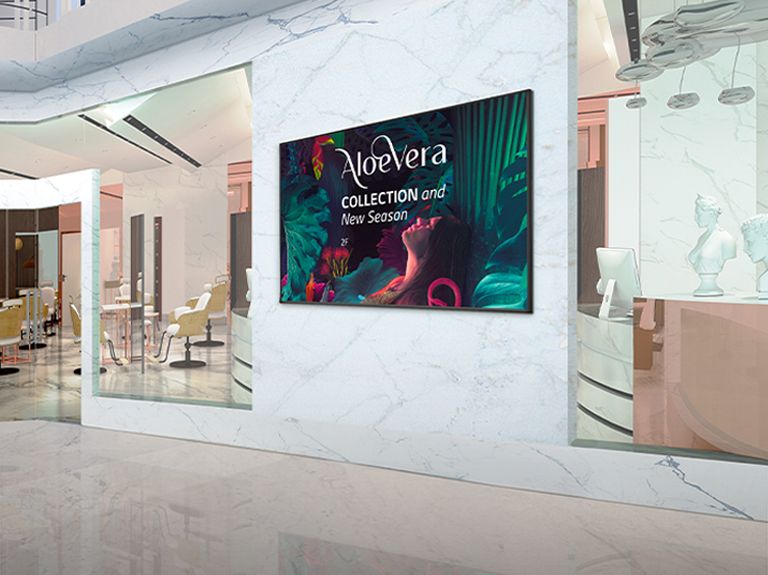

Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* All images in this page are for illustrative purposes only.

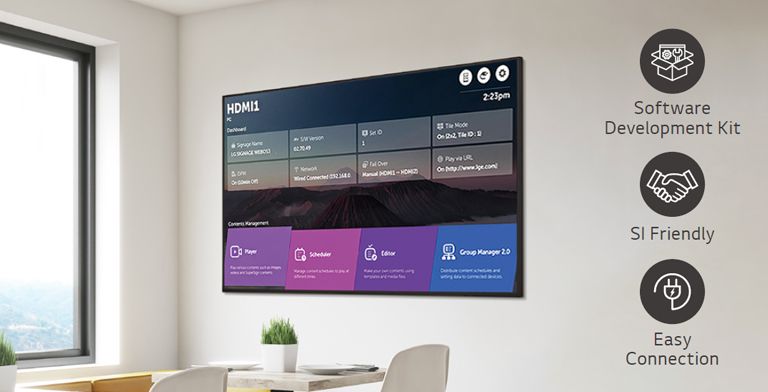

*webOS Signage is a web-based platform and provides an execution environment for web apps — Internet access is required to access the platform.
** GUI (Graphic User Interface) is a form of graphics-based operating system interface that uses icons, menus and a mouse (to click on the icon or pull down the menus) to manage interaction with the system.
The UH5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment.

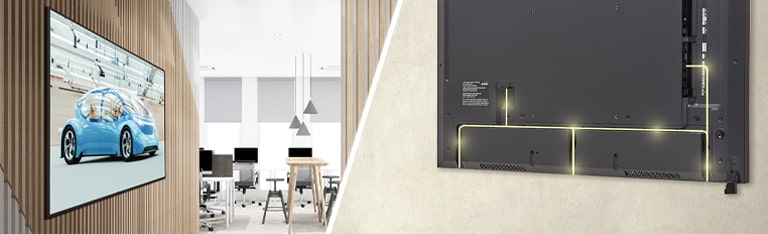

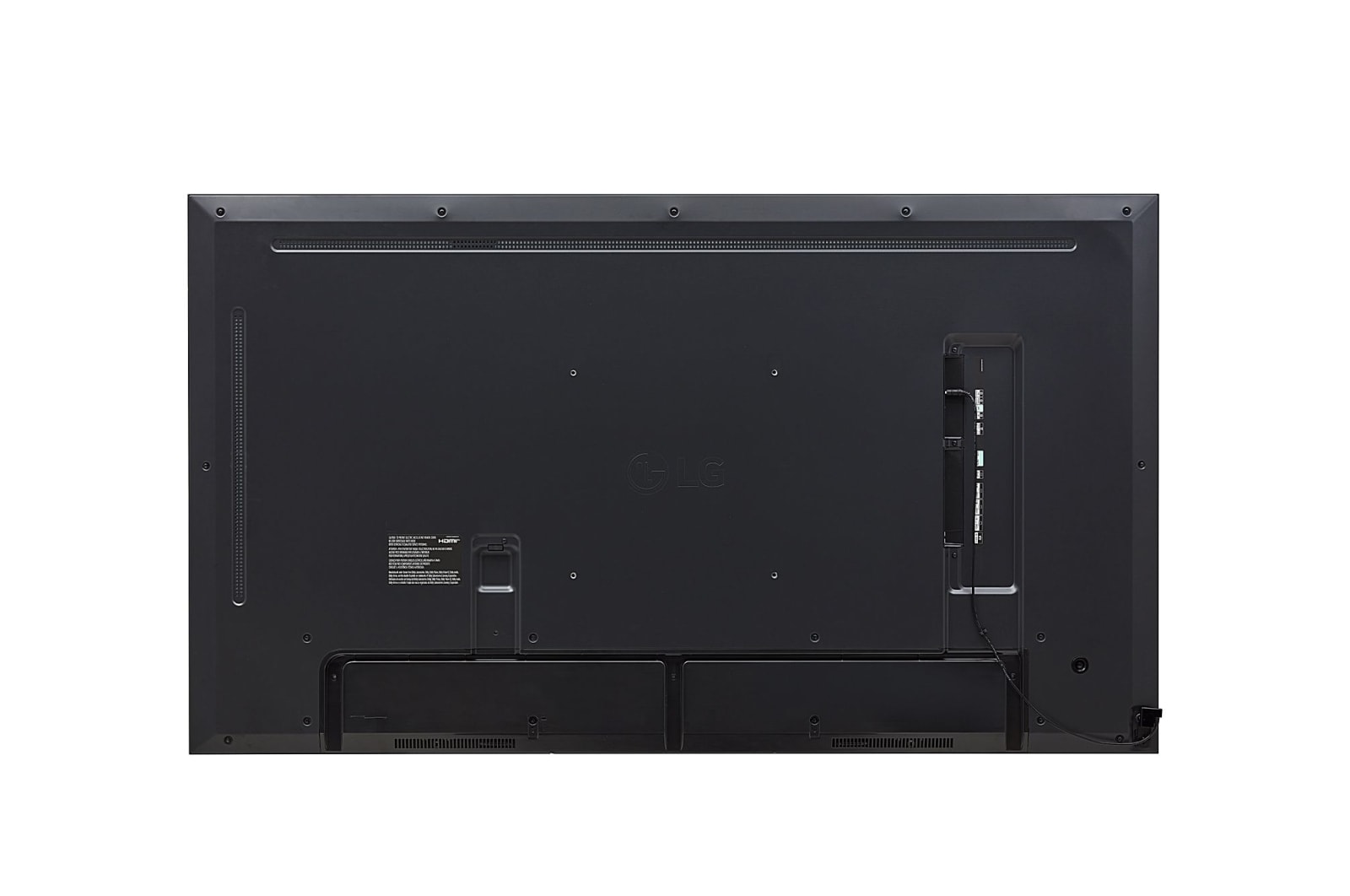

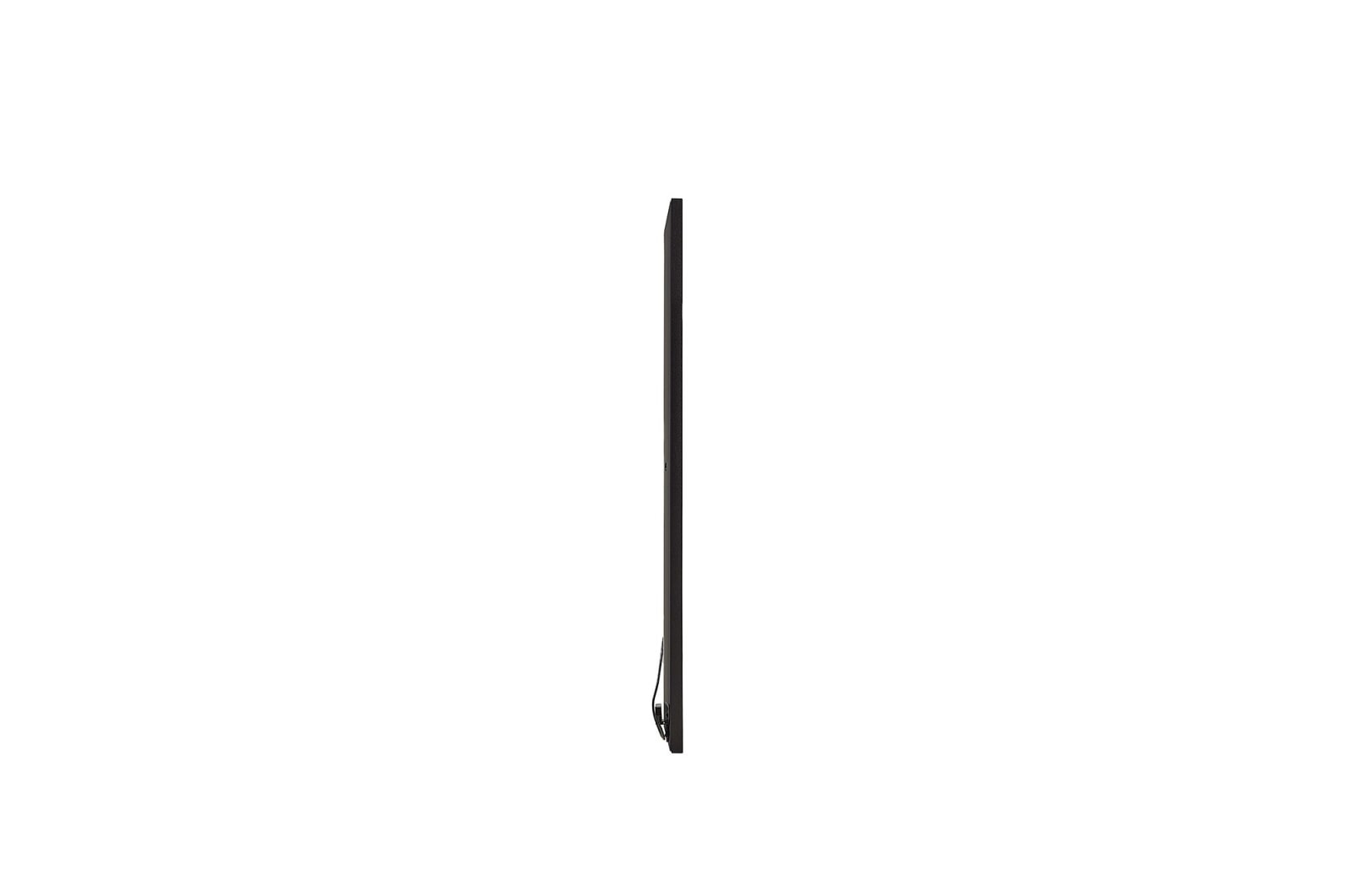

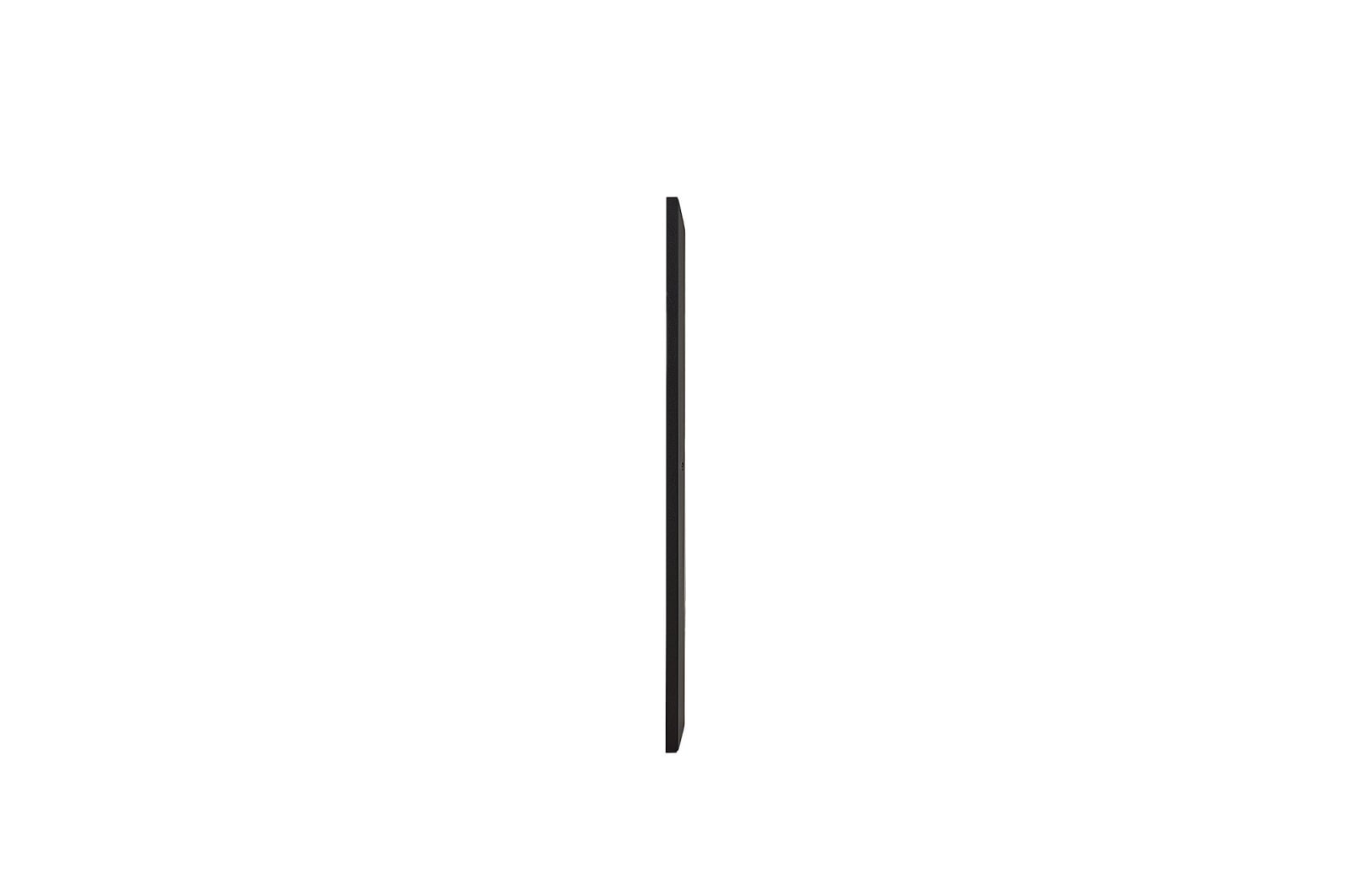

The UH5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
All images in this page are for illustrative purposes only.
* Bezel accessories are sold separately at an additional cost.
*ISO/IEC 15408: Information security, cybersecurity and privacy protection Evaluation criteria for IT security
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
* LG SuperSign CMS provides a service that works with external content (Streaming, Wb page, video, etc), and external content is not included in the solution.
* Annual license fee apply.
Screen Size (Inch)
65
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
Tr : 8ms / Tf : 10ms
Surface Treatment (Haze)
Haze 28%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
YES
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
YES (Sharing RS232C Out)
Daisy Chain
Input : HDMI, DP / Output : HDMI
Bezel Color
Black
Bezel Width
T/R/L: 8.9mm, B: 12.9mm
Weight (Head)
24.2Kg
Weight (Head+Stand)
N/A
Packed Weight
30.4Kg
Monitor Dimensions (W x H x D)
1450.3 x 830.3 x 29.7mm (without IR)
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1600 x 970 x 172mm
Handle
NO
VESA Standard Mount Interface
300 x 300 mm
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES (4PBP)
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
145W
Max.
200W
BTU (British Thermal Unit)
495 BTU/Hr(Typ.), 682 BTU/Hr(Max.)
Smart Energy Saving (70%)
101.5W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
YES(NewErP) / YES
ePEAT(US only)
YES
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
YES (Not available for EU/CIS)
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2ea), AC Cord Holder (1ea)
Optional
Slim Wall Mount (WB21LMA/B) Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
Max. 30 degree
IP Rating
IP5X
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
