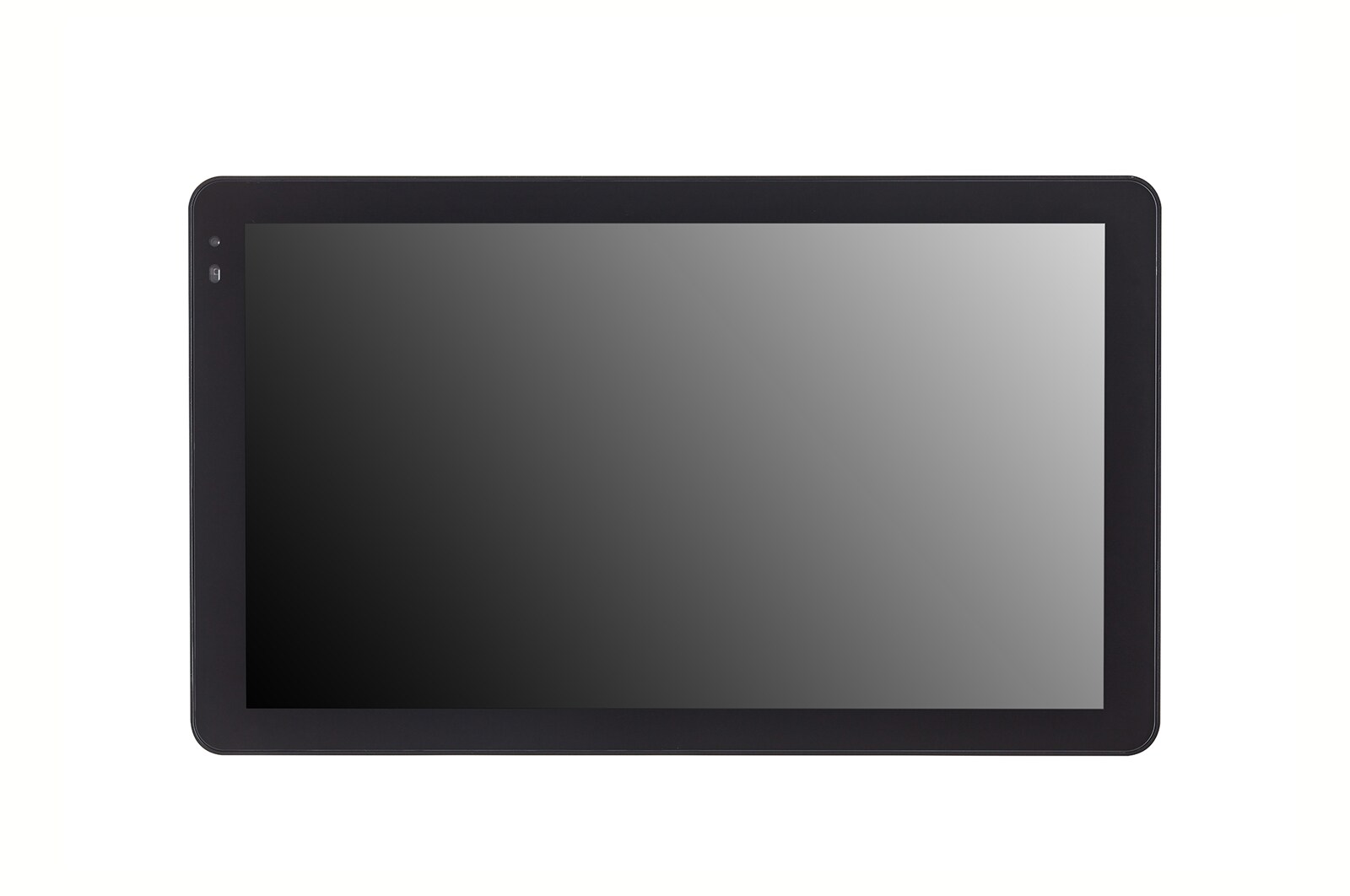

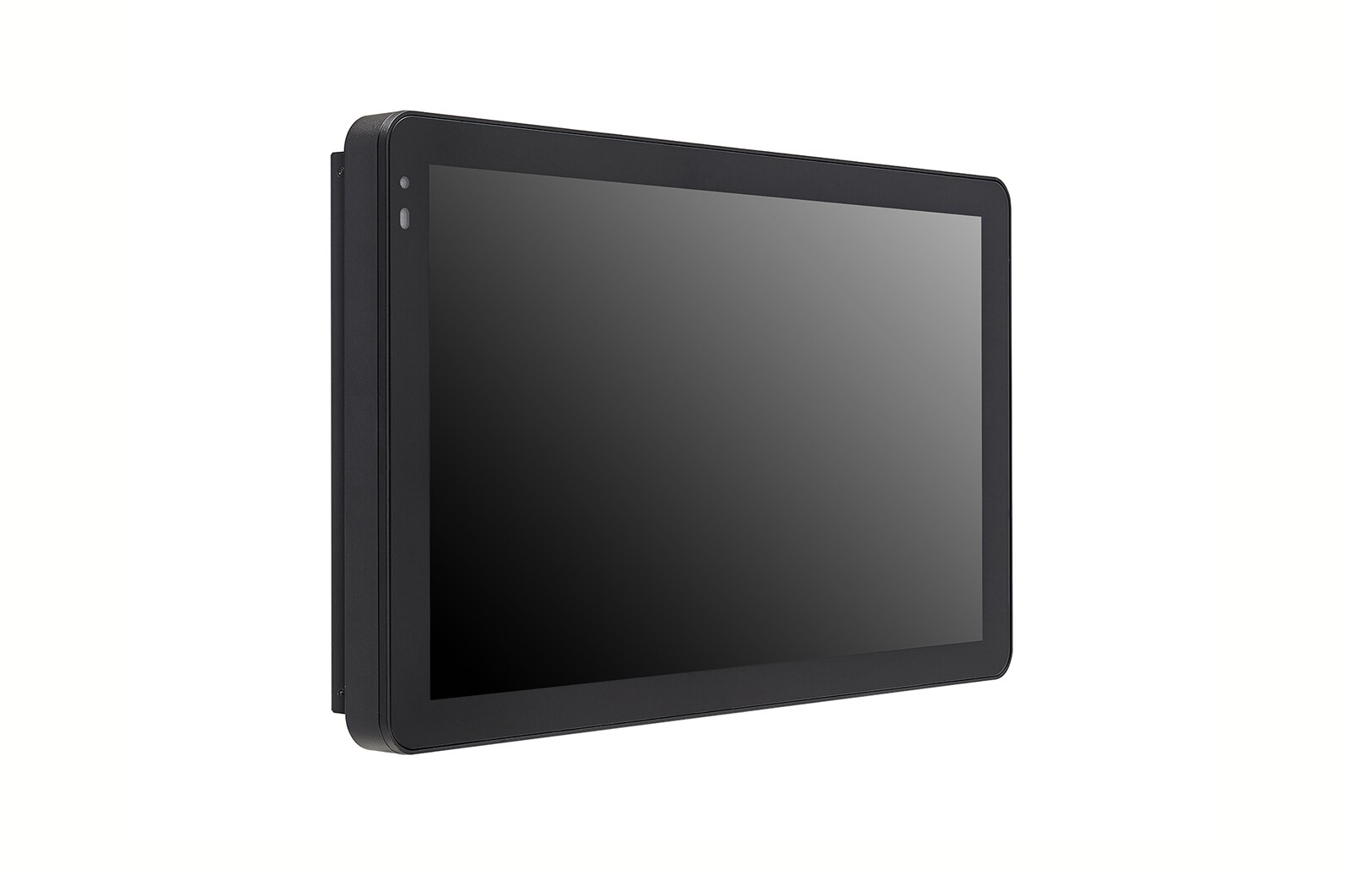

1,300nits FHD Outdoor Touch Open-frame Display

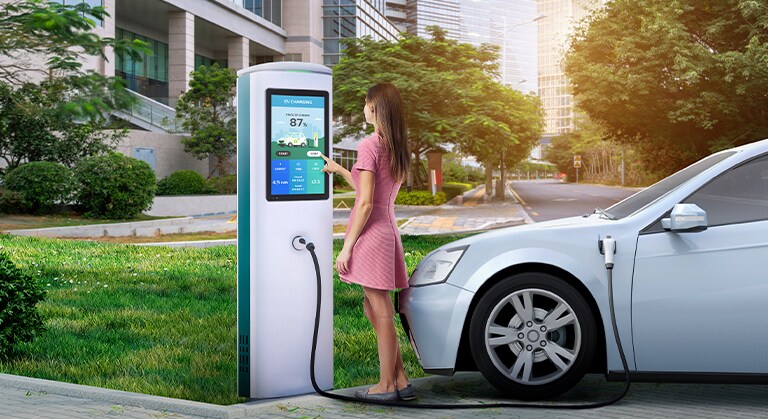

A woman is charging a car by touching the touchscreen installed on an electric car charger.
*All images in this web page are for illustrative purposes only.
* PCAP(Projected Capacitive touchscreens) Touch are coated with a transparent conductive film, which allows users interact with a computer by touching the screen directly.
*22XF1TJ is LG-internally tested under humidity of 30% (55°C ) and 99% (40°C).
** Image illustrated to enhance feature understanding.
*Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris.
A user is touching the 22XF1TJ screen with an antibacterial coating.
*Antimicrobial coating glass is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.
**The antimicrobial coating glass is treated with the antibiotic substance AEM 5700.
***The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against Escherichia coli and Staphylococcus aureus. (The test (Test method : ISO 22196:2011) is conducted on a glass surface covered with AEM 5700.)
****The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against SARS-CoV-2. (The test (Test method : ISO 18184:2019) is conducted on fabric covered with AEM 5700.)
*****The antibiotic substance AEM 5700 is certified by U.S. Environment Protection Agency (EPA) and the Biocidal Products Regulation (BPR, Regulation (EU)).
User can monitor and control their displays through mobile phone and laptop.
*The image is for illustrative purposes only.
*Internet connection is required for web-based monitoring.
The LG employee is remotely monitoring the 22XF1TJ series installed in a different place by using cloud-based LG monitoring solution.
*LG Connected Care is available separately at additional cost.
Screen Size
21.5”
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
1920x1080 (FHD)
Refresh Rate
60Hz
Brightness
1300nit (Typ, w/ Glass)
Contrast Ratio
1000:1 (Typ)
Dynamic CR
800,000:1
Colour Gamut
NTSC 72%
Viewing Angle(H x V)
178x178
Colour Depth
8bit, 16.7Million colours
Response Time
25ms (G to G)
Surface Treatment(Haze)
Anti glare, 3H(Haze 25%)
Life Time
70,000 Hrs (Typ)
Operation Hours (Hours/Day)
24/7

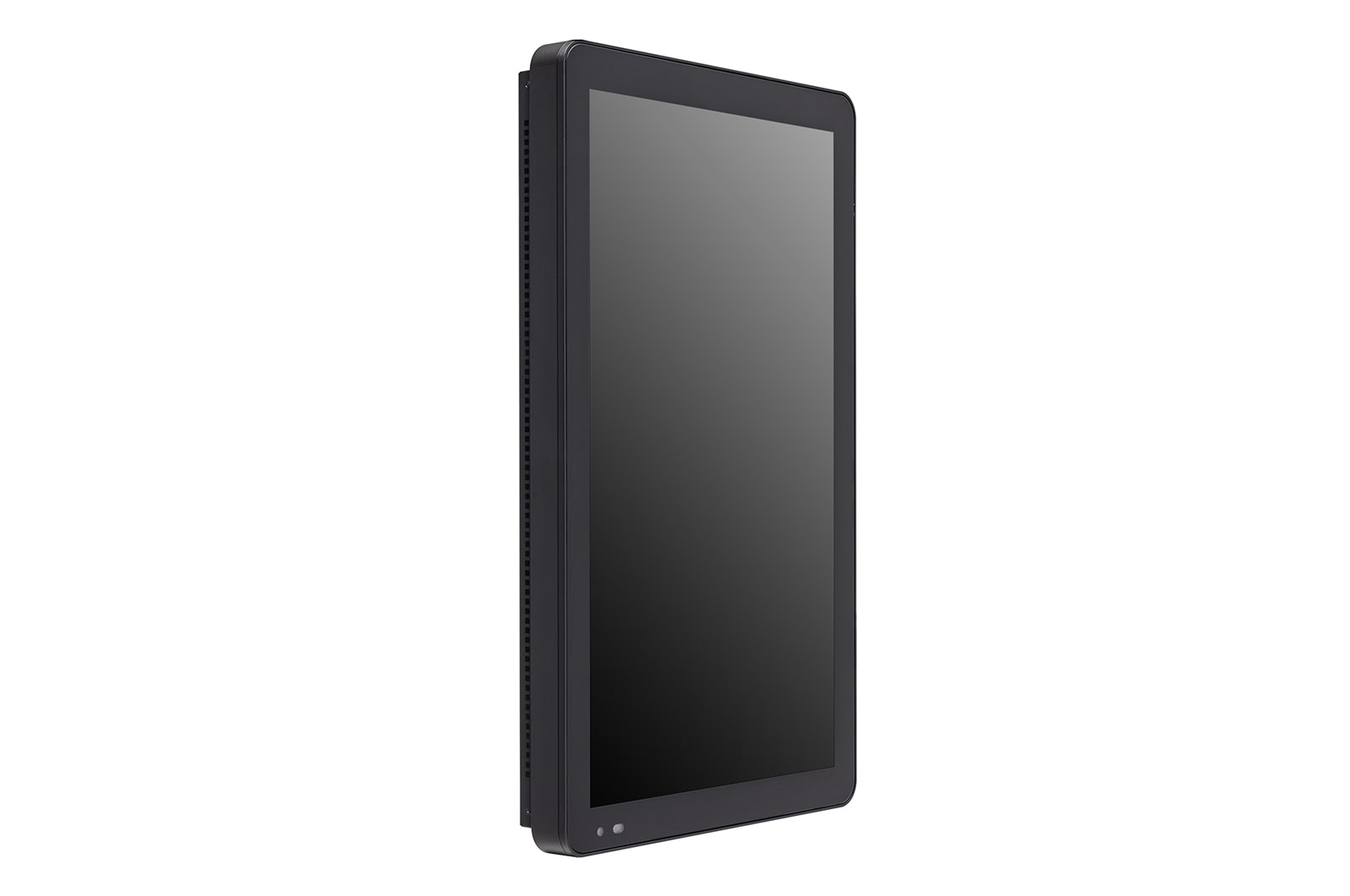

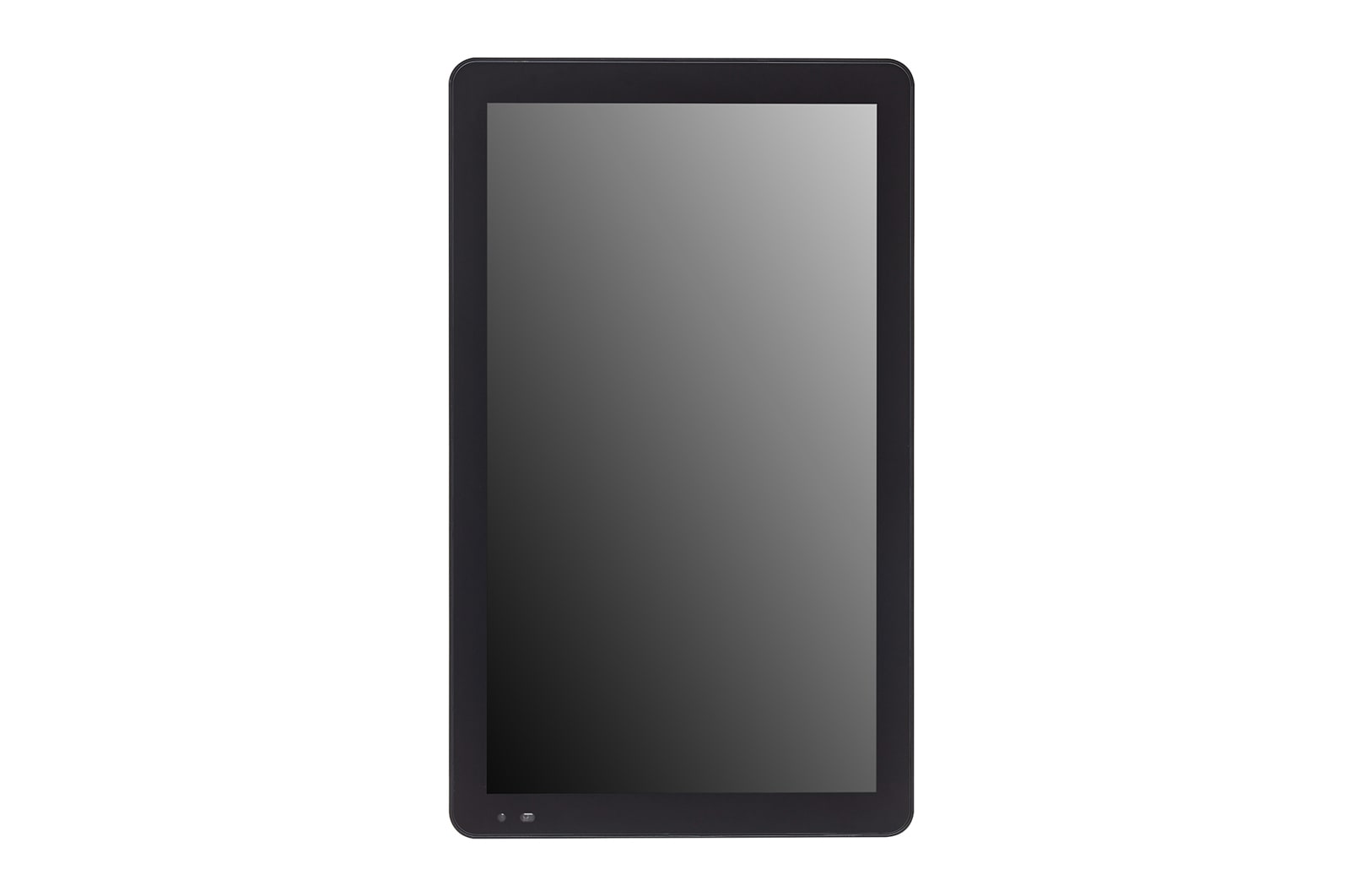

Portrait / Landscape
Yes / Yes
QWP(Quarter Wave Plate)
Yes (Apply on glass)

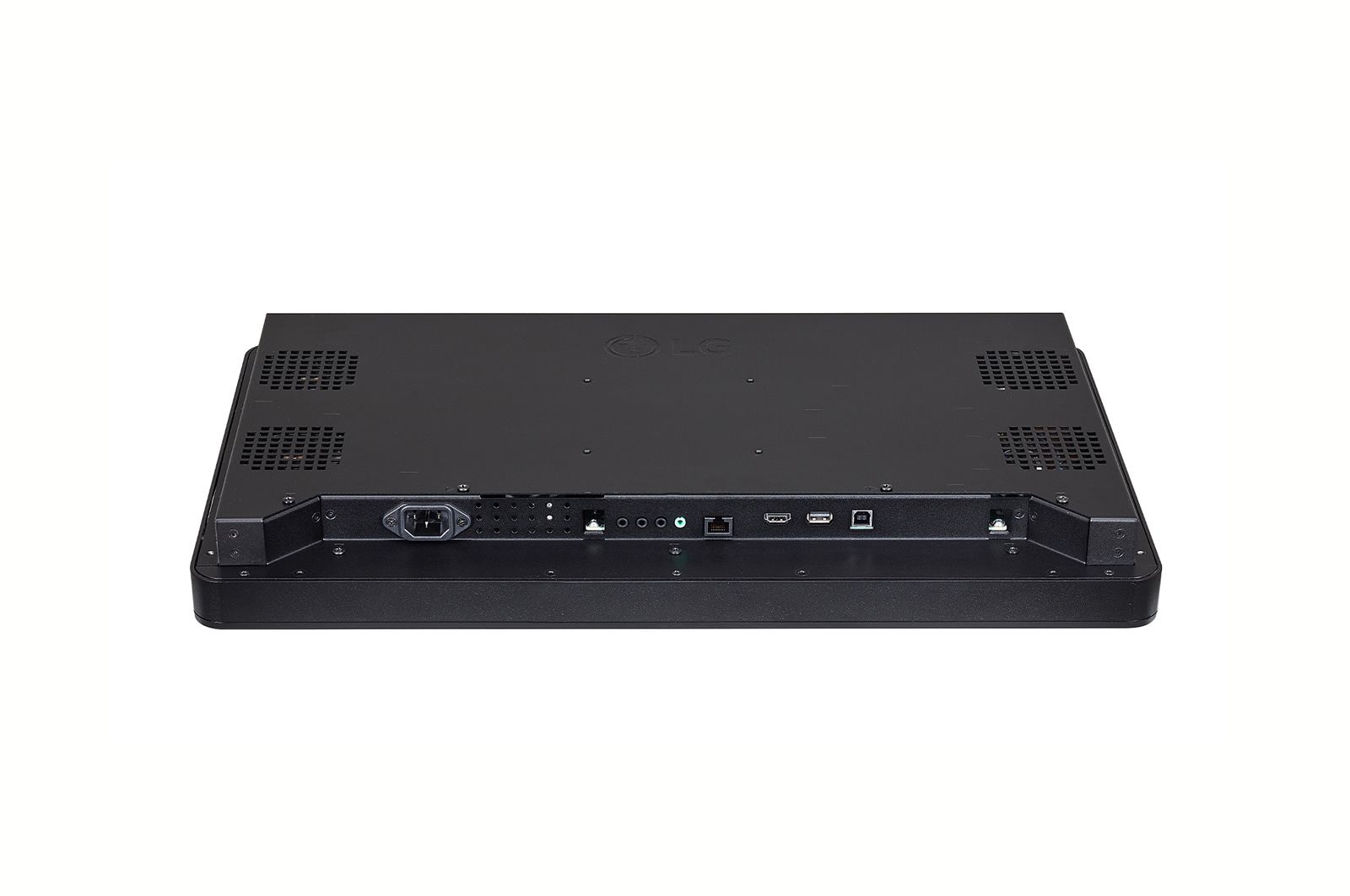

Input
HDMI (1, HDCP1.4), RS232C IN, RJ45(LAN), USB2.0 Type A (1)
Output
Touch USB, Externel Speaker Out (1, L/R, 10W+10W), RS232C OUT
Bezel Colour
Black
Bezel Width
30.5mm(R/L), 25.5mm(T/B)
Weight(Head)
8.1 Kg
Packed Weight
10.4 kg
Monitor Dimension(W x H x D)
541.7 x 322.8 x 60 mm
Carton Dimensions(W x H x D) (Box outer size)
644 x 406 x 207 mm
VESA™ Standard Mount Interface
100x100
Protection Glass
Depth 3mm, Tempered / Chemical strengthening (Thermal-strengthening), Shatter-Proof
HW
Internal Memory 16GB, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration(Gyro) Sensor, Power Indicator, FAN
SW
webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Operation Temperature
0°C to 50 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
85W (Full White)
37W (IEC 62087)
Max.
115W
BTU (British Thermal Unit)
290(Typ), 393(Max)
DPM
0.5W↓
Power Off
0.5W↓
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ErP / Energy Star
Yes / No
SuperSign CMS
Yes
SuperSign Control / Control+
Yes / Yes
Signage 365 Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Turkish
Basic
Remote Controller(including battery 2ea),
Power Cord, Manual (EIG, IG), RS-232C Gender
IP Rating
IP65 (Front Only)
Direct Sunlight
Yes
To access more technical documentation and resources, please visit the LG B2B partner portal.
