*Network connection is required for webpage browsing.
A number of tasks that can be done simultaneously are easily arranged through the web OS platform.
* System-on-Chip
The store owner can easily distribute content and update firmware using a wireless connection such as Wi-Fi or Bluetooth.
* Wi-Fi performance may vary depending on your router and circumstance.
User can monitor and control their displays through mobile phone and laptop.
*The image is for illustrative purposes only.
*Internet connection is required for web-based monitoring.

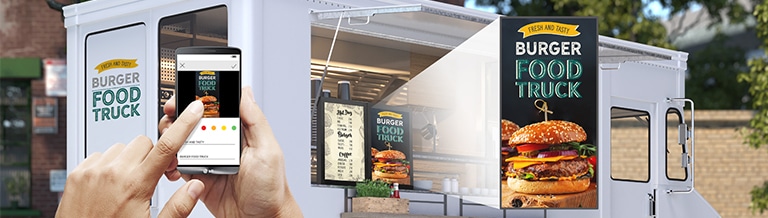

The store owner can simply create menu contents on the menu board using mobile application.
* LG Promota can be downloaded from the App Store and Google Play store.
The LG employee is remotely monitoring the 22XE1J series installed in a different place by using cloud-based LG monitoring solution.
*LG Connected Care is available separately at additional cost.

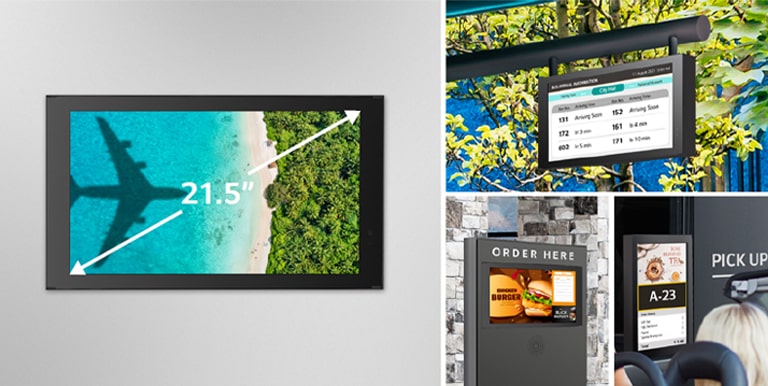

Screen Size (Inch)
21.5
Panel Technology
IPS (AHVA)
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
1,500nit (Typ., with Glass)
Contrast Ratio
1,000:1 (Typ.)
Dynamic CR
800,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
16.7 Million colors
Response Time
25ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
70,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
YES
HDMI In
YES (1ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
NO
Audio Out
NO
Touch USB
NO
External Speaker Out
YES
RS232C Out
NO
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
38.3mm(R/L), 24.0mm(T/B)
Weight (Head)
8.3Kg
Weight (Head+Stand)
N/A
Packed Weight
10Kg
Monitor Dimensions (W x H x D)
557.3 x 319.8 x 65mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
632 x 394 x 187mm
Handle
NO
VESA Standard Mount Interface
100 x 100 mm
Thickness
3mm
Degree of Protection
N/A
Tempered / Chemical strengthening
Tempered strengthening
Anti-Reflective
YES
Infrared - Resistance (IR)
YES
Shatter-Proof
YES
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
YES
Acceleration(Gyro) Sensor
YES
Power Indicator
YES
Local Key Operation
NO
FAN (Built-in)
YES
OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
NO
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
NO
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
NO
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
-30 °C to 50 °C
Operation Humidity
5 % to 100 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
85W (Full White) 36W (IEC 62087)
Max.
115W
BTU (British Thermal Unit)
290 BTU/Hr(Typ.), 393 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
NO
Promota
YES
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
Optional
NO
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
Max. 15 degree
IP Rating
IP56
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
YES
Available Object Size for Touch
N/A
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Interface
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
N/A
Multi Touch Point
N/A
To access more technical documentation and resources, please visit the LG B2B partner portal.
