UHD Standard Signage
There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.
* All images in this web page are for illustrative purposes only.

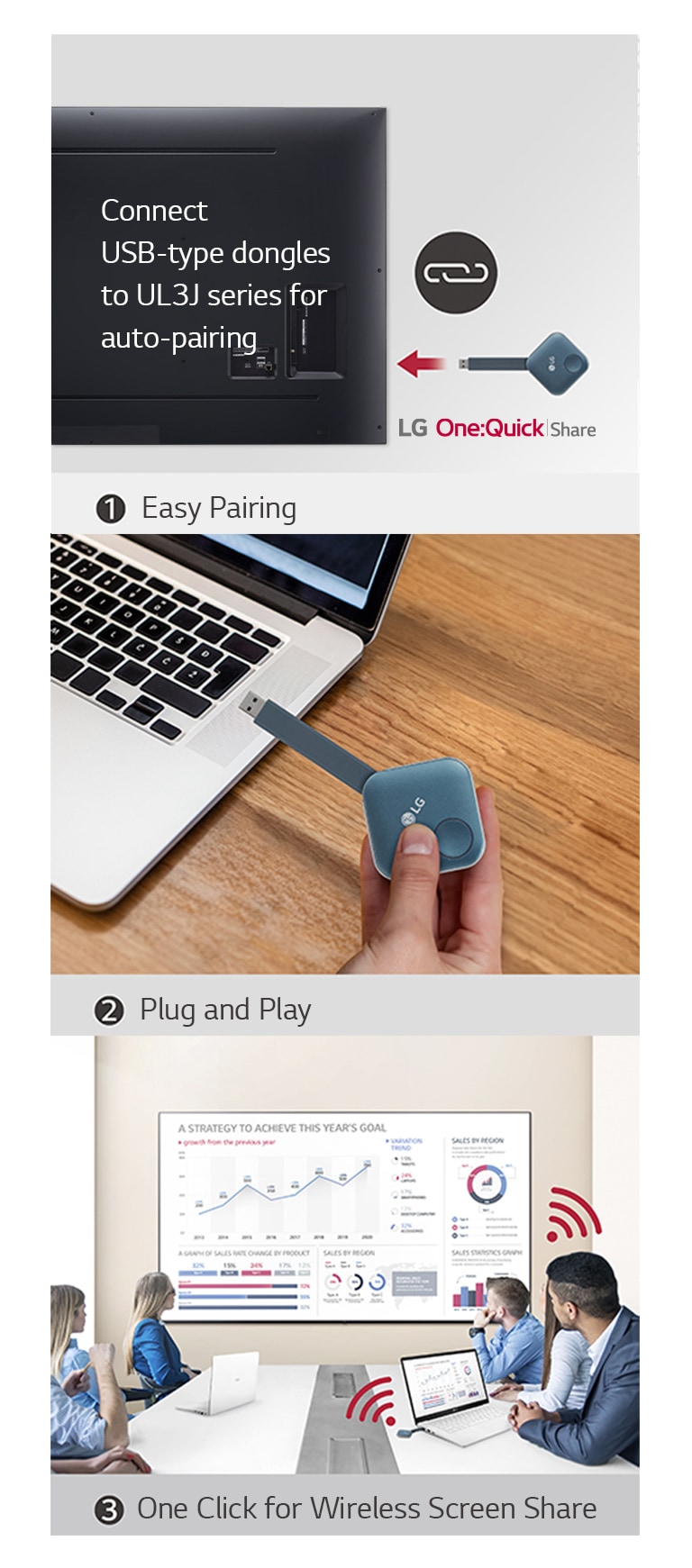

This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall.
* LG One:Quick Share needs to be purchased separately.
** Users need to set up Soft AP enabled at Network Menu of the Signage.
*** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*The image is for illustrative purposes only.
*Internet connection is required for web-based monitoring

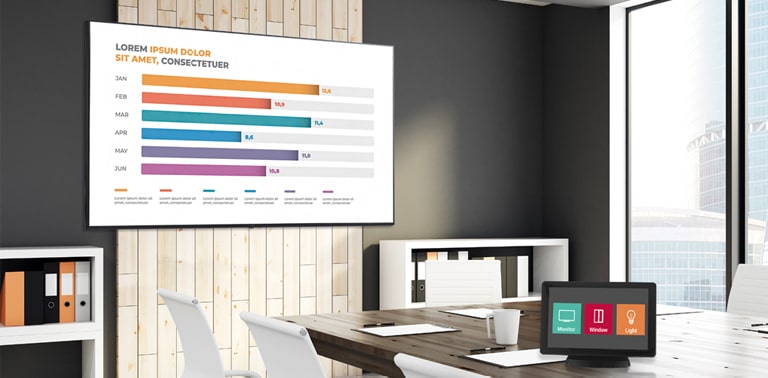

*Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
* Using an HDMI cable connection (HDMI cable is optional)
* Compared to LG's UL3G series
* SoC : System On Chip
** GUI : Graphical User Interface
* e.g. showing specific promotional information according to weather change to store visitors

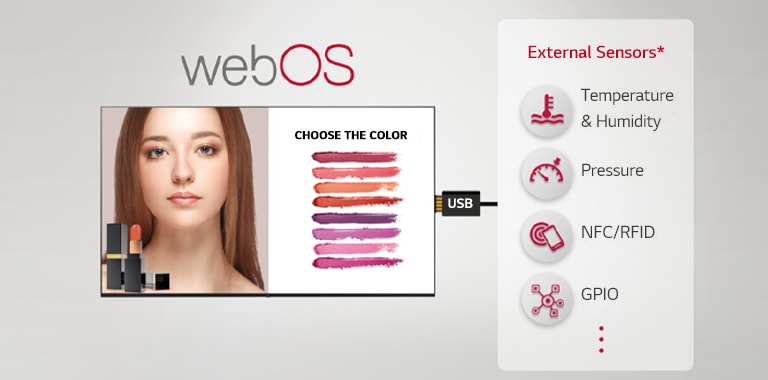

** External sensors need to be purchased separately and tested for compatibility with webOS platform.
* Wi-Fi performance may vary depending on your router and circumstance
* Image dramatised for illustrative effect.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Screen Size
86"
Panel Technology
ADS
Native Resolution
3,840 x 2,160 (UHD)
Refresh Rate
60Hz
Brightness (Typ., nit)
330
Contrast Ratio
1,400:1
Dynamic CR
1,000,000 : 1
Color gamut
DCI 80%
Viewing Angle (H x V)
178 × 178
Color Depth
Advanced 8bit+FRC, 1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment
1%
Operation Hours (Hours / Days)
16 / 7
Portrait / Landscape
Yes / Yes
Bezel Color
Ashed Blue

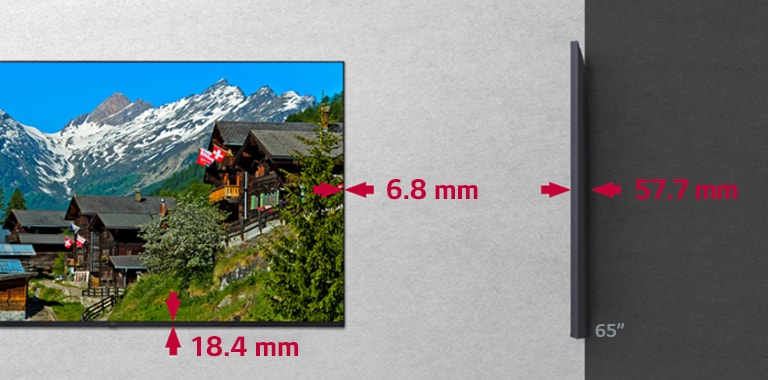

Bezel Width
Off : 6.9/6.9/6.9/18.4
On : 15.9/15.9/15.9/19.9
Weight (Head)
45.2 kg
Monitor Dimensions (W × H × D)
1,927 x 1,104 x 59.9 mm
Carton Dimensions (W × H × D)
2,115 x 1,215 x 228 mm (Box outer size)
Handle
No
VESA™ Standard Mount Interface
600 × 400 mm
HW
Internal Memory (eMMC) 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor), Local Key Operation (Power On/Off Only)
SW
webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Screen Share, Video Tag (4, Max One HDMI Input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Cisco Certi. (TBD, ~`23.7)), Crestron Inside, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Sever Setting, webRTC, Pro:Idiom
Operation Temperature
0 °C to 40 °C (Portrait Scene : 0 °C to 30 °C)
Operation Humidity
10 % to 80 %
Power Supply
AC 100–240 V ~, 50/60 Hz
Power Type
Built-In Power
Typ./Max.
TBD W / TBD W
Smart Energy Saving (70%)
63 W
BTU (British Thermal Unit)
751 BTU/Hr(Typ.), 1024 BTU/Hr(Max.)
Safety
CB
EMC
FCC Class "A" / CE
ErP
Yes (OldErP for Jordan)
ePEAT (US only)
Yes
SuperSign CMS
Yes
SuperSign Control / Control+
Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
LG ConnectedCare
Yes
Input
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2)
Output
Audio
External Control
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In

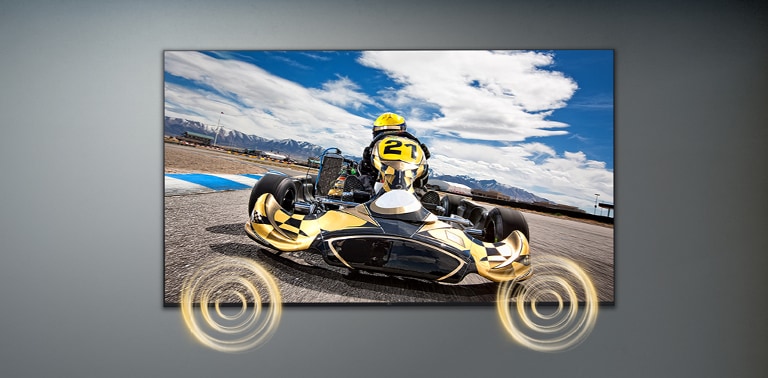

Speaker
Yes
Basic
Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
To access more technical documentation and resources, please visit the LG B2B partner portal.
