All Spec
PANEL
-
Screen Size
32" (80cm)
-
Panel Technology
IPS
-
Aspect Ratio
16:9
-
Native Resolution
1920 x 1080 (Full HD)
-
Brightness
350 cd/m²
-
Contrast Ratio
1,100 : 1 (Native)
-
Dynamic CR
500,000:1
-
Operating Hours
18 Hours / Day
-
Viewing Angle (H x V)
178° x 178°
-

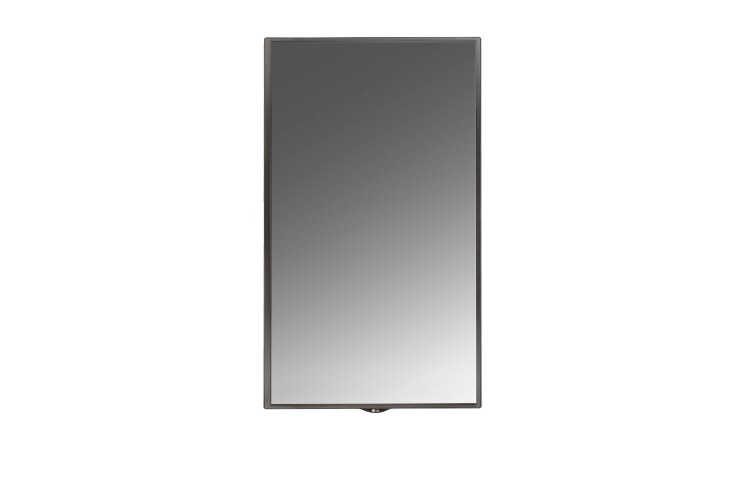

Orientation
Portrait and Landscape
-
Surface Treatment
Hard coating(3H), Anti-glare treatment (Haze 1%)

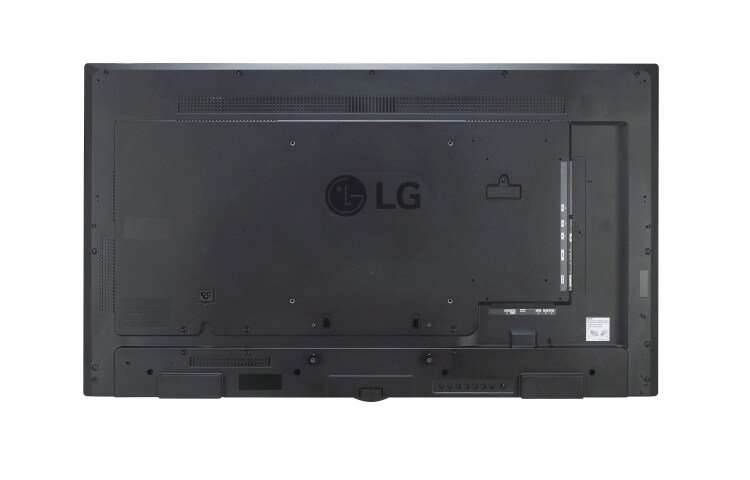

CONNECTIVITY INPUT(REAR)
-
Digital
HDMI(1), DVI-D(1), Support HDCP
-
Analog
RGB (1)
-
Audio
Yes (1)
-
External Control
RS232C (1), IR receiver (1)
-
USB
Yes (2, USB2.0)
-
Wi-Fi
Dongle Compatible
-
Wired LAN
RJ45 (1)
CONNECTIVITY OUTPUT(REAR)
-
Audio
Yes (1)
-
External Control
RS232C (1)
PHYSICAL SPECIFICATION
-
Bezel Width
13mm(T/R/L), 18mm(B)
-
Monitor Dimension(W x H x D)
729mm x 429mm x 55.5mm
-
Dimension with optional stand (W x H x D)
729mm x 481mm x 154mm
-
Carton Dimensions(W × H × D)
810mm x 510mm x 132mm
-
Weight (head)
5.4kg
-
Weight(head+stand)
6kg
-
Packed Weight
6.7kg
-
VESA™ Standard Mount Interface
200mm x 200mm
SPECIAL FEATURES
-
Additional
Temperature Sensor, Auto Config/Phase, SNMP Support, Input Label, Contents Scheduling, DPM Select, Holiday Schedule, Smart Energy Saving, File Play with USB, USB Cloning, Built-in Speakers (10W x 2), PM Mode, Tile Mode, Lock Mode
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 80%
POWER
-
Power Supply
100-240V~, 50/60Hz
-
DPM
0.7W
-
Typical / Smart Energy Saving On
50W/35W
-
Power Off
0.5W
-
Power Type
Built In Power
STANDARD(CERTIFICATION)
-
Safety
UL / cUL / CB / TUV
-
EMC
FCC Class "A", CE, KCC, C-Tick
-
ErP/US EPA
Yes / Yes (Energy Star 6.0)
MEDIA PLAYER COMPATIBILITY
-
External Media Player Attachable
No
SOFTWARE COMPATIBILITY
-
SuperSign-w lite / SuperSign-c
Yes / Yes (Via Software Download)
ACCESSORY
-
Included
Remote Controller (include 2ea battery), QSG, Power Cable, RGB Cable, Regulation Book, Phono to RS232C Gender, IR Receiver
-
Optional
Stand (ST-322T), Wall bracket (LSW230B), Wi-Fi Dongle Kit (AN-WF500)
-
Warranty
3 years (Parts and Labour)
