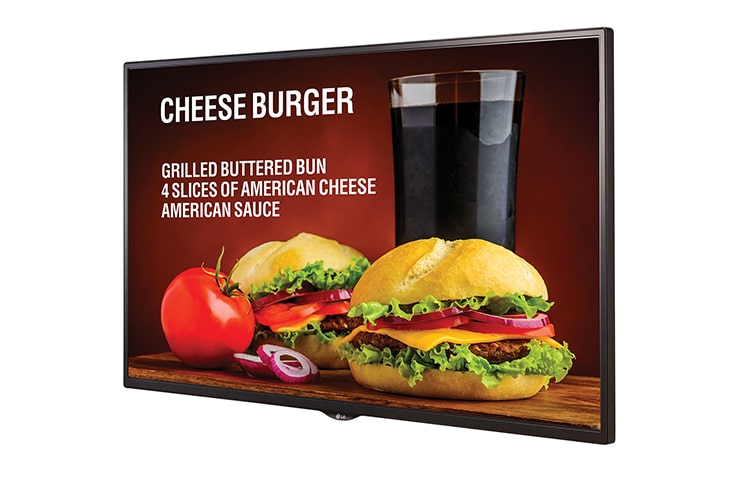

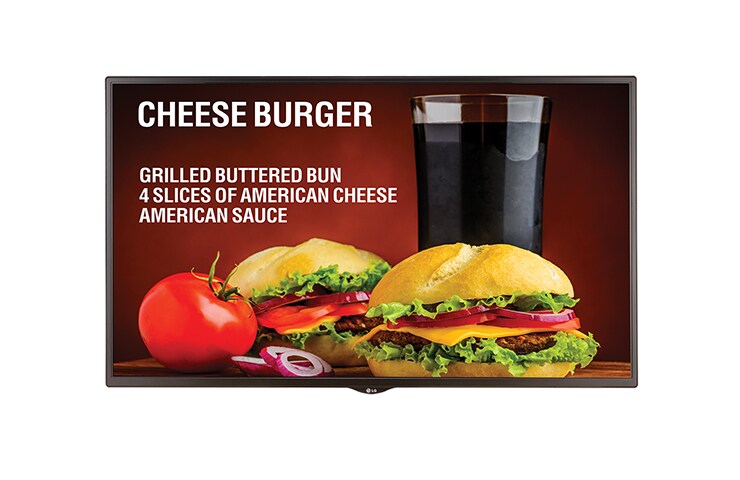

Standard Performance SM5KC Series
All Spec
ACCESSORY
Basic
Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
Optional
Speaker (SP-5000),Stand (ST-432T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
CONNECTIVITY
Input
HDMI (1), DP (1), DVI-D (1), RGB (1), Audio, SD card (1), USB 3.0 (1)
Output
DP, Audio, External Speaker
External Control
RS232C in/out, RJ in, IR Receiver, Pixel Sensor
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
External Media Player Attachable
Yes (MP500/MP700)
PANEL
Screen Size
55" (139cm)
Panel Technology
IPS
Aspect Ratio
16:9
Native Resolution
1920 x 1080(FHD)
Brightness
450cd/m²
Viewing Angle (H x V)
178° x 178°
Surface Treatment
Hard coating (3H), Anti-glare treatment of the front polariser (Haze 1 % (Typ.))
Life Time
50,000 hrs (Typ.)
Orientation
Portrait and Landscape
Response Time
12ms (G to G BW), 9ms (WOT)
PHYSICAL SPECIFICATION
Bezel Colour
Black
Bezel Width
11.9mm (T/R/L), 18 mm (B)
Monitor Dimension(W x H x D)
1,238 x 715 x 39 mm
Weight (head)
17.3 kg
Carton Dimensions(W × H × D)
1,330 x 807 x 170 mm
Weight(head+stand)
20.6kg
Monitor with Optional Stand & Speaker Dimensions (W x H x D)
1,238 x 773 x 220 mm
Packed Weight
21.5 kg
VESA™ Standard Mount Interface
300mm x 300mm
Weight(head+stand+speaker)
21.1 kg
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built In Power
Power Switch
No
POWER CONSUMPTION
Typ
100 W
Smart Energy Saving
70 W
SOFTWARE COMPATIBILITY
SuperSign W/Lite
Yes
SuperSign C
Yes
SPECIAL FEATURES
Additional
Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM wake up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Failover, Mirroring, BEACON, Embedded Template
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950, CB Scheme
EMC
AS/NZS CISPR 22, RCM (Class A)
Energy Rating
N/A
