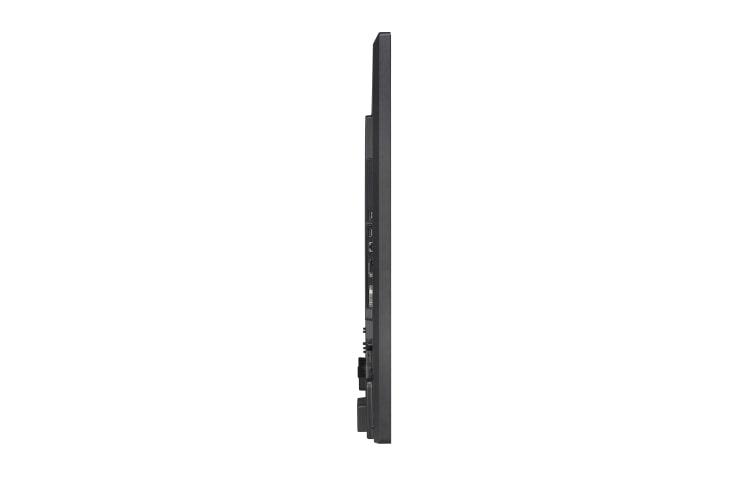

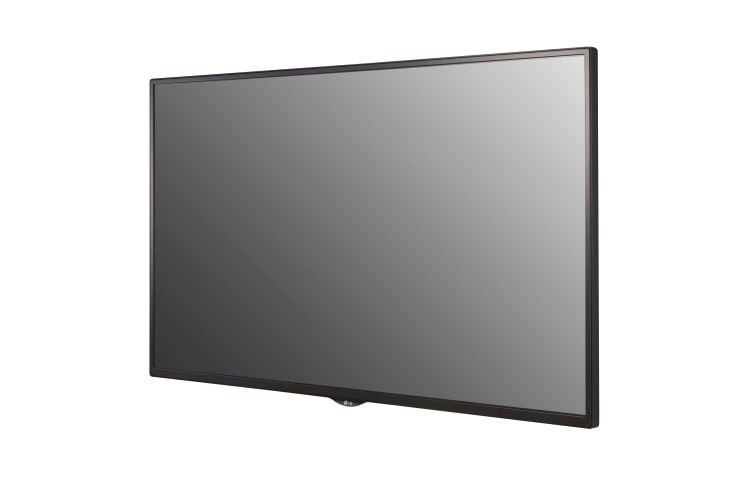

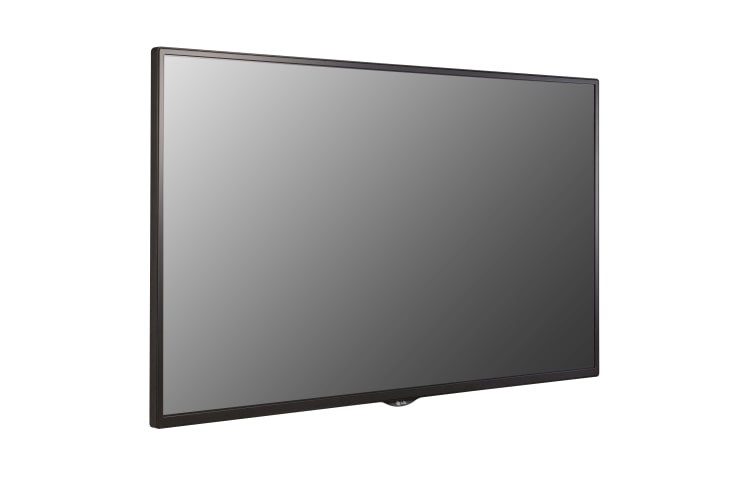

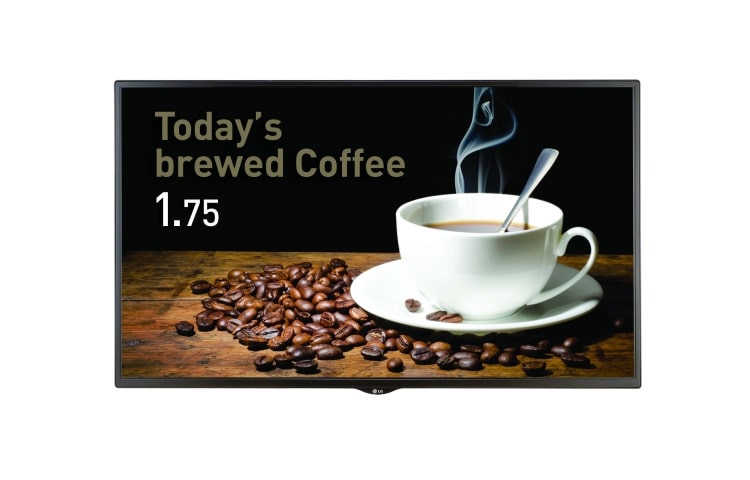

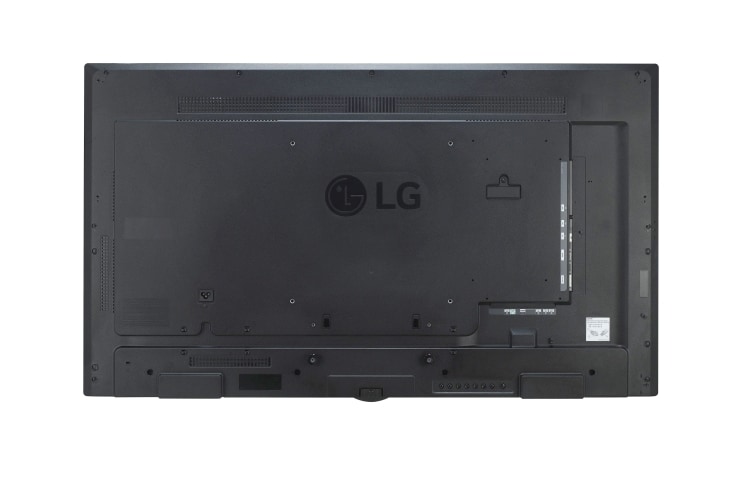

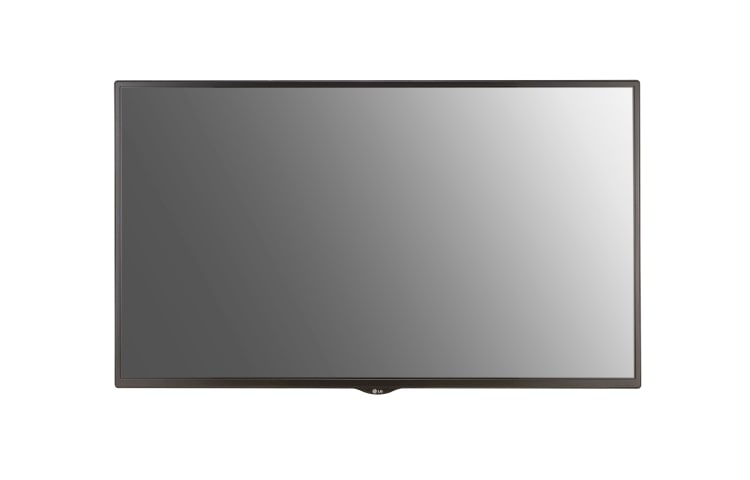

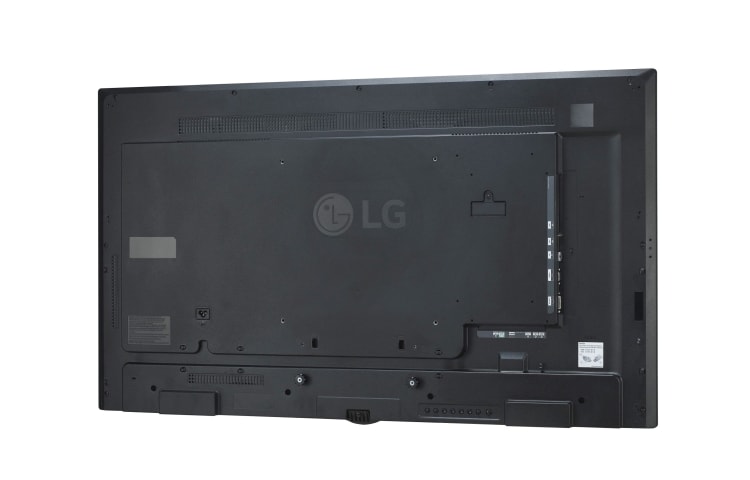

65” SLIM DESIGN IPS DISPLAY
All Spec
PANEL
Screen Size
65" (164 cm)
Panel Technology
IPS
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (Full HD)
Brightness
400cd/m²
Contrast Ratio
1,300 : 1 (Native)
Dynamic CR
500,000:1
Operating Hours
18 Hours / Day
Viewing Angle (H x V)
178° x 178°

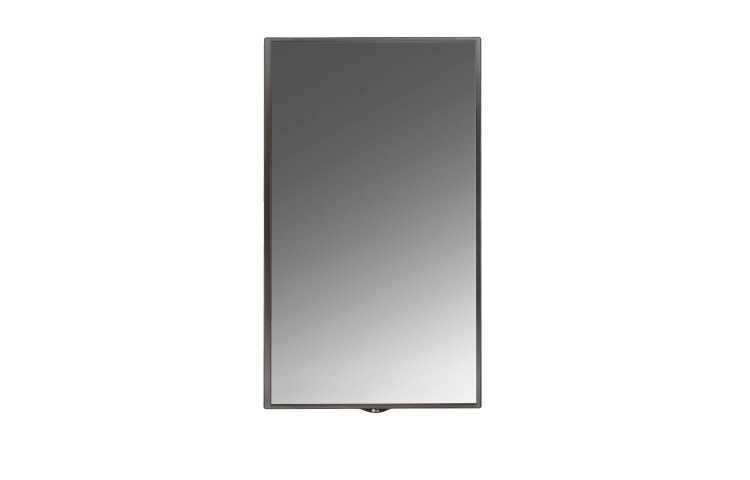

Orientation
Portrait and Landscape
Surface Treatment
Hard coating(3H), Anti-glare treatment (Haze 1%)
CONNECTIVITY INPUT(REAR)
Digital
HDMI(1), DVI-D(1), Support HDCP
Analog
RGB (1)
Audio
Yes (1)
External Control
RS232C (1), IR receiver (1)
USB
Yes (2, USB2.0)
Wi-Fi
Dongle Compatible
Wired LAN
RJ45 (1)
CONNECTIVITY OUTPUT(REAR)
Audio
Yes (1)
External Control
RS232C (1)
PHYSICAL SPECIFICATION
Bezel Width
11.9mm(T/R/L), 18mm(B)
Monitor Dimension(W x H x D)
1457mm x 838mm x 56.5mm
Dimension with optional stand (W x H x D)
1457mm x 898mm x 294mm
Carton Dimensions(W × H × D)
1561mm x 951mm x 170mm
Weight (head)
27.9kg
Weight(head+stand)
32.9kg
Packed Weight
33.8kg
VESA™ Standard Mount Interface
300mm x 300mm
SPECIAL FEATURES
Additional
Temperature Sensor, Auto Config/Phase, SNMP Support, Input Label, Contents Scheduling, DPM Select, Holiday Schedule, Smart Energy Saving, File Play with USB, USB Cloning, Built-in Speakers (10W x 2), PM Mode, Tile Mode, Lock Mode
ENVIRONMENT CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
POWER
Power Supply
100-240V~, 50/60Hz
DPM
0.7W
Typical / Smart Energy Saving On
95W/70W
Power Off
0.5W
Power Type
Built In Power
STANDARD(CERTIFICATION)
Safety
UL/cUL/CB/TUV/KC
EMC
FCC Class "A", CE, KCC, C-Tick
ErP/US EPA
Yes / Yes (Energy Star 6.0)
MEDIA PLAYER COMPATIBILITY
External Media Player Attachable
Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
SuperSign-w lite / SuperSign-c
Yes / Yes (Via Software Download)
ACCESSORY
Included
Remote Controller (include 2ea battery), QSG, Power Cable, RGB Cable, Regulation Book, Phono to RS232C Gender, IR Receiver
Optional
Stand (ST-432T), Wall bracket (LSW230B), VESA Adapter (AM-B220S), Media Player, Wi-Fi Dongle Kit (AN-WF500)
Warranty
3 years (Parts and Labour)
White Paper
To access more technical documentation and resources, please visit the LG B2B partner portal.
