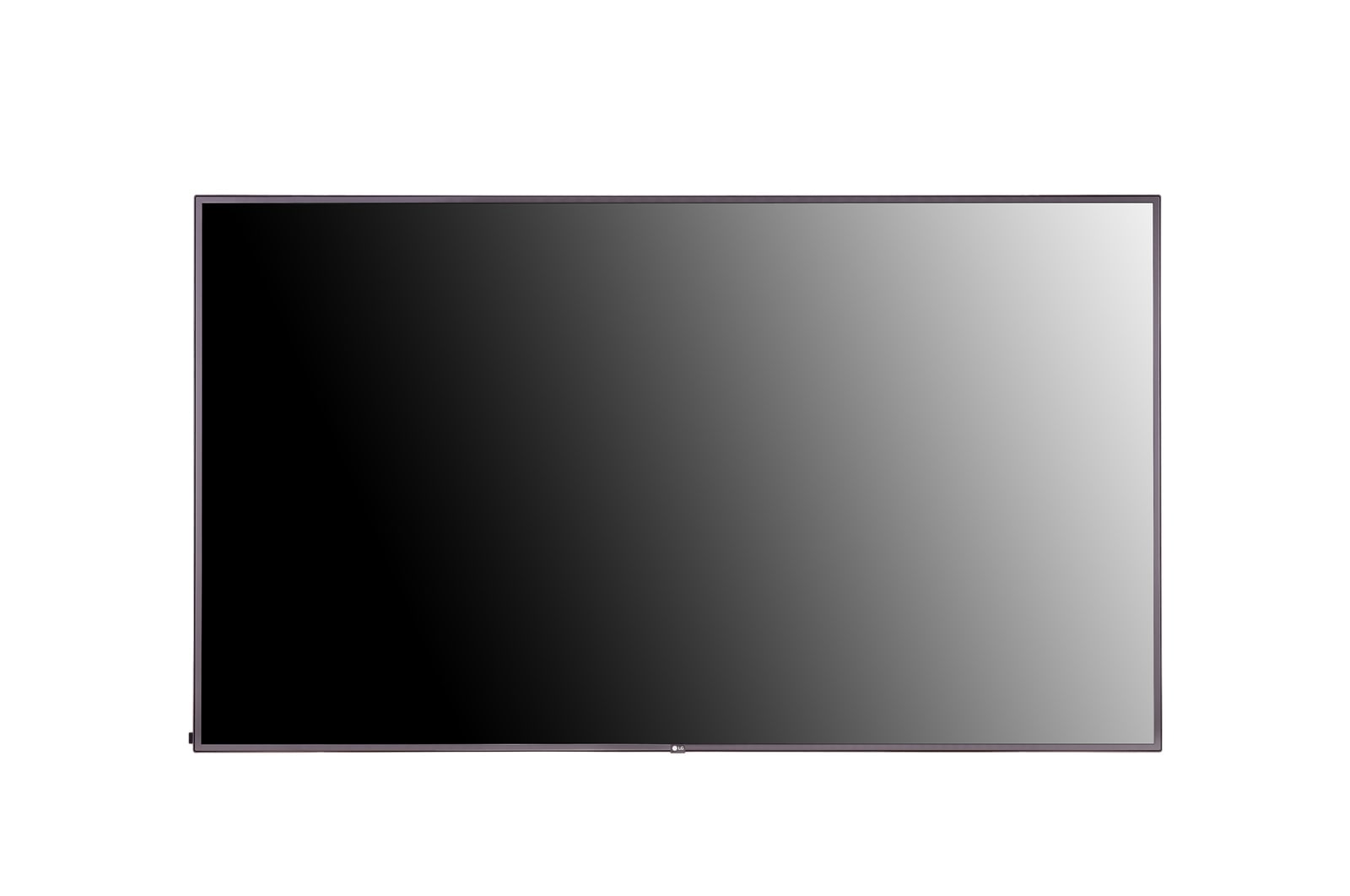

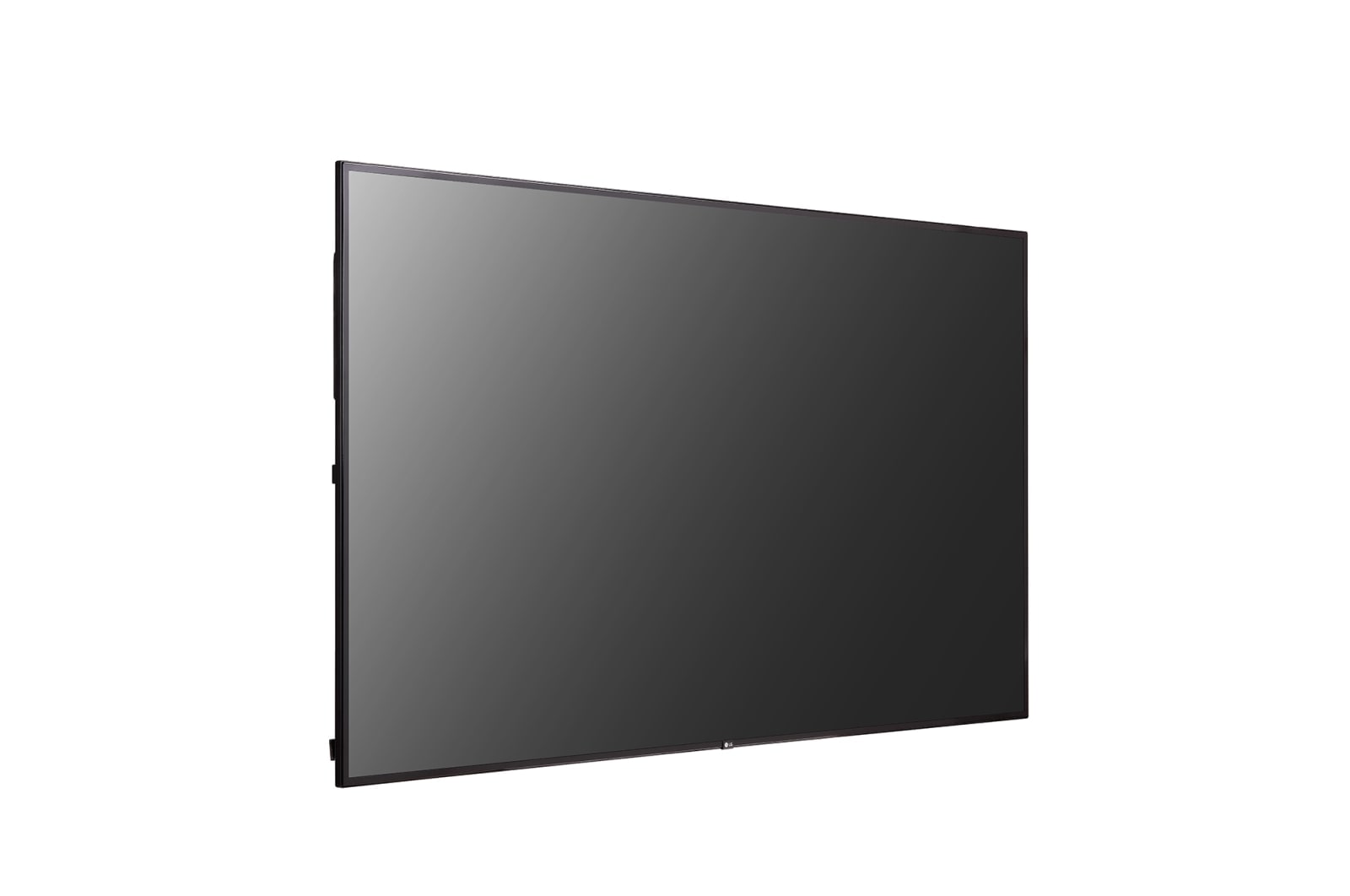

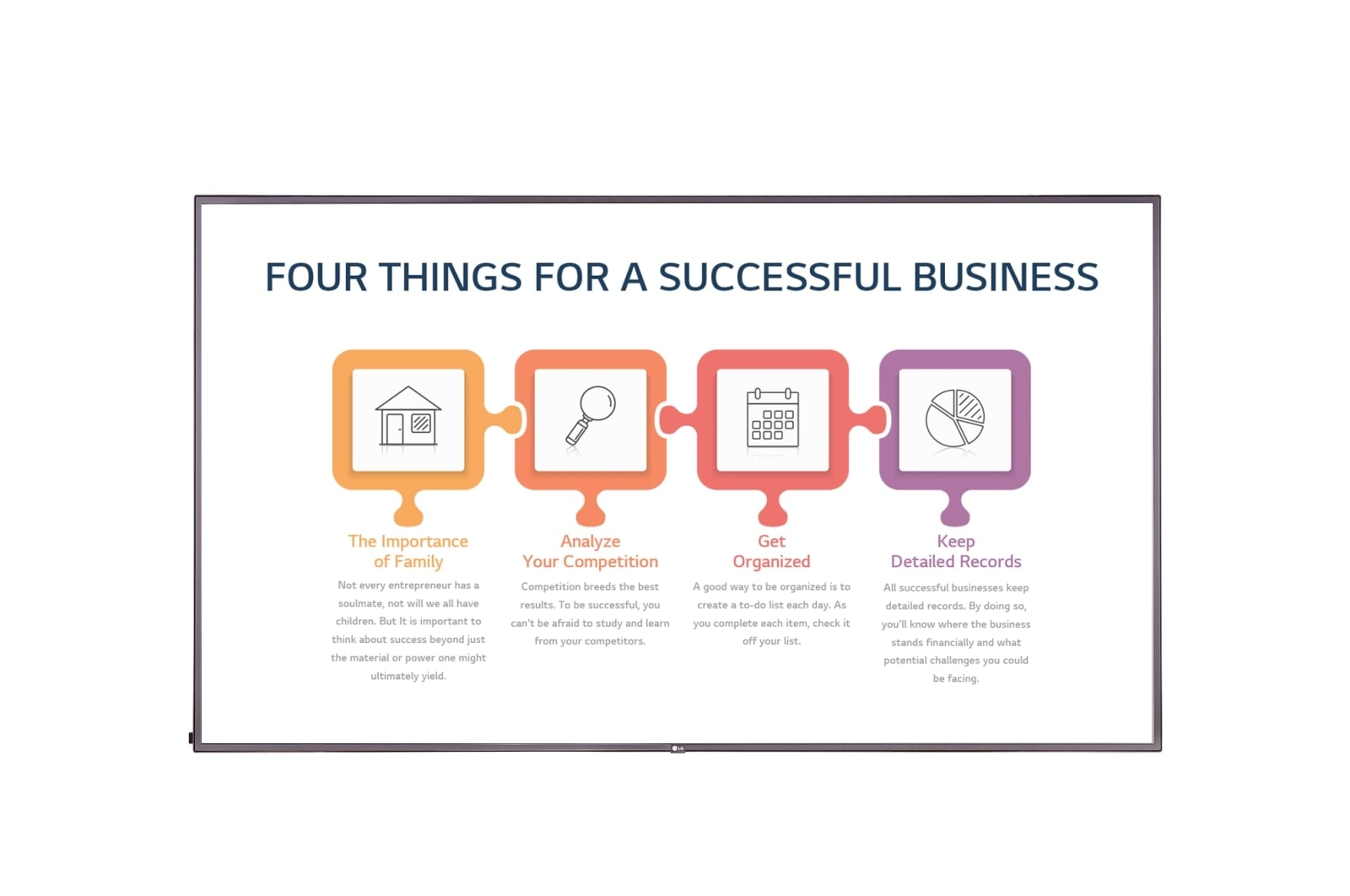

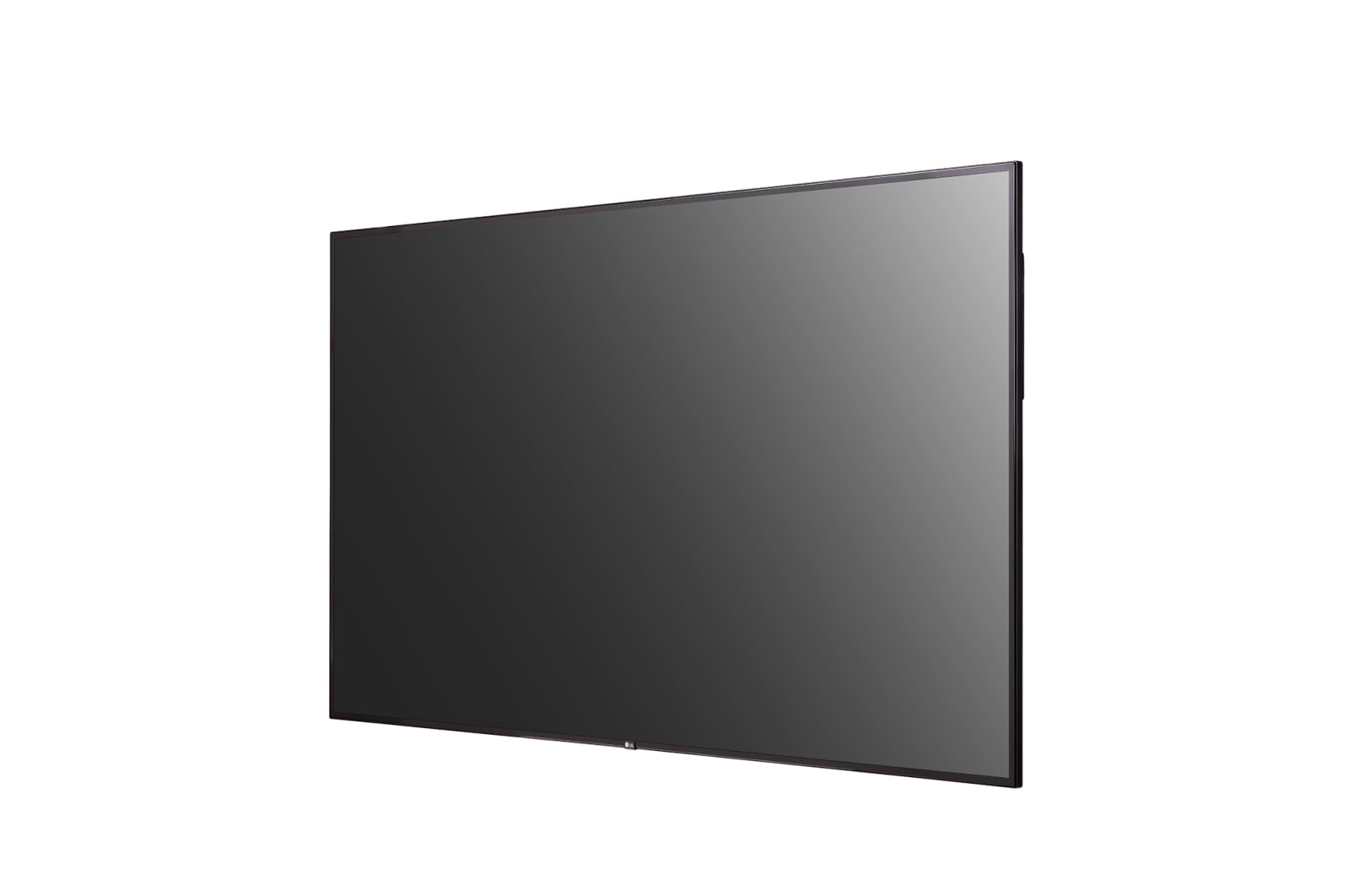

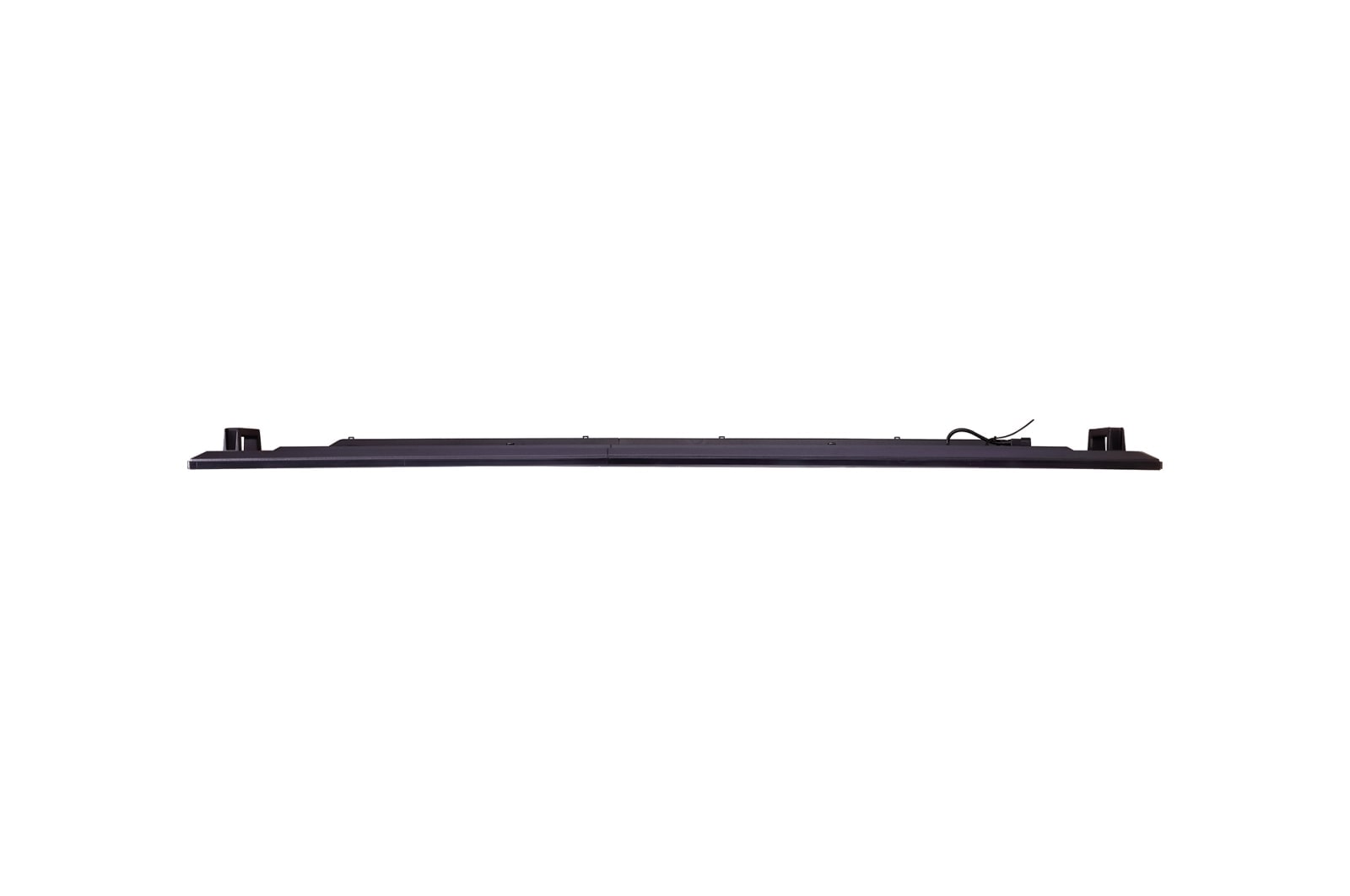

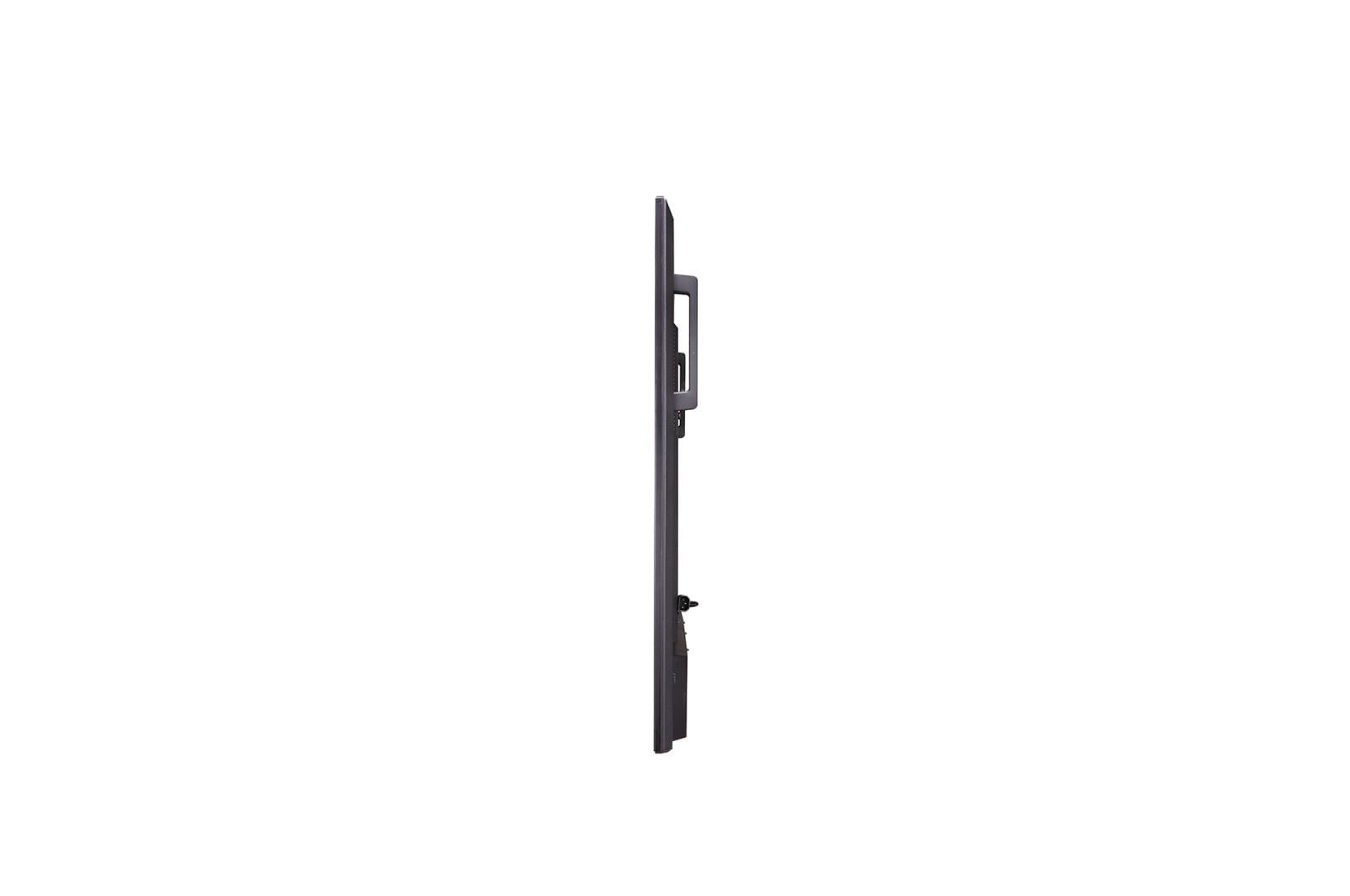

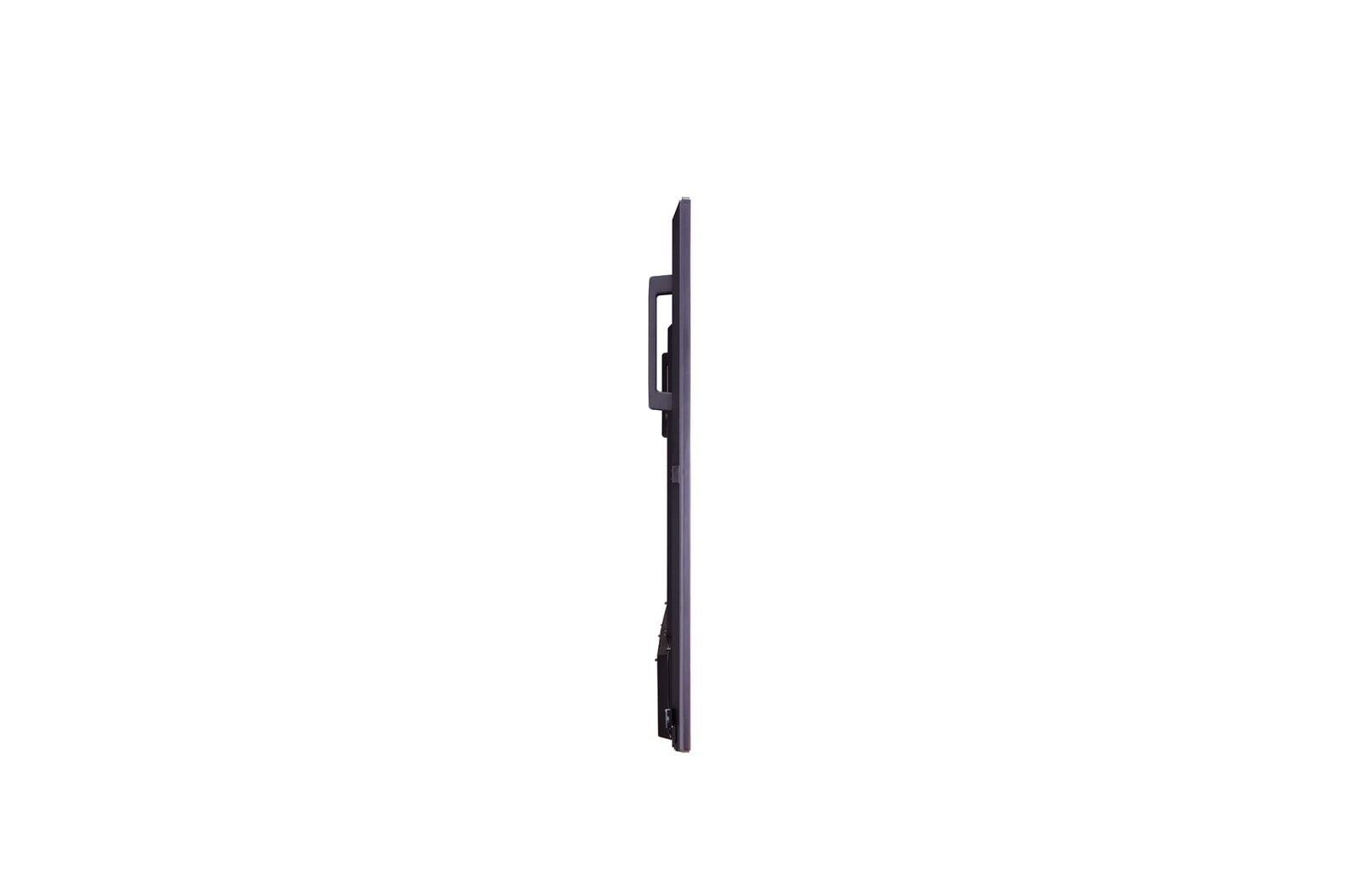

75" UHD Large Screen Signage

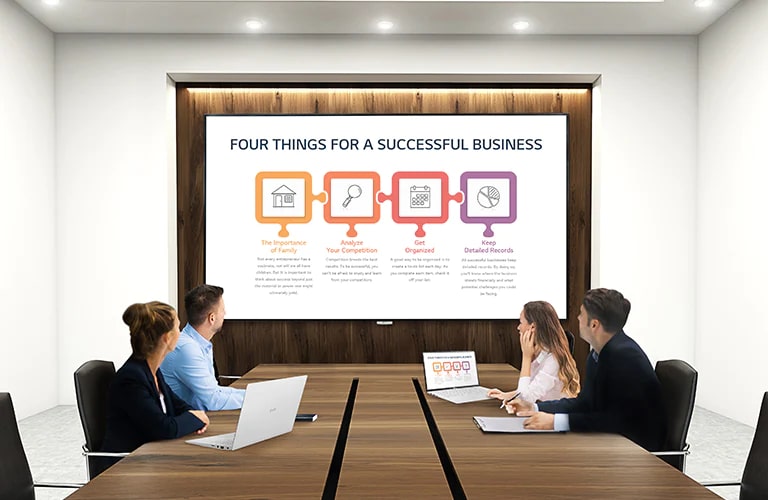

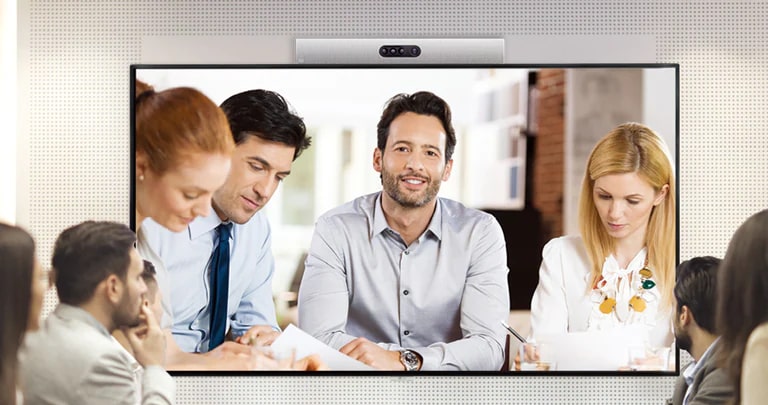

People sitting in the conference room are looking at the big screen and having a meeting.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* The images listed are for reference only and the actual reflection can be different.
* External sensors need to be purchased separately and tested for compatibility with webOS platform.
* Maximum 10 units of the mobile devices can be connected via softAP
* Network based control
* Using an HDMI cable connection
* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.
Screen Size (Inch)
75
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9

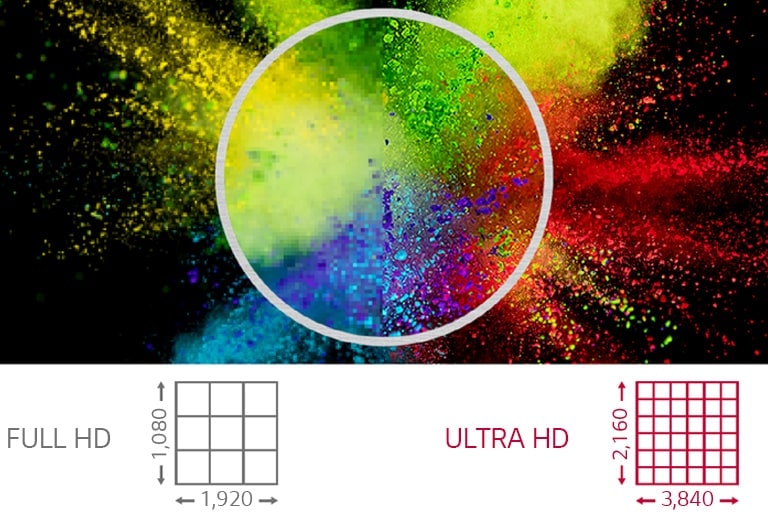

Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
350nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
6ms (G to G)

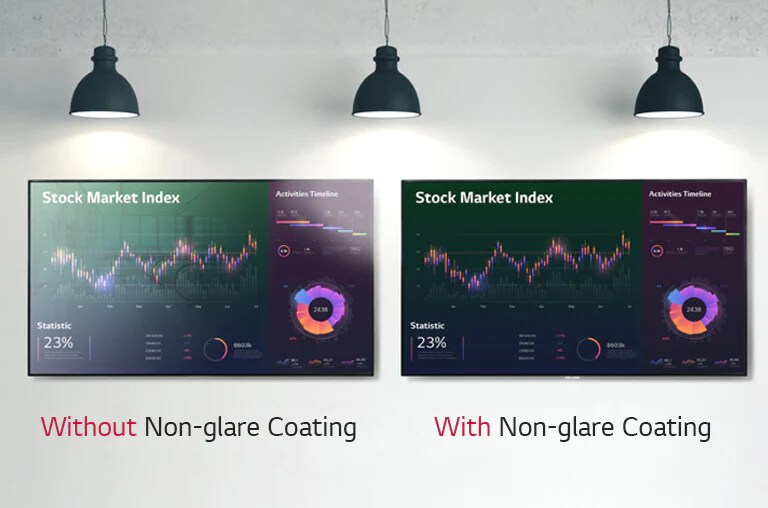

Surface Treatment (Haze)
Haze 28%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
Even bezel : 14.9mm
Weight (Head)
41.5Kg
Weight (Head+Stand)
N/A
Packed Weight
51.2Kg
Monitor Dimensions (W x H x D)
1682.4 x 960.3 x 57.9mm (without Handle and LG Logo)
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1816 x 1123 x 228mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO

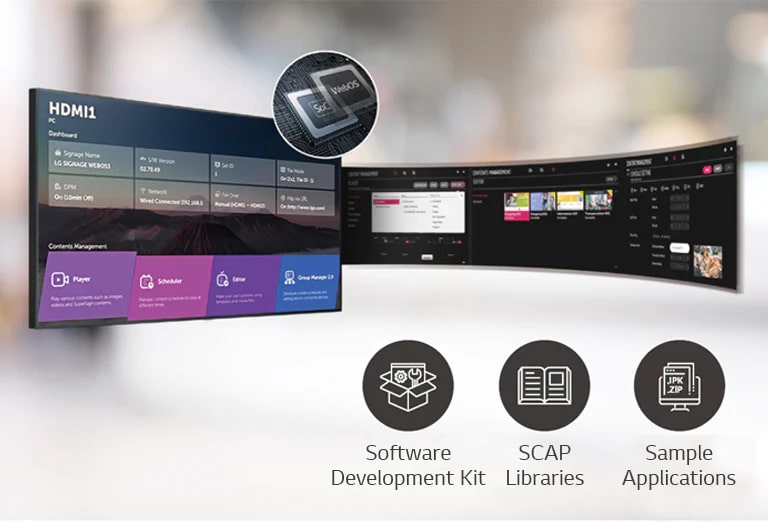

OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES

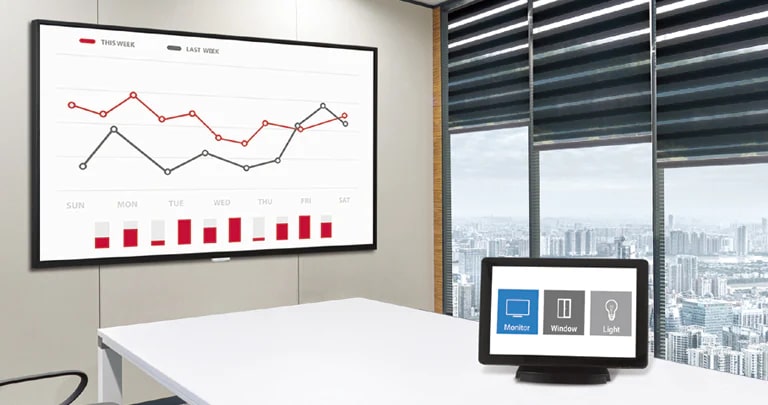

Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
155W
Max.
200W
BTU (British Thermal Unit)
614.25 BTU/Hr(Typ.), 887.25 BTU/Hr(Max.)
Smart Energy Saving (70%)
108.5W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES(Old ErP for Jordan) / YES
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
YES
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
LSW640A/B(Wall Mount), Touch overlay(KT-T75E)
Overlay Touch Compatibility
YES
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
To access more technical documentation and resources, please visit the LG B2B partner portal.
