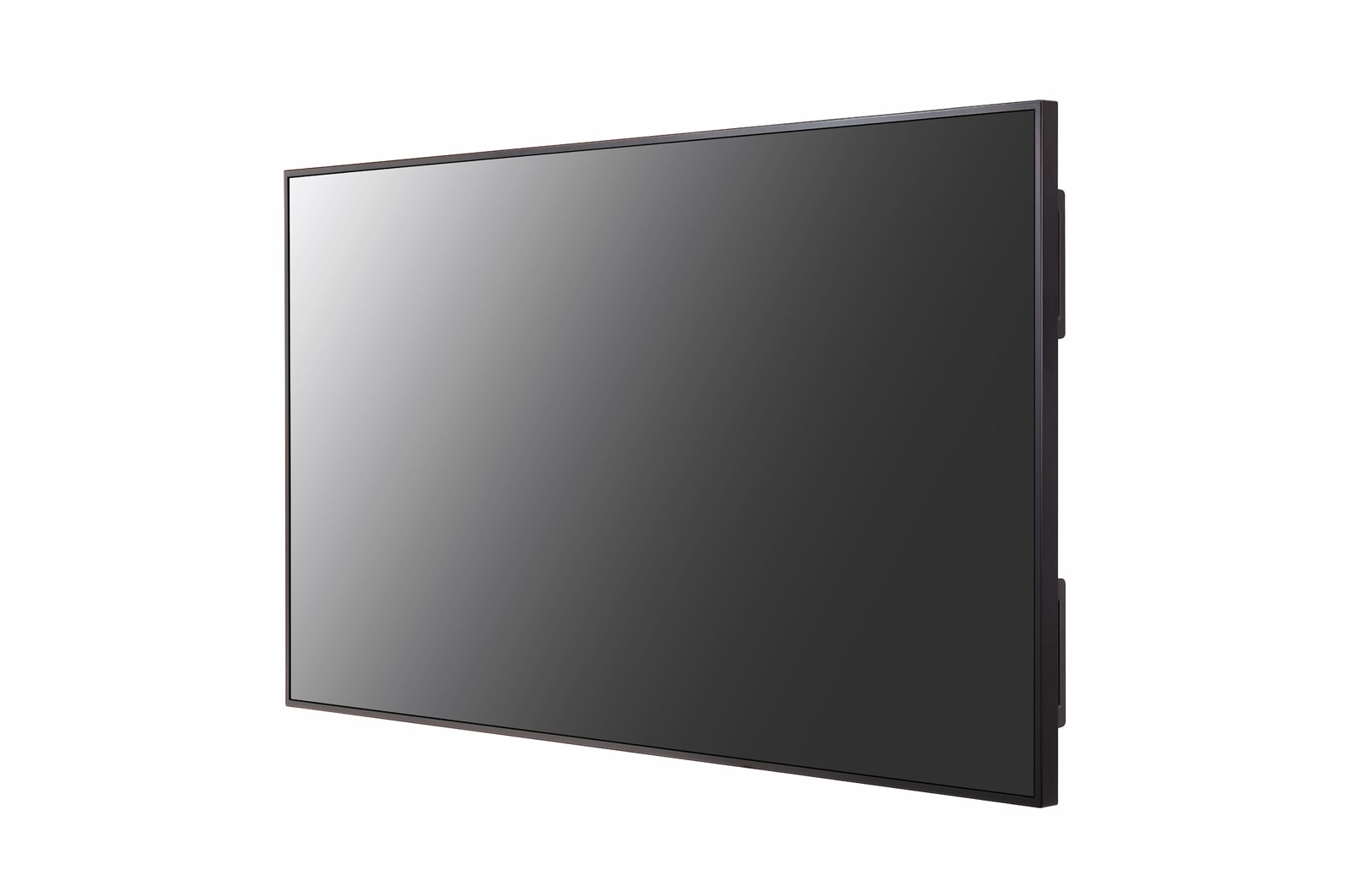

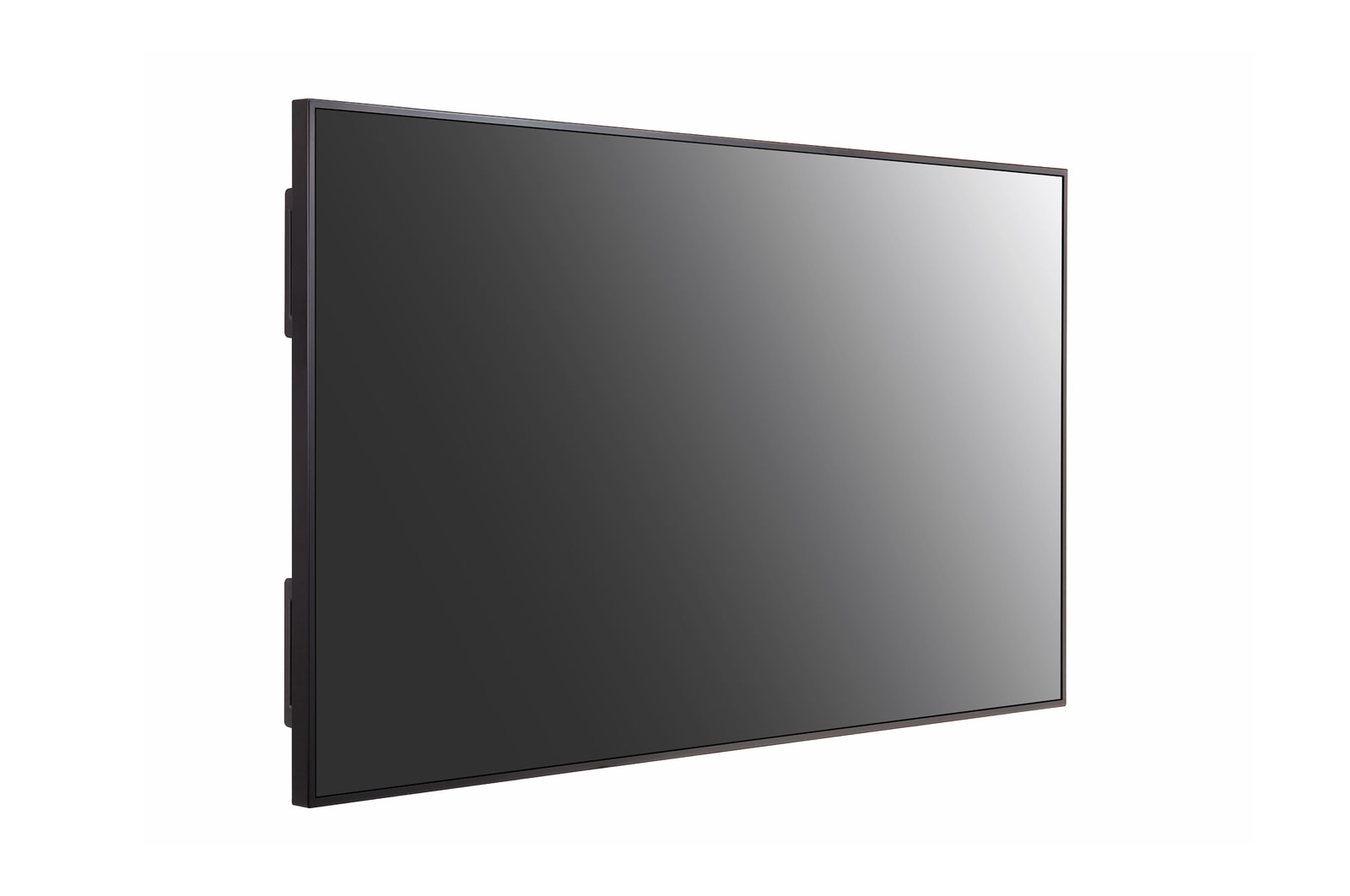

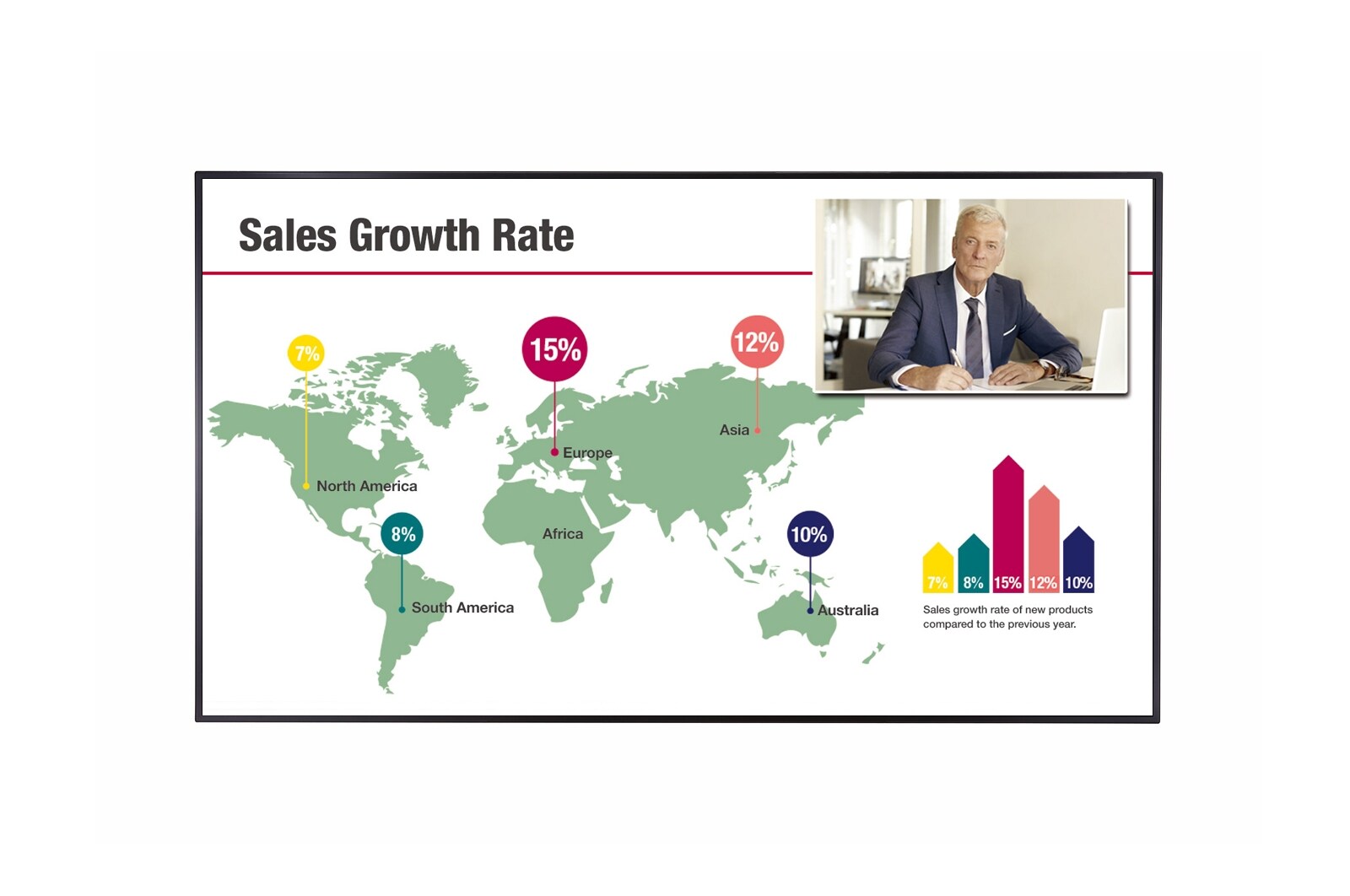

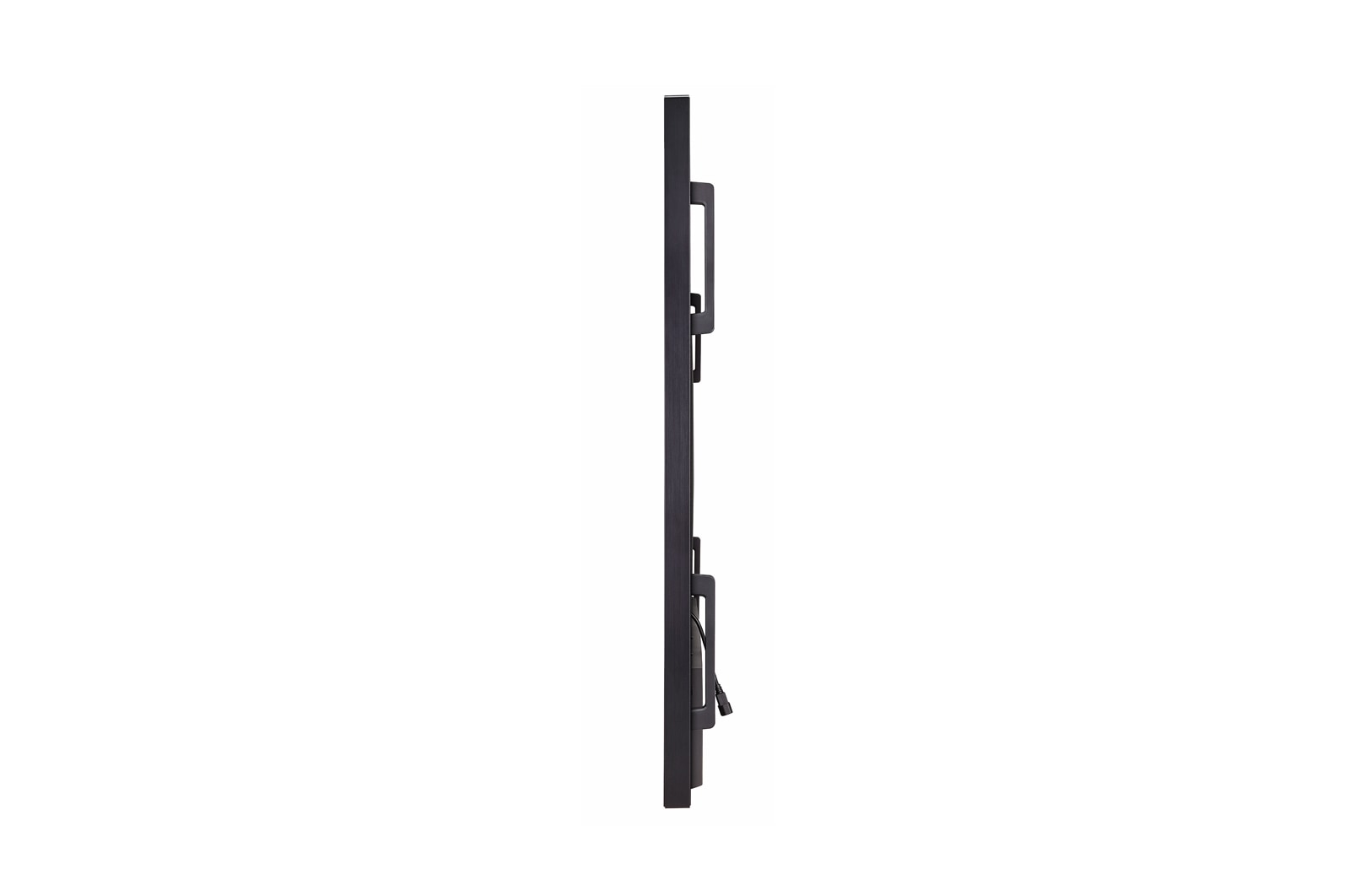

86" 350 nits UHD Signage
All Spec
ACCESSORIES
Basic
Remote Controller (include battery 2 ea), Power Cord, QSG, DP Cable Regulation Book, Phone to RS232C Gender, Memory Cover
Optional
Pixel sensor (KT-SP0),Media player, OPS Kit (KT-OPSA),HD Base T (EB-B100) LSW640A/B (Wall Mount)-Speaker (SP-5200), Pixel sensor(KT-SP0), Media player, Wall bracket(LSW350B), VESA Adapter (AMB330S),OPS Kit (KT-OPSA),HD Base T (EB-B100)
CONNECTIVITY
Input
HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
Output
DP, Audio
External Control
RS232C, RJ45, IR Receiver,Pixel Sensor
ENVIRONMENT
Operation Temperature Range
0°C to 40°C
Operation Humidity Range
10% to 80%
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
External Media Player Attachable
Yes (MP500/MP700)
PANEL
Screen Size
86"
Panel Technology
IPS
Aspect Ratio
16:9
Native Resolution
3,840 x 2,160 (UHD)
Brightness
350 cd/m²
Contrast Ratio
1,200:1
Dynamic CR
4,000,000:1
Viewing Angle (H x V)
178 x 178
Guaranteed Operating Hour
24 hrs / 7 days
PHYSICAL SPECIFICATION
Bezel Width
14.3 mm
Monitor Dimension (W x H x D)
1,926.2 x 1,097.2 x 60.6 mm
Weight (head)
49 kg
Carton Dimensions (W x H x D)
2,073 x 1,260 x 292 mm
Packed Weight
61.1 kg
VESA™ Standard Mount Interface
600 x 400 mm
POWER
Power Supply
100-240V~, 50/60Hz
Power Consumption (Typical)
160W
Power Consumption (Smart Energy Saving)
115W
SOFTWARE COMPATIBILITY
SuperSign Lite/W
Yes
SuperSign C
Yes
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950, CB Scheme
EMC
AS/NZS CISPR32, RCM (Class A)
Energy Rating
Star 7.0 (under 60" models)
