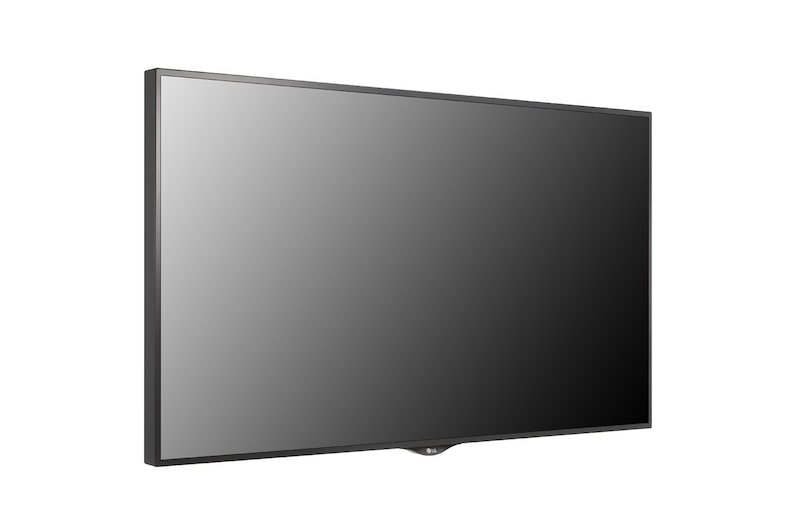

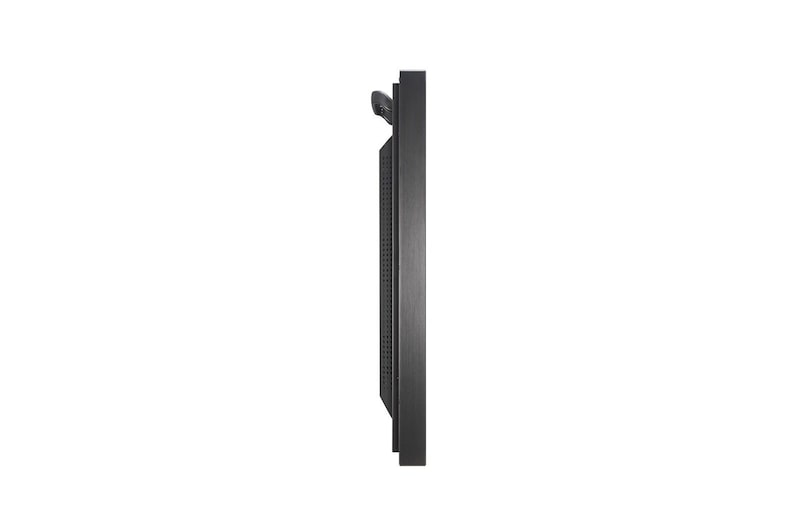

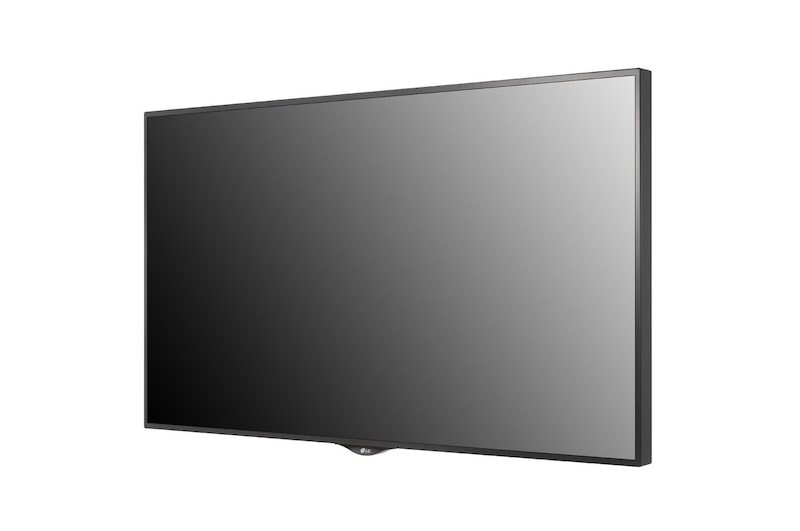

WINDOW-FACING DISPLAY 75XS2C SERIES

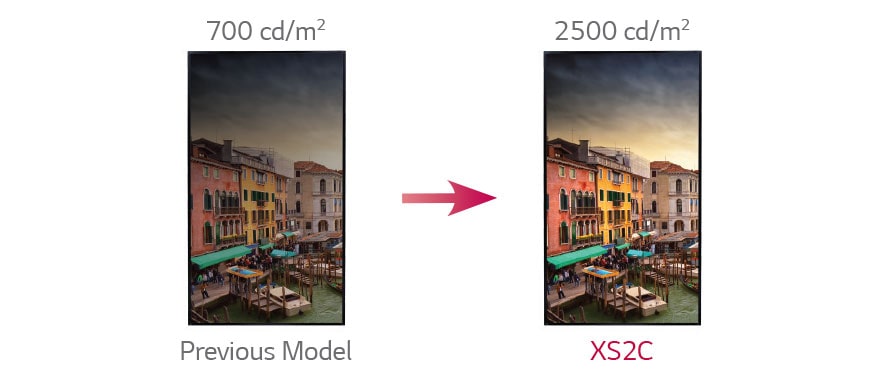

Increased Brightness
Increased Brightness
Less Noise. No Cooling Fan
Less Noise. No Cooling Fan

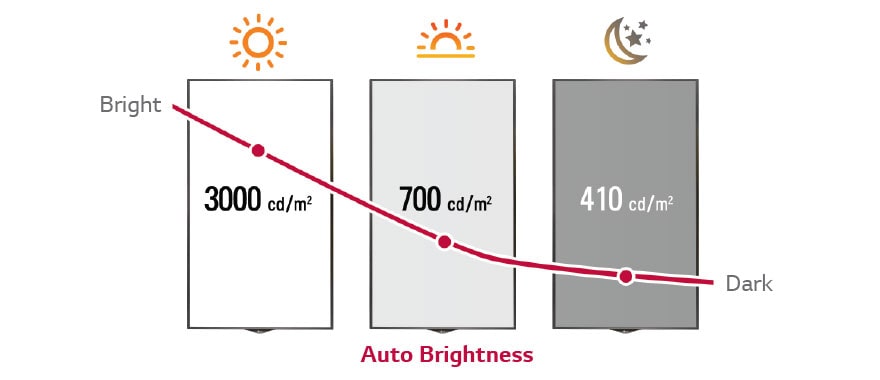

Smart Brightness Control
Smart Brightness Control
Dust & Humidity Protection

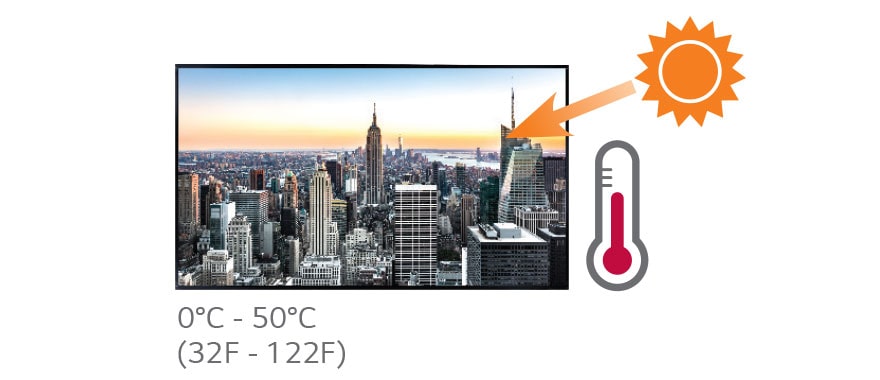

High Operating Temperature
High Operating Temperature

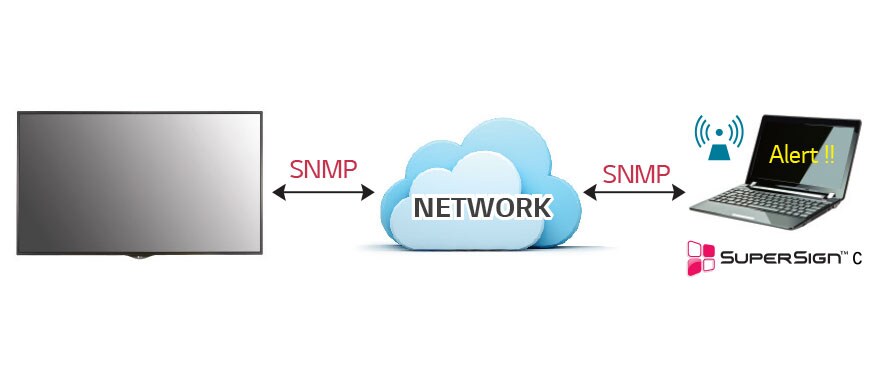

Real-Time Remote Monitoring
Real-Time Remote Monitoring

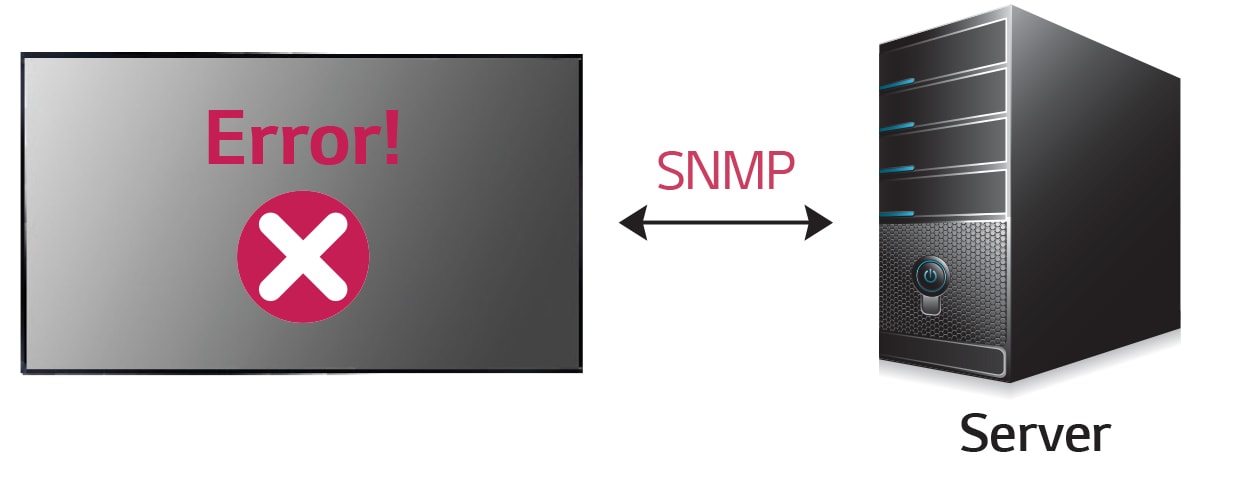

Saving System Log Files
Saving System Log Files
Gallery
All Spec
ACCESSORIES
Accessories
Remote controller (including battery 2ea), Power cord, HDMI cable, Manual (ESG&EIG)
Optional Accessories
LSW630 (Wall-mount), AN-WF500(Wi-Fi Dongle), KT-SP0(Pixel sensor)
CONNECTIVITY
Input
HDMI(2), DP, DVI-D, Audio, USB
Output
DP, External Speaker Out (L/R)
External Control
RS232C In/Out, RJ45, IR Receiver, Pixel Sensor
ENVIRONMENT CONDITIONS
Operation Temperature Range
0°C to 40°C(w/o Direct sunlight),0°C to 30°C (Direct sunlight)
Operation Humidity Range
10% to 85%
PANEL
Screen Size
75" (189cm)
Panel Technology
IPS, M+ (WRGB)
Aspect Ratio
16:9
Resolution
3,840 x 2,160 (UHD)
Brightness
2,500cd/m<sup>2</sup> (Typ.)
Contrast Ratio
1200:1
Dynamic CR
500,000:1
Viewing Angle (H x V)
178 x 178
Surface Treatment
AGLR(Haze 3%) ,QWP
Orientation
Landscape & Portrait
PHYSICAL SPECIFICATION
Bezel Colour
Black
Bezel Width
11.8 mm (even bezel)
Monitor Dimension (W x H x D)
1,675.2 x 953.6 x 116 mm
Weight (Head)
43 kg
Carton Dimensions (W x H x D)
1,816 x 1,106 x 285 mm
Packed Weight
52.2 kg
VESATM Standard Mount Interface
600 x 400 mm
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ./Max)
650 W / 650 W
Power Consumption (Smart Energy Saving)
280 W
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
SPECIAL FEATURES
SPECIAL FEATURES
Temperature sensor, Tile mode (Up to 15x15), Natural mode@Tile mode, Source selection, Brightness/Contrast/Backlight, DPM select, Energy saving, Smart energy saving, File play with USB, Internal memory, Wi-Fi dongle ready
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950,CB Scheme
EMC
AS/NZS CISPR32,RCM(Class A)
