32TNF5J-B

32” 500 nits UHD Touch Open Frame Digital Board

(0)

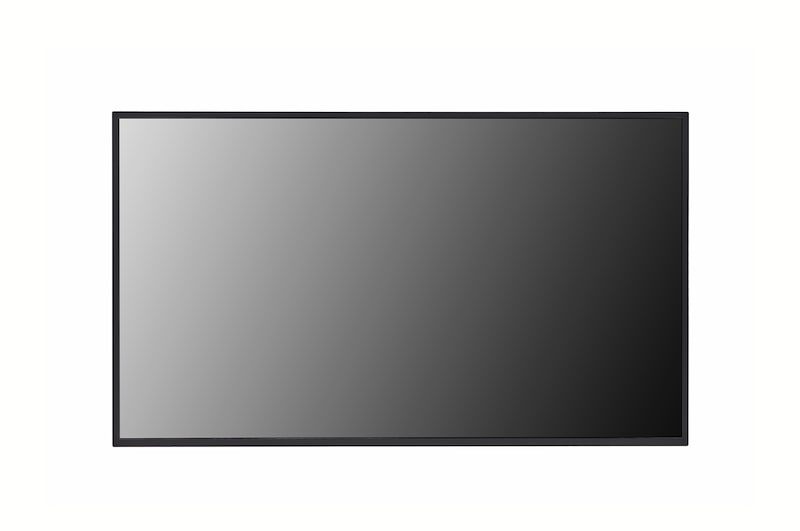

Front view with infill image

In-Cell Touch Open Frame for Optimal Customisation

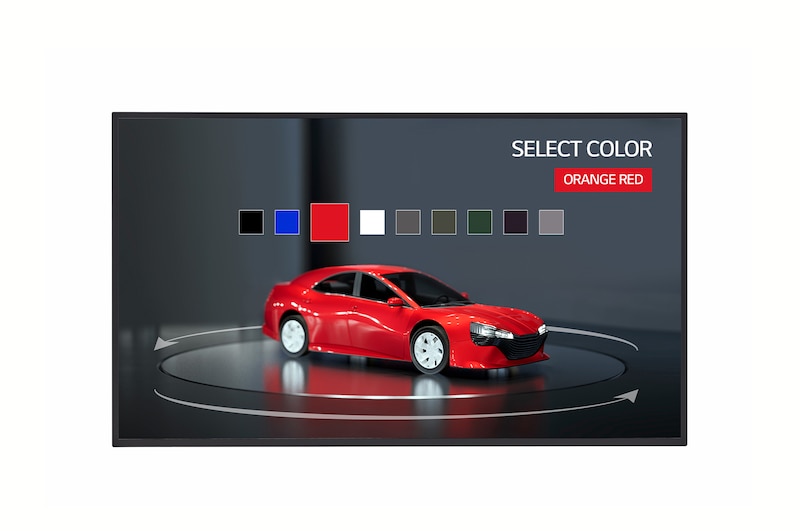

In a car dealership, a man is touching TNF3K to change the color of a car on the display.

* All images in this page are for illustrative purposes only.

In-Cell Touch

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

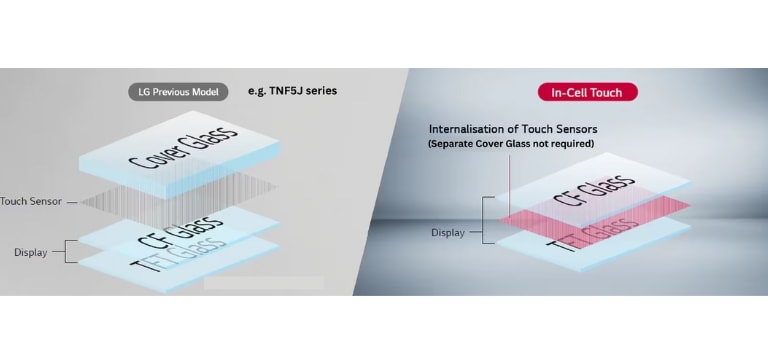

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.

Clear Picture Quality

Compared to general touch products, TNF5J implements clear picture quality due to the less layer component.



While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.

Design Flexibility

Users can access to free design tools through the integrated parts such as touchscreen, display and webOS.



Various types of displays using TNF3K such as kiosk displays and publicity displays are placed.

*Standard commercial webOS
*Screen images are simulated.

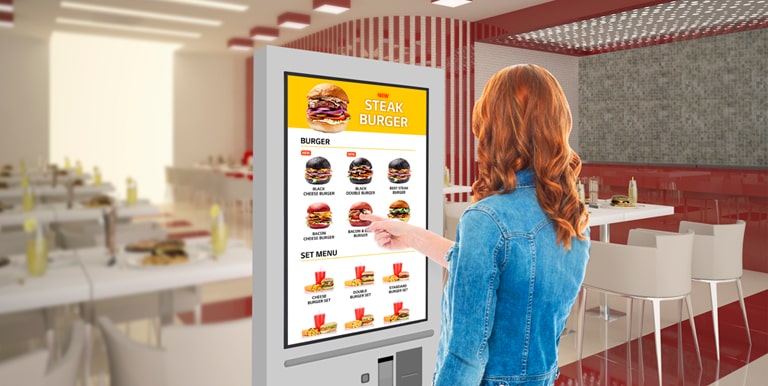

A woman is touching a kiosk to select a hamburger from the menu.

24hrs / 7days

TNF5J-B allows for use in kiosks that require a full day of operation.

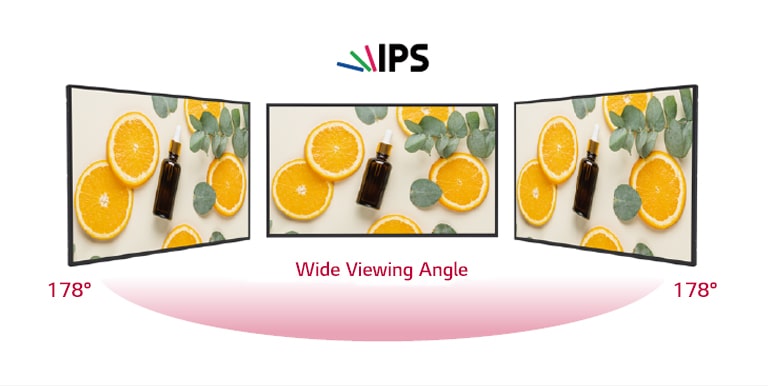

With a 178-degree wide viewing angle, the display content is visible from any angle.

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which allows the screen to be viewed at wide angle.

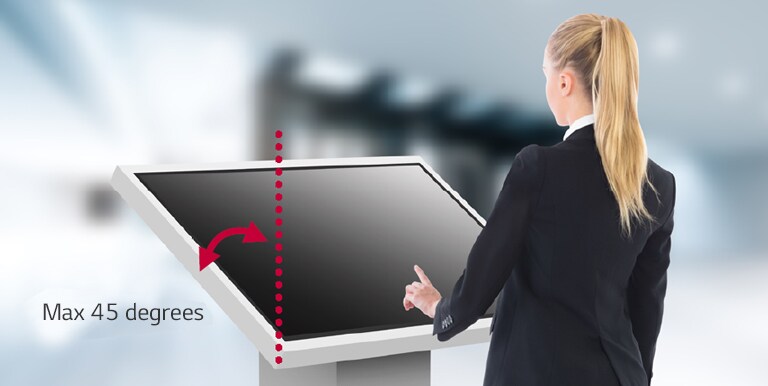

A woman is touching a lower installed TNF5J. The TNF5J is installed tilted toward the woman so she can see the display content well.

45-degree Tilt (Face up) Installation

Max tilt of 45 degrees is supported for user’s viewing comfort.
The user places all ten fingers on the TNF5J display to touch it.

10 Points of Multi-Touch

The TNF5J-B provides a touch sensation up to 10 points of multi-touch at once. The touch based user services can be provided through the screen.

WebOS6.0 Sensor Connections

The webOS 6.0 smart signage platform provides convenience with intuitive GUI** and simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

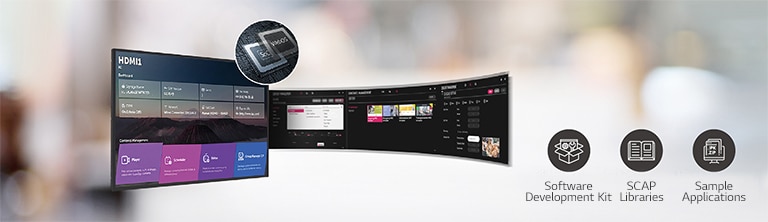

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

* SoC : System On Chip
** GUI : Graphical User Interface

All Spec

PANEL

  • Screen Size (Inch)

    32

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    NO

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Response Time

    9ms (G to G)

  • Surface Treatment (Haze)

    Haze 12%

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    1.4

  • DP In

    NO

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    NO

  • Audio Out

    YES

  • Touch USB

    USB2.0 Type B (1ea)

  • External Speaker Out

    NO

  • RS232C Out

    NO

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 11.3/11.3/11.3/13.2mm

  • Weight (Head)

    5.6Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    6.8Kg

  • Monitor Dimensions (W x H x D)

    723.0 x 419.4 x 39.1mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    812 x 510 x 142mm

  • Handle

    NO

  • VESA Standard Mount Interface

    200 x 200 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    NO

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    NO

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    YES

  • Power Indicator

    NO

  • Local Key Operation

    NO

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.0

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    NO

  • Local Network Sync

    NO

  • Backlight Sync

    NO

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    NO

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    NO

  • Gapless Playback

    YES

  • Tile Mode Setting

    NO

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    NO

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    YES

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    NO

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    55W

  • Max.

    65W

  • BTU (British Thermal Unit)

    188 BTU/Hr(Typ.), 222 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    39W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    N/A / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

  • SuperSign Cloud

    YES

  • Promota

    NO

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

ACCESSORY

  • Basic

    Power Cord 1.55m, USB Cable(Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

  • Optional

    NO

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    Max. 45 degree

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø6 mm ↑

  • Response Time ('Paint' app on Windows 10 PC)

    90ms ↓

  • Accuracy (Typ.)

    3.5mm

  • Interface

    USB2.0

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Operating System Support

    Windows 10

  • Multi Touch Point

    Max. 10 Points

To access more technical documentation and resources, please visit the LG B2B partner portal.
