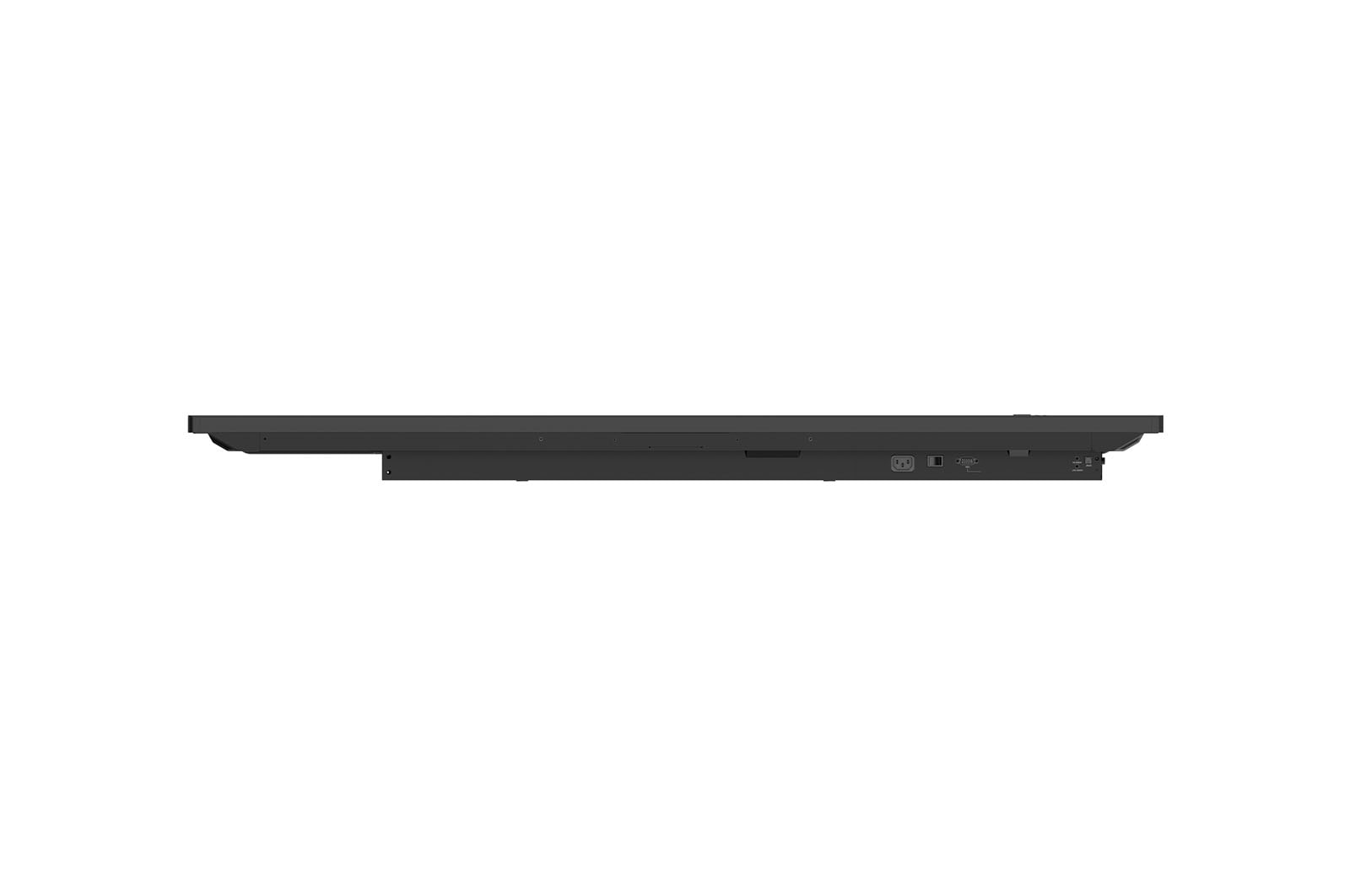

LG CreateBoard
LG CreateBoard
Key Features
- Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
- Resolution : 3,840 × 2,160 (UHD)
- Multi-Touch Point : 40 Points (Max.)
A New Level of Classroom with LG CreateBoard

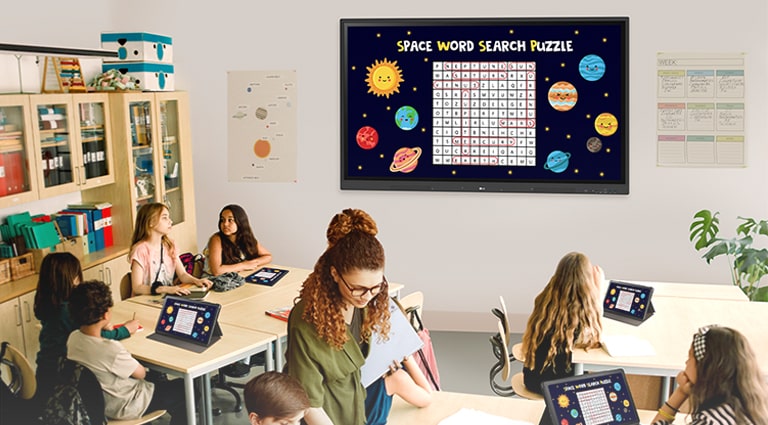

Class is being conducted in the classroom, and the class material screen which is displayed on the classroom wall's LG CreateBoard is being shared on the students' tablets.
*Image dramatised for illustrative purposes.
*Tablets not included.
Various Teaching Templates
Students are solving problems using various ruler models on the LG CreateBoard menu.
*Image dramatised for illustrative purposes
Multi-touch
"In the classroom, several students are simultaneously writing on the LG CreateBoard screen. "
* A max of 32 points are recognised in the Android environment, and a max of 40 points are detected in the Windows environment.
* Up to 10 points can be recognised in the writing app.
*Images dramatised for illustrative purposes.
Easy to Save / Import / Export
Materials used to conduct class can be shared through the LG CreateBoard's import and export function after class.
*Images dramatised for illustrative purposes.
Wireless ScreenShare
The LG CreateBoard can easily share screens with multiple devices in real time via app and website.
*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
*Images dramatised for illustrative purposes.
An internet connection and wireless network is required.
LG ConnectedCare DMS
An IT manager is managing/controlling the status of the LG CreateBoard through LG ConnectedCare DMS.
*LG ConnectCare DMS is available separately at additional cost
*LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now under a cloud environment.
ConnectedCare DMS Remote Control
Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a Remote Control Function over internet. Content including images, videos, audio messages, or live streaming can be remotely shared with connected devices.
The user can set a threshold for receiving an warning/error signal for eight categories: display temperature, CPU usage, etc. The current status of the issue is easily indicated in categories, enabling for quick real-time responses. Issues can be managed remotely with an LG ConnectedCare DMS solution.
Threshold Settings
Users can set thresholds in eight different categories, such as display temperature, memory usage, and signal strength, and receive warning or error notifications based on their threshold settings.
Monitoring & Fault Diagnosis
Real-time status checks and remote problem diagnosis are possible for IT managers. Additionally, issues can be categorised by their current status, allowing for easy viewing and swift responses.
Issue Management
The LG ConnectedCare DMS solution enables remote issue management.
Bluetooth Connectivity
The LG CreateBoard can wirelessly connect to devices such as keyboards, mice, and speakers via Bluetooth.
C-type Connection
The LG CreateBoard easily transmits data via USB-C connectivity and can charge up to 65W.
*USB Type-C cables are sold separately.
*Images dramatised for illustrative purposes.
*Images dramatised for illustrative purposes.
*Images dramatised for illustrative purposes.
*Images dramatised for illustrative purposes.
*Images dramatised for illustrative purposes.
Gallery
All Spec
PANEL
Screen Size (Inch)
55
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
390nit (Typ., without Glass)
Contrast Ratio
1,200:1
Dynamic CR
5,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
16.7 Million colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
50,000Hrs (L30)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
NO / YES
CONNECTIVITY
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2
DP In
NO
DVI-D In
NO
RGB In
YES
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
HDMI Out
YES
DP Out
NO
Audio Out
YES
Touch USB
USB2.0 Type B (2ea)
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
YES
MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Width
T/R/L/B : 18/18/18/45mm
Weight (Head)
26.1Kg
Packed Weight
34.5Kg
Monitor Dimensions (W x H x D)
1271 × 774 × 87mm
Carton Dimensions (W x H x D)
1401 × 859 × 220mm
Handle
NO
VESA Standard Mount Interface
400 x 200 mm
FEATURE - HARDWARE
Internal Memory (eMMC)
32GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
NO
Auto Brightness Sensor
YES
Power Indicator
YES
Local Key Operation
NO
FEATURE - SOFTWARE
Booting Logo Image
YES
PIP
YES
PBP
YES (2PBP)
Screen Share
YES
Setting Data Cloning
NO
Crestron Connected
NO
Smart Energy Saving
YES
PM mode
NO
Wake on LAN
YES
Network Ready
NO
HDMI-CEC
NO
ENVIRONMENT CONDITIONS
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 90 %
POWER
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
POWER CONSUMPTION
Typ.
170W
Max.
395W
BTU (British Thermal Unit)
580 BTU/Hr(Typ.), 1348 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
SOUND
Speaker (Built-in)
YES (15W x 2)
CERTIFICATION
Safety
CB / NRTL
EMC
FCC Class "A" / CE
ERP / Energy Star
YES / NO
OPS COMPATIBILITY
OPS Type compatible
YES (Slot)
OPS Power Built-in
YES
SOFTWARE COMPATIBILITY
Connected Care
YES
LANGUAGE
OSD
English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai
ACCESSORY
Basic
Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)
SPECIAL FEATURE
Conformal Coating (Power Board)
YES
DEDICATED FEATURE - TOUCH
Available Object Size for Touch
Ø2 mm ↑
Response Time ('Paint' app on Windows 10 PC)
5ms ↓
Accuracy (Typ.)
±1mm
Interface
USB2.0
Protection Glass Thickness
3mm (Anti-Glare)
Protection Glass Transmission
0.88
Operating System Support
Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)
Multi Touch Point
Max. 40 Points(Windows), Max. 32 Points(Android)
DEDICATED FEATURE - CREATE BOARD
CPU
Quad core A55
GPU
Mail G52 Multicore 2
Memory(RAM)
4GB
Storage
32GB
Wi-Fi
802.11a/b/g/n/ac/ax (WiFi 6)
LAN
Gigabit LAN
Bluetooth
Bluetooth 5.0
OS ver. (Android)
Android 11
To access more technical documentation and resources, please visit the LG B2B partner portal.
