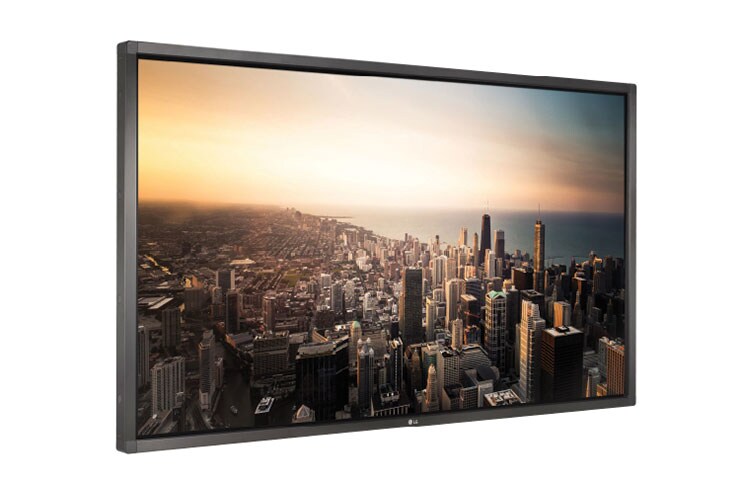

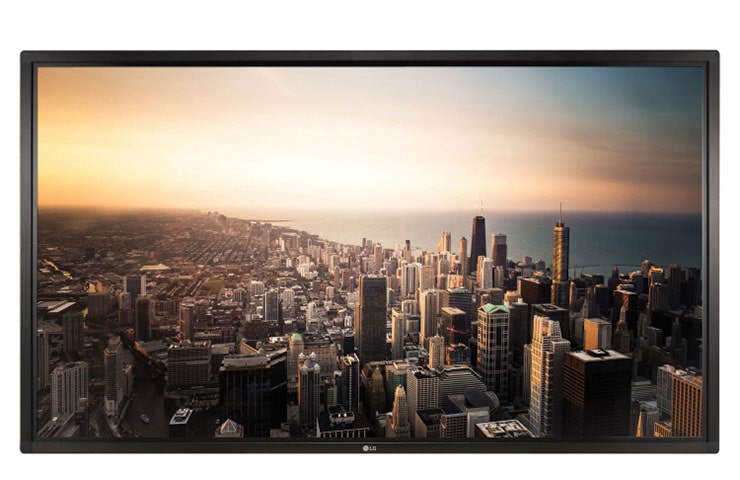

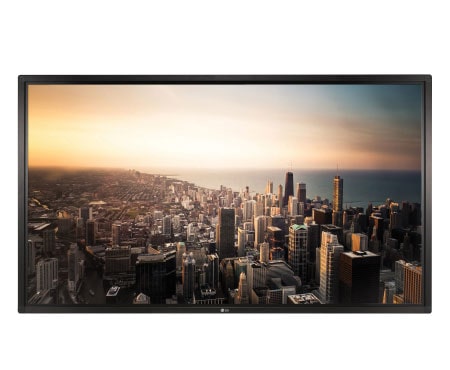

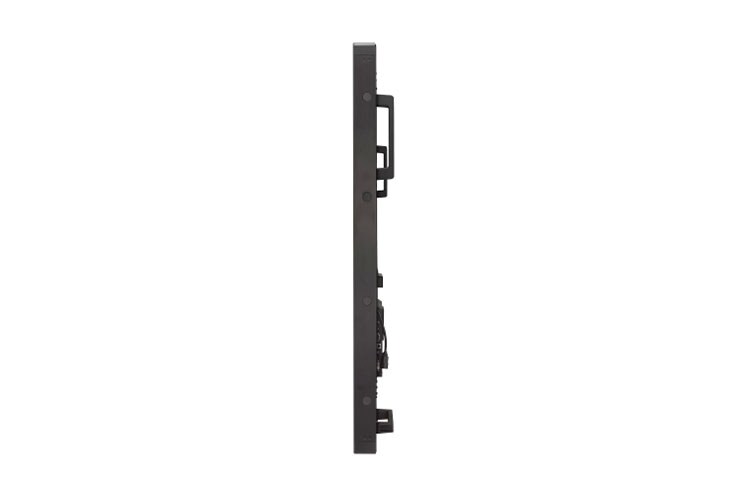

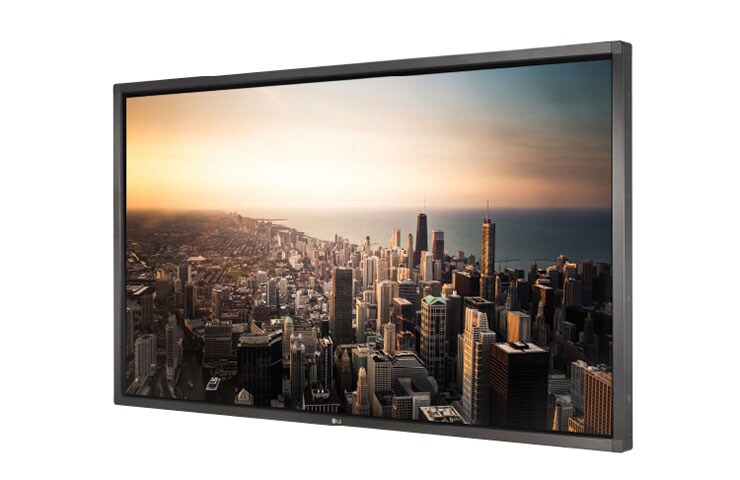

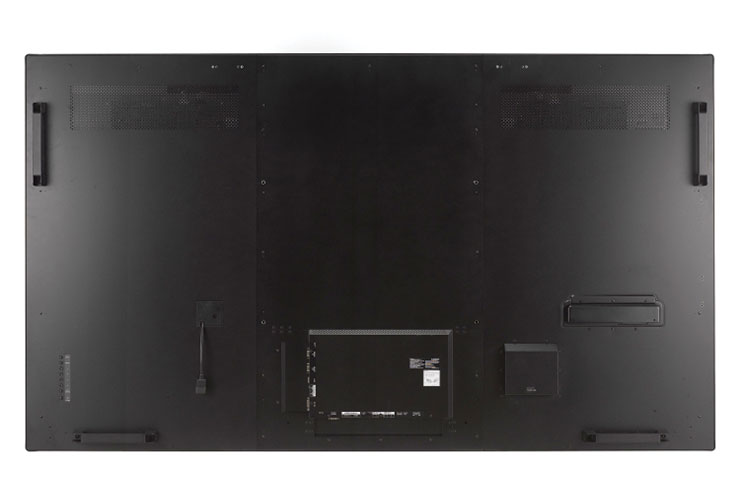

ULTRA HD LARGE MULTI-TOUCH DISPLAY 84TR3B
All Spec
ACCESSORY
Accessory
Power Cord, Remote Controller(2ea batteries included), IR/Light Sensor Receiver, USB 2.0 Cable, HDMI 2.0 Cable, Display Port Cable, Cable Tie(2ea), Touch Pen(2ea), Pen Tray(1ea), Eye-Bolt Assy(2ea), Screw Package, ESG
Optional
Media Player : MP700/MP500, External Speaker : SP-2100, Pentray : KT-WT1(TBD)
CONNECTIVITY
Input
HDMI(2), DP(1), DVI-D(1)(w/o HDCP), Component AV(1), Audio(1), USB 3.0(1), USB 2.0(2)
Output
Audio(1), External Speaker(L/R)
External Control
RS232C(1), RJ45(1), IR/Light Sensor(1), Pentray Control(1)
ENVIRONMENT CONDITIONS
Operation Temperature Range
0°C to 40°C
Operation Humidity Range
10% to 80%
MEDIA PLAYER COMPATIBILITY
Slot PC compatible (optional)
Yes (MP500, MP700)
External Media Player Attachable
No
PANEL
Screen Size
84" (213cm)
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
3,840 x 2,160 (UHD)
Brightness
350cd/m2 (Typ), 300cd/m2 with Protection Glass
Contrast Ratio
1,400:1
Dynamic CR
500,000:1
Viewing Angle(H x V)
178 x 178
Surface Treatment
Anti-glare Haze 10%
Life time
50,000 Hrs (Typ.)
Orientation
Landscape
PHYSICAL SPECIFICATION
Bezel Colour
Black
Bezel Width
34.0mm
Monitor Dimension (W x H x D)
1,951 x 1,137 x 112mm
Weight (Head)
104kg
Carton Dimensions (W x H x D)
2,050 x 1,261 x 330mm
Packed Weight
119.1kg
VESA TM Standard Mount Interface
600 x 400mm, M8
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
400W
Power Consumption (Smart Energy Saving)
30% ±5%
SOFTWARE COMPATIBILITY
SuperSign W/Lite
No
SuperSign C
Yes
Interactive White Board S/W
Yes
SPECIAL FEATURES
Additional
Temperature Sensor, Auto Brightness Sensor, Auto Power/Source Memory, Key Lock, DPM Select, File Play with USB, Internal Memory(8GB), Wi-Fi Dongle Ready
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950, CB Scheme
EMC
AS/NZS CISPR 22, RCM (Class A)
Energy Rating
N/A
To access more technical documentation and resources, please visit the LG B2B partner portal.
