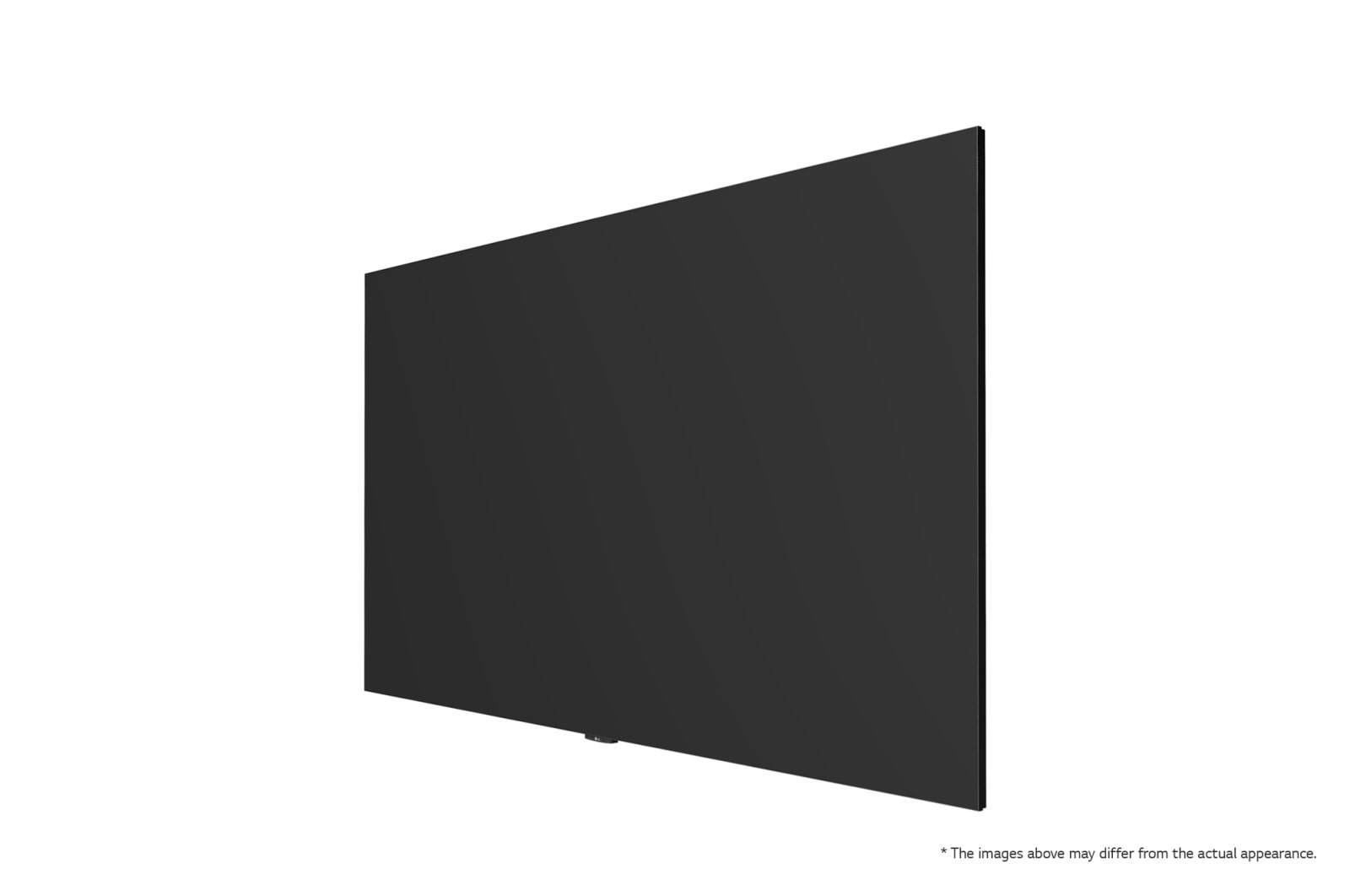

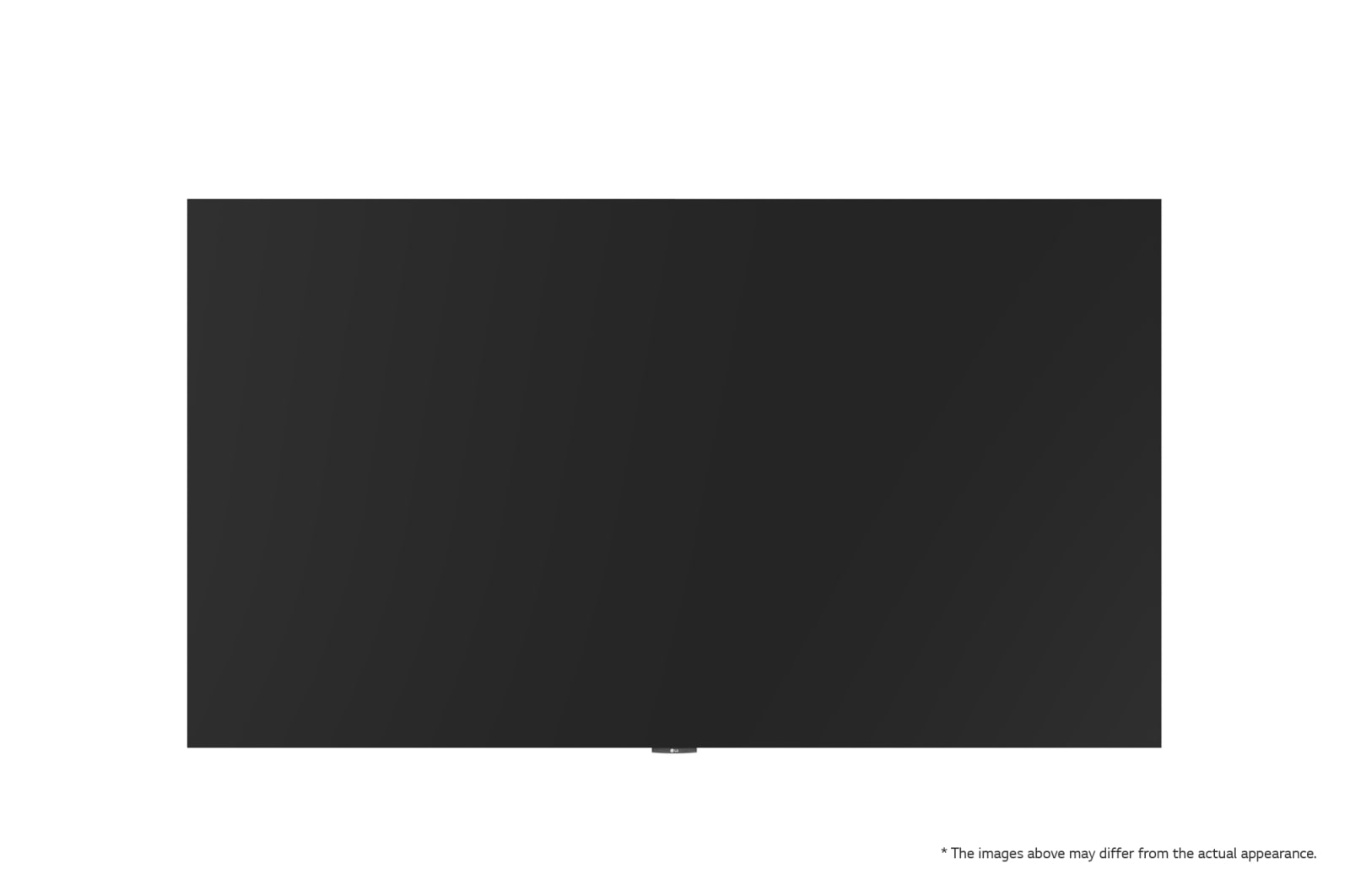

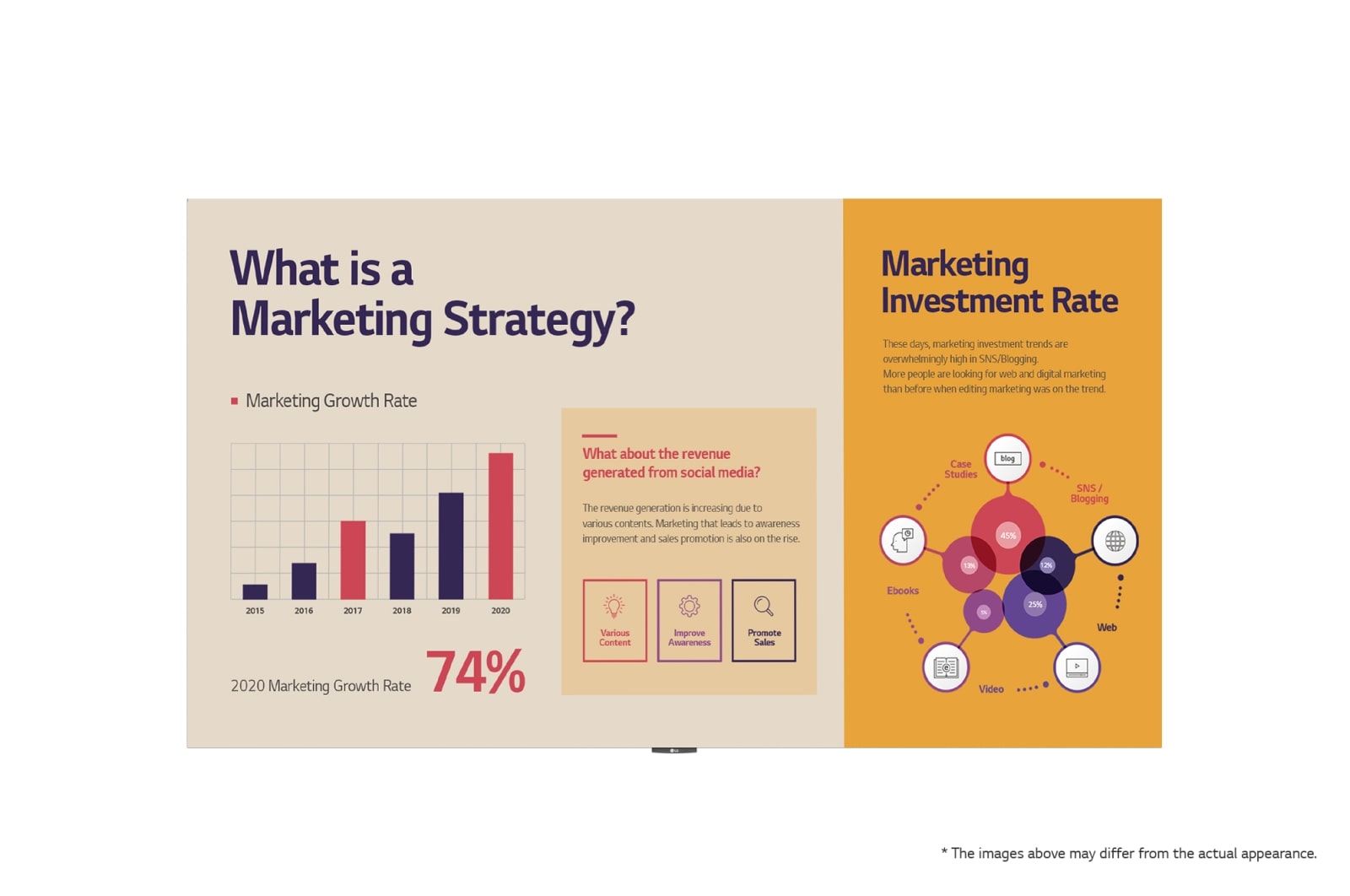

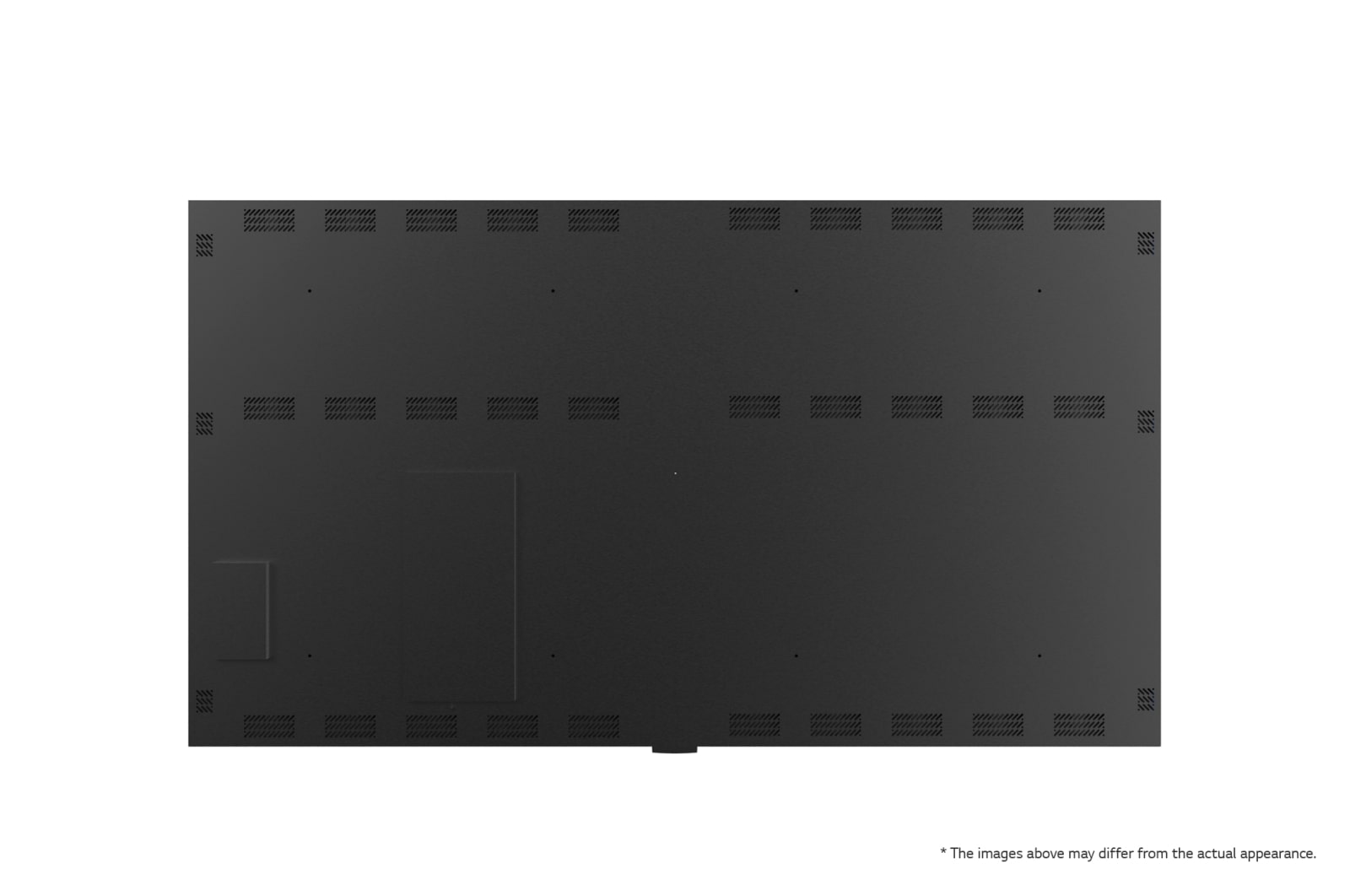

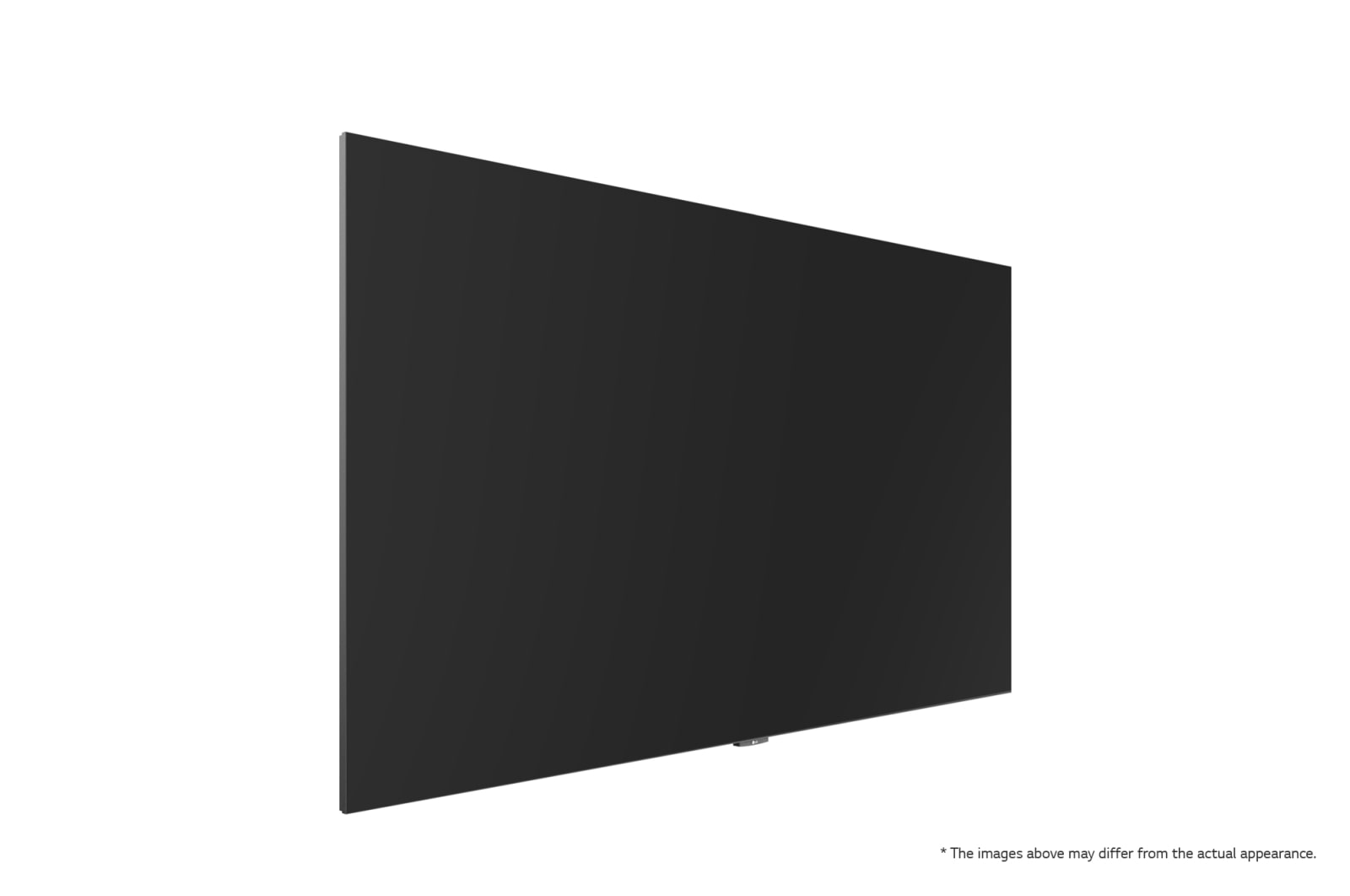

All-in-one Essential Series
Pixel Configuration
3 in 1
Pixel Pitch
1.56
Module Resolution(WxH)
160x180
Module Dimensions(WxH,mm)
250x281.25x14<sup>1)</sup>
Weight per Module (kg/unit)
0.47<sup>1)</sup>
No. of Modules per Screen (WxH)
12x6
Screen Resolution (WxH)
1,920x1,080
Screen Dimensions(WxHxD, mm)
3,000x1678.5x38
Module Surface Area (㎡)
0.07<sup>1)</sup>
Weight per Screen(kg)
140
Weight per Square Meter(Kg/m²)
27.8
Physical Pixel Density(Pixels/m²)
409,600
Screen Structure Material
Aluminum
Service Access
Front
Min. Brightness(After Calibration)
800
Colour Temperature
6,500
Visual Viewing Angle(Horizontal)
160
Visual View Angel(Vertical)
160
Brightness Uniformity
98%
Colour Uniformity
±0.015Cx,Cy
Contrast Ratio
3,000
Processing Depth(bit)
16
Power Consumption(W/Unit, Max)
3000
Power Consumption(W/Unit, Avg)
1000
Power Consumption (W/㎡, Max.)
600
Lifetime (Half brightness)*
100,000
Operating Temperature(℃)
0°C to +40°C
Operating Humidity
<90%RH (without condensation)
Environment
RoHS
Input
HDMI(3) ,USB(3)
Output
3.5 Stereo Audio Out
Control
IR(1), USB, Ethernet(1)
Power
AC-100-240V-50/60HZ
Disclaimers
<sup>1)</sup> Based on LDM(LED PCB)
To access more technical documentation and resources, please visit the LG B2B partner portal.
