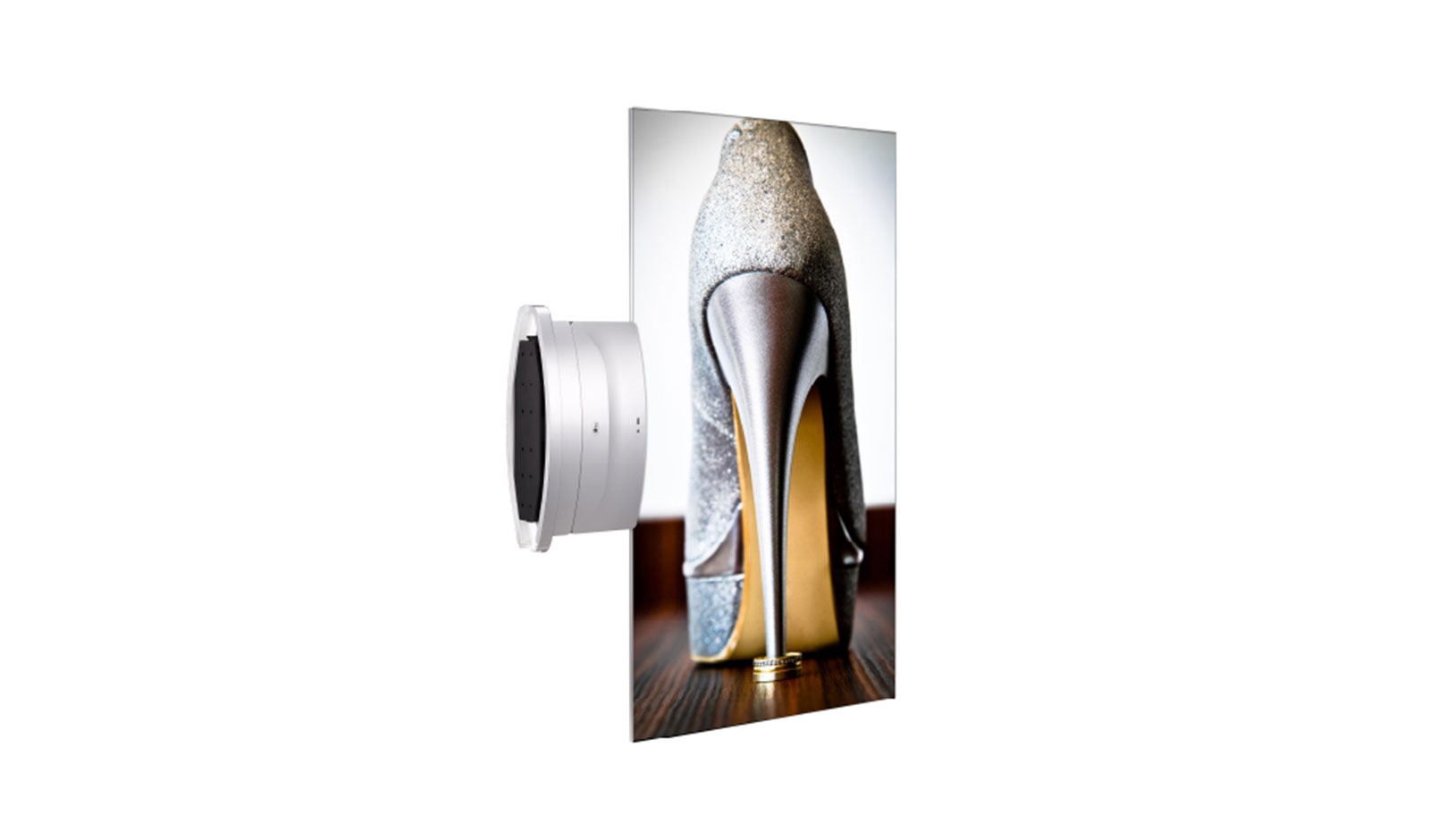

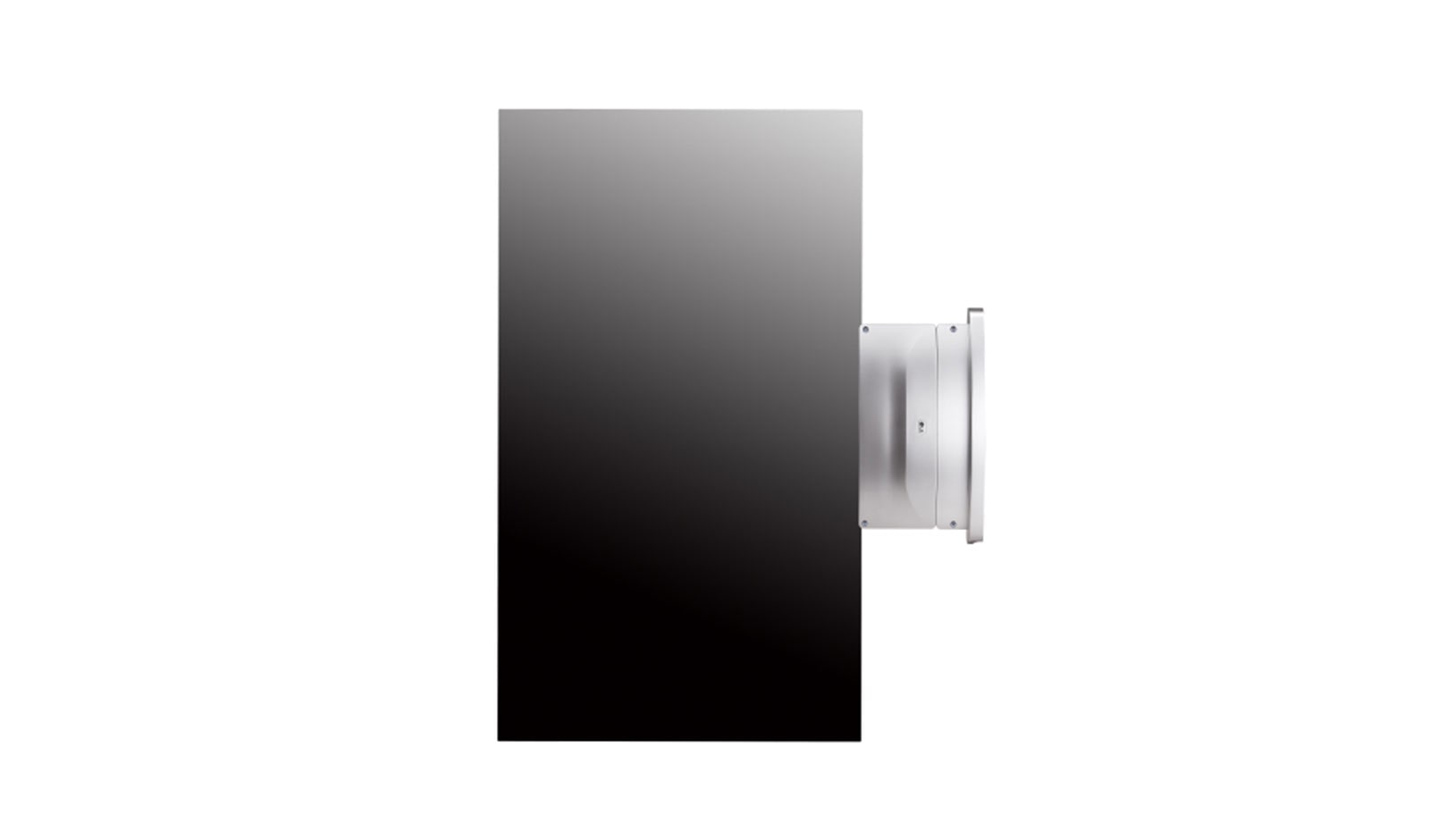

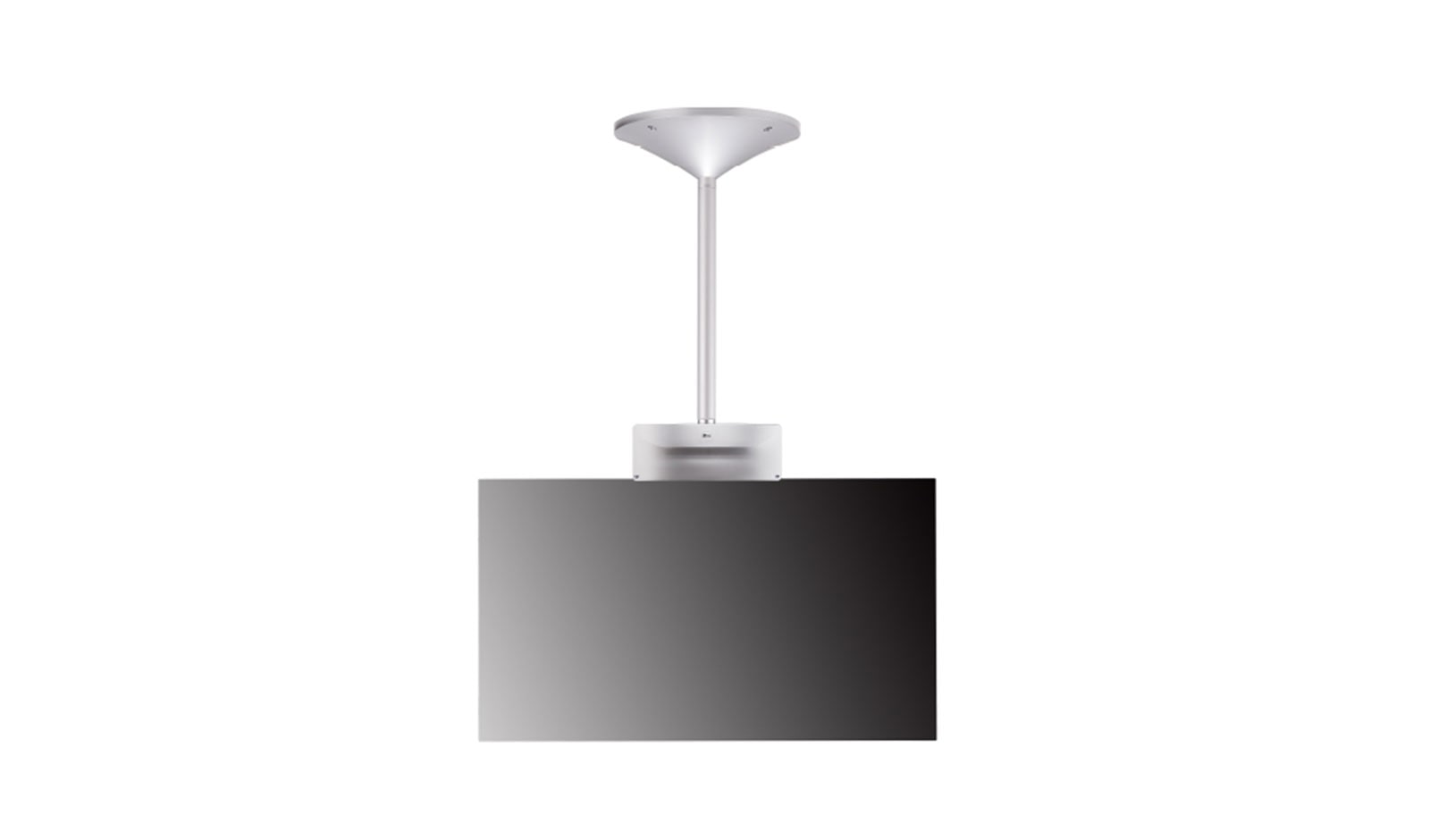

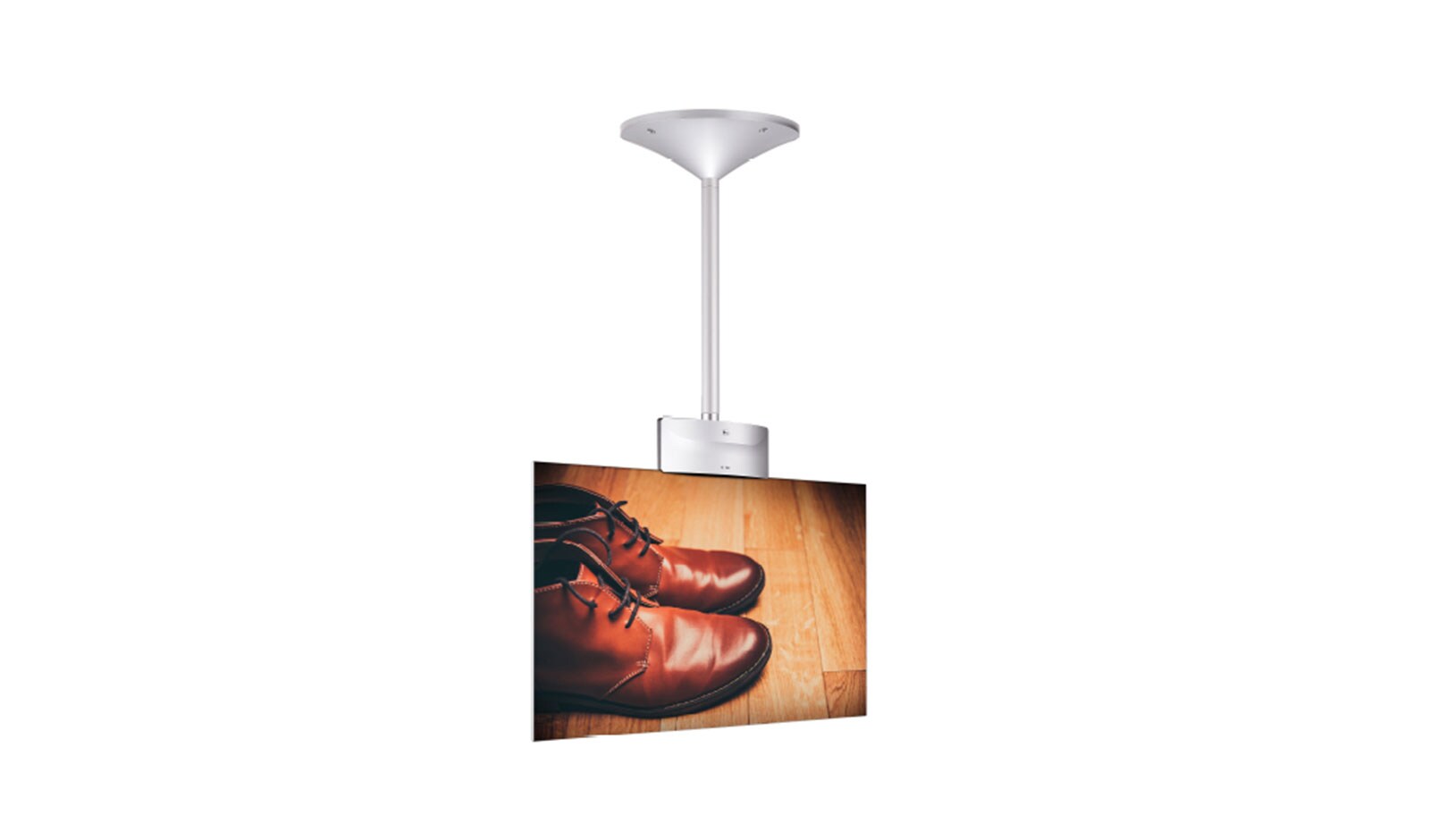

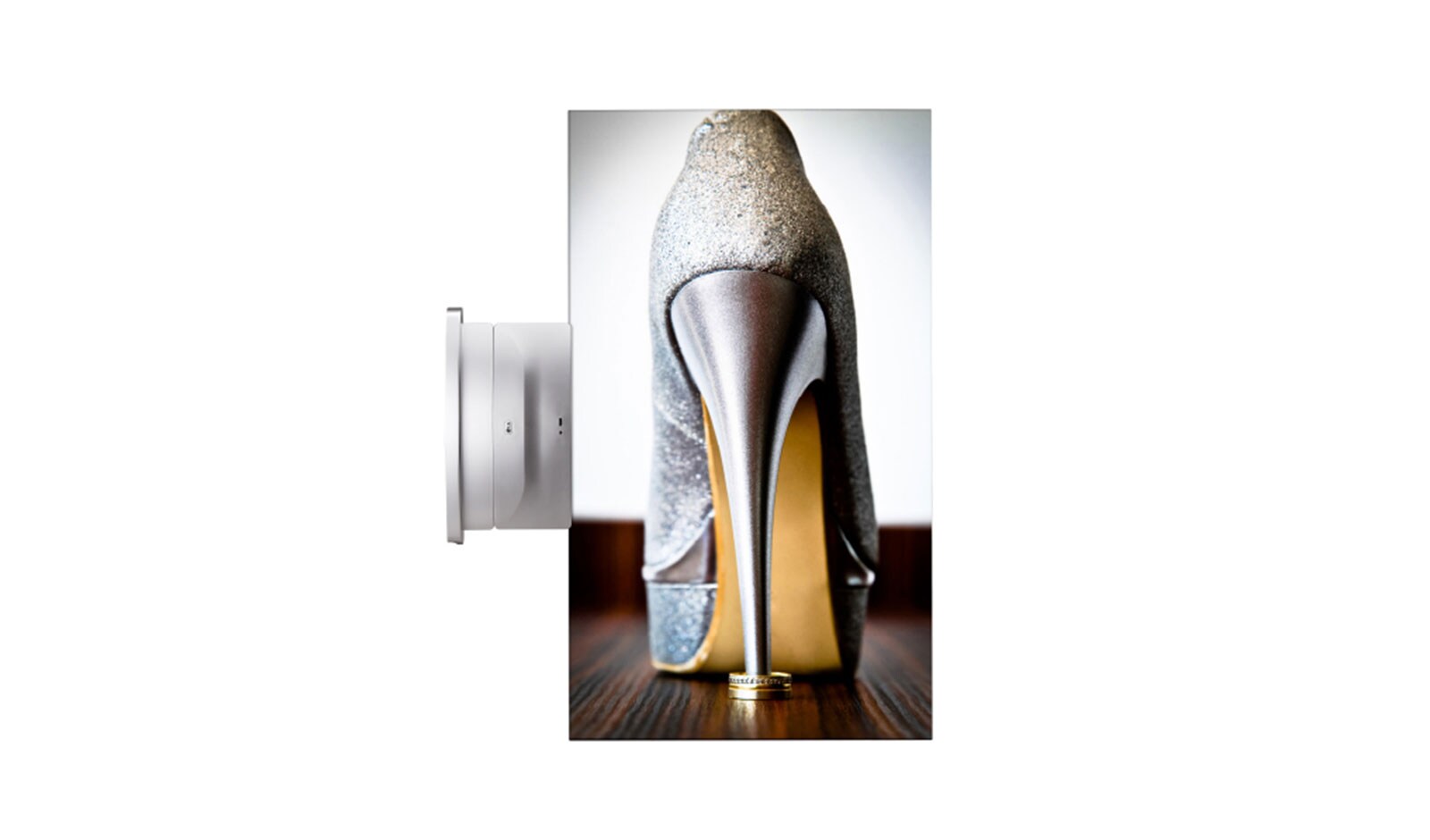

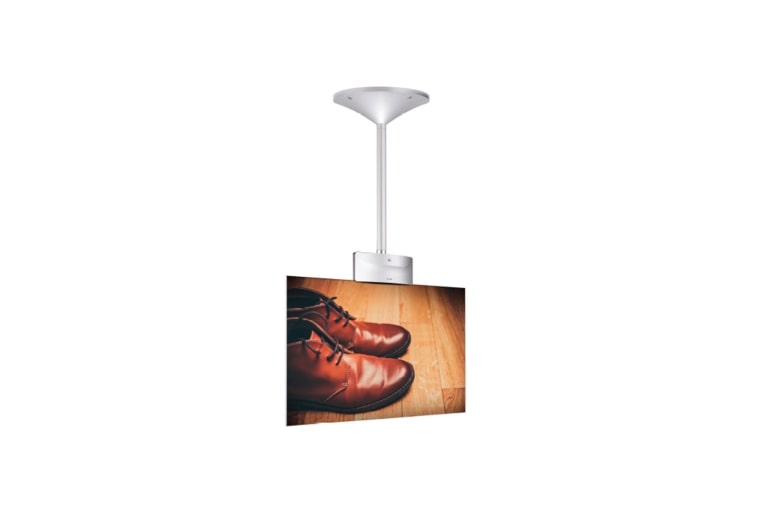

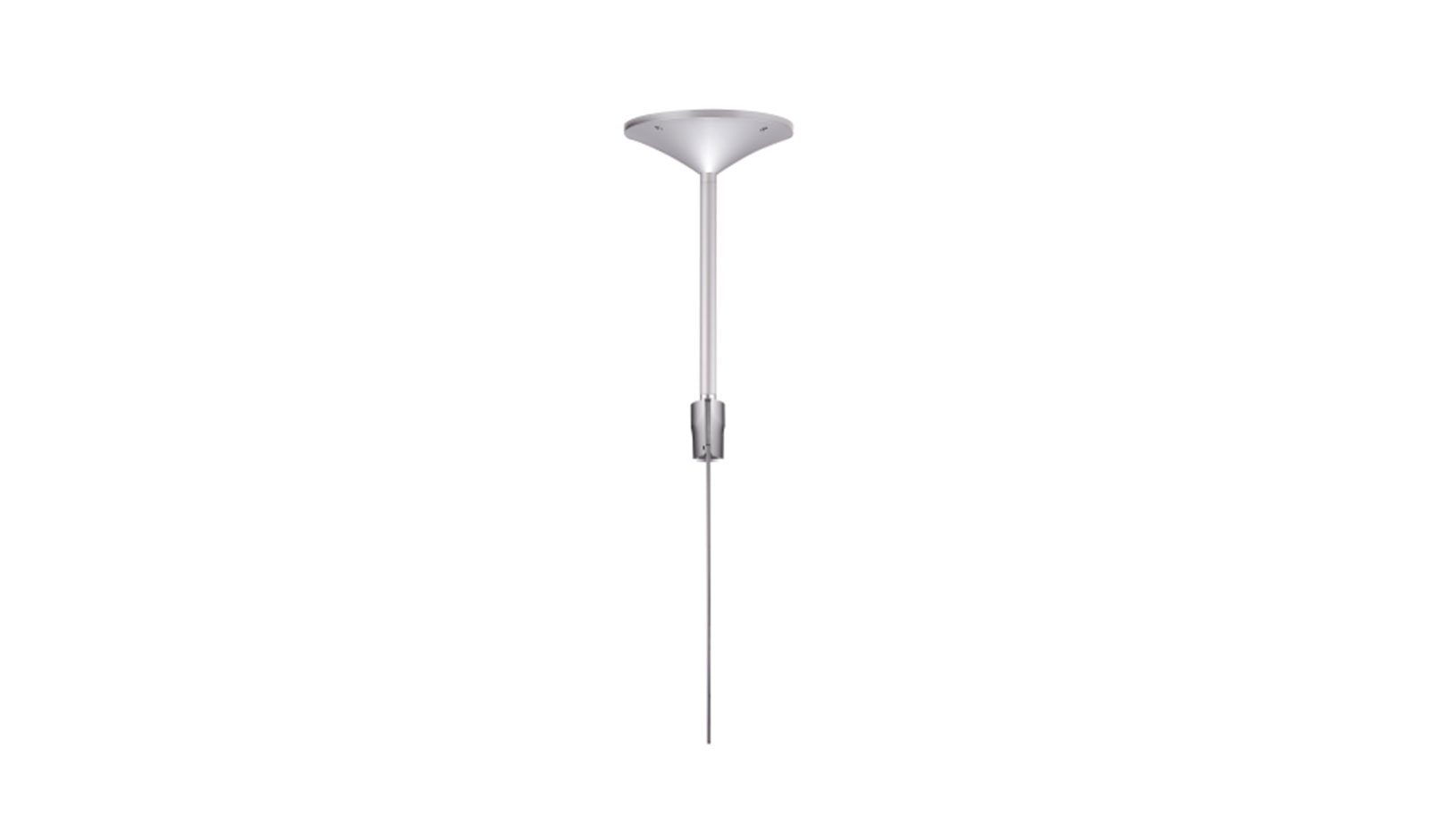

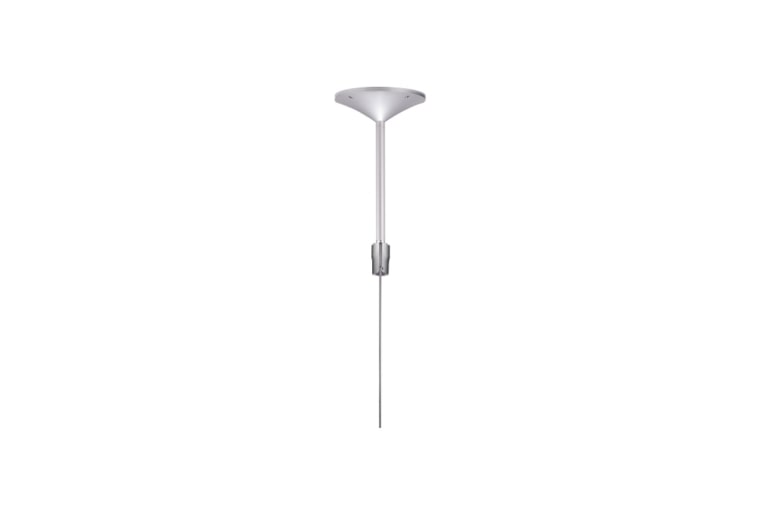

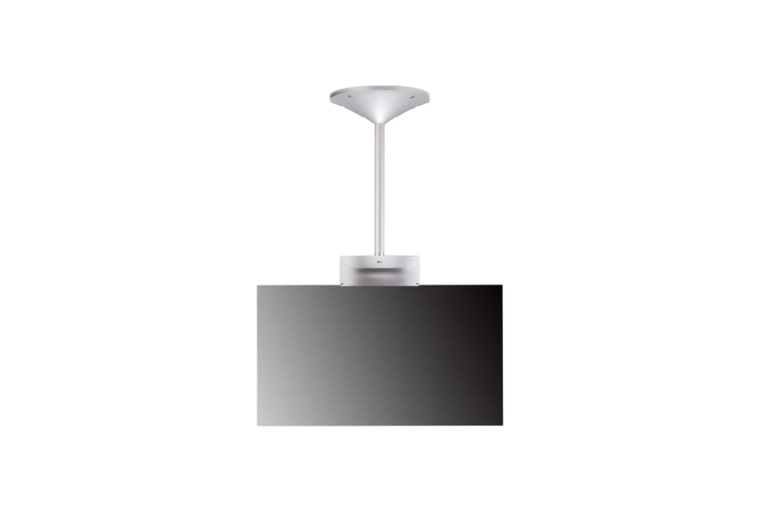

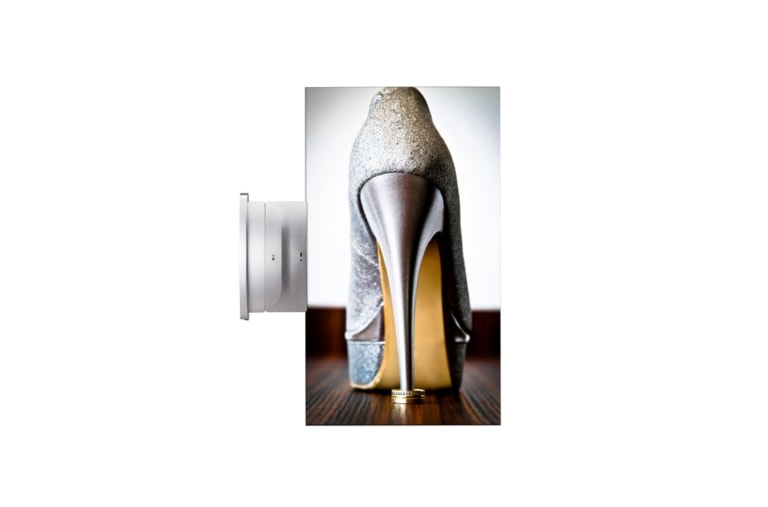

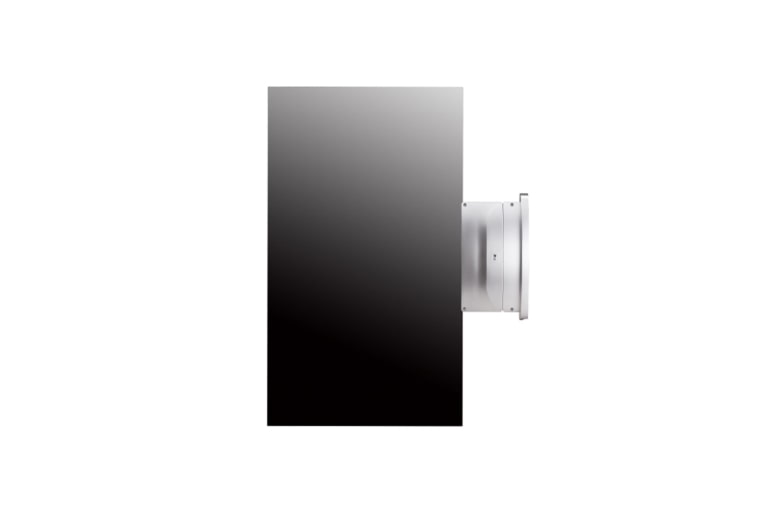

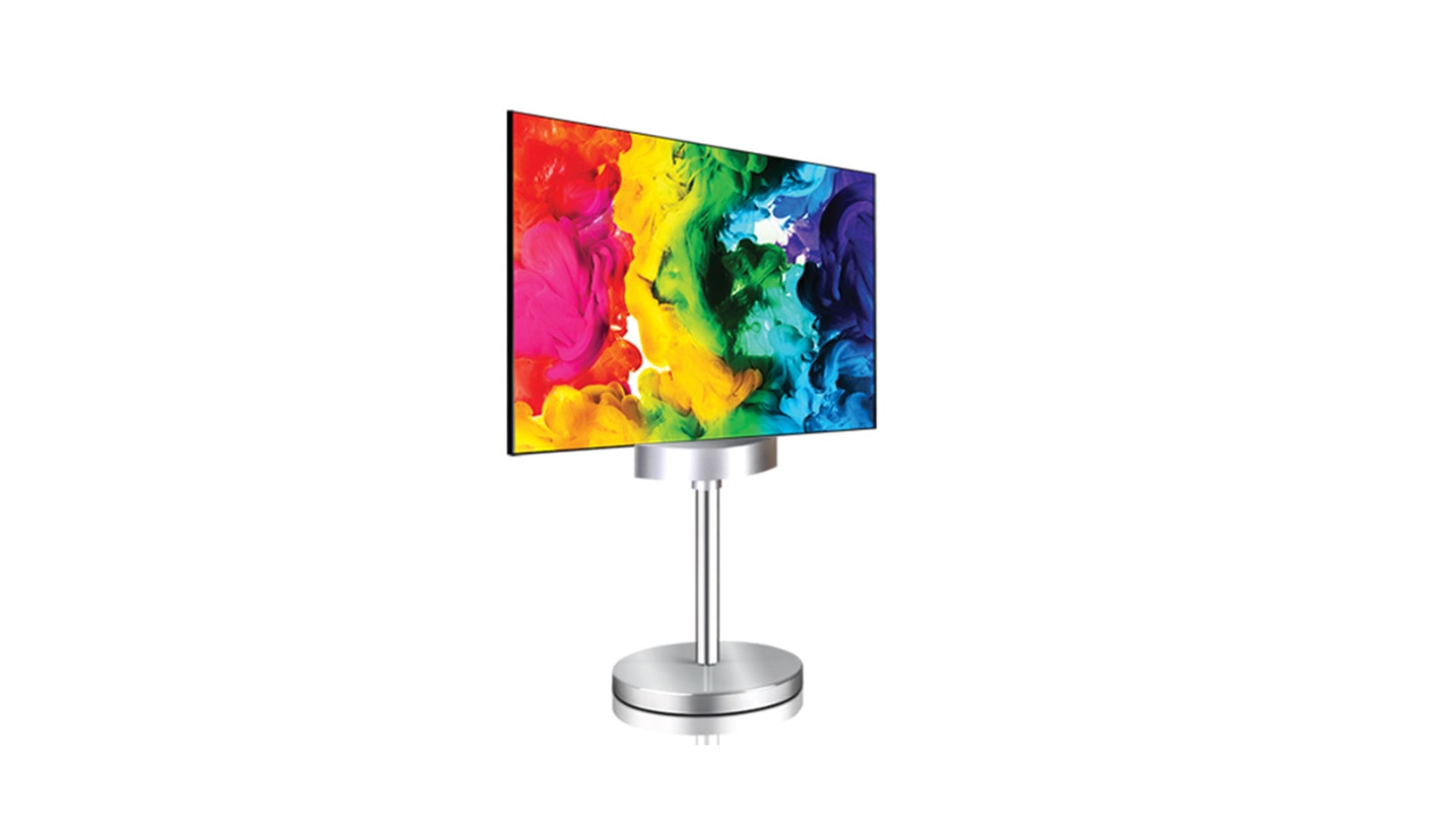

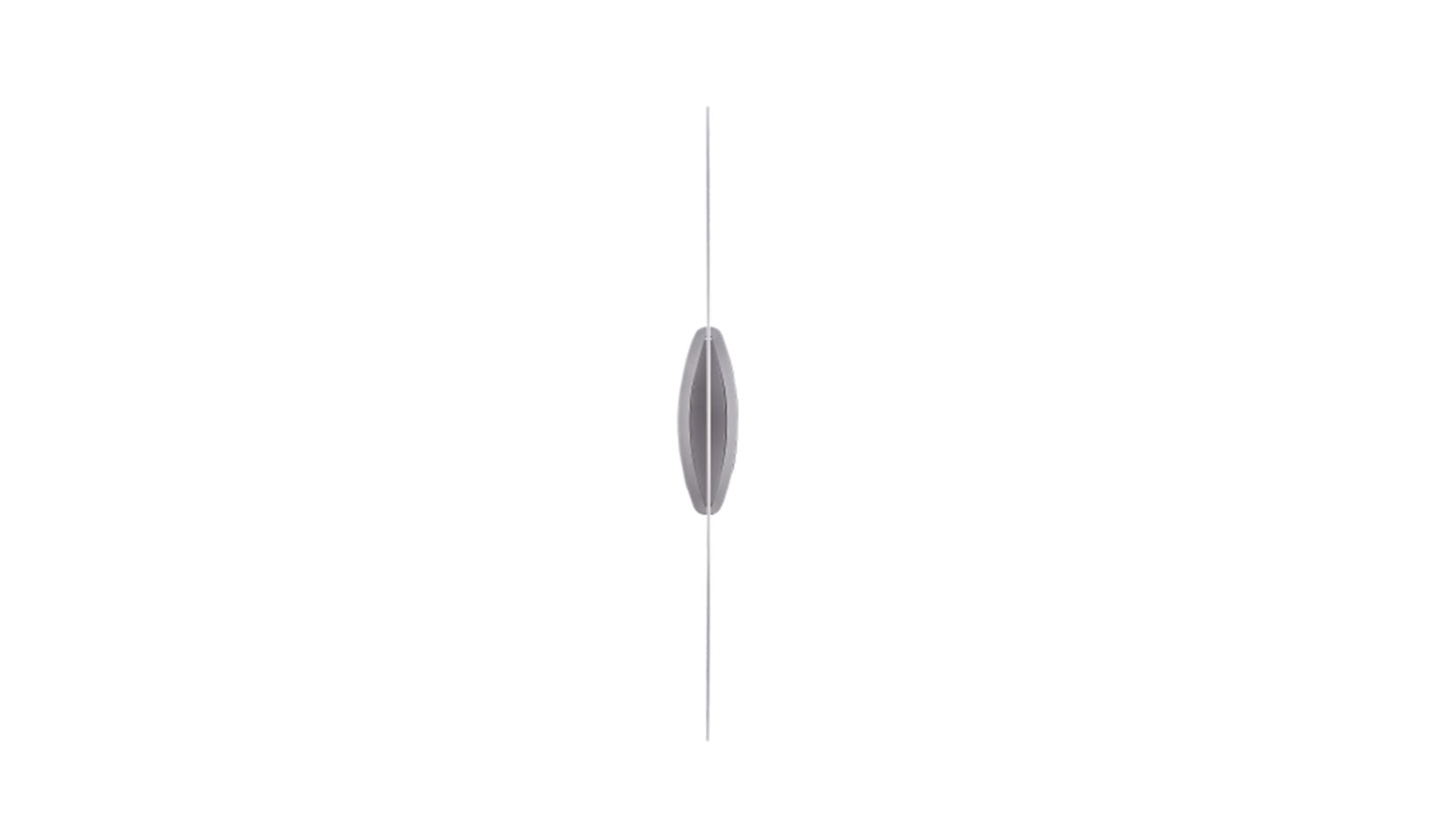

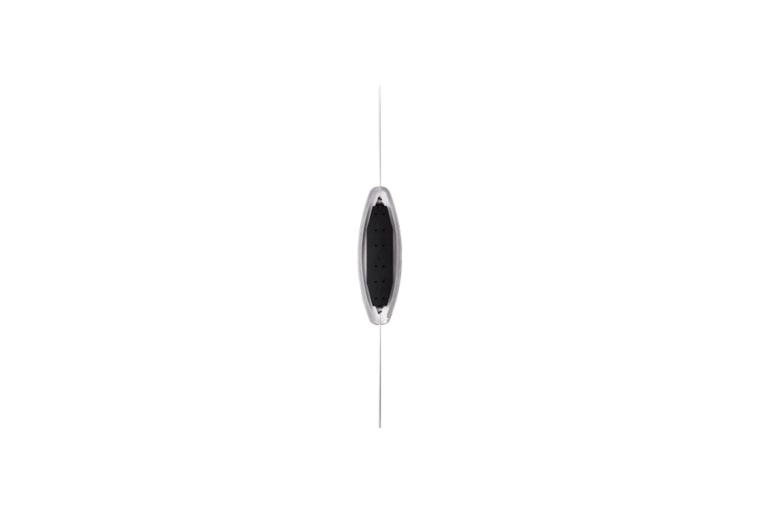

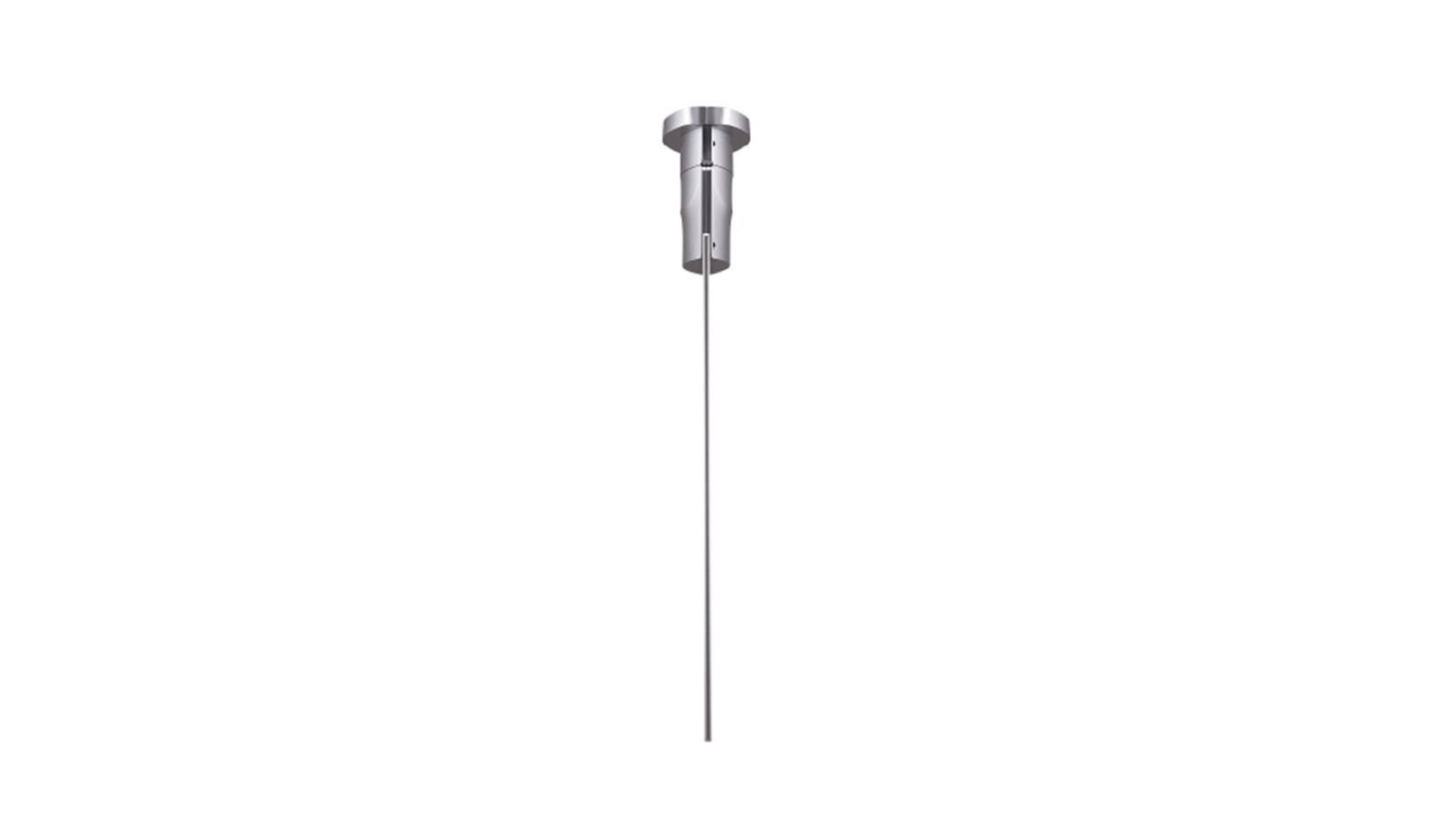

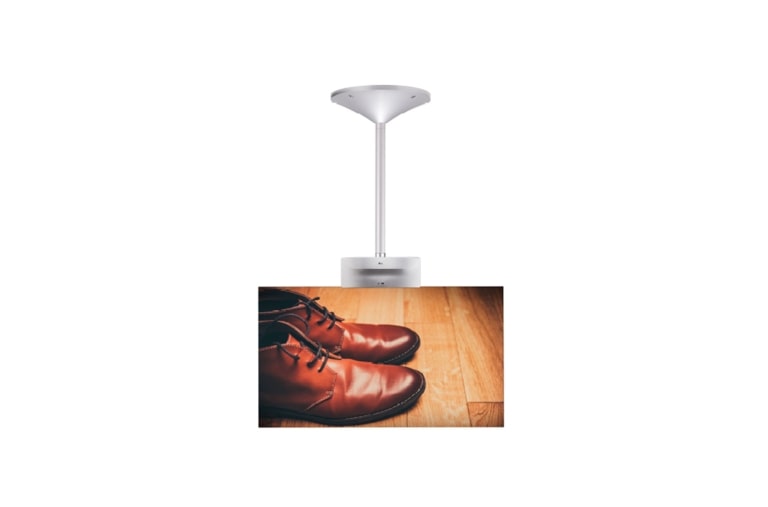

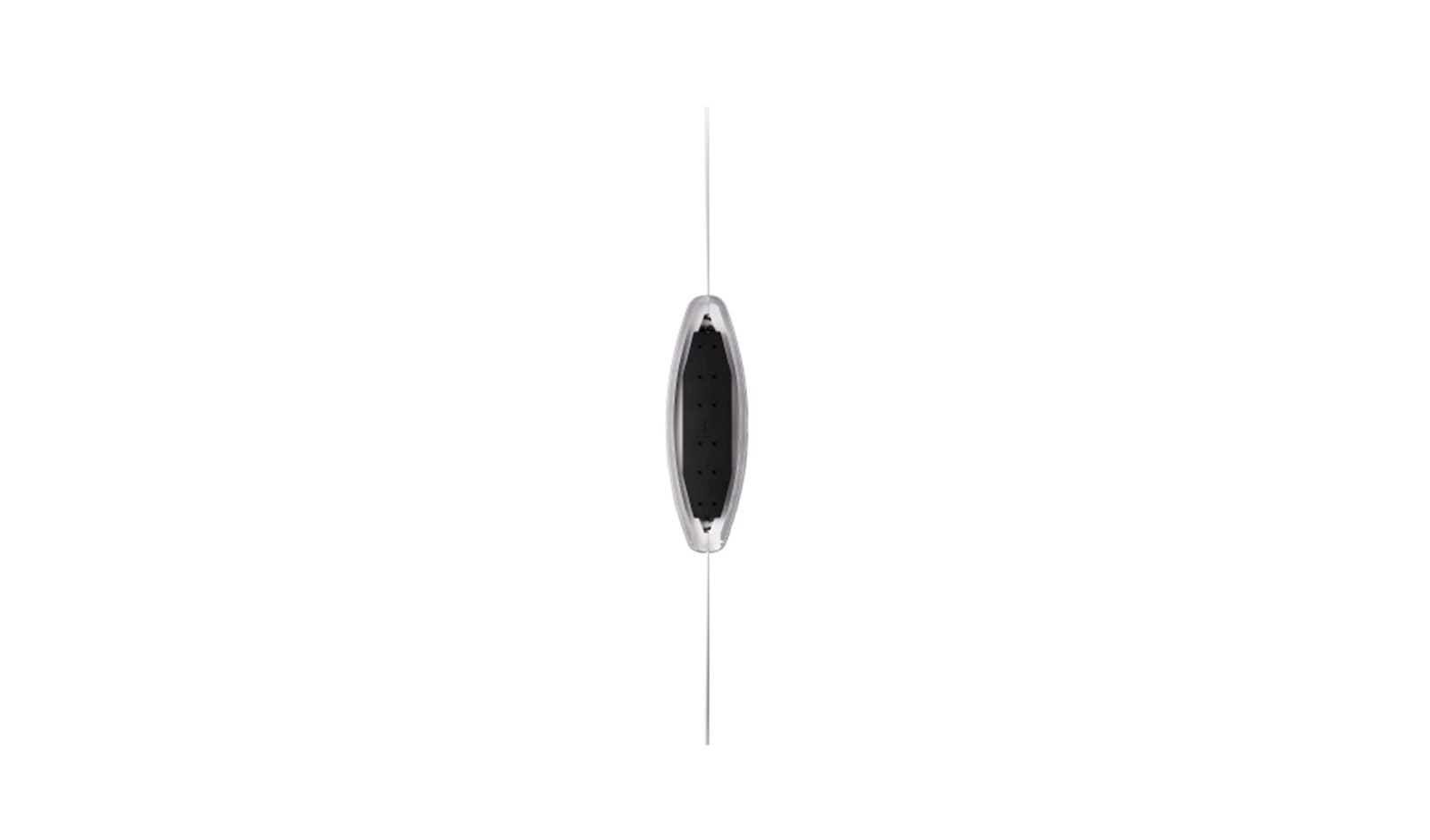

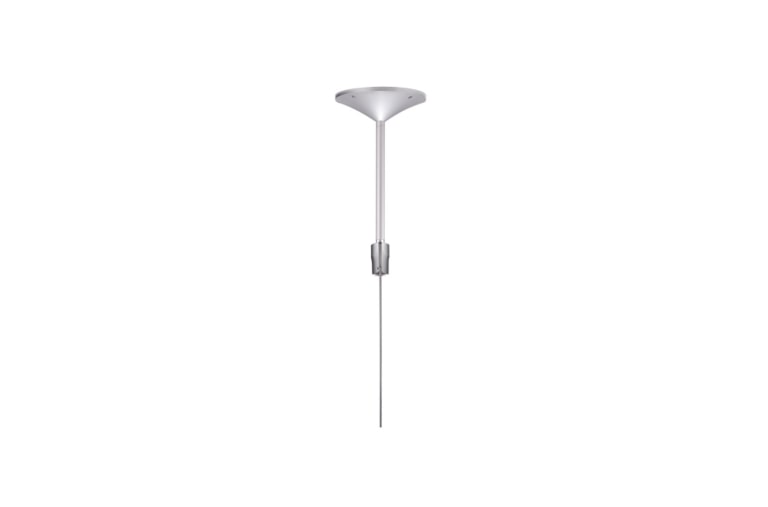

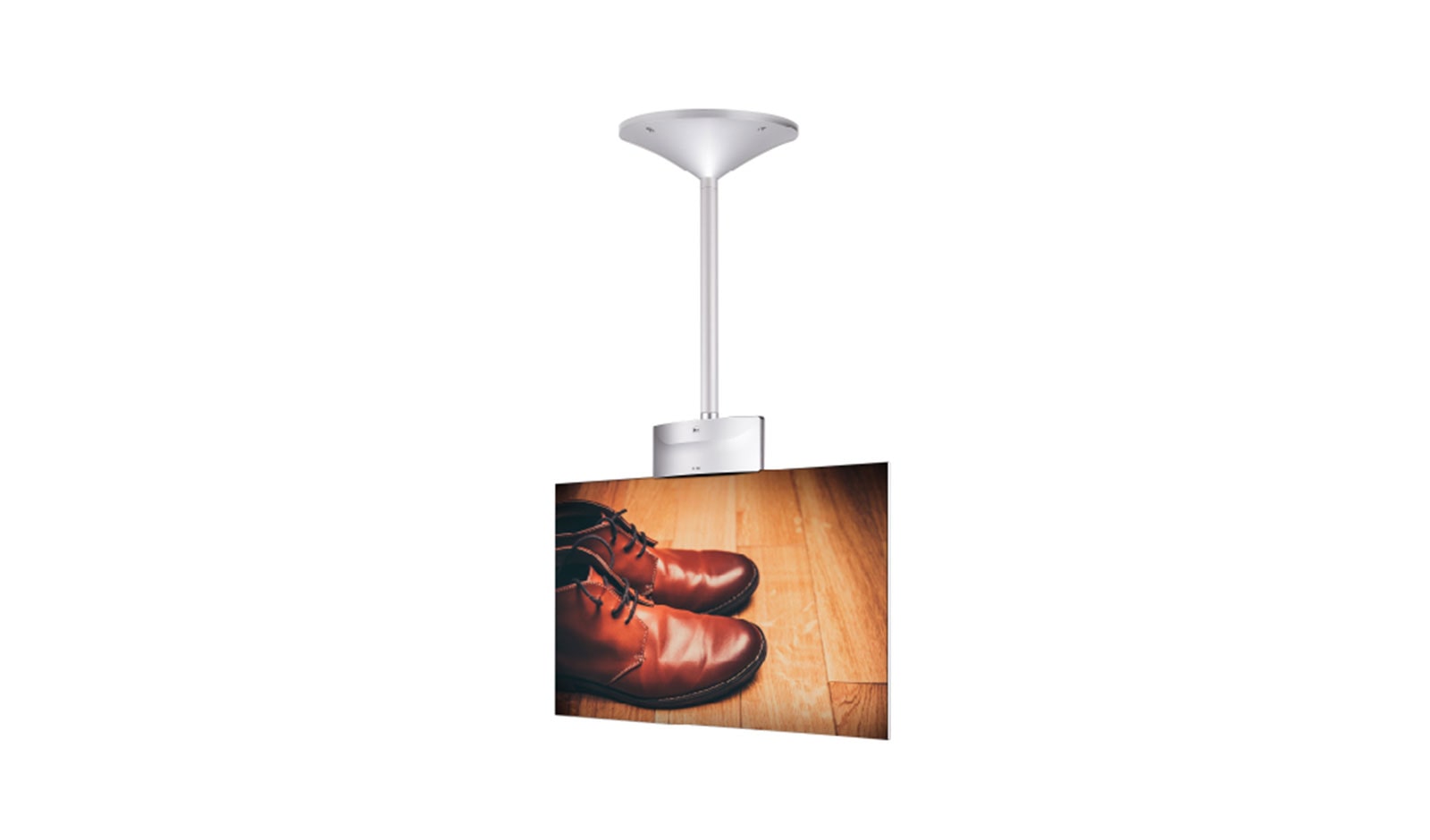

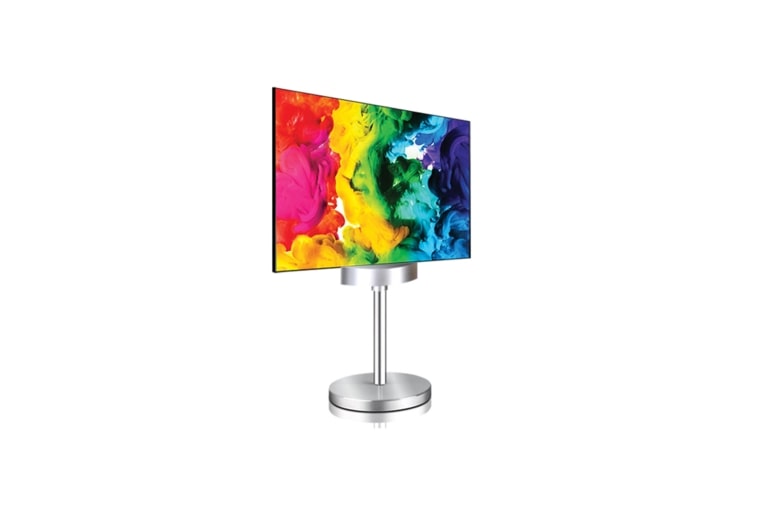

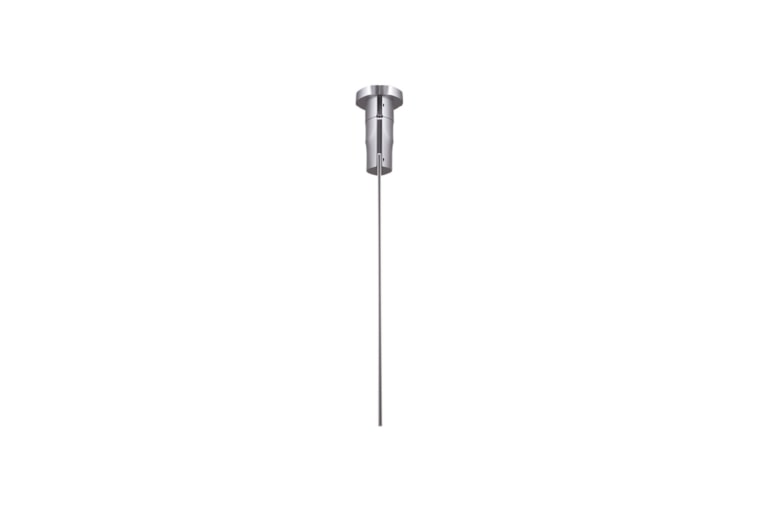

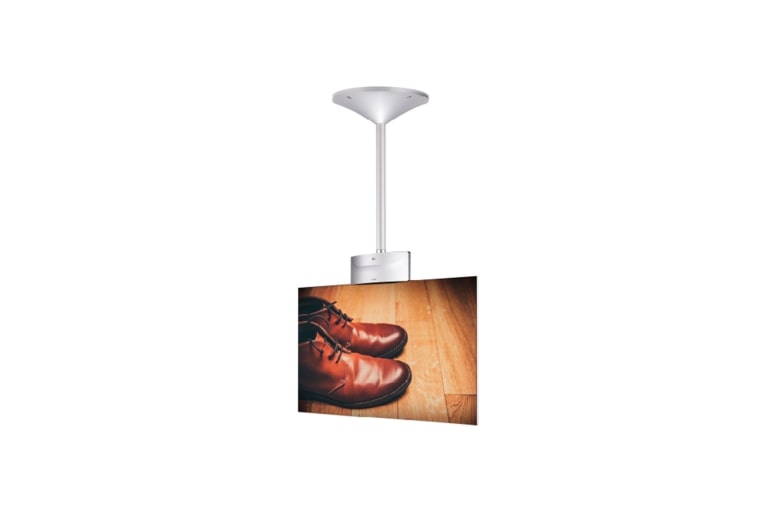

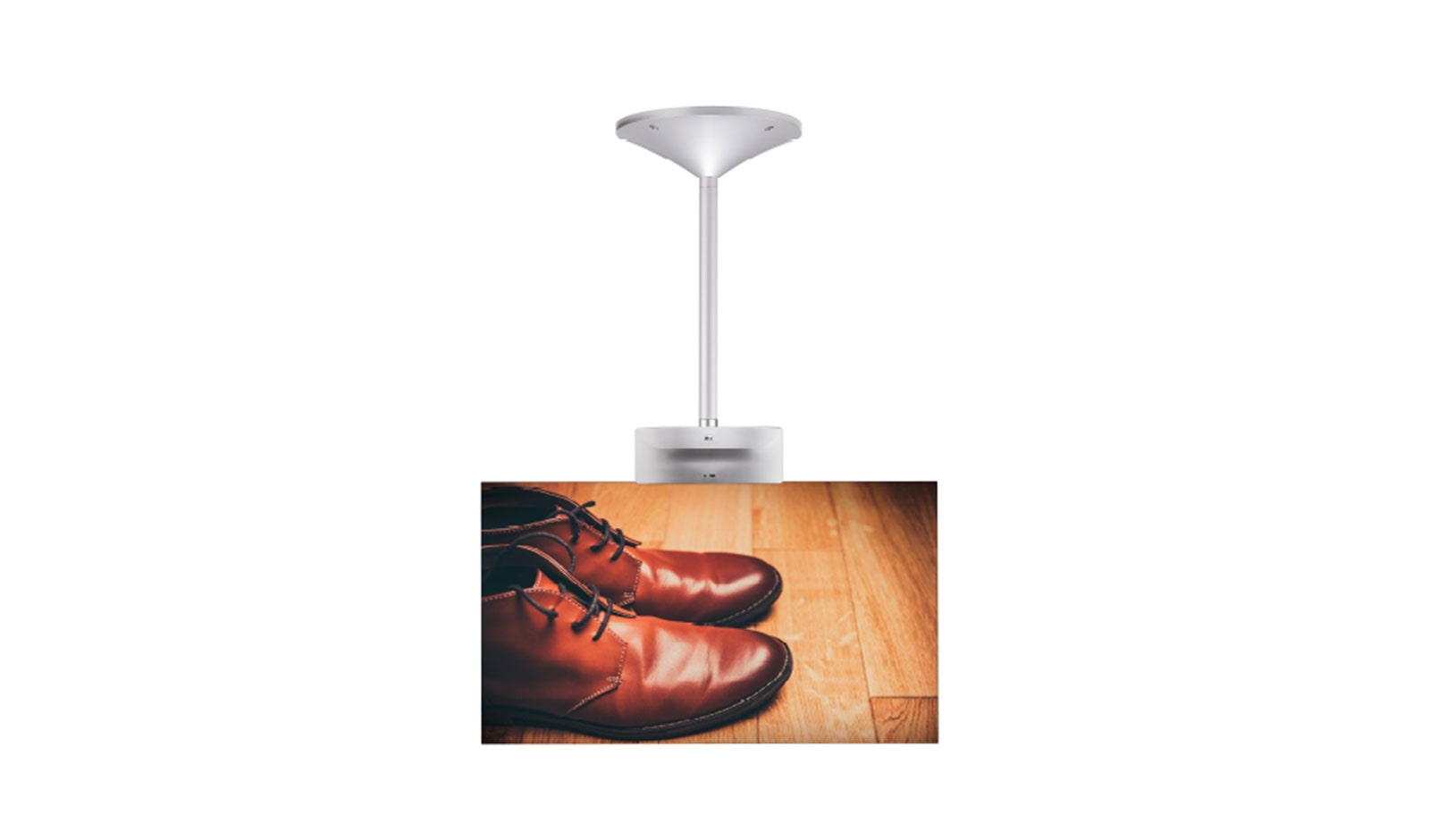

Dual-view Flat OLED Signage
All Spec
PANEL
Screen Size
55" (139cm)
Panel Technology
OLED
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Brightness
100/400 cd/m<sup>2</sup> (APL* 100 % / 25 %) * Average Picture Level
Viewing Angle(H x V)
178° x 178°
Response Time
1 ms (G to G), 8 ms (MPRT)
Surface Treatment
Hard coating (2H), Anti-reflection treatment of the front polariser (Reflectance Typ.1.0%)
Life Time (Min.)
30,000 hrs
Operation Hours
18 hrs / 7 days (moving video only)
Orientation
Portrait & Landscape
CONNECTIVITY
Input
HDMI (1+1), DP (1+1), DVI-D (1+1)
Output
Audio (1+1)
External Control
RS232C (1+1), RJ45 (1+1), IR Receiver, USB 2.0 (2), USB 3.0 (2)
PHYSICAL SPECIFICATION
Bezel Colour
Silver
Bezel Width
2, 2, 2, 2 mm (U, B, L, R *Off-bezel)
Dimension (W x H x D)
Head : 1,228mm x 703mm x 8mm (Edge depth : 9 mm)Signage Box : 470.1 x 402.8 x 75 mm
Weight
Head : 21 kg / Signage Box : 8 kg
Carton Dimensions (W x H x D)
1,344mm x 987mm x 269 mm (Inner)
Packed Weight
32.6 kg
SPECIAL FEATURES
Additional
Temperature Sensor, Cooling FAN, Source Selection, DPM Select, Energy Saving, Power Indicator On/Off, File Play with USB, Internal Memory (8 GB), Wi-Fi Dongle Ready, USB Cloning, Contents Scheduling, Local time auto setting, Fail over, Mirroring, SoftAP, BEACON
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ.
375 W
DPM
3 W
Power Off
0.5 W
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950, CB Scheme
EMC
AS/NZS CISPR 22, RCM (Class A)
Energy Rating
N/A
