People analyze their work using the transparent OLED screens installed on the wall of the lobby.
*All images are for illustrative purposes only.
*The Year of Measurement : 2018
Measurement Method : Checking Transparency Using a Hazemeter
Conducted by : LGD - internal testing.
**Based on LG’s WFB series.

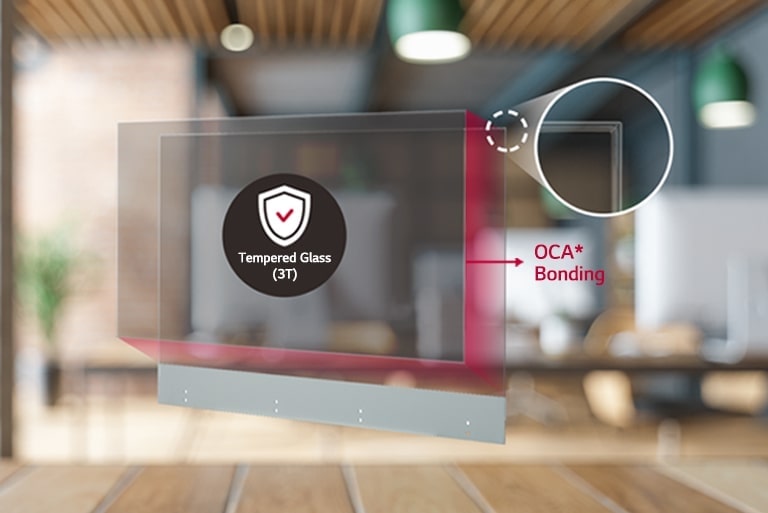

*Optically Clear Adhesive.
*Installation accessories are not supplied by LG.
Screen Size (Inch)
55
Panel Technology
OLED
Back Light Type
OLED
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
120Hz
Brightness
150/400nit (APL 100%/25%, without Glass)
Contrast Ratio
150,000:1
Dynamic CR
NO
Color Gamut
BT709 120%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
1ms (G to G), 8ms (MPRT)
Surface Treatment (Haze)
Haze 3% (SET)
Life time
30,000Hrs (Typ.)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portait / Landscape
YES / YES
Transparency
38% (SET)
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (1ea)
HDMI In (HDCP Ver.)
1.4
DP In
YES (HDCP 1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
YES (Sharing RS232C Out)
Daisy Chain
Input : HDMI, DP / Output : DP
Bezel Color
Transparent
Bezel Width
T/R/L/B : 7.9/7.9/7.9/121.7mm
Weight (Head)
11.7Kg (Head) 3.4Kg (Signage Box)
Weight (Head+Stand)
N/A
Packed Weight
23.2Kg
Monitor Dimensions (W x H x D)
1225.5 x 810.1 x 6.6mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1345 x 920 x 207mm
Handle
NO
VESA Standard Mount Interface
N/A
Thickness
3mm
Degree of Protection
N/A
Tempered / Chemical strengthening
Chemical strengthening
Anti-Reflective
YES
Infrared - Resistance (IR)
N/A
Shatter-Proof
YES
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
NO
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
NO
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
NO
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
NO
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
NO
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
171W (IEC 62087)
Max.
280W
BTU (British Thermal Unit)
853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)
Smart Energy Saving (70%)
N/A
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
N/A
OPS Power Built-in
N/A
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
NO
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, MCX cable Holder 4ea
Optional
Stand (ACC-S-EW5F, 2 Pole), Tiling (ACC-V-EW5F)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A
Available Object Size for Touch
N/A
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Interface
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
N/A
Multi Touch Point
N/A
