LBE Standard

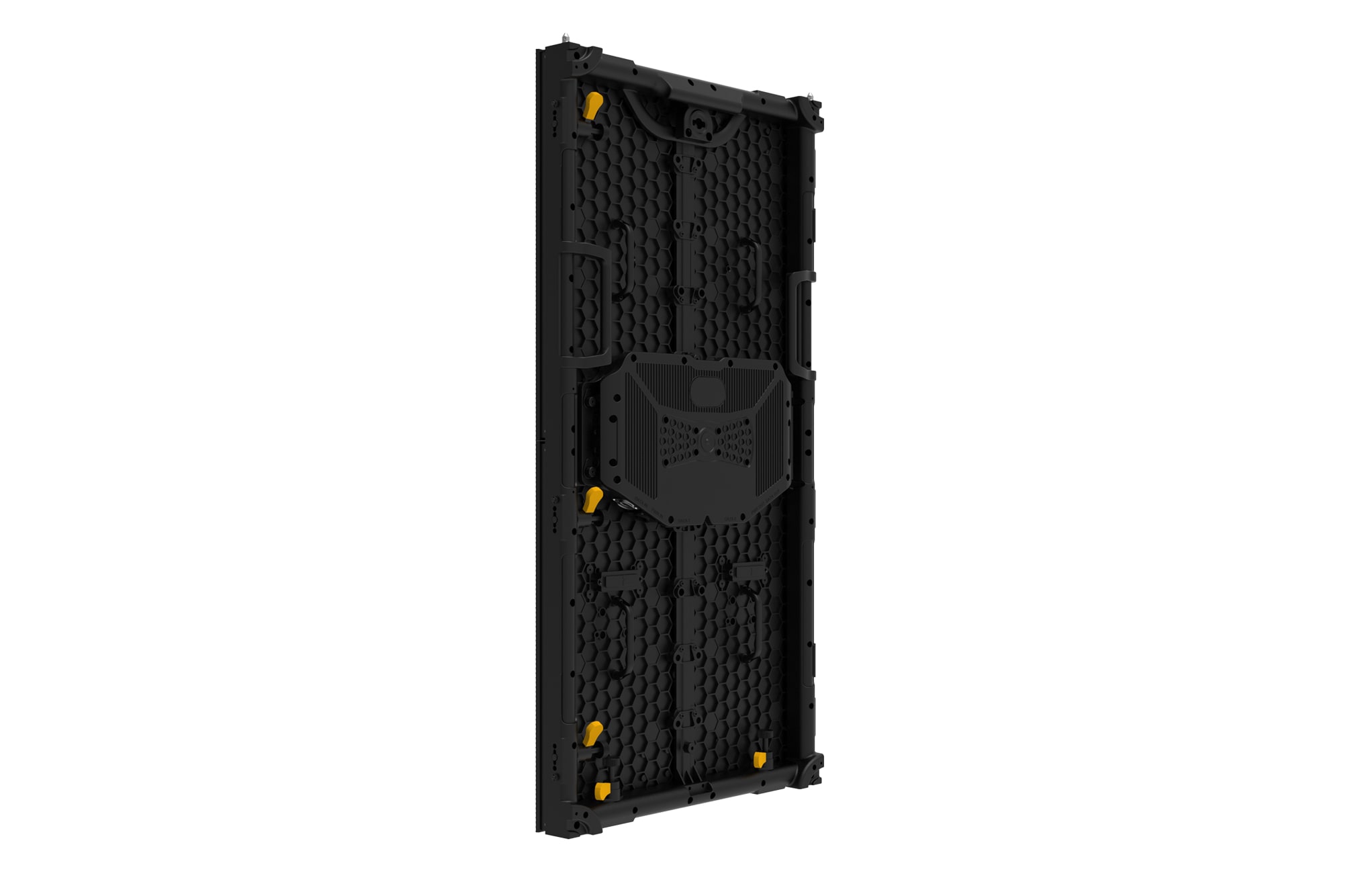

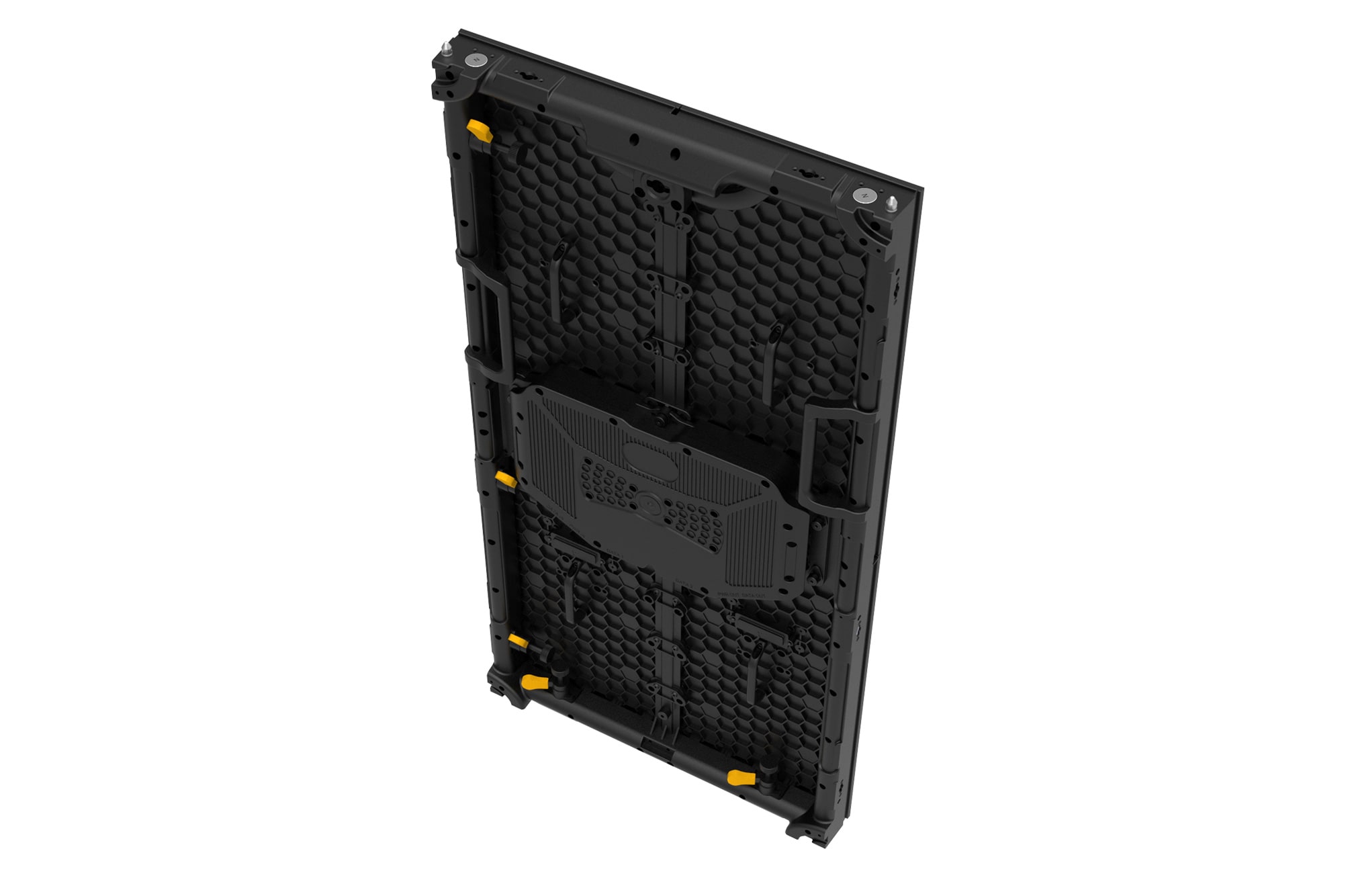

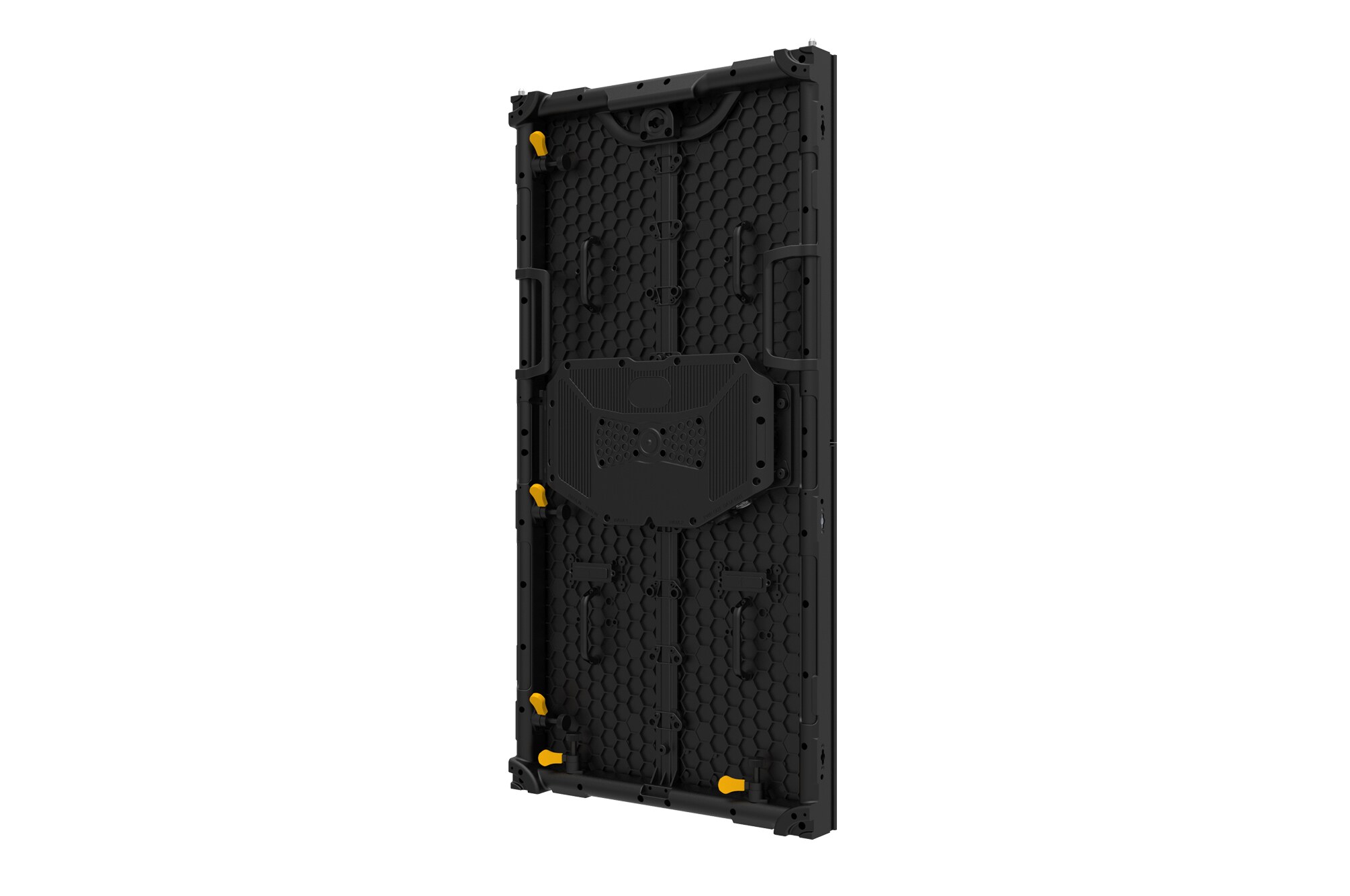

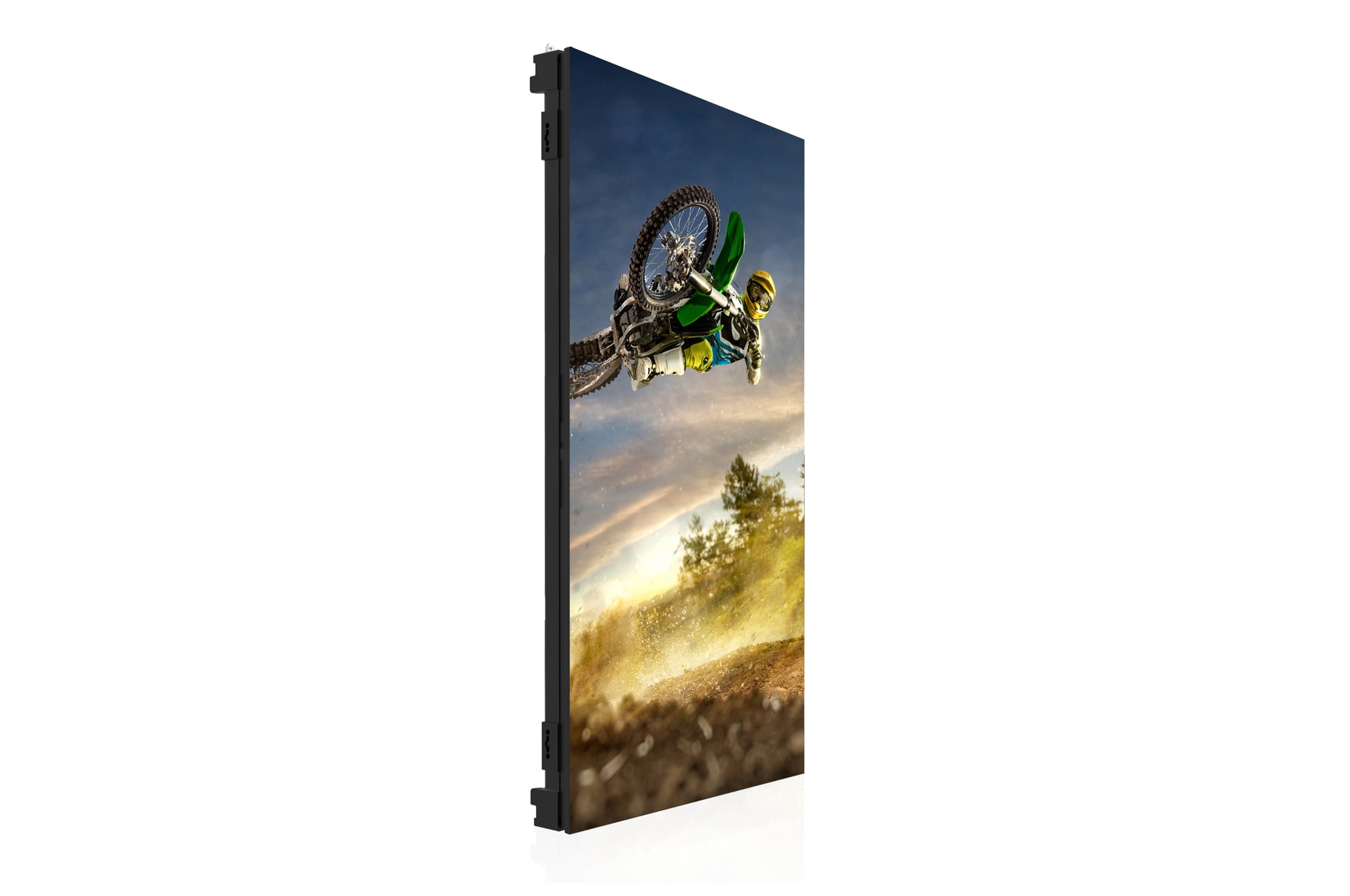

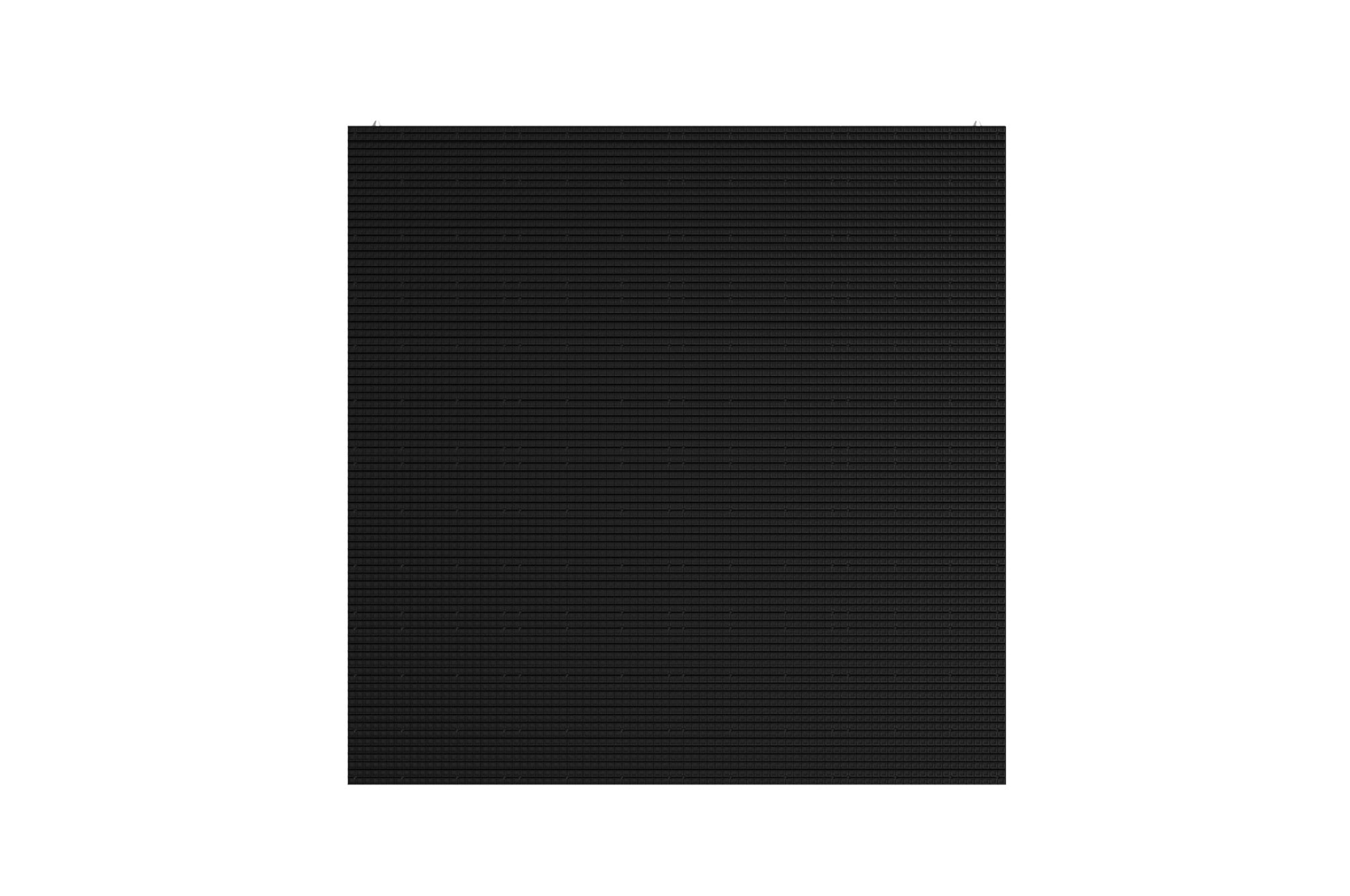

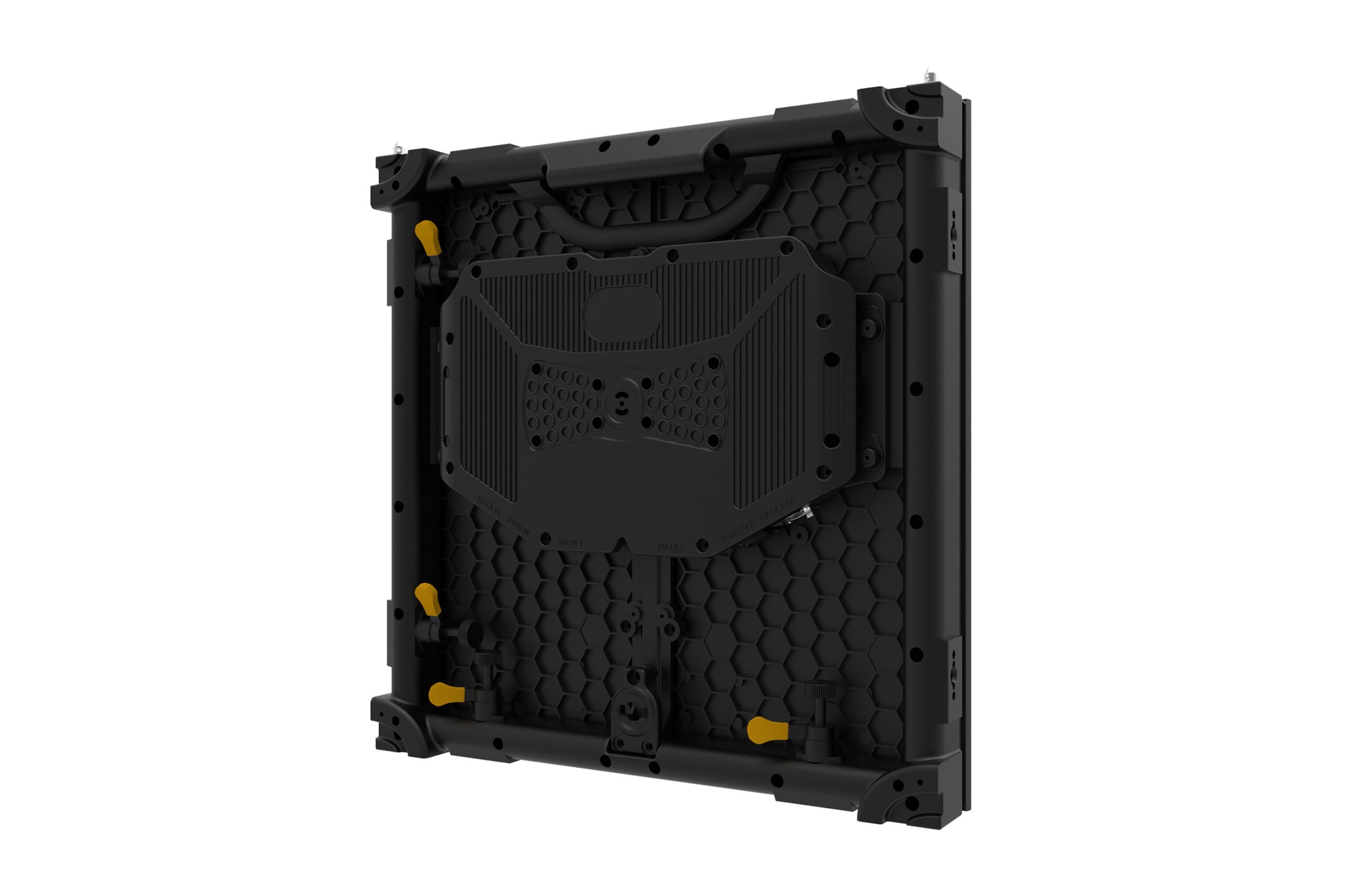

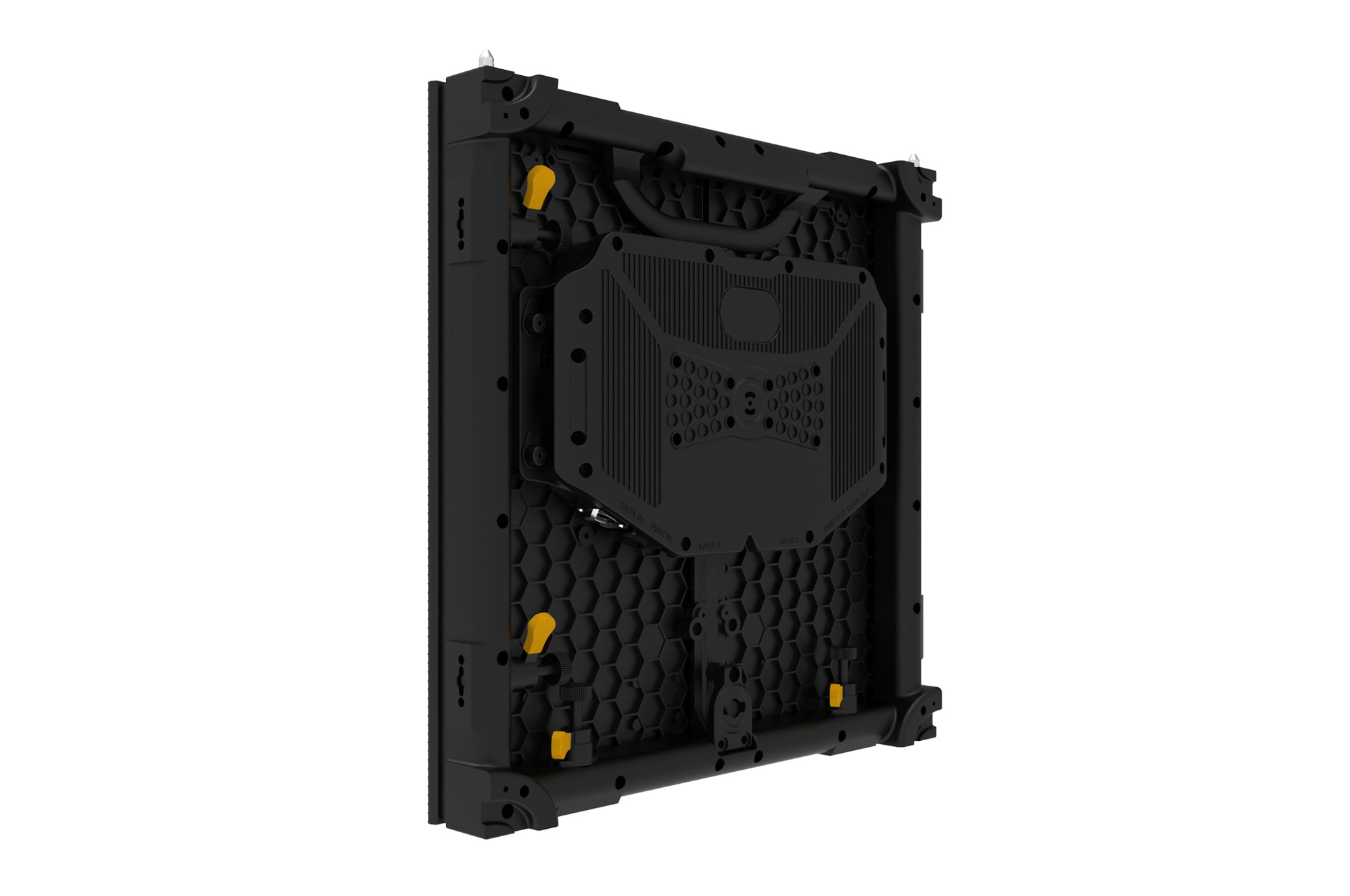

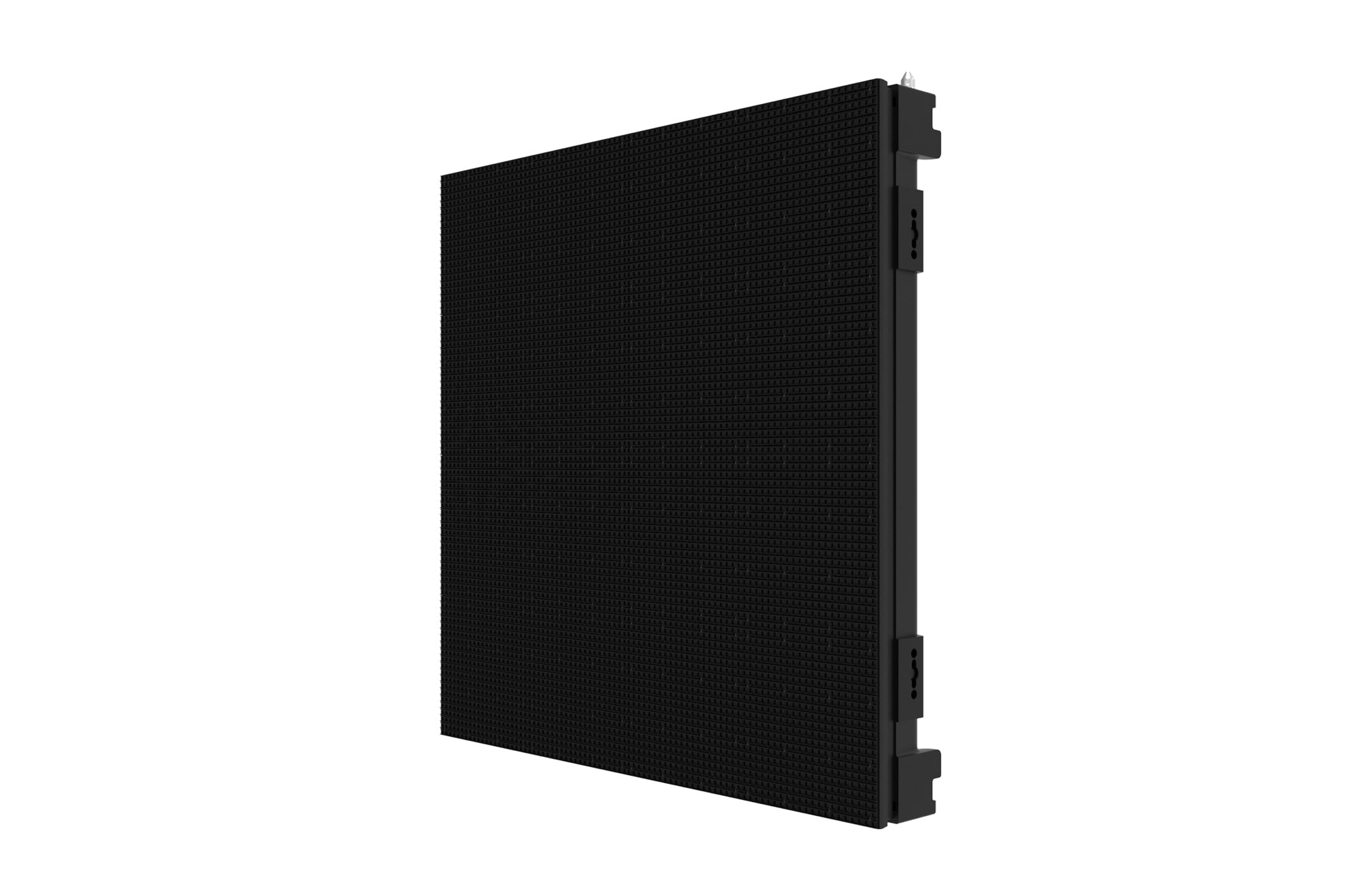

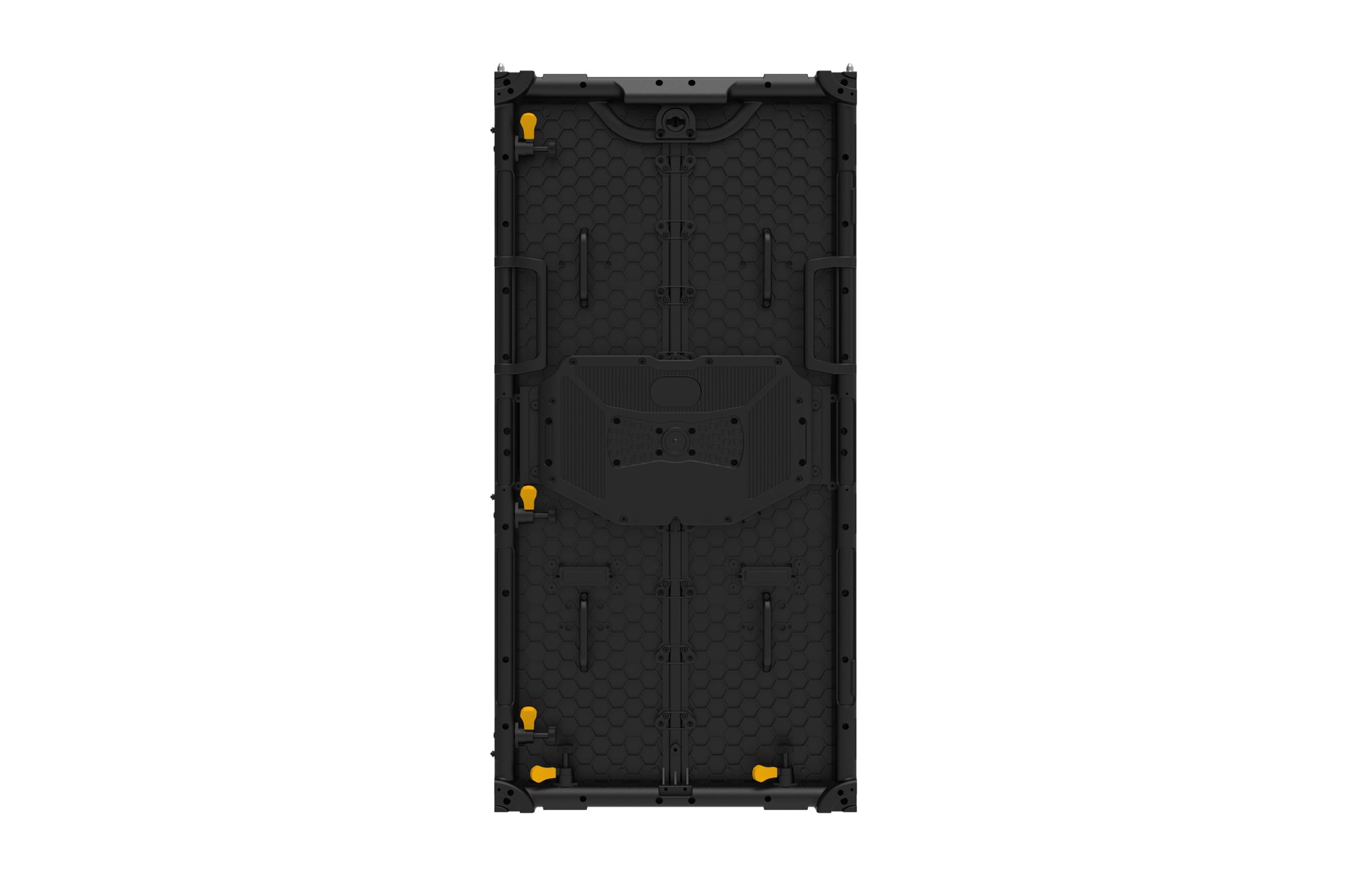

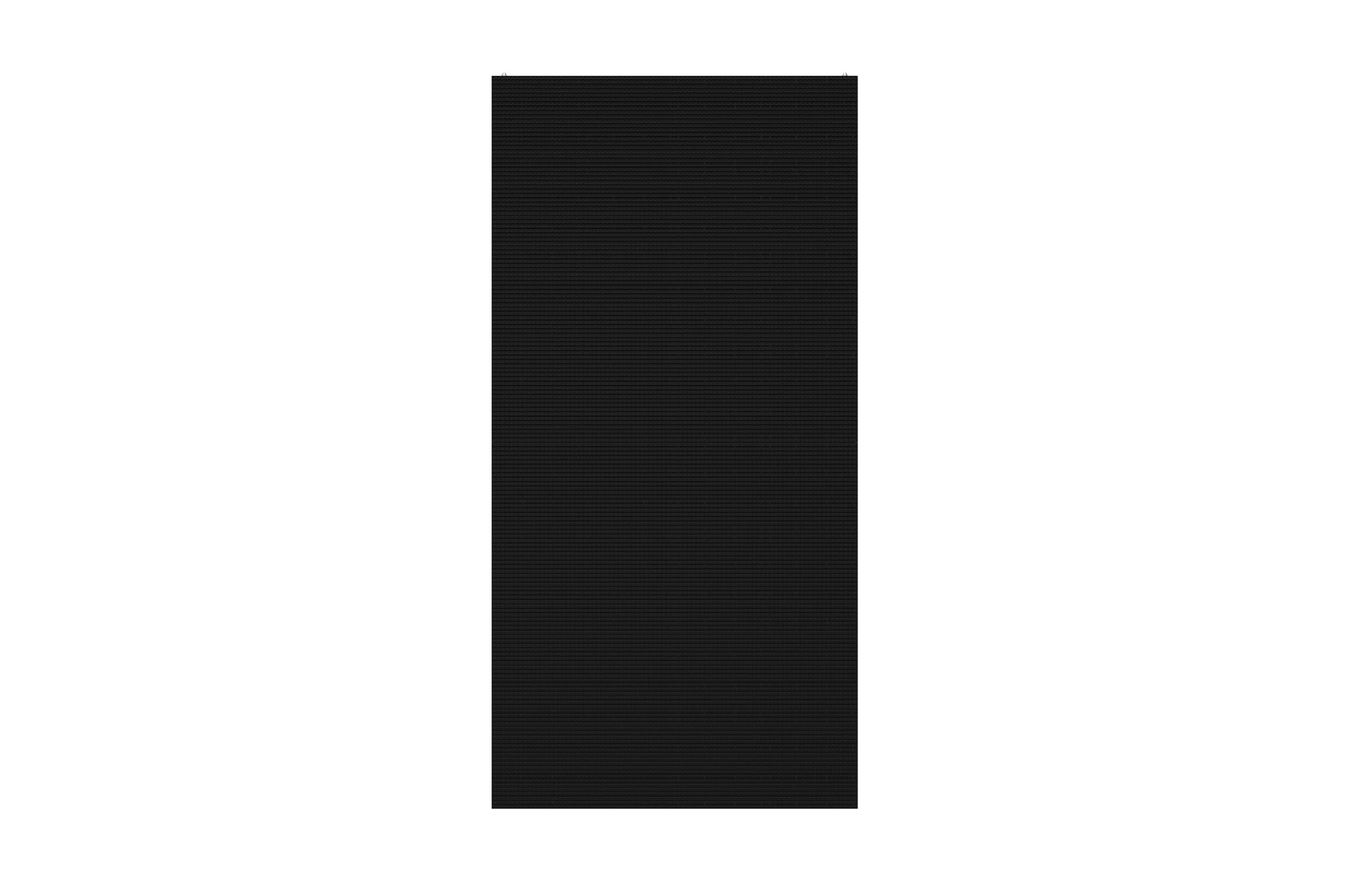

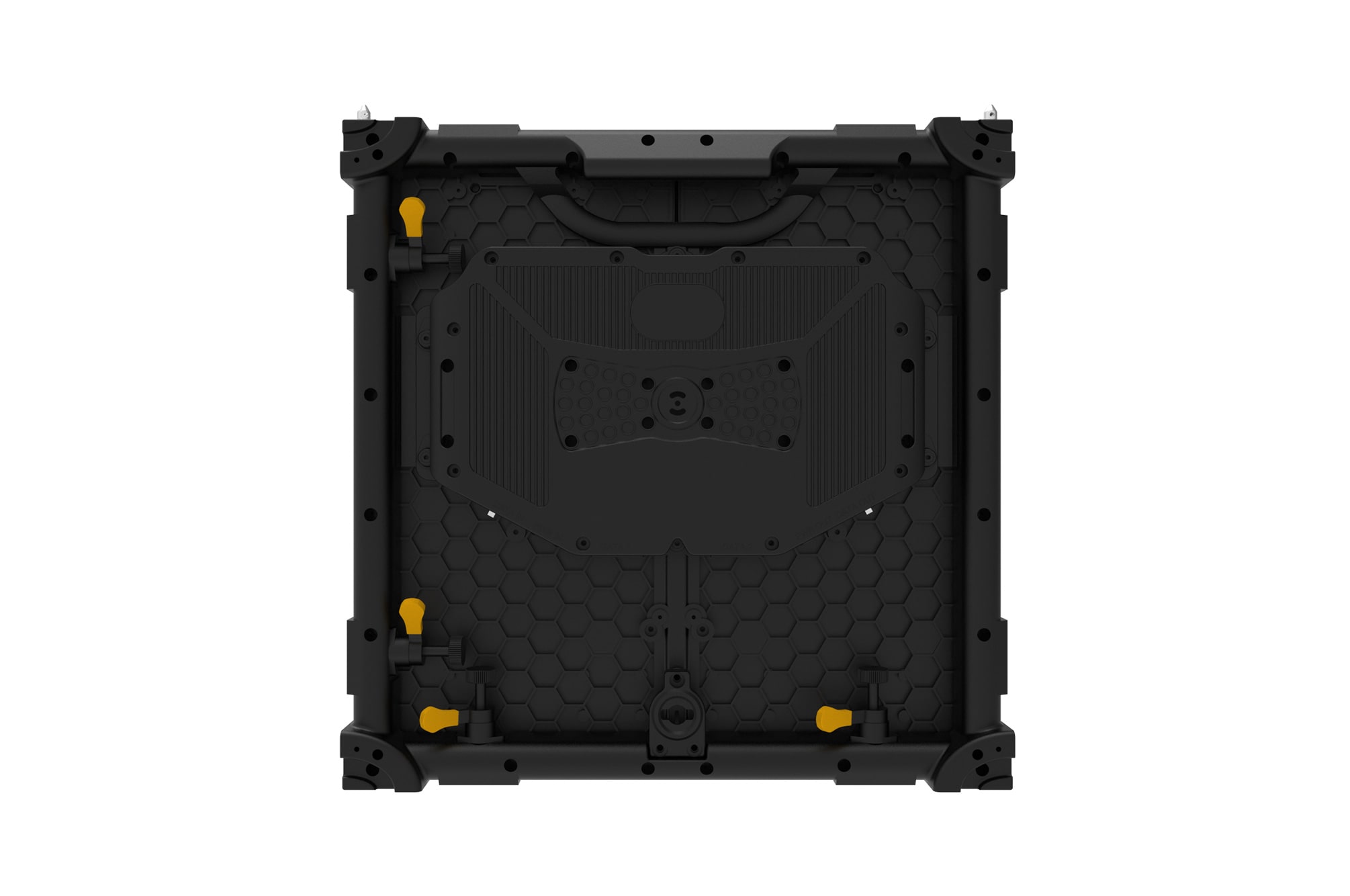

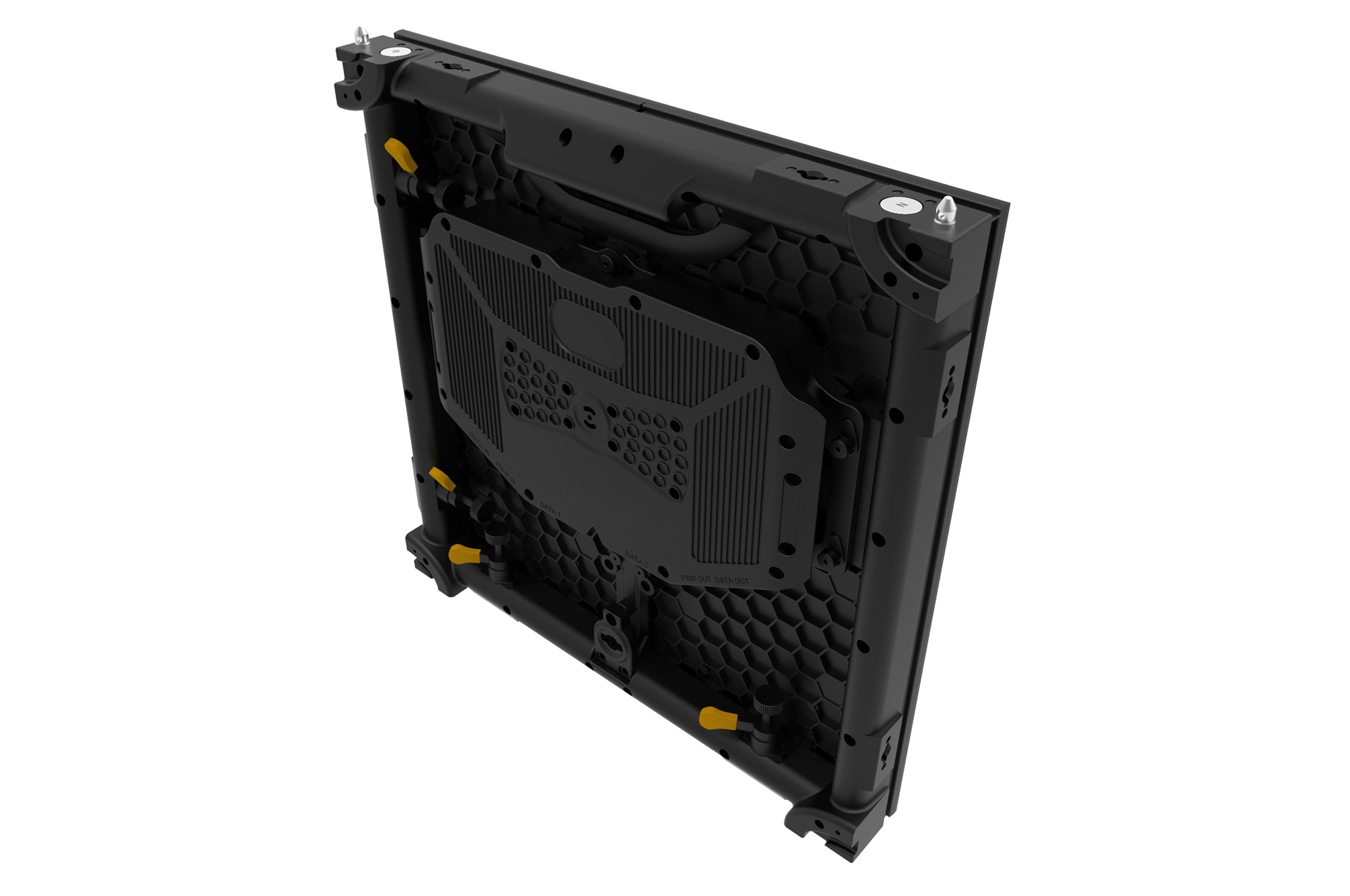

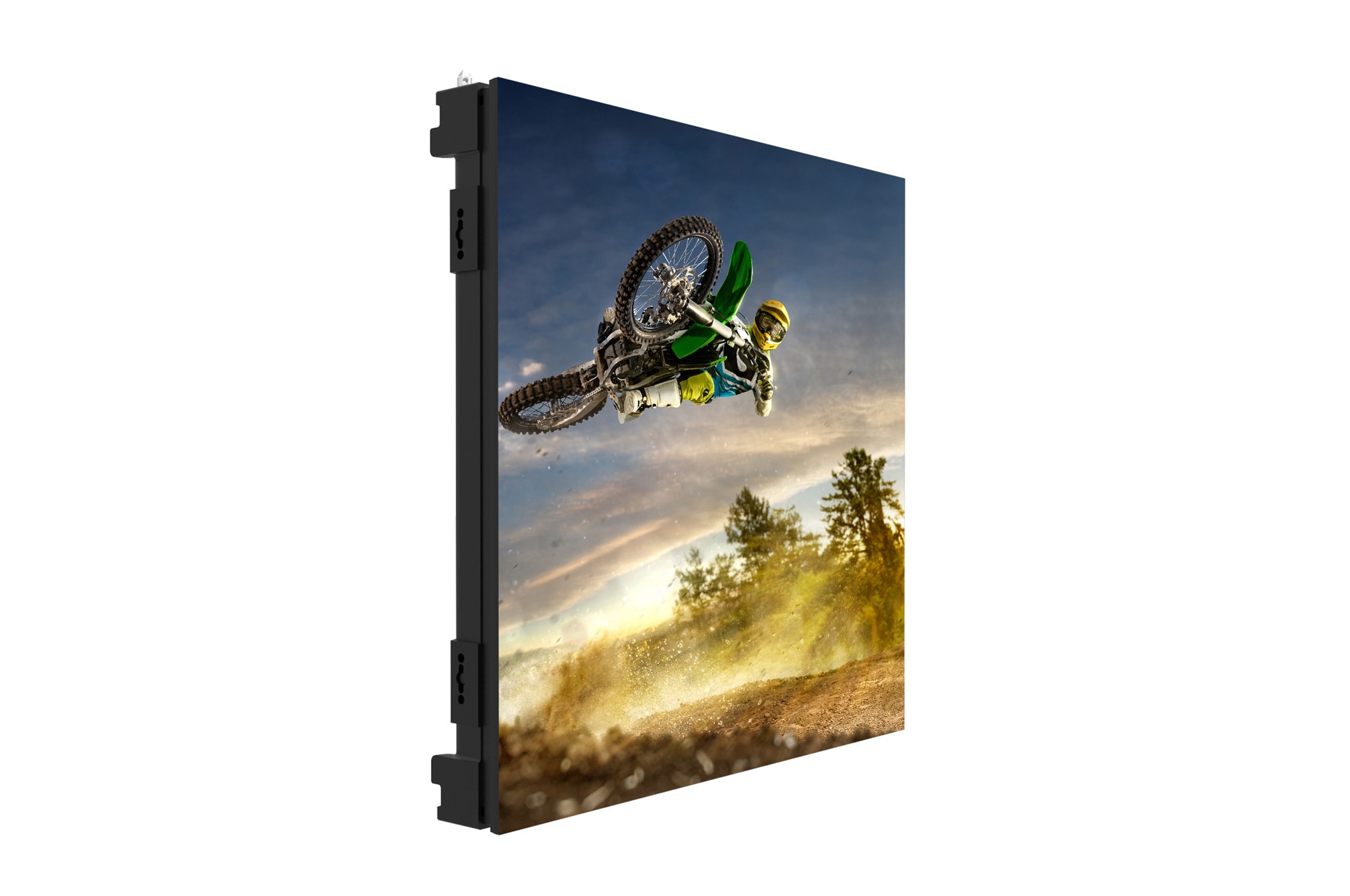

Gallery
*Support may differ by model

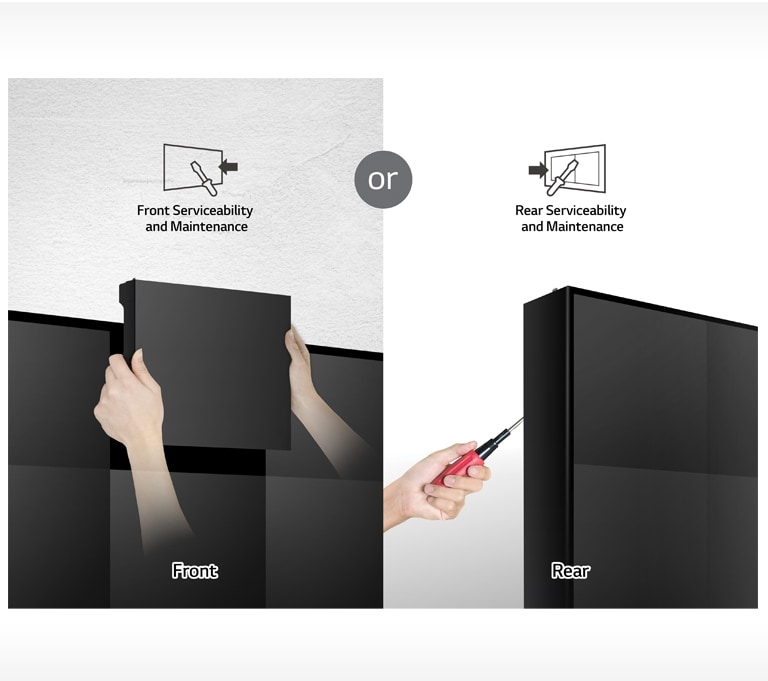

*Rear access only for 4.6mm and 6.9mm unit case
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.
Vertical Table
Model Name LBE039DD4 LBE046DD4 LBE069DD4
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 3.91 4.63 6.94
Unit Case Resolution (WxH) 128x256 108x216 72 x 144
Unit Case Dimensions (WxHxD, mm) 500x1000x68 500x1000x68 500x1000x68
Weight per Unit Case / Square Meter (kg) 12.0/24.0 12.0/24.0 12.0/24.0

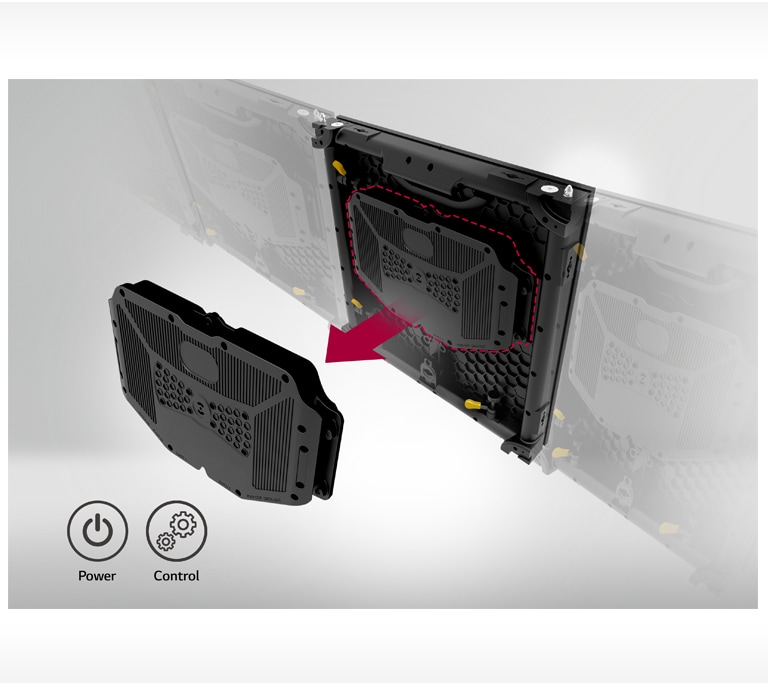

Service access Front or Rear Rear Rear
Min. Brightness (After Calibration) 5,000 5,000 5,000
Color Temperature 6,500 6,500 6,500
Visual Viewing Angle (Horizontal/Vertical) 160/120 160/120 160/120
Brightness Uniformity / Color Uniformity 97%/±0.003Cx,Cy 97%/±0.003Cx,Cy 97%/±0.003Cx,Cy
Contrast Ratio 5,000 5,000 5,000
Processing Depth (bit) 14 14 14
Power Consumption (W/Unit, Avg./Max.) 110/330 110/300 110/330
Power Consumption (W/m², Max.) 660 660 660
Power Supply (V) 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,840 3,840 3,840
Lifetime (Half brightness)* 50,000 50,000 50,000
Operating Temperature(°C) / Humidity -10° to 45°/0-80%RH -10° to 45°/0-80%RH -10° to 45°/0-80%RH
* The Lifetime (Half brightness) spec is subject to LED package specifications.
Vertical Table
Model Name LBE080DD4 LBE100DD4
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 8.00 10.00
Unit Case Resolution (WxH) 80x90 64x72
Unit Case Dimensions (WxHxD, mm) 640x720x90 640x720x90
Weight per Unit Case / Square Meter (kg) 17.0/36.9 17.0/36.9
Service access Front or Rear Front or Rear
Min. Brightness (After Calibration) 5,000 5,000
Color Temperature 6,500 6,500
Visual Viewing Angle (Horizontal/Vertical) 160/120 160/120
Brightness Uniformity / Color Uniformity ≥97%/±0.003Cx,Cy ≥97%/±0.003Cx,Cy
Contrast Ratio 2,000 2,000
Processing Depth (bit) 14 14
Power Consumption (W/Unit, Avg./Max.) 100/300 100/300
Power Consumption (W/m², Max.) 650 650
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,840 3,840
Lifetime (Half brightness)* 50,000 50,000
Operating Temperature(°C) / Humidity -10° to 45°/0-80%RH -10° to 45°/0-80%RH
* The Lifetime (Half brightness) spec is subject to LED package specifications.
