Model Name | LAE029DD3DE | LAE029DD3E |
---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 2.97 | 2.97 |
Unit Case Resolution (WxH) | 168x168 | 168x336 |
Unit Case Dimensions (WxHxD, mm) | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) | 10.0/40.0 | 15.5/31.0 |

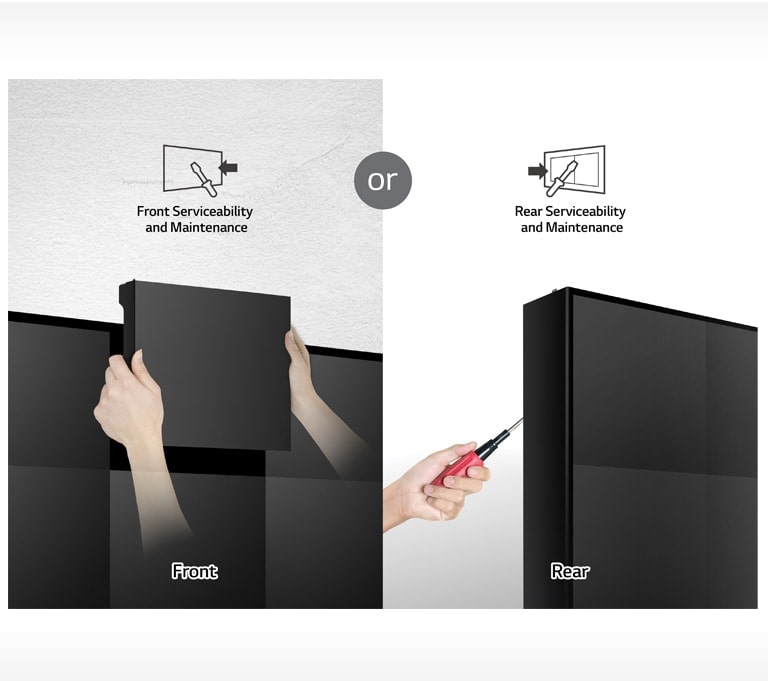

Service access | Front or Rear | Front or Rear |
Min. Brightness (After Calibration) | 1,200 | 1,200 |
Color Temperature | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 |

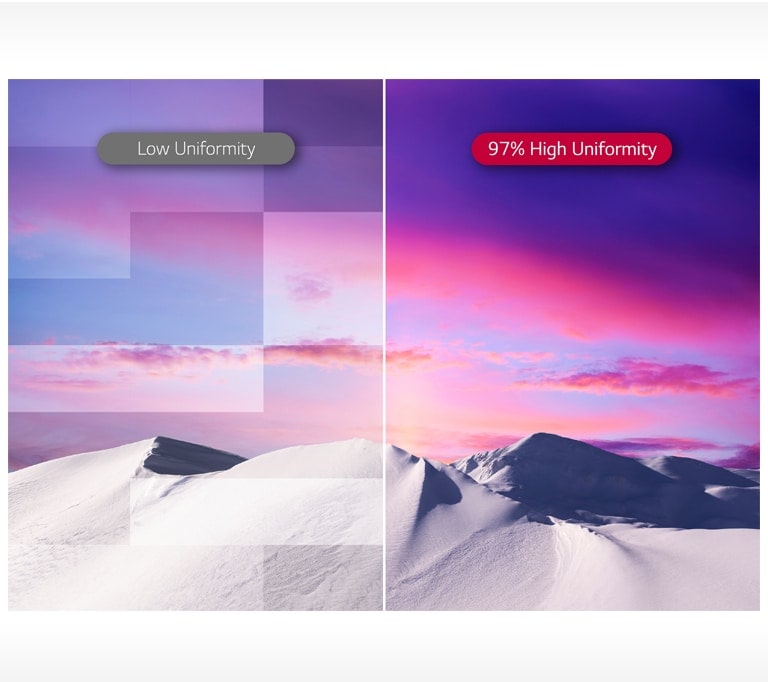

Brightness Uniformity | 97% | 97% |

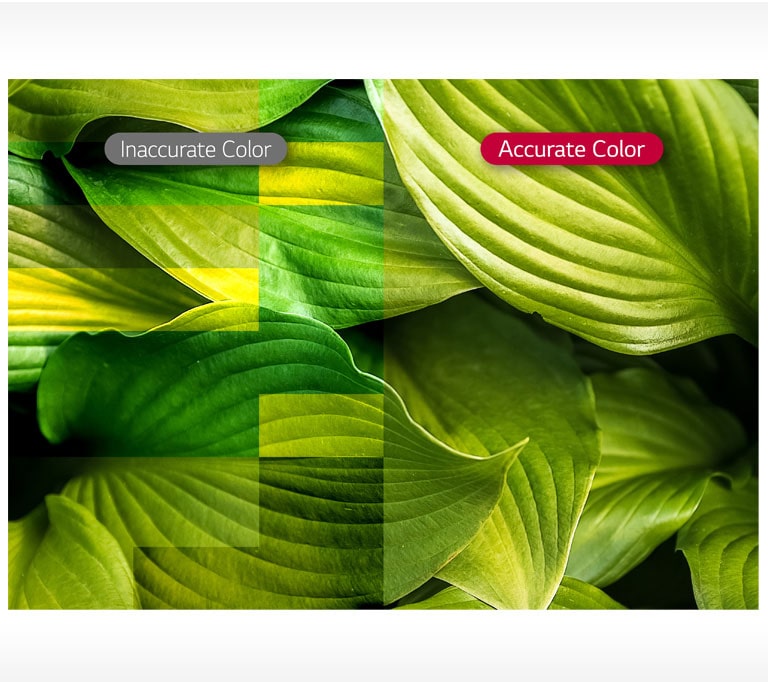

Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 |
Processing Depth (bit) | 13 | 13 |
Power Consumption (W/Unit, Avg./Max.) | 53/160 | 53/160 |
Power Consumption (W/m², Max.) | 640 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 1,920 | 1,920 |
Lifetime (Half brightness)* | 80,000 | 80,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0~80%RH | -10° to +45°/0~80%RH |
Model Name | LAE029DD4DE | LAE029DD4E |
---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 2.97 | 2.97 |
Unit Case Resolution (WxH) | 168x168 | 168x336 |
Unit Case Dimensions (WxHxD, mm) | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) | 10.0/40.0 | 15.5/31.0 |
Service access | Front or Rear | Front or Rear |
Min. Brightness (After Calibration) | 1,200 | 1,200 |
Color Temperature | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 |
Brightness Uniformity | 97% | 97% |
Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 |
Processing Depth (bit) | 13 | 13 |
Power Consumption (W/Unit, Avg./Max.) | 53/160 | 53/160 |
Power Consumption (W/m², Max.) | 640 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 1,920 | 1,920 |
Lifetime (Half brightness)* | 50,000 | 50,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0~80%RH | -10° to +45°/0~80%RH |
Model Name | LAE039DD3D | LAE039DD3 |
---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 3.91 | 3.91 |
Unit Case Resolution (WxH) | 128x128 | 128x256 |
Unit Case Dimensions (WxHxD, mm) | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) | 8.2/32.8 | 12.5/25.0 |
Service access | Front or Rear | Front or Rear |
Min. Brightness (After Calibration) | 1,200 | 1,200 |
Color Temperature | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 |
Brightness Uniformity | 97% | 97% |
Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 |
Processing Depth (bit) | 14 | 14 |
Power Consumption (W/Unit, Avg./Max.) | 53/160 | 110/330 |
Power Consumption (W/m², Max.) | 600 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 3,840 | 3,840 |
Lifetime (Half brightness)* | 80,000 | 80,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0~80%RH | -10° to +45°/0~80%RH |
Model Name | LAE039DD4D | LAE039DD4 |
---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 3.91 | 3.91 |
Unit Case Resolution (WxH) | 128x128 | 128x256 |
Unit Case Dimensions (WxHxD, mm) | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) | 8.2/32.8 | 15.5/31.0 |
Service access | Front or Rear | Front or Rear |
Min. Brightness (After Calibration) | 1,200 | 1,200 |
Color Temperature | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 |
Brightness Uniformity | 97% | 97% |
Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 |
Processing Depth (bit) | 14 | 14 |
Power Consumption (W/Unit, Avg./Max.) | 53/160 | 110/330 |
Power Consumption (W/m², Max.) | 640 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 3,840 | 3,840 |
Lifetime (Half brightness)* | 50,000 | 50,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0~80%RH | -10° to +45°/0~80%RH |
