Ceiling Cassette, 4 Way Standard, Unit Indoor, 36kBtu/h

Features

Gallery

Specs

Support

Resource

Find a Dealer

Ceiling Cassette, 4 Way Standard, Unit Indoor, 36kBtu/h

Ceiling Cassette, 4 Way Standard, Unit Indoor, 36kBtu/h

ARNU36GTNA4
()

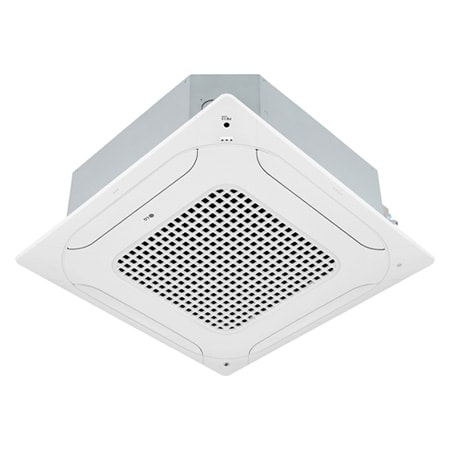

  • LG Ceiling Cassette ARNU36GTNA4 terdiri dari bagian atas dan bawah berwarna putih. Di bagian bawah, terdapat kipas di keempat arah, sehingga udara dapat mengalir.
LG Ceiling Cassette ARNU36GTNA4 terdiri dari bagian atas dan bawah berwarna putih. Di bagian bawah, terdapat kipas di keempat arah, sehingga udara dapat mengalir.

Fitur Utama

  • Aliran Udara 4 Arah dengan Desain Baru
  • Pemurnian Udara 5 Langkah yang Praktis & Kuat (Opsional)
  • Aliran Udara Deteksi Manusia (Opsional)

Aliran Udara 4 Arah

4-way cassette dual vane baru memungkinkan aliran udara yang nyaman dan mudah. Unit ini mengoperasikan 6 mode aliran udara termasuk mode daya, mode pintar, dan mode penyegaran.

Pemurnian Udara 5 Langkah (Opsional)

Pemurnian udara yang kuat menghilangkan bau, kuman, dan debu halus PM 1.0 yang tidak terlihat. Mudah untuk mengatur sistem pemurnian udara dengan filter pemurnian udara satu sentuhan.

Deteksi Manusia (Opsional)

Deteksi manusia memberi pengguna preferensi aliran udara langsung atau tidak langsung.

Print

All Spec

SUMBER LISTRIK

  • Kasus 1

    50 Hz 220-240 V~

  • Batas Rentang Tegangan (Kasus 1) (V)

    198~264

  • Kasus 2

    60 Hz 220 V~

  • Batas Rentang Tegangan (Kasus 2) (V)

    198~242

KAPASITAS PENDINGINAN

  • Nominal (kW)

    10.60

  • Nominal (Btu/h)

    36 200

  • Panas Sensitif (kW)

    7.60

  • Panas Sensitif (Btu/h)

    25 932

KAPASITAS PEMANASAN

  • Nominal (kW)

    11.9

  • Nominal (Btu/h)

    40 600

INPUT DAYA (INDOOR)

  • H/M/L (W)

    70 / 53 / 43

ARUS OPERASI (INDOOR)

  • H/M/L (A)

    0.53 / 0.51 / 0.49

KIPAS INDOOR

  • Tipe

    Turno Fan

  • Laju Aliran Udara (Pendinginan,(SH)/H/M/L) (m³/min)

    - / 25 / 21 / 19

  • Laju Aliran Udara (Pemanasan,(SH)/H/M/L) (m³/min)

    - / 25 / 21 / 19

MOTOR KIPAS INDOOR

  • Tipe

    BLDC

  • Penggerak

    Direct

  • Output (W)

    135

PENUKAR PANAS

  • Baris x Kolom x FPI

    2 x 10 x 19

  • Area Muka (m²)

    0.57

DIMENSI

  • Net(W x H x D) (mm)

    840 x 246 x 840

  • Shipping(W x H x D) (mm)

    922 x 318 x 917

BERAT

  • Net (kg)

    23.5

  • Shipping (kg)

    27.5

EKSTERIOR

  • Warna

    Morning Fog

  • RAL (Klasik)

    RAL 9001

FILTER UDARA

  • Tipe

    Pre Filter

KONTROL SUHU

  • Kontrol Suhu

    Microprocessor, Thermostat for cooling and heating

BAHAN PENYERAP SUARA / ISOLASI TERMAL

  • Bahan Penyerap Suara / Isolasi Termal

    Foamed polystrene

PERANGKAT PERLINDUNGAN

  • Sekring

    O

REFRIGERAN

  • Tipe

    R410A / R32

  • Jumlah Pengisian Tambahan (kg(each))

    0.40 / 0.33

  • Jenis Kontrol

    EEV

PIPA PEMBUANGAN (MENGGUNAKAN POMPA PEMBUANGAN)

  • O.D / I.D (mm(inch))

    - / 25(1)

PIPA KONEKTOR

  • Cairan (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

JENIS KONEKTOR PIPA

  • Cairan

    Flare

  • Gas

    Flare

TINGKAT TEKANAN SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 43 / 40 / 37

  • Pemanasan((SH)/H/M/L) (dB(A))

    - / 43 / 40 / 37

STANDAR PENGUKURAN (TINGKAT TEKANAN)

  • Standar Pengukuran (Tingkat Tekanan)

    ISO 3745

TINGKAT DAYA SUARA (UNIT INDOOR)

  • Pendinginan((SH)/H/M/L) (dB(A))

    - / 56 / 53 / 51

  • Pemanasan((SH)/H/M/L) (dB(A))

    - / 56 / 53 / 51

STANDAR PENGUKURAN (TINGKAT DAYA)

  • Standar Pengukuran (Tingkat Daya)

    ISO 9614

KABEL KONEKTOR

  • Kabel Komunikasi (VCTF-SB) (mm² × cores)

    1.0~1.5 x 2C

KARAKTERISTIK LISTRIK

  • ‬Ampere Sirkuit Minimum (MCA) (A)‭

    0.71

  • Motor Kipas Indoor_Full Load Ampere (FLA) (A)

    0.56

PRODUK

  • Tipe

    Ceiling Cassette

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
