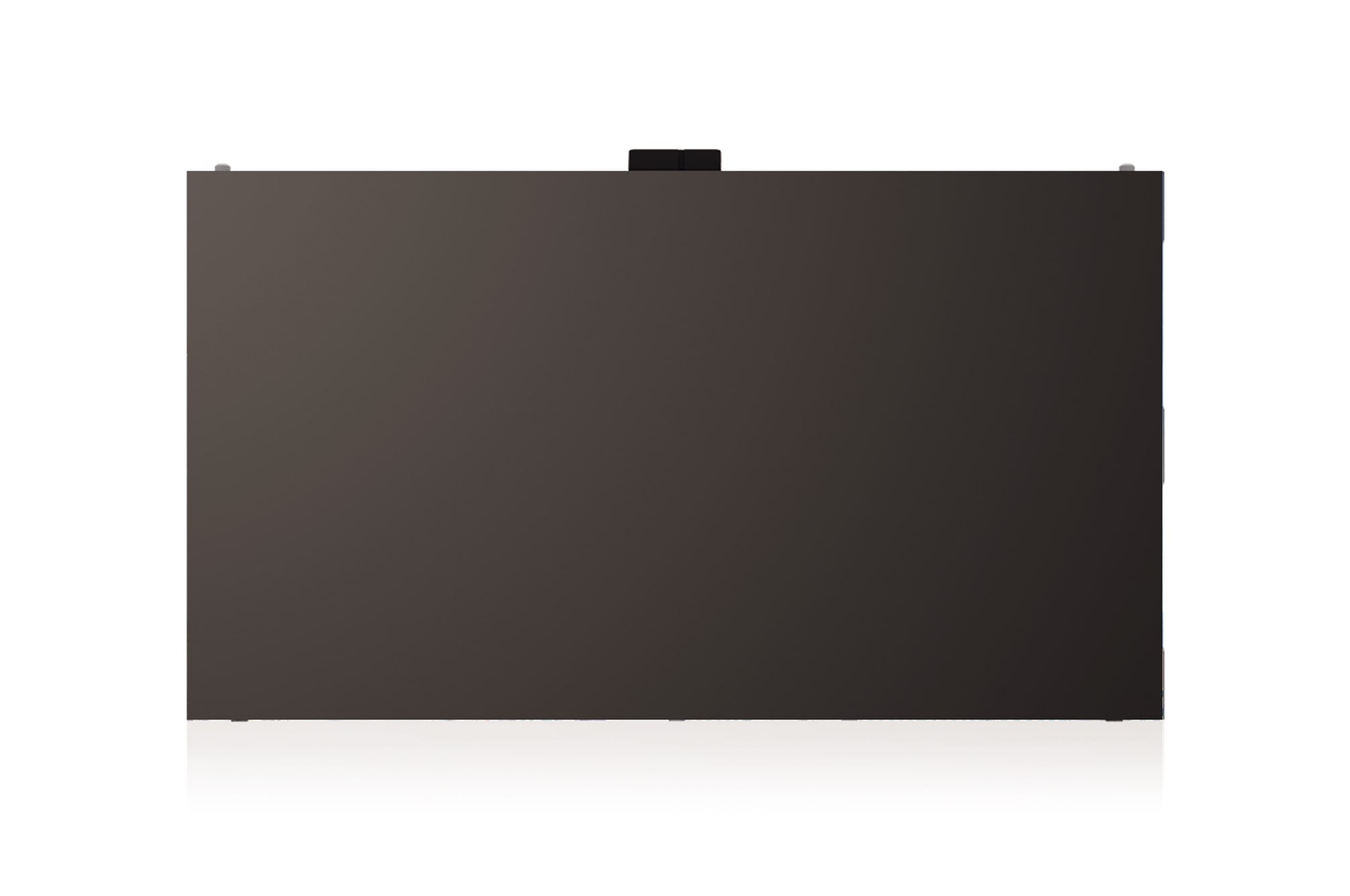

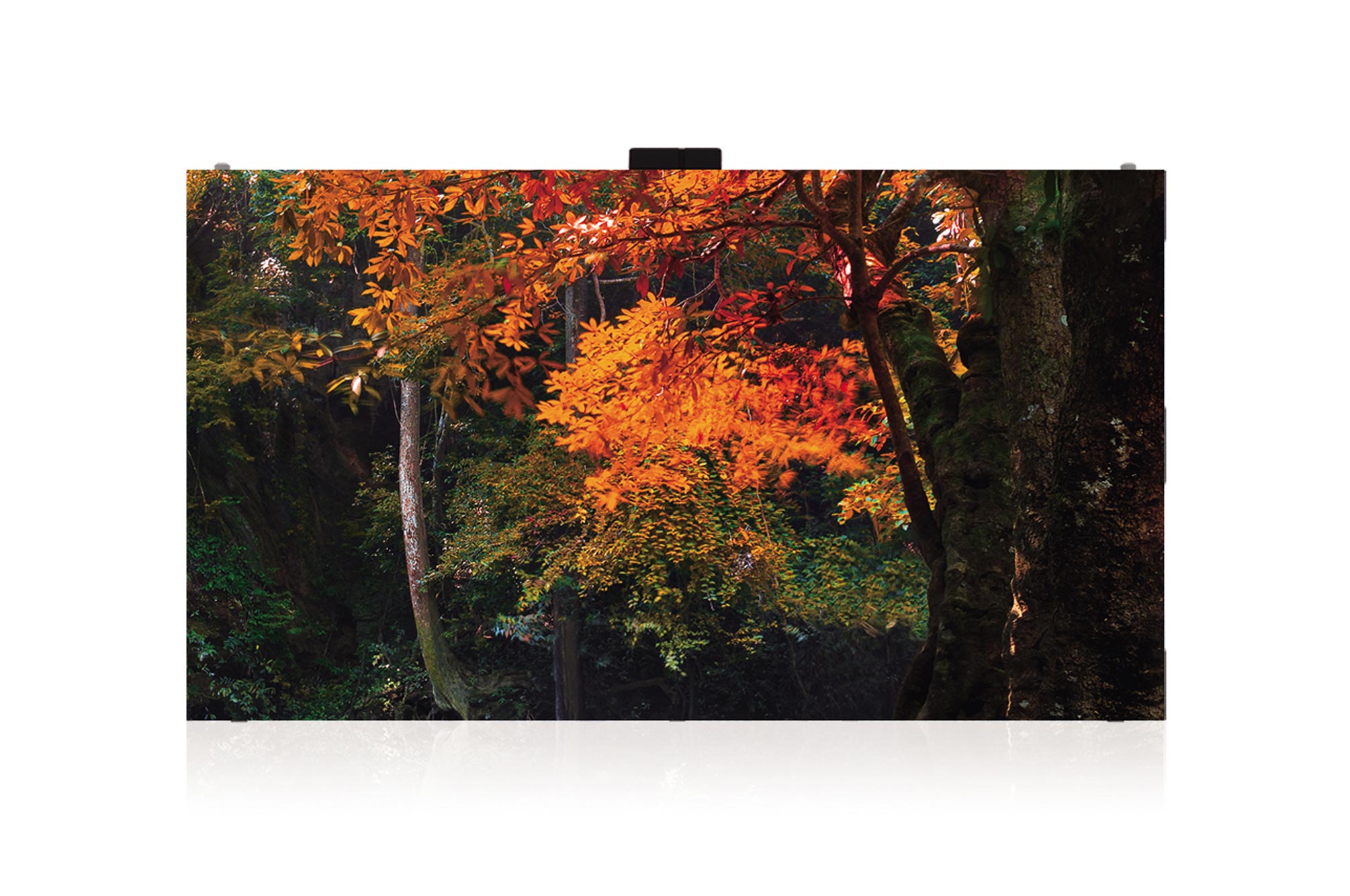

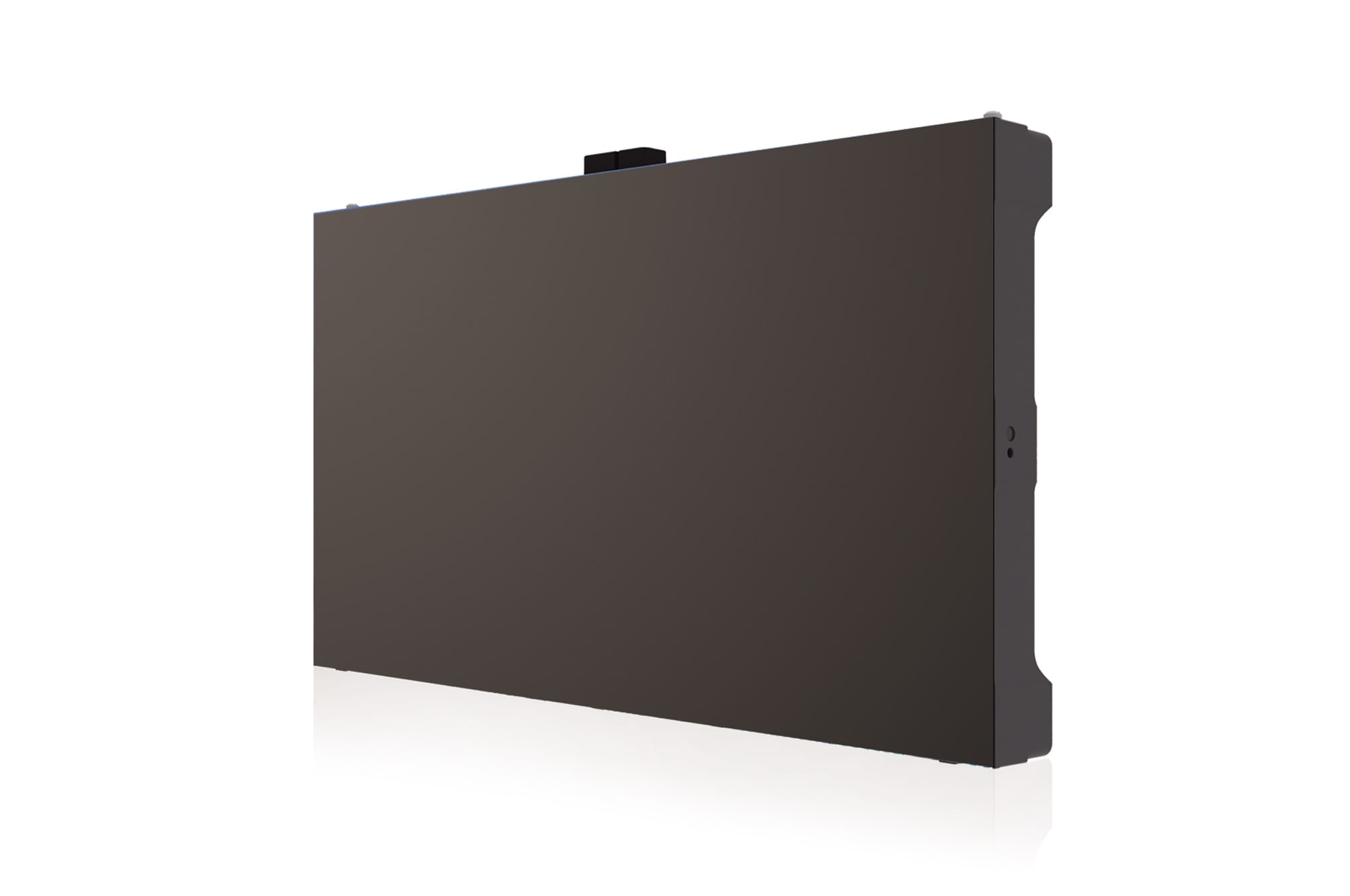

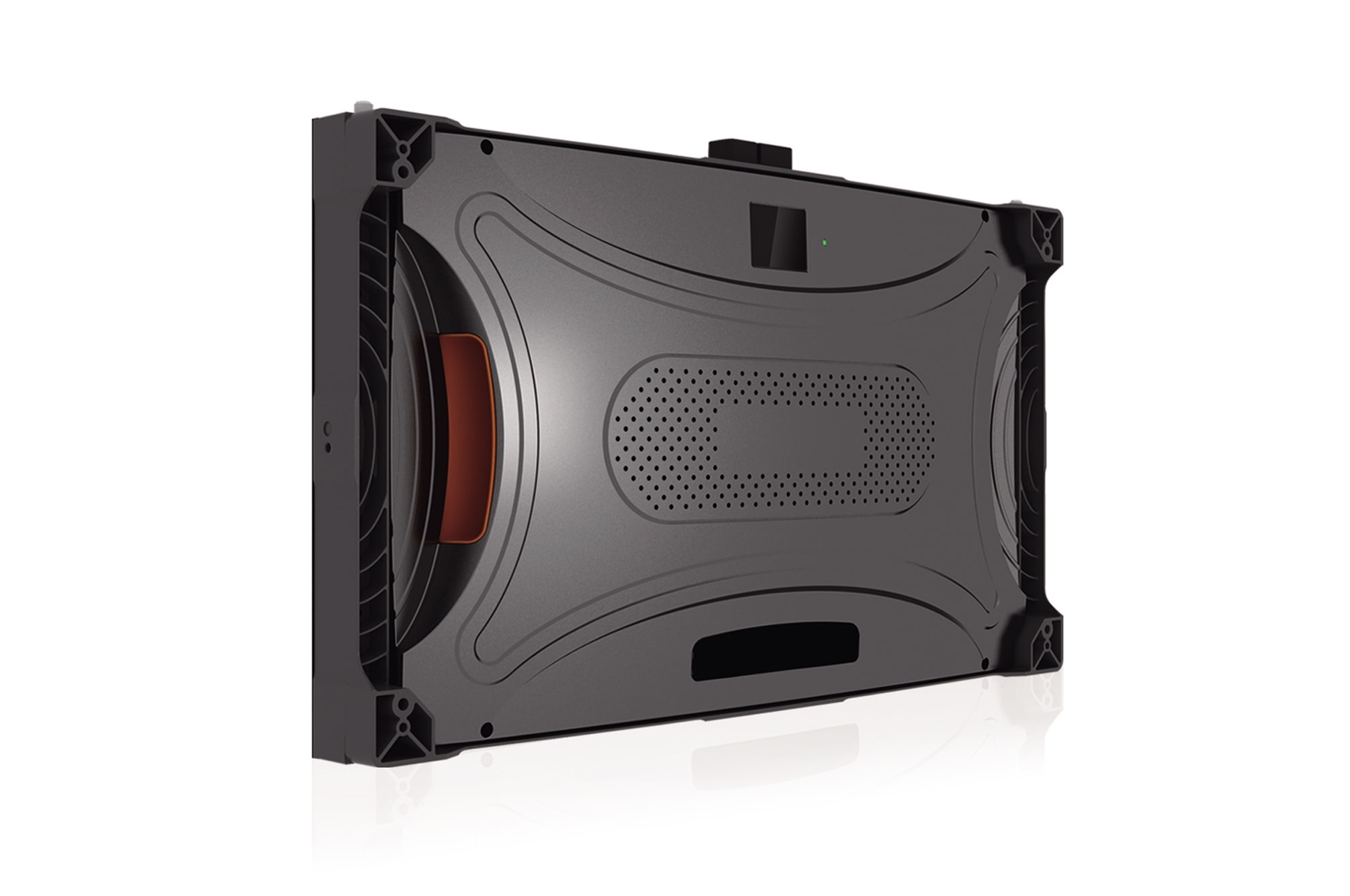

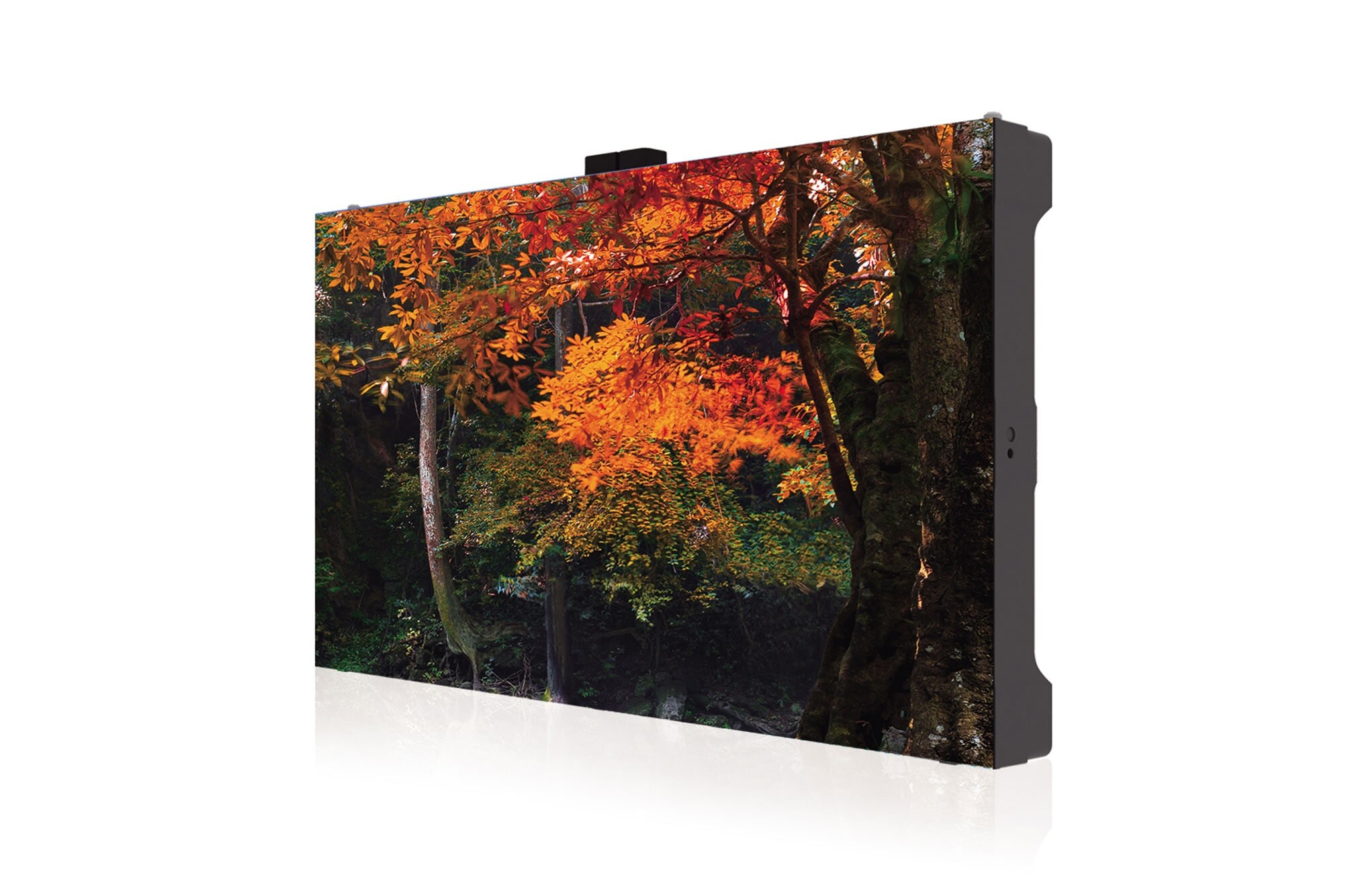

LAS Fine-pitch

Kini Hadir dalam berbagai opsi, LAS Fine Pitch adalah pilihan sempurna untuk penggunaan dalam ruangan dan luar ruangan. Pelajari selengkapnya tentang informasi teknologi terbaru dan terlengkap di website LG Indonesia
Vertical Table
Model Name LAS012DB2-F LAS012DB4-F LAS014DB2-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.26 1.26 1.454
Unit Case Resolution (WxH) 480 x 270 480 x 270 416 x 234

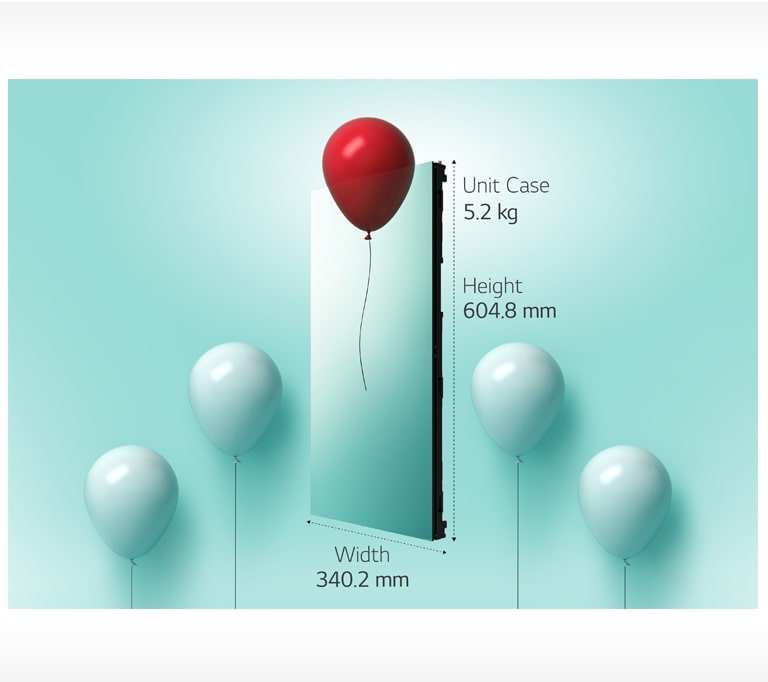

Unit Case Dimensions (WxHxD, mm) 604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case / Square Meter (kg) 5.2/25.3 5.2/25.3 5.2/25.3

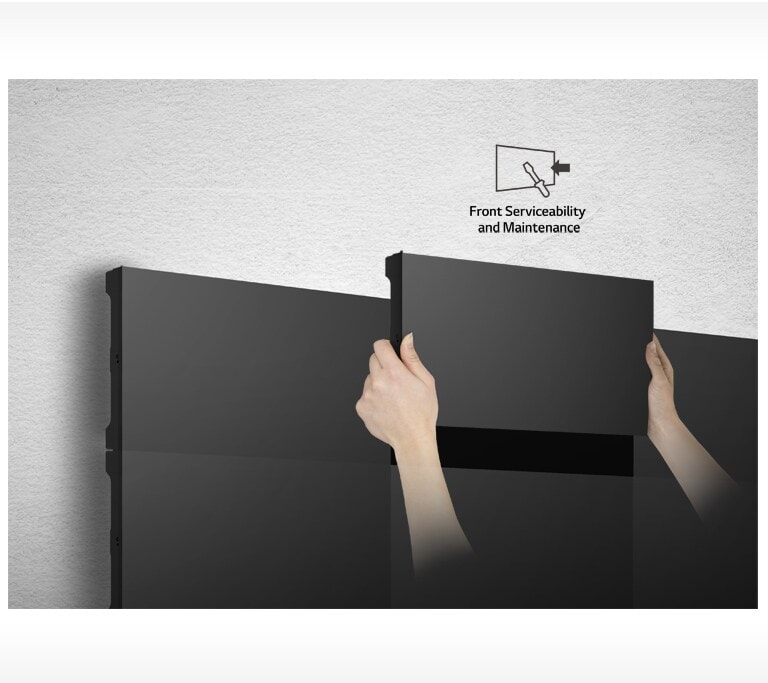

Service access Front Front Front
Min. Brightness (After Calibration) 600 600 600
Color Temperature 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle (Horizontal/Vertical) 160/140 160/140 160/140
Brightness Uniformity ≥97% ≥97% ≥97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000 7,000
Processing Depth (bit) 16 16 16
Power Consumption (W/Unit, Avg./Max.) 54/180 54/180 54/180
Power Consumption (W/m², Max.) 874 874 874
Power Supply (V) 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000 3,000
Lifetime (Half brightness)* 100,000 100,000 100,000
Operating Temperature(°C) / Humidity -10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan
Vertical Table
Model Name LAS014DB4-F LAS015DB2-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.454 1.575
Unit Case Resolution (WxH) 416 x 234 384 x 216
Unit Case Dimensions (WxHxD, mm) 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case / Square Meter (kg) 5.2/25.3 5.2/25.3
Service access Front Front
Min. Brightness (After Calibration) 600 600
Color Temperature 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle (Horizontal/Vertical) 160/140 160/140
Brightness Uniformity ≥97% ≥97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000
Processing Depth (bit) 16 16
Power Consumption (W/Unit, Avg./Max.) 54/180 54/180
Power Consumption (W/m², Max.) 874 874
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000
Lifetime (Half brightness)* 100,000 100,000
Operating Temperature(°C) / Humidity -10° to 40°/10-80%RH -10° to 40°/10-80%RH
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan
Vertical Table
Model Name LAS015DB4-F LAS018DB2-F LAS018DB4-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.575 1.89 1.89
Unit Case Resolution (WxH) 384 x 216 320 x 180 320 x 180
Unit Case Dimensions (WxHxD, mm) 604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case / Square Meter (kg) 5.2/25.3 5.2/25.3 5.2/25.3
Service access Front Front Front
Min. Brightness (After Calibration) 600 600 600
Color Temperature 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle (Horizontal/Vertical) 160/140 160/140 160/140
Brightness Uniformity ≥97% ≥97% ≥97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000 7,000
Processing Depth (bit) 16 16 16
Power Consumption (W/Unit, Avg./Max.) 54/180 54/180 54/180
Power Consumption (W/m², Max.) 874 874 874
Power Supply (V) 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000 3,000
Lifetime (Half brightness)* 50,000 100,000 50,000
Operating Temperature(°C) / Humidity -10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan
Vertical Table
Model Name LAS025DB2-F LAS025DB4-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 2.52 2.52
Unit Case Resolution (WxH) 240 x 136 240 x 136
Unit Case Dimensions (WxHxD, mm) 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case / Square Meter (kg) 5.2/25.3 5.2/25.3
Service access Front Front
Min. Brightness (After Calibration) 600 600
Color Temperature 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle (Horizontal/Vertical) 160/140 160/140
Brightness Uniformity ≥97% ≥97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000
Processing Depth (bit) 16 16
Power Consumption (W/Unit, Avg./Max.) 54/180 54/180
Power Consumption (W/m², Max.) 874 874
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000
Lifetime (Half brightness)* 100,000 50,000
Operating Temperature(°C) / Humidity -10° to 40°/10-80%RH -10° to 40°/10-80%RH
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan
Vertical Table
Model Name LAS012DB7-F LAS014DB7-F LAS015DB7-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.26 1.454 1.575
Unit Case Resolution (WxH) 480 x 270 416 x 234 384 x 216
Unit Case Dimensions (WxHxD, mm) 604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case / Square Meter (kg) 5.2/25.3 5.2/25.3 5.2/25.3
Service access Front Front Front
Min. Brightness (After Calibration) 600 600 600
Color Temperature 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle (Horizontal/Vertical) 160/140 160/140 160/140
Brightness Uniformity ≥97% ≥97% ≥97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000 7,000
Processing Depth (bit) 16 16 16
Power Consumption (W/Unit, Avg./Max.) 54/180 54/180 54/180
Power Consumption (W/m², Max.) 874 874 874
Power Supply (V) 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000 3,000
Lifetime (Half brightness)* 100,000 100,000 100,000
Operating Temperature(°C) / Humidity -10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan
Vertical Table
Model Name LAS018DB7-F LAS025DB7-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.89 2.52
Unit Case Resolution (WxH) 320 x 180 240 x 136
Unit Case Dimensions (WxHxD, mm) 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case / Square Meter (kg) 5.2/25.3 5.2/25.3
Service access Front Front
Min. Brightness (After Calibration) 600 600
Color Temperature 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle (Horizontal/Vertical) 160/140 160/140
Brightness Uniformity ≥97% ≥97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000
Processing Depth (bit) 16 16
Power Consumption (W/Unit, Avg./Max.) 54/180 54/180
Power Consumption (W/m², Max.) 874 874
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000
Lifetime (Half brightness)* 100,000 100,000
Operating Temperature(°C) / Humidity -10° to 40°/10-80%RH -10° to 40°/10-80%RH
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan
