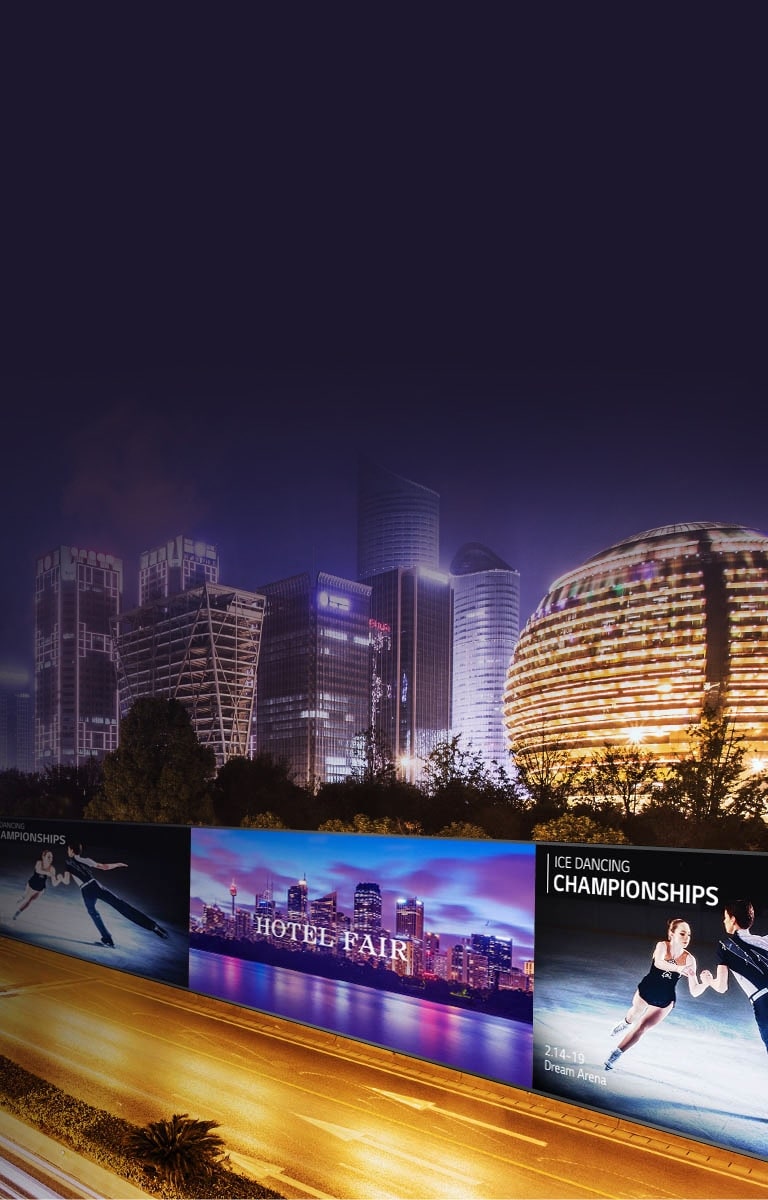

Likungan luar ruangan buruk? Tenang saja karena kini LG LBS DOOH mampu bertahan dalam lingkungan luar ruangan yang keras atau cuaca buruk. Terlihat sangat mencolok bahkan di hari cerah. Cek sekarang juga.
M01_ID_LED-Signage-Outdoor_hero_02_M03_High-Performance-Slim_m_1554708757061
D03_ID-LBS-DOOH-01-Outstading-Visibility_full_1554706871082
D04_ID-LBS-DOOH-02-Smooth-Playback-in-Dynamic-Motion_full_1554706921699
| Model Name | LBS062DA1-V | LBS062DA3-V | LBS083DA1-V | LBS083DA3-V |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6.25 | 6.25 | 8.33 | 8.33 |
| Unit Case Resolution (WxH) | 128x256 | 128x256 | 96x192 | 96x192 |
| Unit Case Dimensions (WxHxD, mm) | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 |

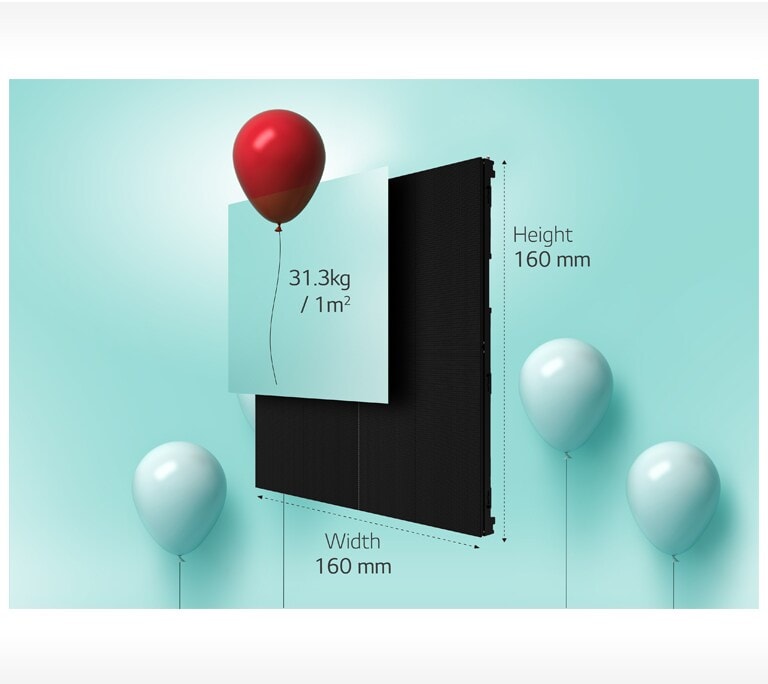

| Weight per Unit Case / Square Meter (kg) | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 |

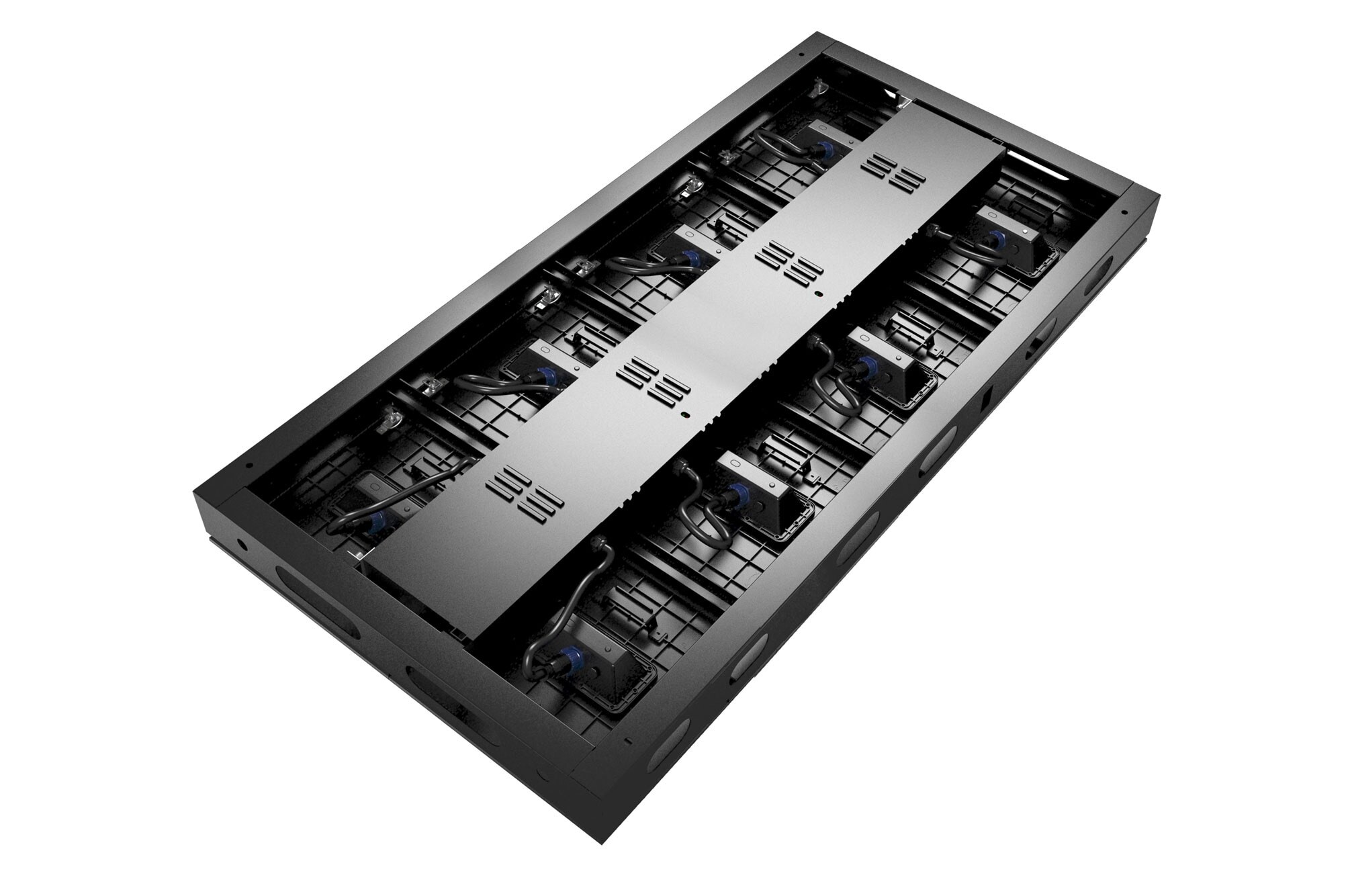

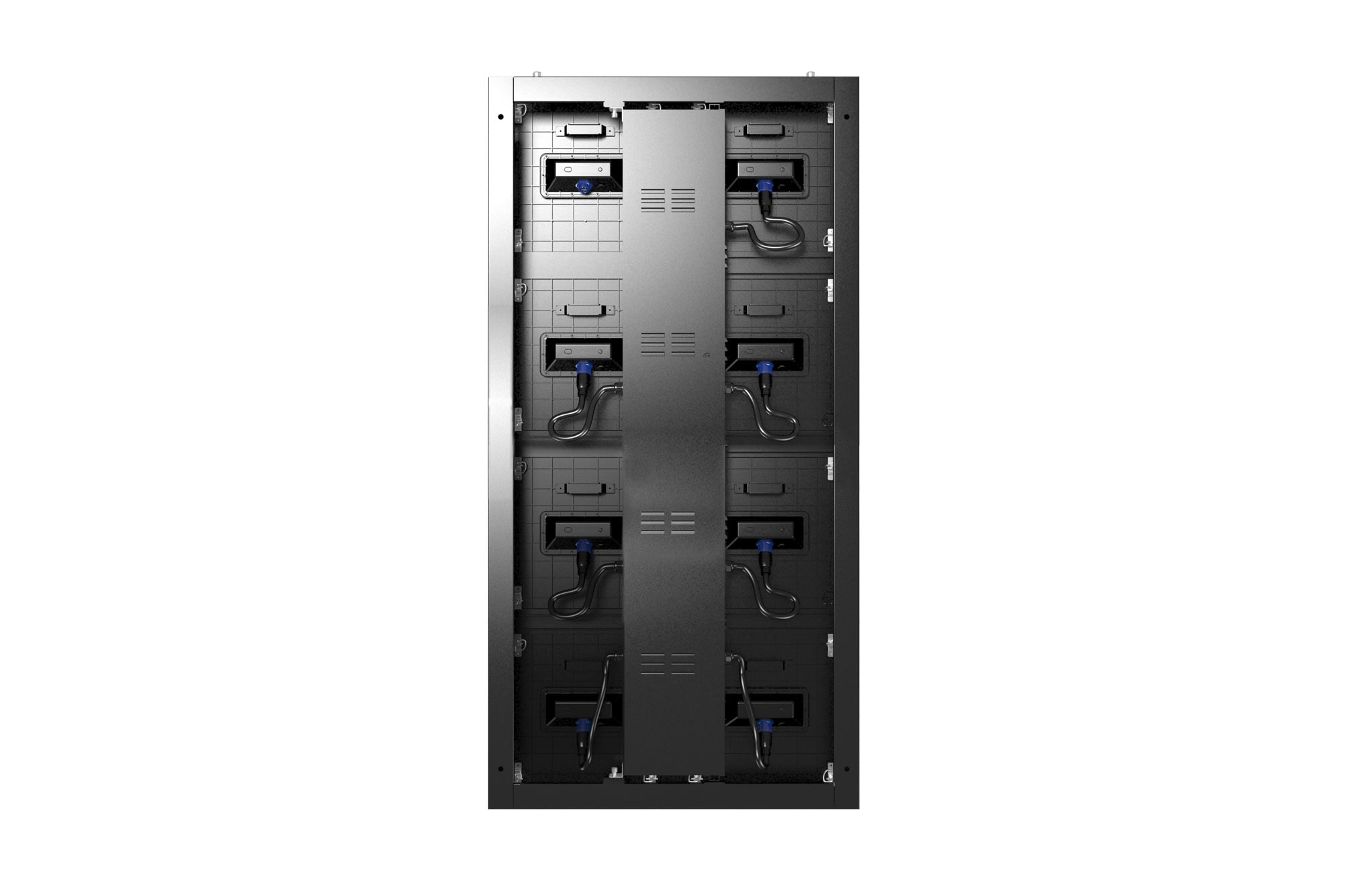

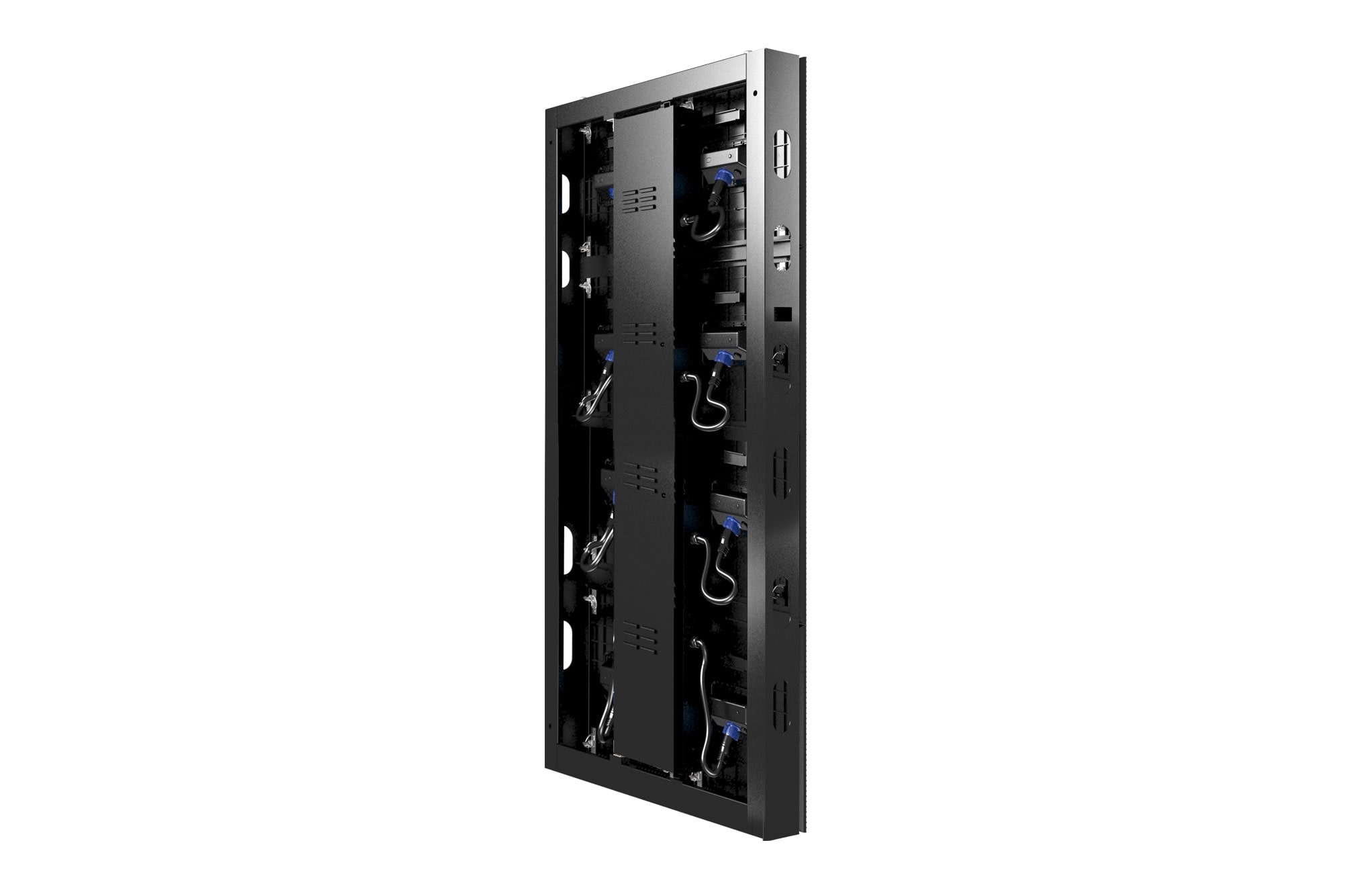

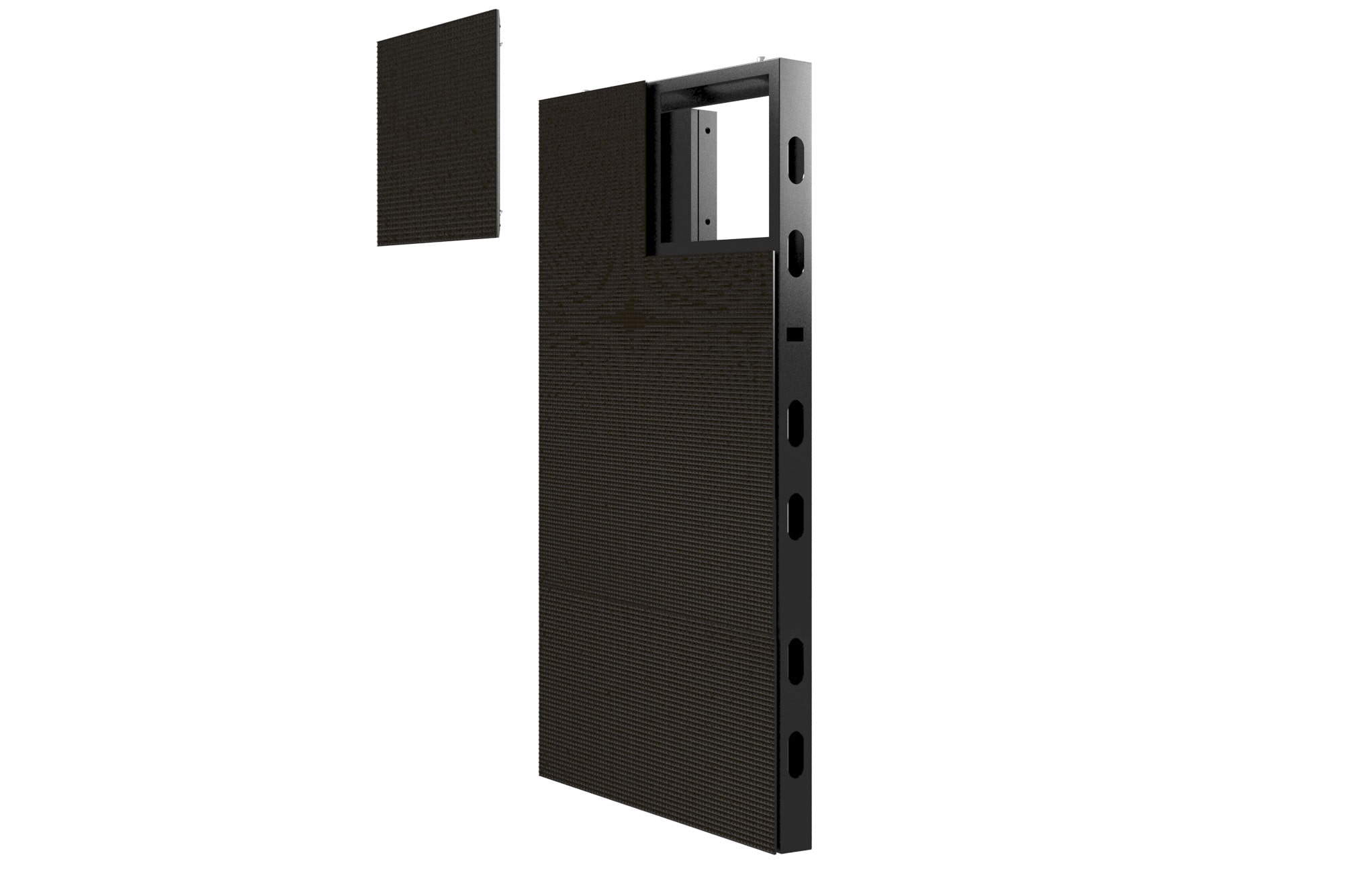

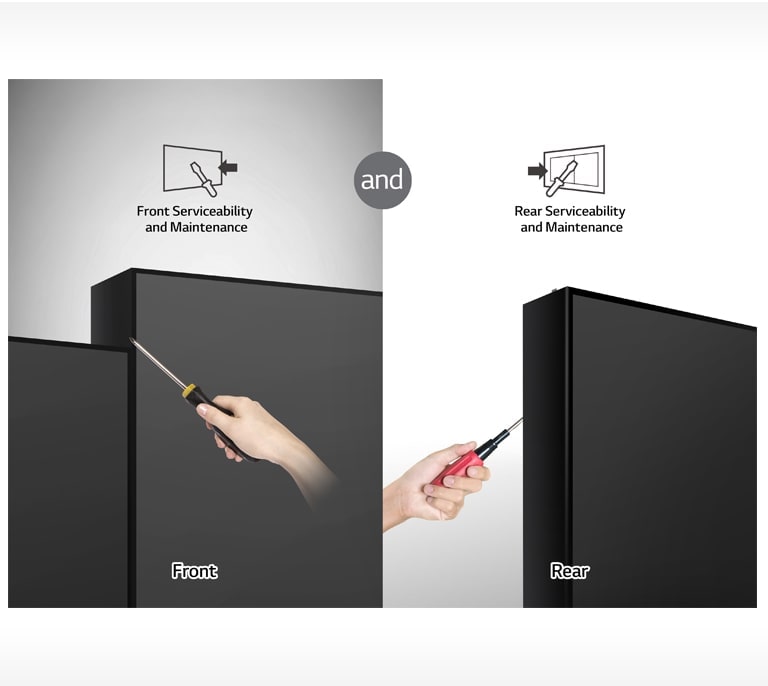

| Service access | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Min. Brightness (After Calibration) | 6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/130 | 160/130 | 160/125 | 160/125 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |

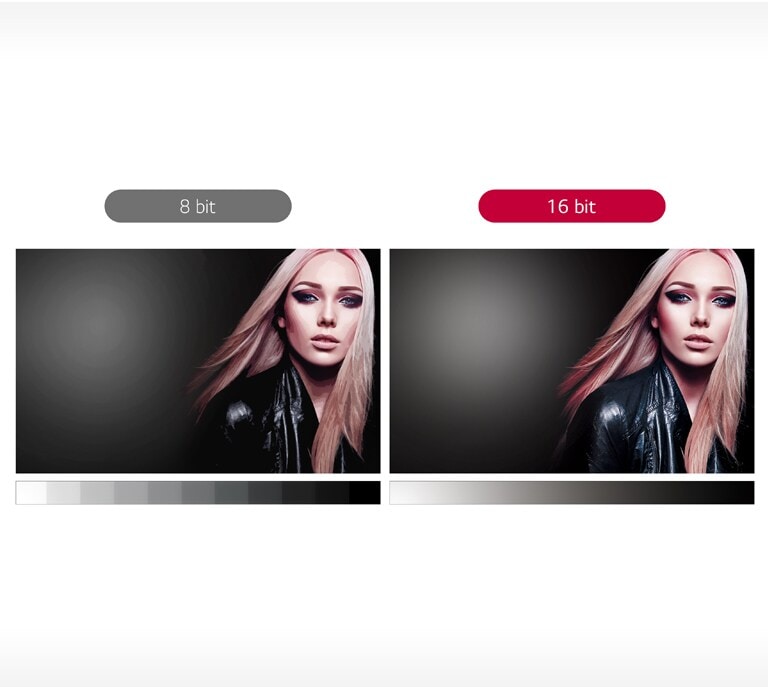

| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) | 312/780 | 312/780 | 320/800 | 320/800 |
| Power Consumption (W/m², Max.) | 609 | 609 | 625 | 625 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Refresh Rate (Hz) | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan.
| Model Name | LBS100DA1-V | LBS100DA3-V |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.00 | 10.00 |
| Unit Case Resolution (WxH) | 80x160 | 80x160 |
| Unit Case Dimensions (WxHxD, mm) | 800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case / Square Meter (kg) | 40.0/31.3 | 40.0/31.3 |
| Service access | Front and Rear | Front and Rear |
| Min. Brightness (After Calibration) | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/115 | 160/115 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) | 300/750 | 300/750 |
| Power Consumption (W/m², Max.) | 586 | 586 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 |
| Refresh Rate (Hz) | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 |
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan.
