Capacity Cooling (Min.∼Rated∼Max.) - ㎾
1.37 ~ 3.00 ~ 3.60
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
4,670 ~ 10,230 ~ 12,290
Power Input Cooling (Min.∼Rated∼Max.) - ㎾
0.31 ~ 0.99 ~ 1.15
Running Current Cooling (Rated) - A
4.60
SEER / EER - Btu/h / W
16.82 / 10.33
Power Supply - V, Ø, ㎐
220-240, 1, 50/60
Dimensions Net (W x H x D) - ㎜
860 x 132 x 450
Dimensions Shipping (W x H x D) - mm
1,109 x 239 x 523
Weight Net - ㎏
11.8
Weight Shipping - ㎏
15.0
Heat Exchanger (Row x Column x Fins per inch)
2 x 12 x 18
Heat Exchanger Face Area - ㎡
0.15
Fan Type
Cross flow fan
Fan Air Flow Rate (H / M / L) - ㎥/min
9.0 / 8.0 / 7.0
Fan Motor Type
BLDC
Fan Motor Output - W
30
Dehumidification Rate - ℓ/h
0.9
Safety Devices
Fuse
Piping Connections Liquid Side - ㎜(inch)
Ø 6.35 (1/4)
Piping Connections Gas Side - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Drain (O.D. / I.D.) - ㎜(inch)
Ø 32.0(1-1/4) / 25.0(31/32)
Sound Pressure Level (H / M / L) - dB(A)
37 / 36 / 33
Refrigerant Control
Electronic Expansion Valve
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
5C x 1.0 (10)

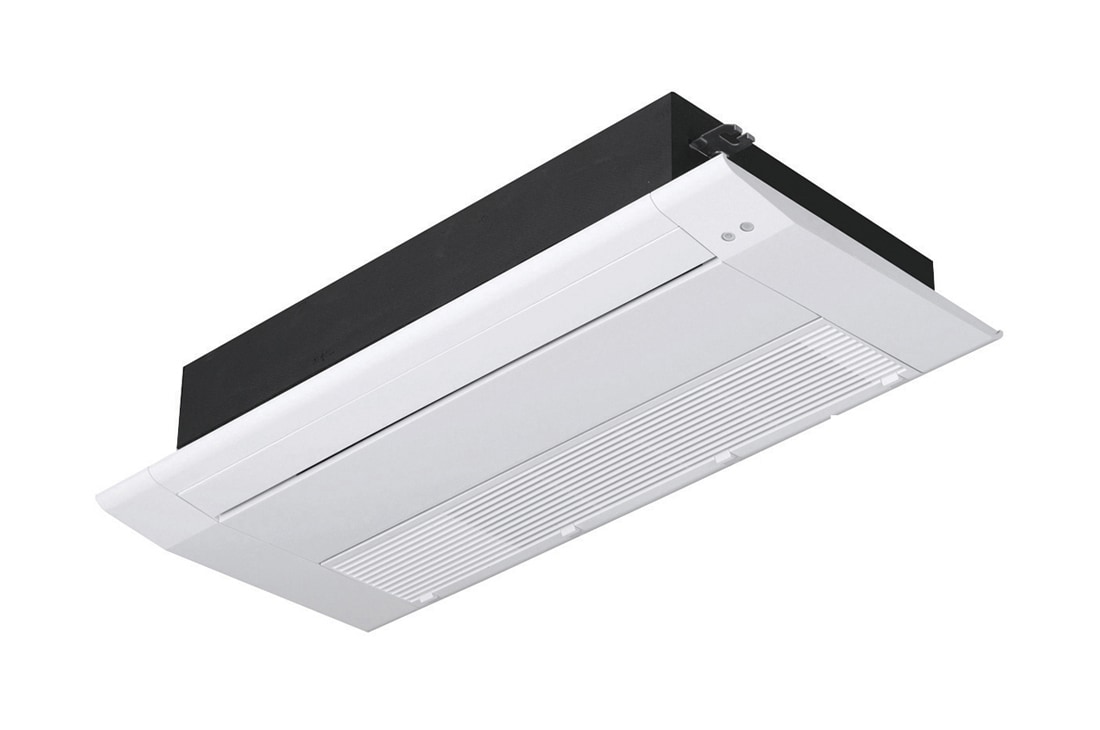

Decoration Panel Model Name
PT-UUC
Decoration Panel Color
White
Decoration Panel Dimensions (W x H x D) - ㎜
1,100 x 34 x 500
Decoration Panel Net Weight - ㎏
3.3
Decoration Panel Shipping Weight - ㎏
4.7
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
1.37 ~ 3.00 ~ 3.60
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
4,670 ~ 10,230 ~ 12,290
Power Input Cooling (Min.∼Rated∼Max.) - ㎾
0.31 ~ 0.99 ~ 1.15
Running Current Cooling (Rated) - A
4.60
SEER / EER - Btu/h / W
16.82 / 10.33
Power Supply - V, Ø, Hz
220-240, 1, 50/60

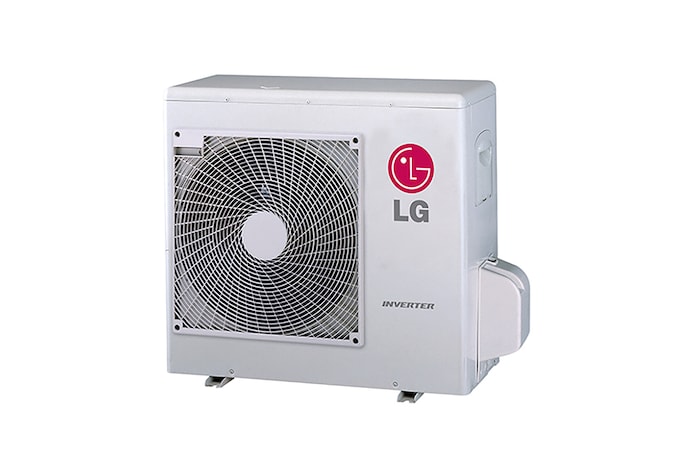

Casing Color
Warm Gray
Dimensions Body (W x H x D) - ㎜
770 × 545 × 288
Net Weight - ㎏ (lbs)
29.4 (64.8)
Heat Exchanger (Row x Column x Fins per inch) x No.
(1 × 24 × 14) × 1
Compressor Type
Twin Inverter
Compressor Model - Model x No.
GAT134MBA x 1
Compressor Motor type
BLDC
Compressor Motor Output - W × No.
1,200 x 1
Fan Type
Axial
Fan Air Flow Rate - ㎥/min x No.
28.2 x 1
Fan Motor Type
BLDC
Fan Motor Output - W × No.
43.0 x 1
Sound Pressure Level Cooling (Rated) - dB(A)
47
Piping Connections Liquid Side - ㎜(inch)
Ø 6.35 (1/4)
Piping Connections Gas Side - ㎜(inch)
Ø 9.52 (3/8)
Piping Length (Min./Max.) - m(ft)
5 (16.4) / 20 (65.6)
Refrigerant Type
R410A
Refrigerant Precharged Amount - g(oz)
750 (26.5)
Refrigerant Chargeless-Pipe Length - m(ft)
5.0 (16.4)
Refrigerant Additional Charging Volume - g/m(oz/ft)
15
Refrigerant Control
Electronic Expansion Valve
Refrigerant Oil Type
RB68A
Refrigerant Oil Charged volume - cc x No.
400 x 1
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
3C x 2.5 (12)
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
15 (49.2)
