AP-Q200LNA0

APNQ200LNA0 / APUQ200LNA0

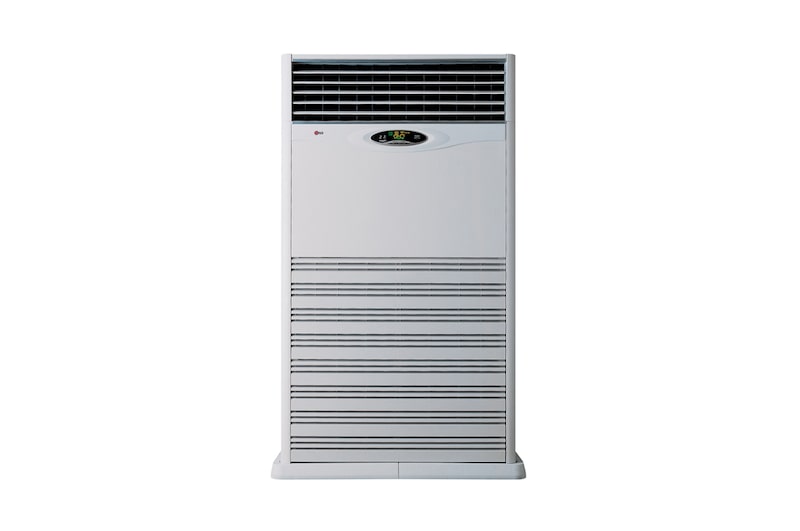

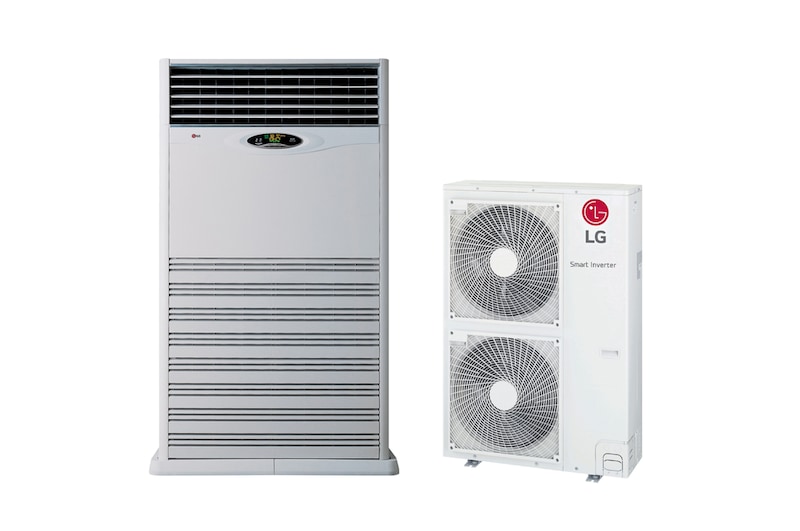

AC Floor Standing1

AC Floor Standing

AC kuat dan bergaya yang ideal untuk interior modern
Desain Bergaya1

Desain Bergaya

AC floor standing menjadi solusi ideal yang menyatu dengan interior modern rumah atau kantor Anda

Respon cepat

AC LG Floor Standing dapat mencapai suhu yang ditentukan lebih cepat dengan pendinginan lebih kuat. Di sisi lain, fungsi Power Heating memberikan sudut optimal hembusan udara untuk performa pemanasan lebih cepat

Aliran Udara Kuat

Kecepatan dan volume udara yang kuat memungkinkan aliran udara mencapai hingga 20 meter. Memungkinkan pendinginan yang nyaman lebih cepat
Hubungi Kami1

Hubungi Kami

Hubungi kami untuk informasi lebih lanjut terkait produk dan kami akan menghubungi Anda kembali segera

Semua Spesifikasi

INDOOR SPECIFICATIONS

Capacity Cooling (Min.∼Rated) - ㎾

23.4 ~ 58.6

Capacity Cooling (Min.∼Rated) - Btu/h

79,900 ~ 200,000

Power Input Cooling (Rated) - ㎾

21.0

Running Current Cooling (Rated) - A

28.2

Power Supply - V, Ø, ㎐

220-240, 1, 50
220, 1, 60

Power Input - W

830

Running Current - A

3.8

Dimensions Body (W x H x D) - mm

1,558 × 1,920 × 700

Dimensions Body (W x H x D) - inch

61-11/32 x 75-19/32 x 27-9/16

Net Weight Body - ㎏ (lbs)

237.0 (522.5)

Heat Exchanger (Row x Column x Fins per inch) x No.

(4 x 34 x 21) x 1

Heat Exchanger Face Area - ㎡ (ft²)

0.98 (10.54)

Fan Type

Sirocco Fan

Fan Air Flow Rate (H / L) - ㎥/min

130.0 / 95.0

Fan Air Flow Rate (H / L) - ft³/min

4,591 / 3,355

Fan Motor Type

BLDC

Fan Motor Output - W x No.

750 × 2

Sound Pressure Level (H / L) - dB(A)

65 / 57

Piping Connections Liquid Side - ㎜(inch)

Ø 15.88 (5/8)

Piping Connections Gas Side - ㎜(inch)

Ø 28.58 (1-1/8)

Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)

Ø 21.0(13/16) / 17.0(21/32)

Safety Devices

Fuse
Thermal Protector for Fan Motor

Communication Cable - No. x ㎟(AWG)

2C × 1.0~1.5 (H07RN-F)

Power and Communication Cable (included Earth) - No. x ㎟ (AWG)

3C × 2.5 (H07RN-F)

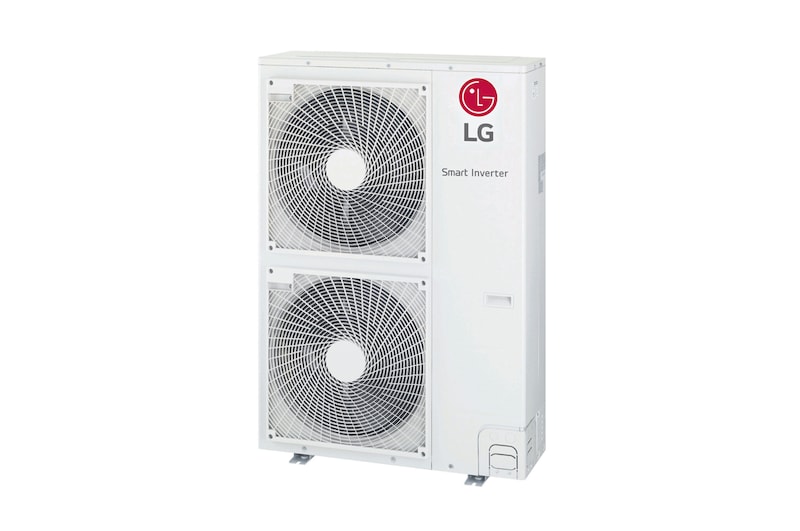

OUTDOOR SPECIFICATIONS

Capacity Cooling (Min.∼Rated) - ㎾

23.4 ~ 58.6

Capacity Cooling (Min.∼Rated) - Btu/h

79,900 ~ 200,000

Power Input Cooling (Rated) - ㎾

21.0

Running Current Cooling (Rated) - A

28.2

Power Supply - V, Ø, Hz

380-415, 3, 50
380, 3, 60

Casing Color

Warm Gray / Morning Gray

Dimensions Body (W x H x D) - ㎜

1,240 × 1,680 × 760

Dimensions Body (W x H x D) - inch

48-13/16 x 66-5/32 x 29-29/32

Net Weight - ㎏ (lbs)

270.0 (595.2)

Heat Exchanger (Row x Column x Fins per inch) x No.

(2 x 58 x 14) x 1

Compressor Type

Hermetic Motor Compressor

Compressor Model - Model x No.

JQA048MAC x 2

Compressor Motor type

BLDC

Compressor Motor Output - W × No.

4,200 x 2

Fan Type

Propeller

Fan Air Flow Rate - ㎥/min

290

Fan Motor Type

BLDC

Fan Motor Output - W x No.

900.0 x 2

Sound Pressure Level Cooling (Rated) - dB(A)

65

Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)

Ø 15.88 (5/8)

Piping Connections Gas Side (Outer Dia.) - ㎜(inch)

Ø 28.58 (1-1/8)

Piping Length (Max.) - m(ft)

50 (164.0)

Refrigerant Type

R410A

Refrigerant Precharged Amount - g(oz)

10,000 (352.7)

Refrigerant Chargeless-Pipe Length - m(ft)

5.0 (16.4)

Refrigerant Additional Charging Volume - g/m(oz/ft)

150 (1.61)

Refrigerant Control

Electronic Expansion Valve

Refrigerant Oil Type

FVC68D(PVE)

Refrigerant Oil Charged volume - cc x No.

3,600 x 2

Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)

5C x 6.0 (10)

Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)

30 (98.4)

Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)

-10 (14.0) ~ 48 (118.4)

Untuk mengakses lebih banyak dokumentasi teknis dan sumber daya, silakan kunjungi Portal Mitra LG B2B.
