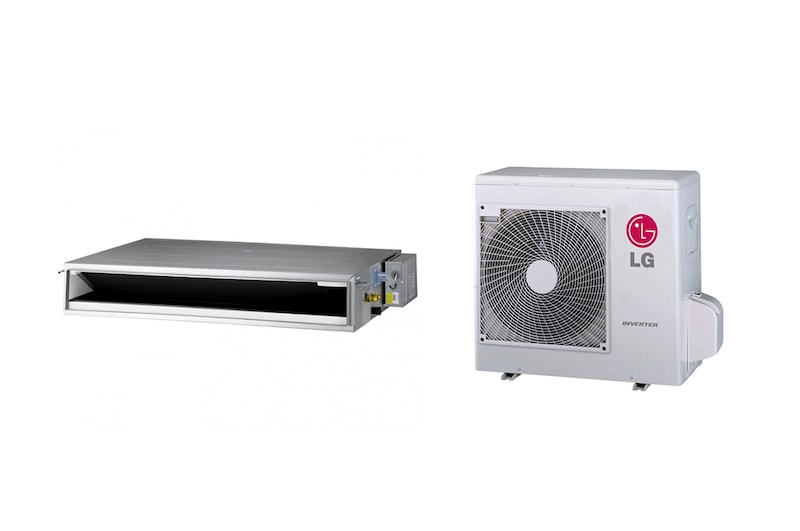

ABNQ24GL3A1 / AUUQ24GH2
ABNQ24GL3A1 / AUUQ24GH2
Galeri
Semua Spesifikasi

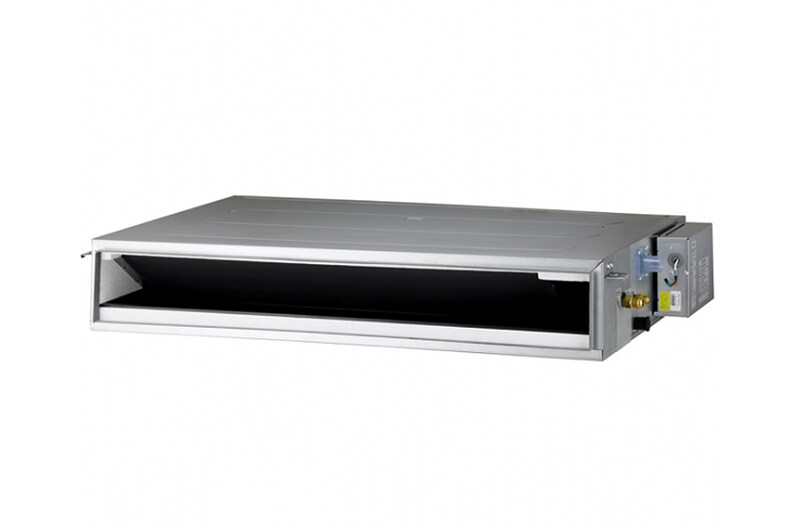

INDOOR SPECIFICATIONS
-
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
1.9 ~ 7.0 ~ 8.0
-
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
6,460 ~ 23,880 ~ 27,430
-
Power Input Cooling (Rated) - ㎾
2.31
-
Running Current Cooling (Rated) - A
10.0 / 14.0
-
Running Current - A
1.0
-
EER / COP - w/w
3.03
-
SEER / SCOP - Btu/Wh
16
-
Power Supply - V, Ø, ㎐
220-240, 1, 50
220, 1, 60 -
Dimensions Body (W x H x D) - mm
1,000 × 190 × 700
-
Dimensions Body (W x H x D) - inch
43-5/16 x 7-15/32 x 27-9/16
-
Net Weight Body - ㎏ (lbs)
27.0 (59.5)
-
Heat Exchanger (Row x Column x Fins per inch) x No.
(3 x 11 x 18) x 1
-
Heat Exchanger Face Area - ㎡ (ft²)
0.21 (2.31)
-
Fan Type
Sirocco Fan
-
Fan Air Flow Rate (H / M / L) - ㎥/min
20.0 / 16.0 / 12.0
-
Fan Air Flow Rate (H / M / L) - ft³/min
710 / 570 / 430
-
Fan Air Flow Rate (External Static Pressure) - Pa (㎜Aq)
25 (2.54)
-
Fan Motor Type
BLDC
-
Fan Motor Output - W x No.
19 x 2
-
Dehumidification Rate - ℓ/h (pts/h)
2.5 (5.3)
-
Sound Pressure Level (H / M / L) - dB(A)
39 / 35 / 32
-
Piping Connections Liquid Side - ㎜(inch)
Ø 9.52 (3/8)
-
Piping Connections Gas Side - ㎜(inch)
Ø 15.88 (5/8)
-
Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)
Ø 25.4(1) / 20.4(13/16)
-
Safety Devices
Fuse
-
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
4C x 0.75 (18)

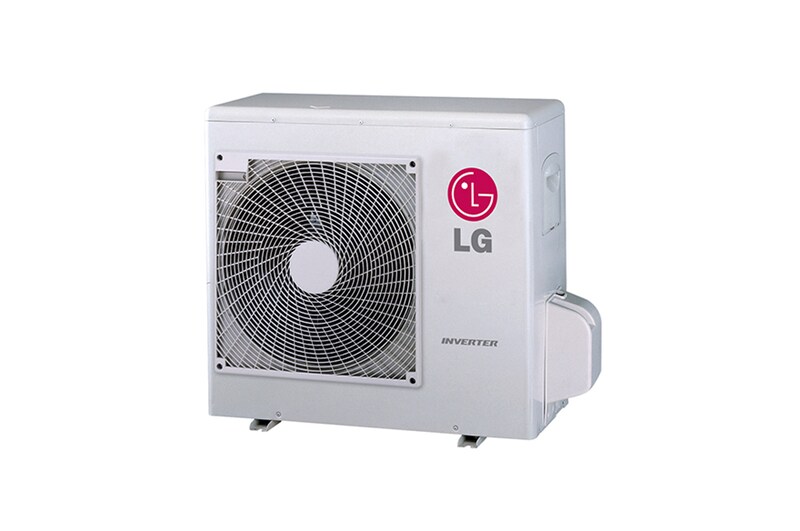

OUTDOOR SPECIFICATIONS
-
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
1.9 ~ 7.0 ~ 8.0
-
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
6,460 ~ 23,880 ~ 27,430
-
Power Input Cooling (Rated) - ㎾
2.31
-
Running Current Cooling (Rated) - A
10.0 / 14.0
-
EER / COP - w/w
3.03
-
SEER / SCOP - Btu/Wh
16
-
Power Supply - V, Ø, Hz
220-240, 1, 50
220, 1, 60 -
Casing Color
Warm Gray
-
Dimensions Body (W x H x D) - ㎜
870 × 655 × 320
-
Dimensions Body (W x H x D) - inch
34-1/4 x 25-25/32 x 12-19/32
-
Net Weight - ㎏ (lbs)
41.0 (90.4)
-
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 30 x 21) x 1
-
Compressor Type
Twin Rotary
-
Compressor Model - Model x No.
GKT176MBA
-
Compressor Motor type
BLDC
-
Compressor Motor Output - W × No.
1,500 x 1
-
Fan Type
Propeller
-
Fan Air Flow Rate - ㎥/min x No.
50 x 1
-
Fan Motor Type
BLDC
-
Fan Motor Output - W x No.
85.0 x 1
-
Sound Pressure Level Cooling (Rated) - dB(A)
48
-
Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
Ø 9.52 (3/8)
-
Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
Ø 15.88 (5/8)
-
Piping Length (Max.) - m(ft)
50 (164.0)
-
Refrigerant Type
R410A
-
Refrigerant Precharged Amount - g(oz)
1,000 (35.3)
-
Refrigerant Chargeless-Pipe Length - m(ft)
15 (49.2)
-
Refrigerant Additional Charging Volume - g/m(oz/ft)
20 (0.22)
-
Refrigerant Control
Electronic Expansion Valve
-
Refrigerant Oil Type
FVC68D
-
Refrigerant Oil Charged volume - cc x No.
670 x 1
-
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
3C x 2.5 (12)
-
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
30 (98.4)
-
Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)
-5 (23.0) ~ 48 (118.4)
-
