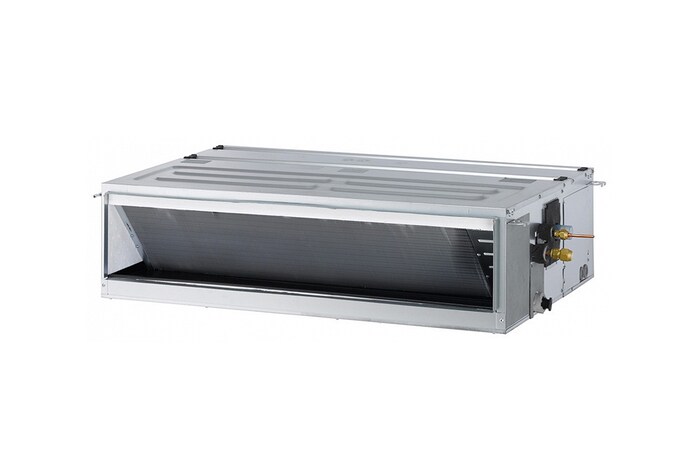

Capacity Cooling (Min.∼Rated∼Max.) - ㎾
2.1 ~ 7.0 ~ 8.8
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
7,030 ~ 23,880 ~ 24,170
Power Input Cooling (Rated) - ㎾
2.16
Running Current Cooling (Rated) - A
9.40 / 14.0
Running Current - A
1.60
EER / COP - w/w
3.24
SEER / SCOP - Btu/Wh
16
Power Supply - V, Ø, ㎐
220-240, 1, 50
220, 1, 60
Dimensions Body (W x H x D) - mm
900 × 270 × 700
Dimensions Body (W x H x D) - inch
37-7/16 x 10-5/8 x 27-9/16
Net Weight Body - ㎏ (lbs)
24.2 (53.4)
Heat Exchanger (Row x Column x Fins per inch) x No.
(3 x 14 x 21) x 1
Heat Exchanger Face Area - ㎡ (ft²)
0.21 (2.26)
Fan Type
Sirocco Fan
Fan Air Flow Rate (H / M / L) - ㎥/min
18.0 / 16.5 / 14.0
Fan Air Flow Rate (H / M / L) - ft³/min
635 / 583 / 494
Fan Air Flow Rate (External Static Pressure) - Pa (㎜Aq)
8 (78)
Fan Motor Type
BLDC
Fan Motor Output - W x No.
136.5 x 1
Dehumidification Rate - ℓ/h (pts/h)
1.6 (3.4)
Sound Pressure Level (H / M / L) - dB(A)
42 / 39 / 36
Piping Connections Liquid Side - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Gas Side - ㎜(inch)
Ø 15.88 (5/8)
Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)
Ø 32.0(1-1/4) / 25.0(31/32)
Safety Devices
Fuse
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
4C x 0.75 (18)

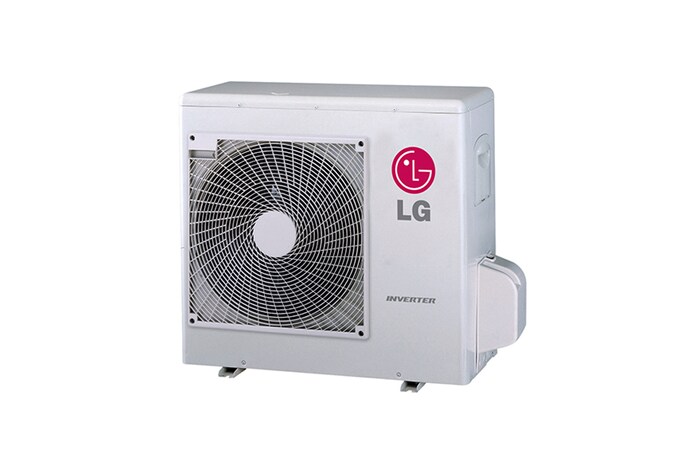

Capacity Cooling (Min.∼Rated∼Max.) - ㎾
2.1 ~ 7.0 ~ 8.8
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
7,030 ~ 23,880 ~ 24,170
Power Input Cooling (Rated) - ㎾
2.16
Running Current Cooling (Rated) - A
9.40 / 14.0
EER / COP - w/w
3.24
SEER / SCOP - Btu/Wh
16
Power Supply - V, Ø, Hz
220-240, 1, 50
220, 1, 60
Casing Color
Warm Gray
Dimensions Body (W x H x D) - ㎜
870 × 655 × 320
Dimensions Body (W x H x D) - inch
34-1/4 x 25-25/32 x 12-19/32
Net Weight - ㎏ (lbs)
41.0 (90.4)
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 30 x 21) x 1
Compressor Type
Twin Rotary
Compressor Model
GKT176MBA
Compressor Motor type
BLDC
Compressor Motor Output - W × No.
1,500 x 1
Fan Type
Propeller
Fan Air Flow Rate - ㎥/min x No.
50 x 1
Fan Motor Type
BLDC
Fan Motor Output - W x No.
85.0 x 1
Sound Pressure Level Cooling (Rated) - dB(A)
48
Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
Ø 15.88 (5/8)
Piping Length (Max.) - m(ft)
50 (164.0)
Refrigerant Type
R410A
Refrigerant Precharged Amount - g(oz)
1,000 (35.3)
Refrigerant Chargeless-Pipe Length - m(ft)
15 (49.2)
Refrigerant Additional Charging Volume - g/m(oz/ft)
20 (0.22)
Refrigerant Control
Electronic Expansion Valve
Refrigerant Oil Type
FVC68D
Refrigerant Oil Charged volume - cc x No.
670 x 1
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
3C x 2.5 (12)
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
30 (98.4)
Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)
-5 (23.0) ~ 48 (118.4)
