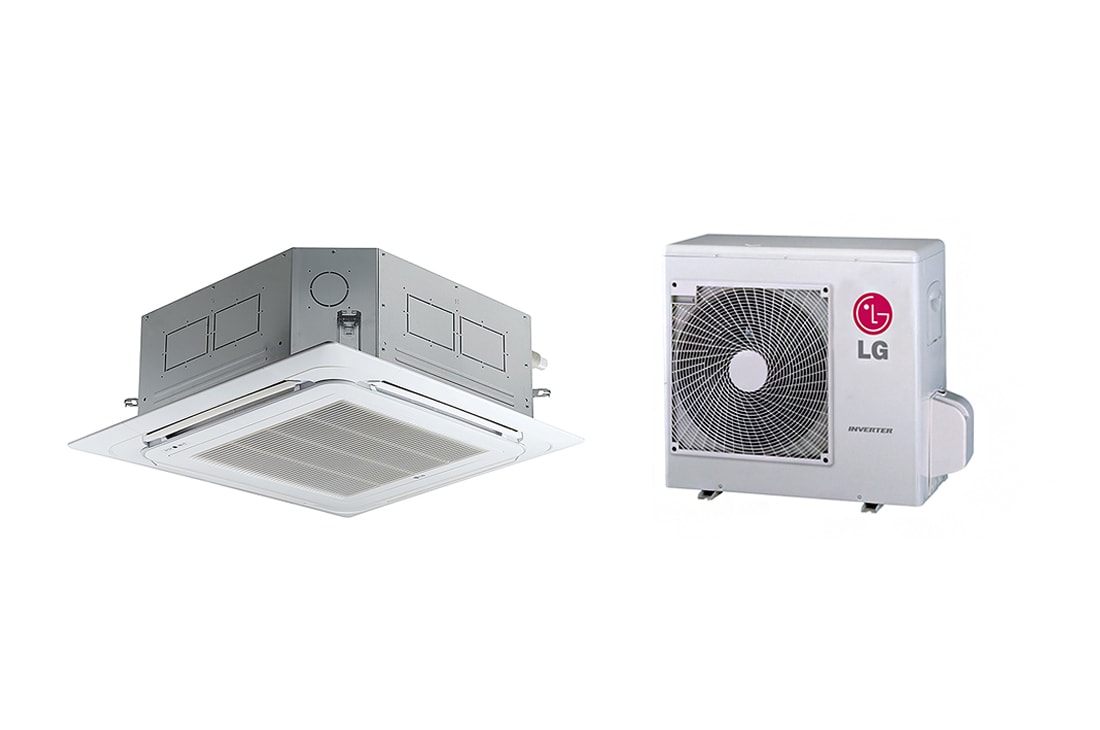

ATNQ30LNLE6 / ATUQ30LNLE6
ATNQ30LNLE6 / ATUQ30LNLE6
Galeri
Semua Spesifikasi

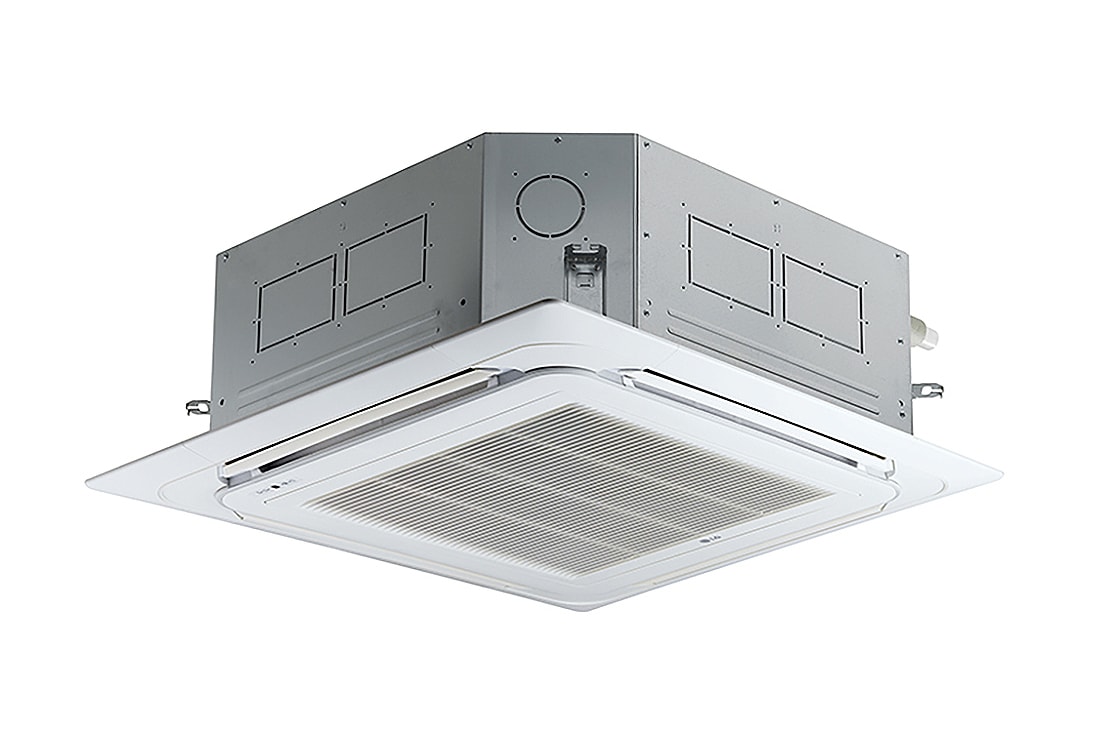

INDOOR SPECIFICATIONS
-
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
2.81 ~ 9.4 ~ 11.55
-
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
9,600 ~ 32,000 ~ 39,400
-
Power Input Cooling (Rated) - ㎾
3.25
-
Running Current Cooling (Rated) - A
4.90
-
EER / COP - w/w
2.87 / -
-
Power Supply - V, Ø, ㎐
220-240, 1, 50/60
-

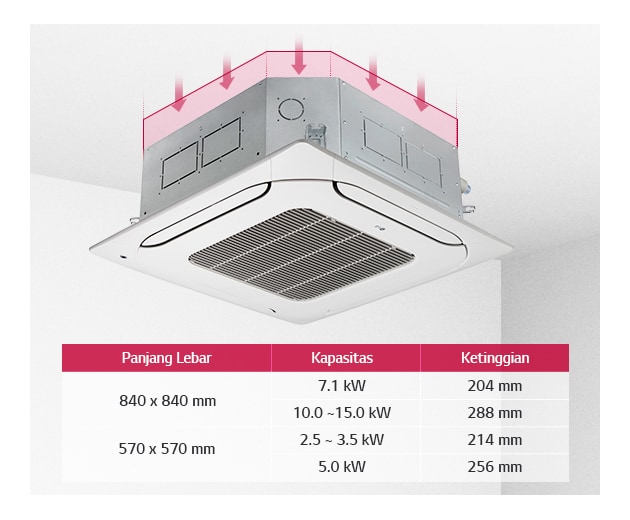

Dimensions Body (W x H x D) - mm
840 × 246 × 840
-
Dimensions Shipping (W x H x D) - mm
922 x 318 x 917
-
Net Weight Body - ㎏ (lbs)
23.3 (51.4)
-
Heat Exchanger (Row x Column x Fins per inch) x No.
(3 x 10 x 21) x 1
-
Heat Exchanger Face Area - ㎡ (ft²)
0.41 (4.41)
-
Fan Type
Turbo Fan
-
Fan Air Flow Rate (H / M / L) - ㎥/min
23.0 / 21.0 / 19.0
-
Fan Air Flow Rate (H / M / L) - ft³/min
812 / 742 / 671
-
Fan Motor Type
BLDC
-
Fan Motor Output - W x No.
145.7 x 1
-
Dehumidification Rate - ℓ/h (pts/h)
2.7 (5.7)
-
Piping Connections Liquid - ㎜(inch)
Ø 9.52 (3/8)
-
Piping Connections Gas - ㎜(inch)
Ø 15.88 (5/8)
-
Piping Connections Drain (O.D. / I.D.) - ㎜(inch)
Ø 32.0(1-1/4) / 25.0(31/32)
-
Safety Devices
Fuse
-
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
4C x 0.75 (18)
-

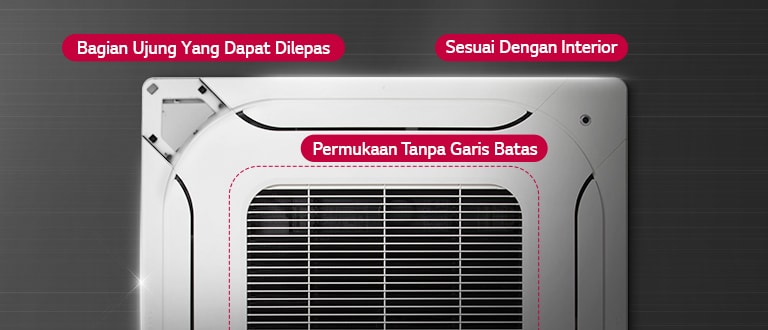

Decoration Panel Model Name
PT-UMC1
-
Decoration Panel Casing Color
Morning Fog
-
Decoration Panel Dimensions (W x H x D) - ㎜
950 × 25 × 950
-
Decoration Panel Dimensions (W x H x D) - inch
37-13/32 x 31/32 x 37-13/32
-
Decoration Panel Net Weight - ㎏ (lbs)
5.0 (11.0)

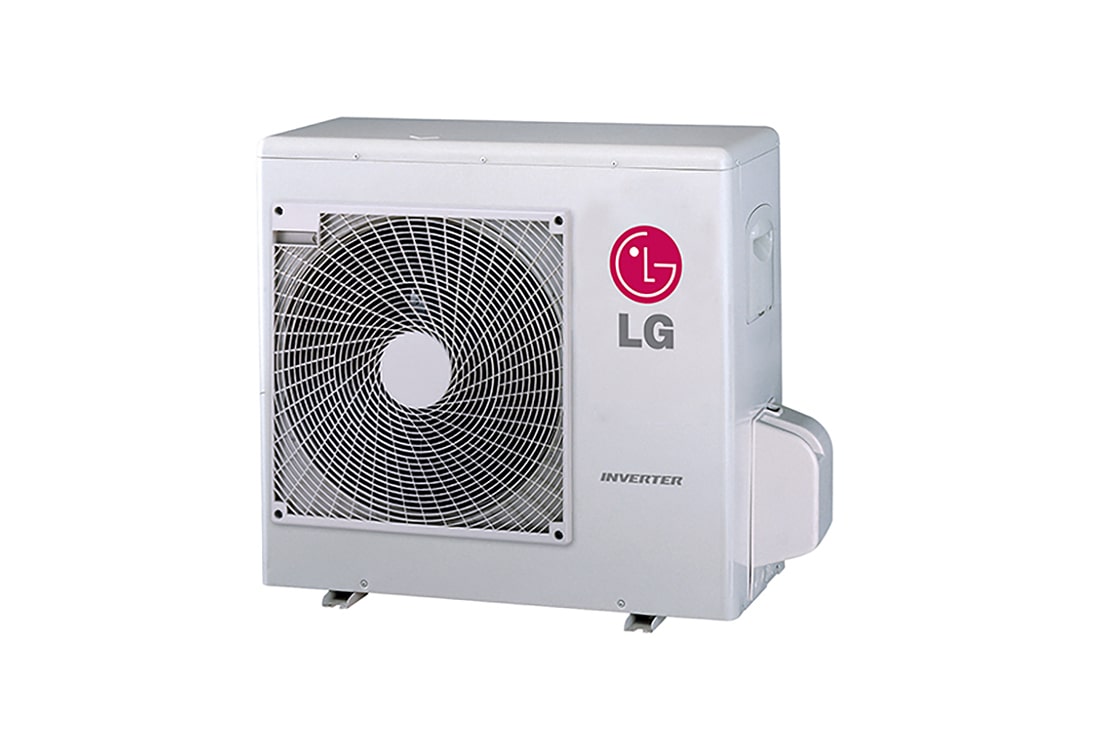

OUTDOOR SPECIFICATIONS
-
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
2.81 ~ 9.4 ~ 11.55
-
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
9,600 ~ 32,000 ~ 39,400
-
Power Input Cooling (Rated) - ㎾
3.25
-
Running Current Cooling (Rated) - A
4.90
-
EER / COP - w/w
2.87 / -
-
Power Supply - V, Ø, Hz
380-415, 3, 50/60
-
Casing Color
Warm Gray
-
Dimensions Body (W x H x D) - ㎜
950 × 834 × 330
-
Net Weight - ㎏ (lbs)
57.5 (126.8)
-
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 40 x 21) x 1
-
Compressor Type
Twin Rotary
-
Compressor Model - Model x No.
GJT325MAA x 1
-
Compressor Motor type
BLDC
-
Compressor Motor Output - W × No.
2,137 x 1
-
Fan Type
Propeller
-
Fan Air Flow Rate - ㎥/min x No.
70 x 1
-
Fan Motor Type
BLDC
-
Fan Motor Output - W × No.
124.2 x 1
-
Sound Pressure Level Cooling (Rated) - dB(A)
58
-
Piping Connections Liquid - ㎜(inch)
Ø 9.52 (3/8)
-
Piping Connections Gas - ㎜(inch)
Ø 15.88 (5/8)
-
Piping Length (Min./Max.) - m(ft)
5 (16.4) / 50 (164.0)
-
Refrigerant Type
R410A
-
Refrigerant Precharged Amount - g(oz)
1,850 (65.3)
-
Refrigerant Chargeless-Pipe Length - m(ft)
15 (49.2)
-
Refrigerant Additional Charging Volume - g/m(oz/ft)
20 (0.22)
-
Refrigerant Control
Electronic Expansion Valve
-
Refrigerant Oil Type
FVC68D
-
Refrigerant Oil Charged volume - cc x No.
950 x 1
-
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
5C x 2.5 (12)
-
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
30 (98.4)
-
Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)
-5 (23.0) ~ 46 (114.8)
-
