ARNU12GTUB4

ARNU12GTUB4

ARNU12GTUB4

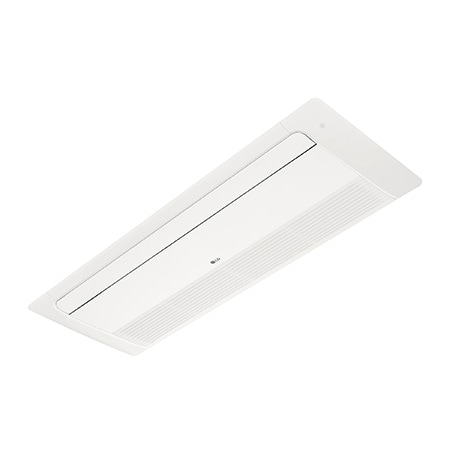

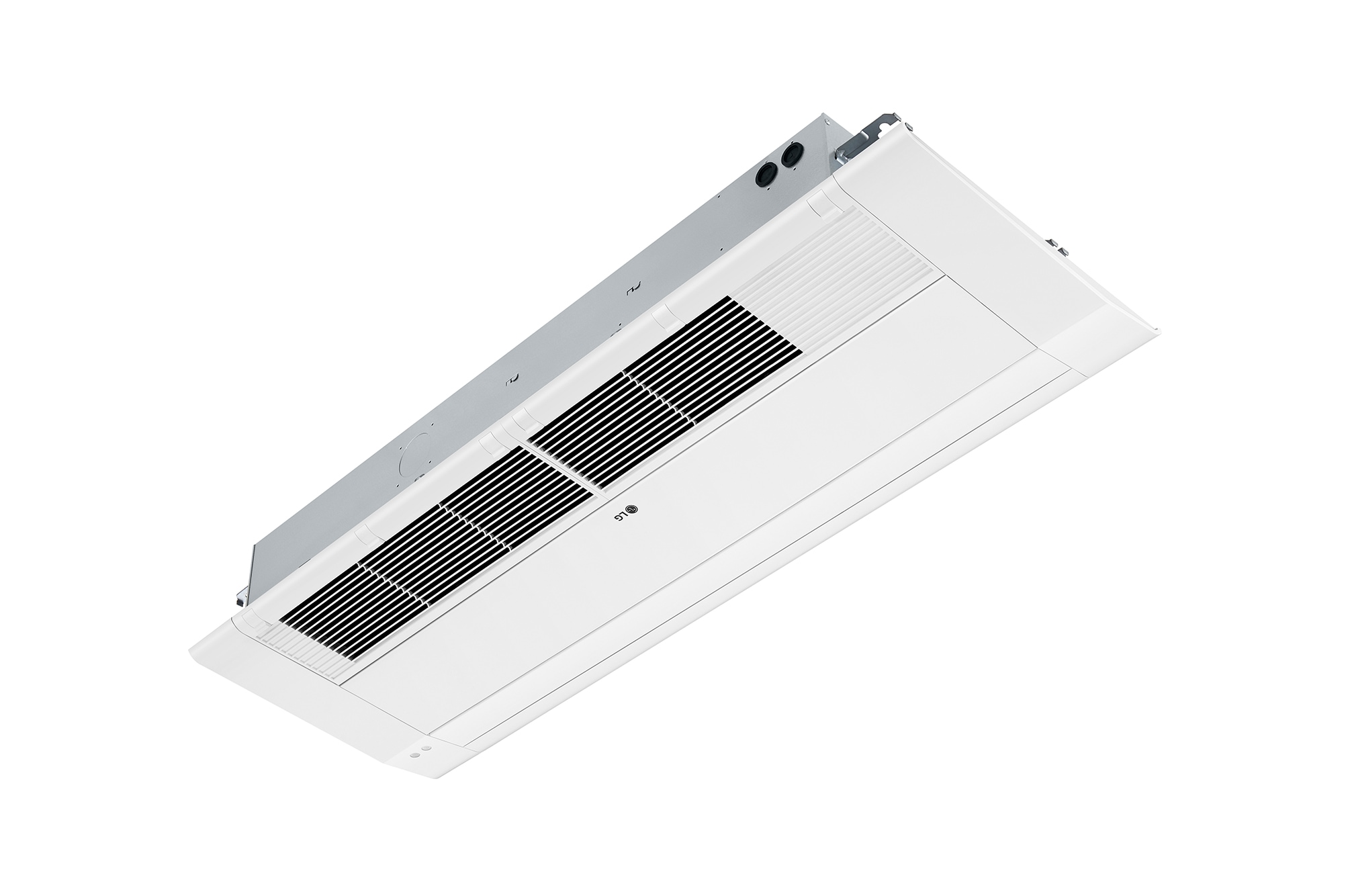

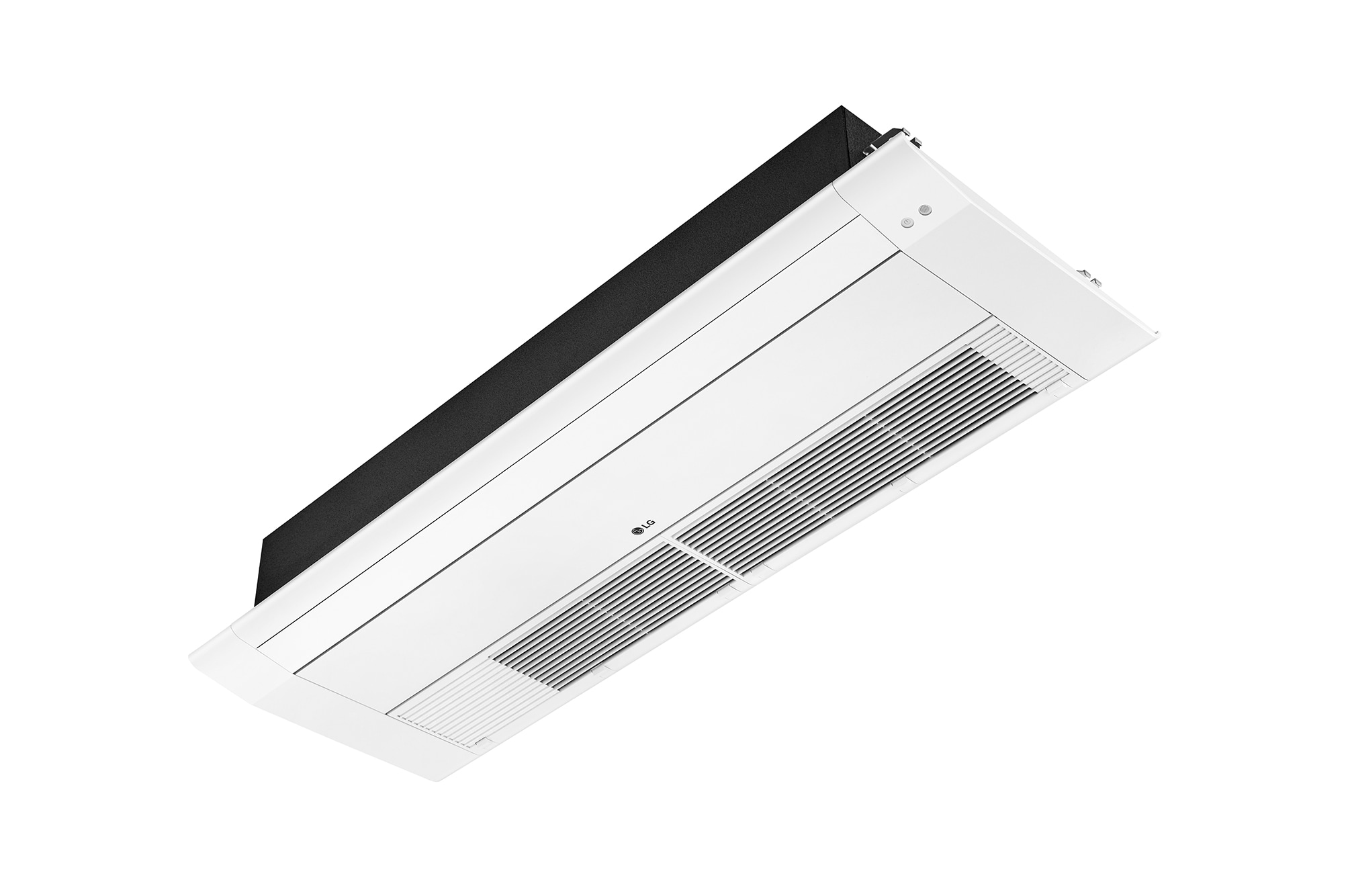

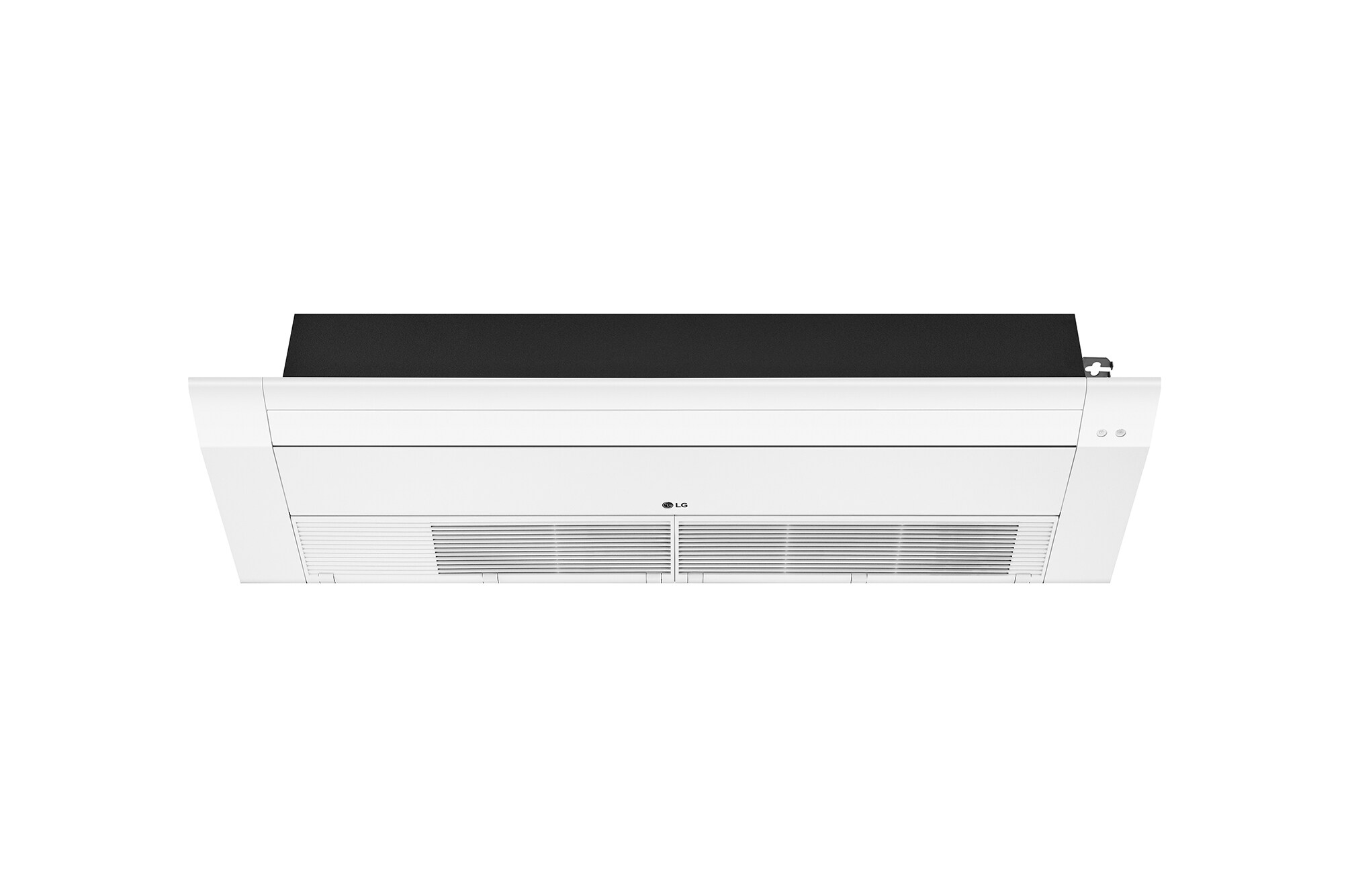

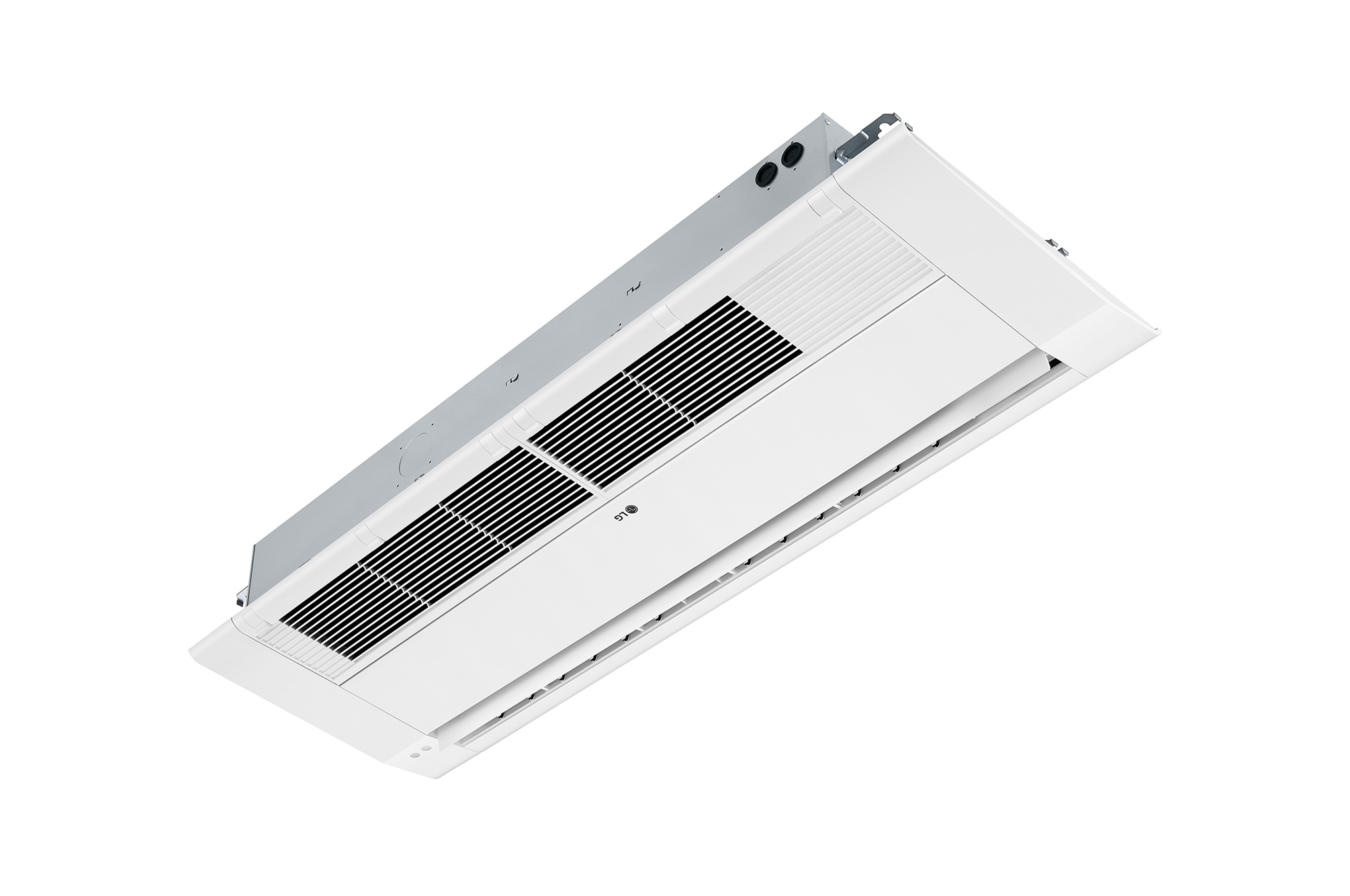

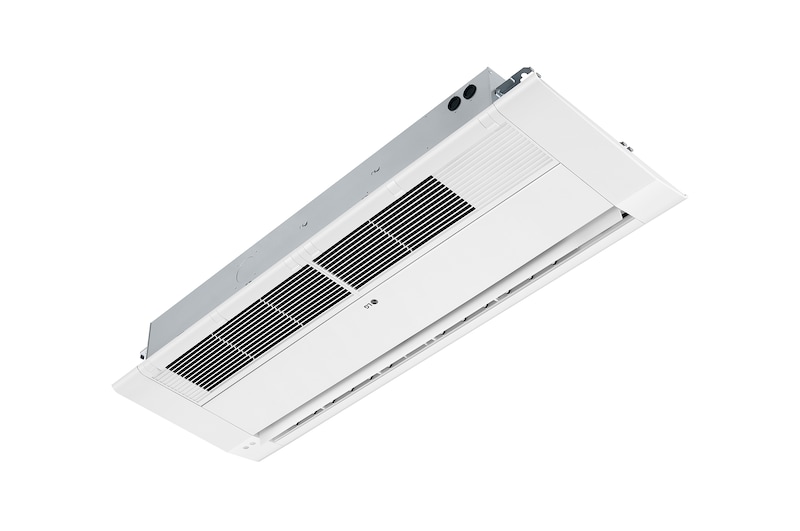

Ceiling Mounted Cassette

Memaksimalkan estetika dalam ruang dengan lingkungan nyaman

Desain & Ukuran Ringkas

Panel terbaru 4 Way Cassette mengadaptasi bentuk unibodi dengan ukuran panel pas dengan ubin plafon. Selain itu, unit indoor yang ramping dan ringkas telah mengurangi batasan yang membuatnya lebih dapat diaplikasikan di berbagai ruang

Auto Elevation Grille

Auto Elevation Grille memudahkan pembersihan filter dengan dukungan struktur 4 titik. Didukung pula dengan fitur Auto levelling, auto stop detection dan kemampuan mengingat ketinggian pengguna

Kontrol Vane Independen

Fitur pengoperasian vane independen menggunakan motor terpisah, memungkinkan kontrol empat vane secara mandiri

Kontrol Vane 6 Langkah

Terdapat 6 langkah berbeda untuk mengontrol arah aliran udara dengan 1 wat cassette. Hal ini juga memiliki vane untuk ayunan otomatis yang bergerak antara sisi kiri dan kanan hingga 120 derajat.

Ketinggian Yang Diminimalkan

Ketinggian 1 Way Cassette adalah 132mm, menjadikannya solusi ideal untuk pemasangan di ruang terbatas

Pemasangan Fleksibel

Akses untuk inspeksi pada 1 Way Cassette tak memerlukan ruang tambahan untuk saluran. Membuat lingkungan pemasangan tak rumit

Pilihan Produk Ceiling Mounted Cassette

Hubungi Kami1

Hubungi Kami

Hubungi kami untuk informasi lebih lanjut terkait produk dan kami akan menghubungi Anda kembali segera
Hubungi Kami Pelajari Lebih Lanjut
Cetak

Semua Spesifikasi

CAPACITY

  • Cooling(Nom) - kW

    3.6

  • Cooling(Nom) - kcal/h

    3,100

  • Cooling(Nom) - Btu/h

    12,300

  • Heating(Nom) - kW

    4.0

  • Heating(Nom) - kcal/h

    3,400

  • Heating(Nom) - Btu/h

    13,600

POWER INPUT

  • Power Input(H / M / L) - W

    24 / 22 / 20

CASING

  • Casing

    Galvanized Steel Plate

DIMENSIONS (W × H × D)

  • Body - ㎜

    860 x 132 x 450

  • Body - inch

    33-27/32 x 5-3/16 x 17-23/32

  • Front Panel - ㎜

    1,100 x 34 x 500

  • Front Panel - inch

    43-5/16 x 1-11/32 x 19-11/16

COIL

  • Rows x Columns x FPI

    2 x 12 x 18

  • Face Area - ㎡

    0.16

FAN

  • Type

    Cross Flow Fan

  • Motor Output × Number - W

    30

  • Running Current - A

    0.18

  • Air Flow Rate(H / M / L) - m³/min

    10 / 9.2 / 8.2

  • Air Flow Rate(H / M / L) - ft³/min

    353 / 324.8 / 289.5

  • Drive

    Direct

  • Motor type

    BLDC

TEMPERATURE CONTROL

  • Temperature Control

    Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing Thermal Insulation Material

    Foamed polystyrene

SAFETY DEVICE

  • Safety Device

    Fuse

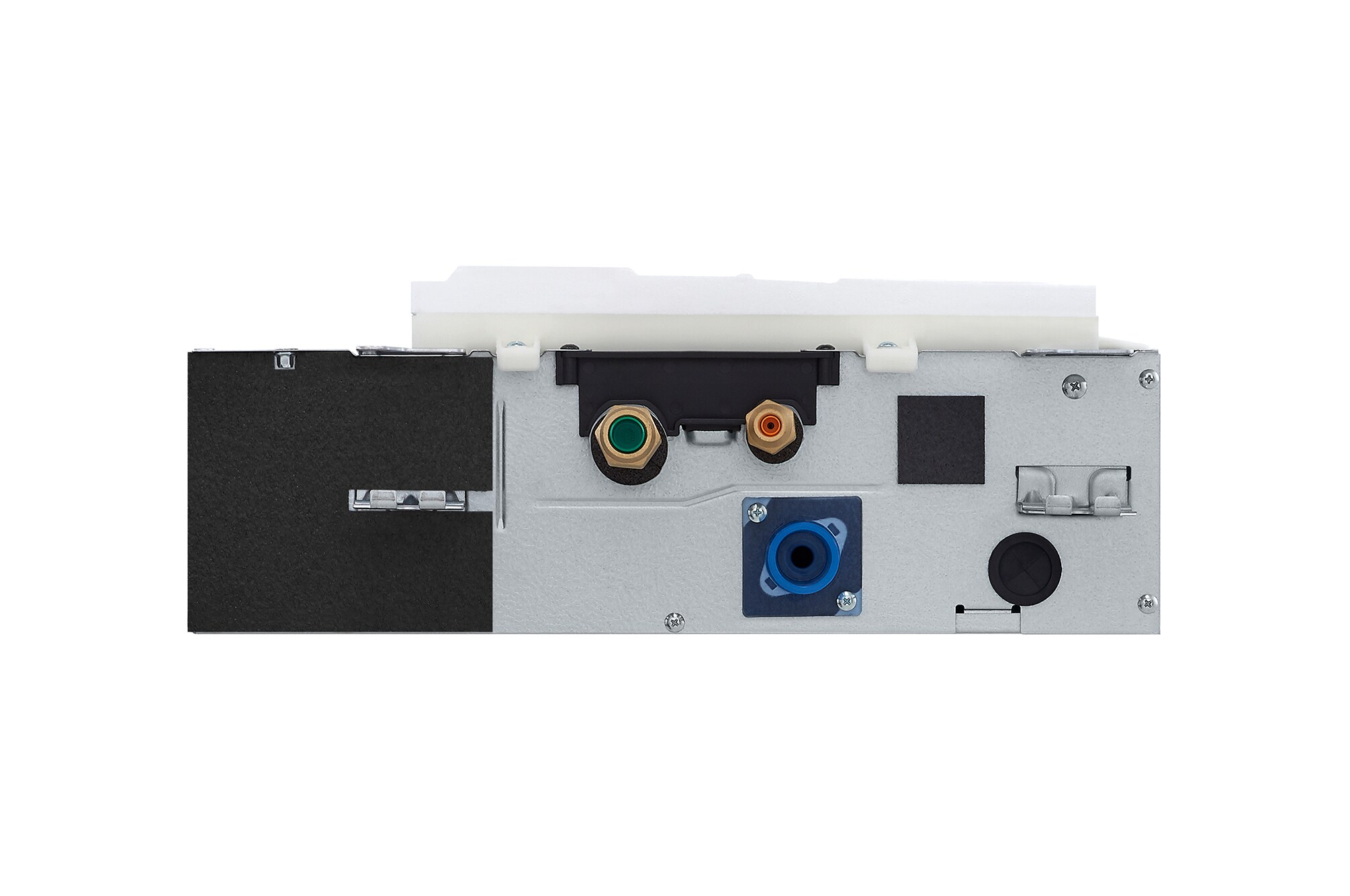

PIPE CONNECTIONS

  • Liquid Side - ㎜(inch)

    Ø 6.35 (1/4)

  • Gas Side - ㎜(inch)

    Ø 12.7 (1/2)

  • Drain Pipe(Internal Dia.) - ㎜(inch)

    Ø 25 (1)

NET WEIGHT

  • Body - kg(lbs)

    13.6 (30.0)

SOUND PRESSURE LEVELS

  • H / M / L - dB(A)

    38 / 35 / 32

SOUND POWER LEVELS

  • H / M / L - dB(A)

    52 / 50 / 47

POWER SUPPLY

  • Power Supply - Ø, V, Hz

    1, 220-240, 50
    1, 220, 60

REFRIGERANT CONTROL

  • Refrigerant Control

    EEV

TRANSMISSION CABLE

  • Transmission Cable - mm² × Cores

    1.0 ~ 1.5 × 2C

DECORATION PANEL (ACCESSORY)

  • Panel Color

    Noble White

  • Panel Name(Accessory)

    PT-UUC(Grill), PT-UUD(Panel)
