ARNU36GTNA4

Fitur

Galeri

Spesifikasi

Dukungan

Sumber daya

Temukan dealer

ARNU36GTNA4

ARNU36GTNA4

ARNU36GTNA4

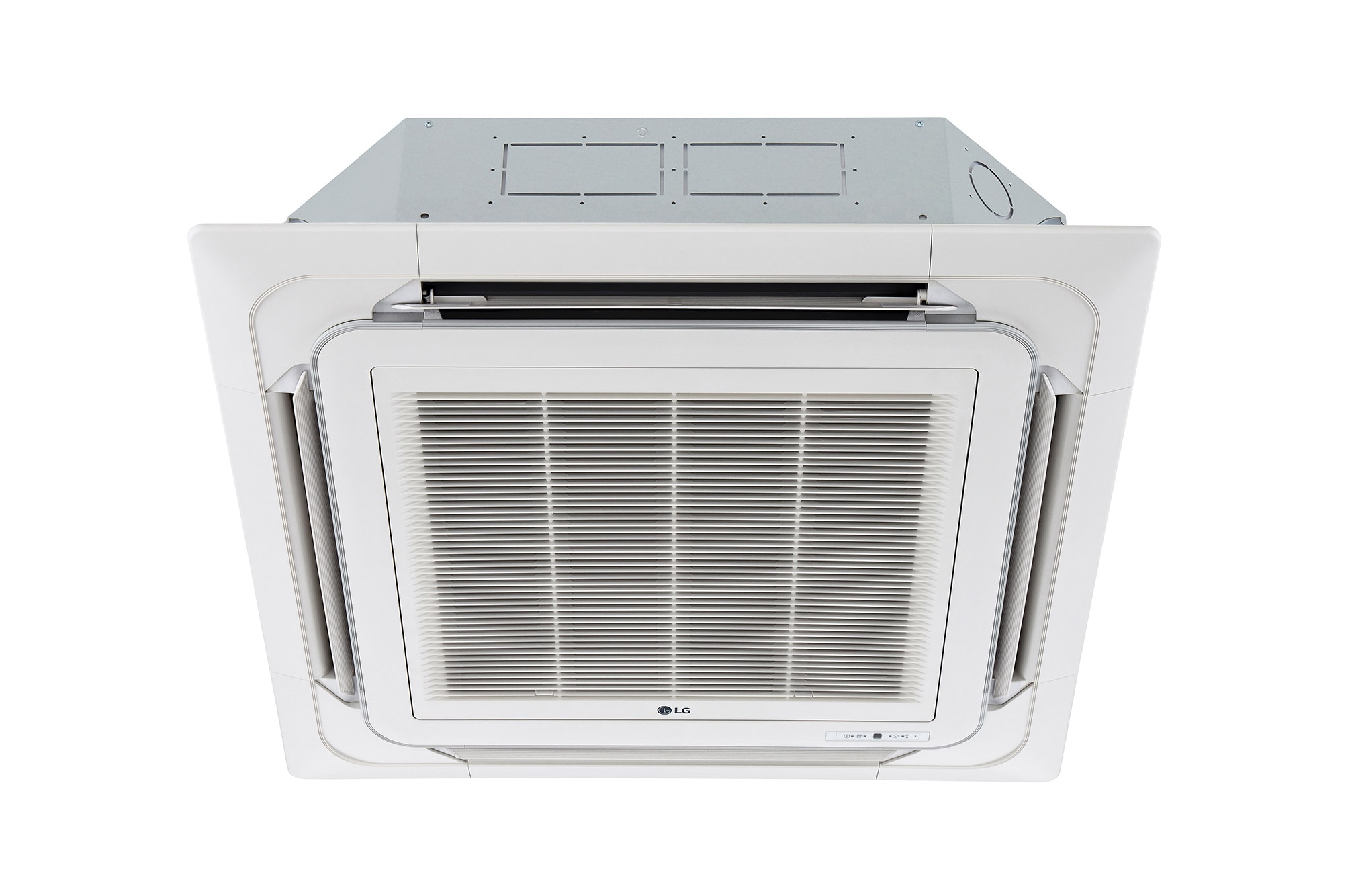

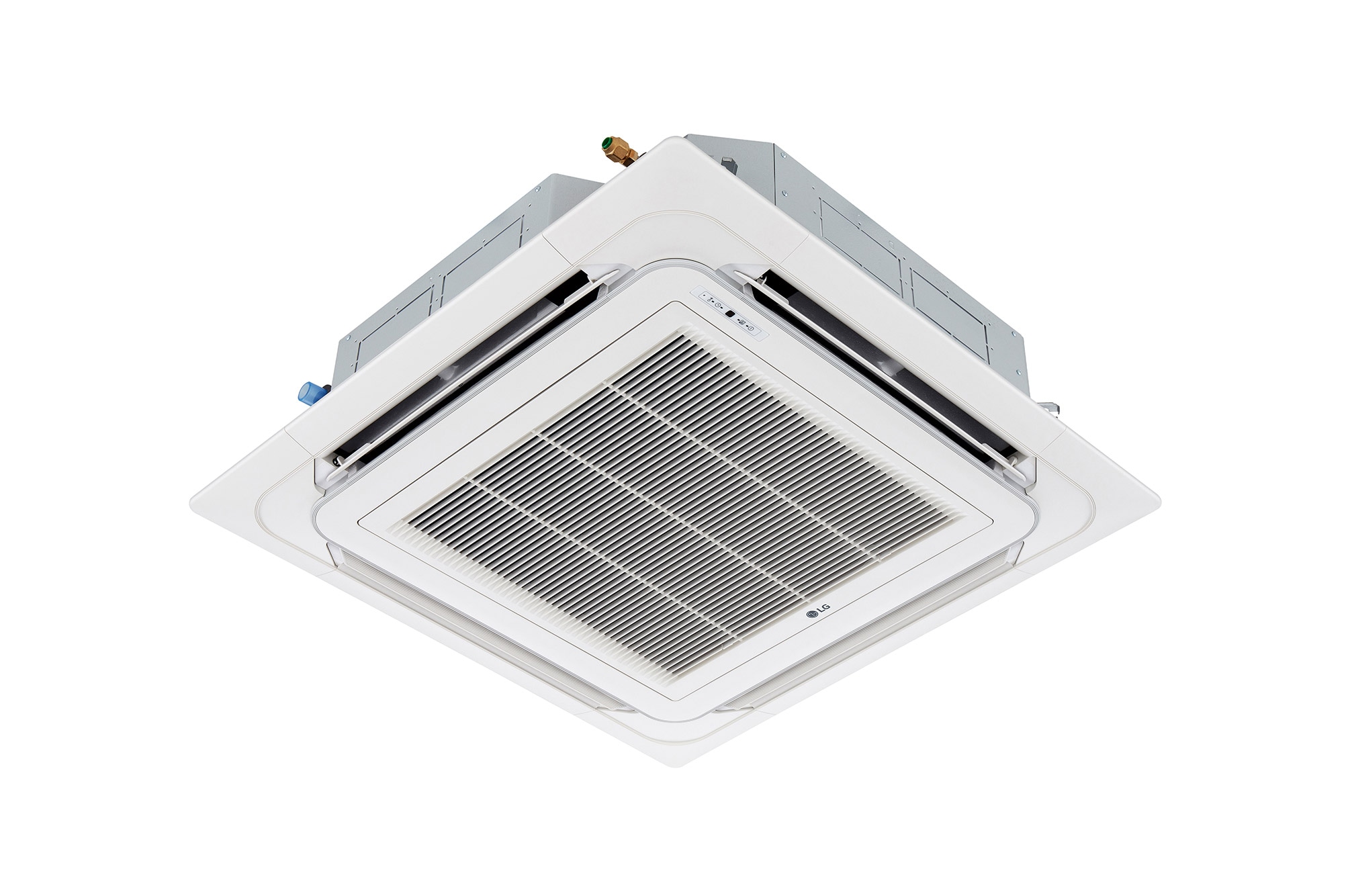

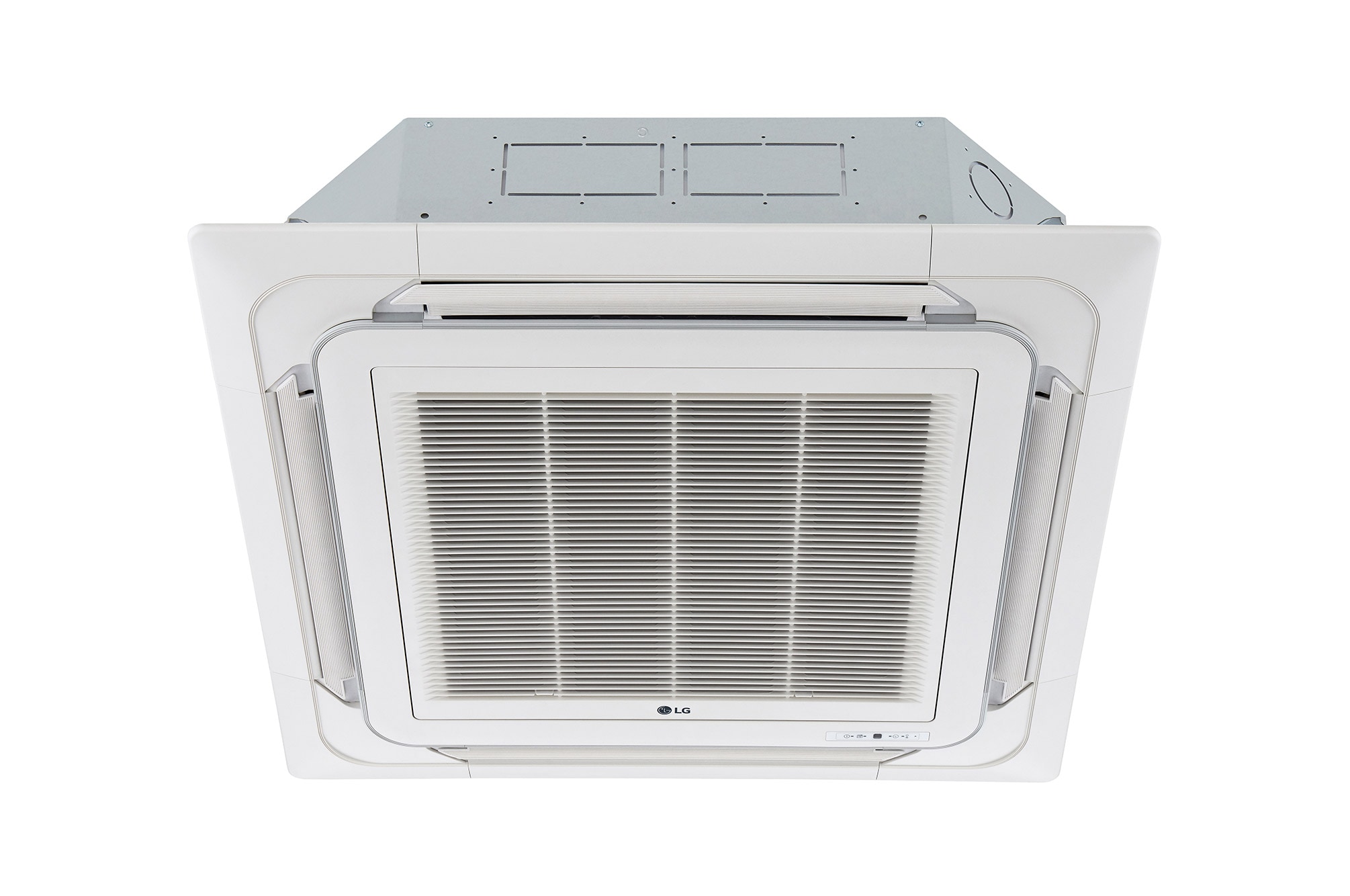

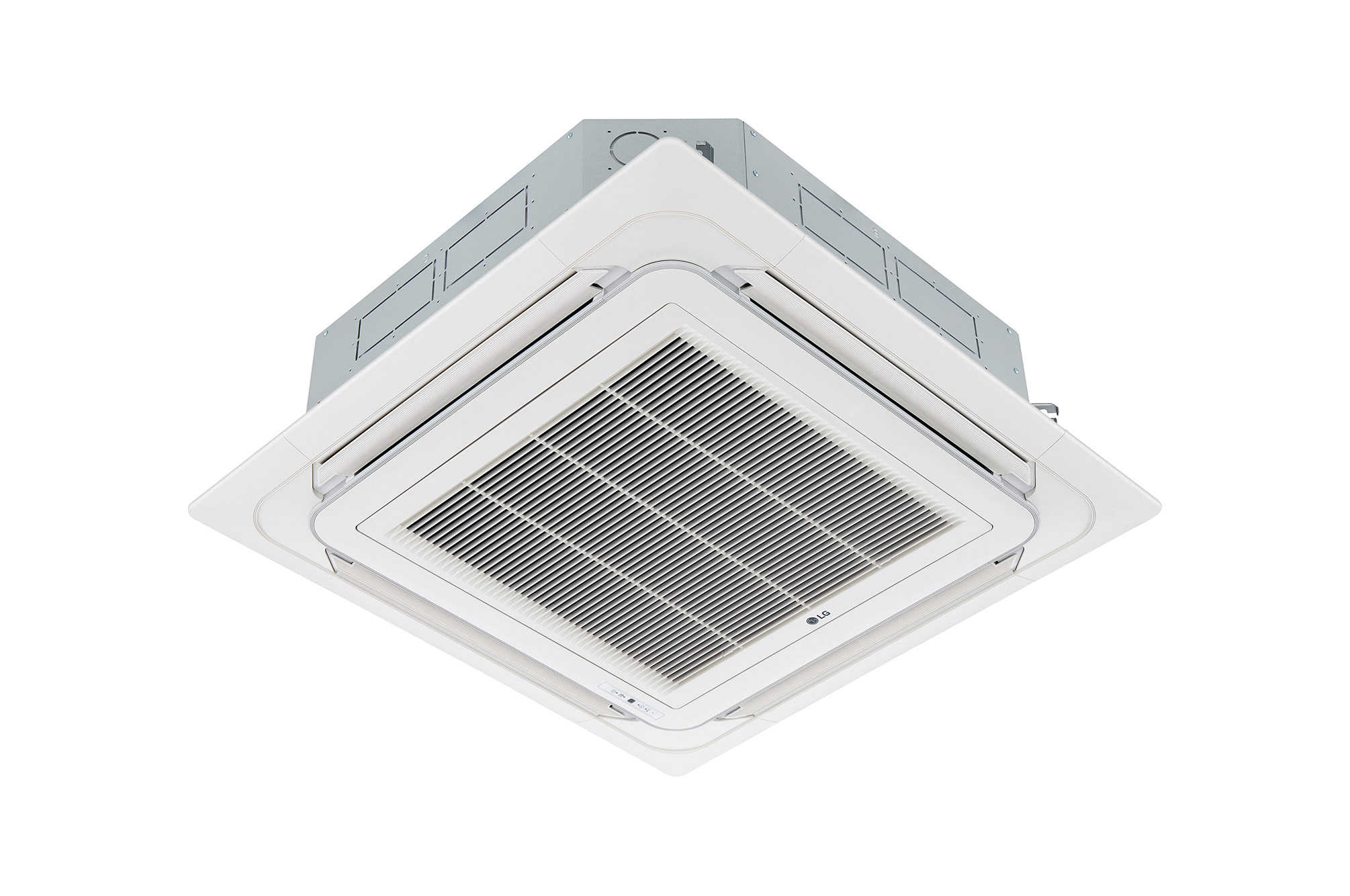

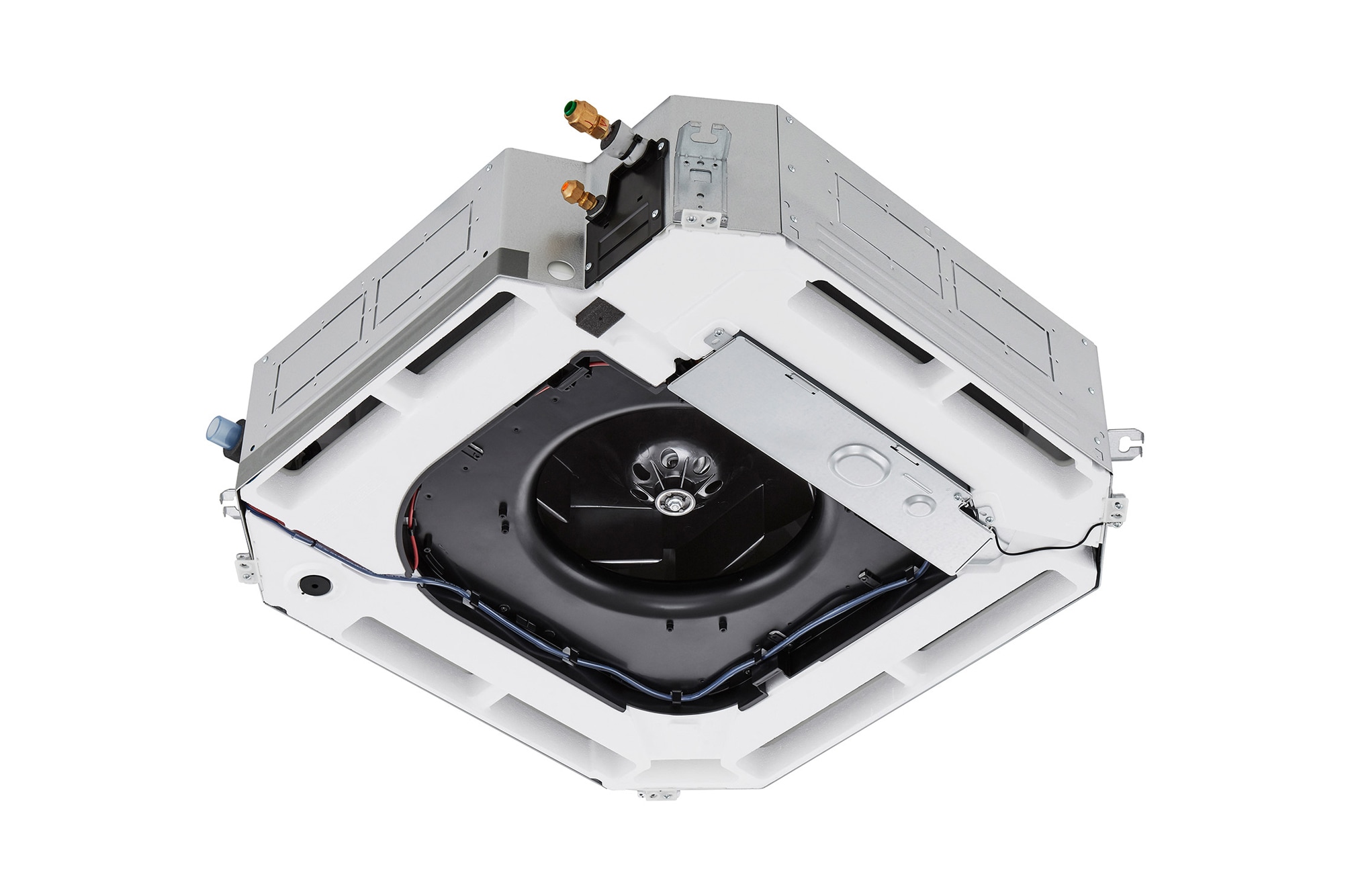

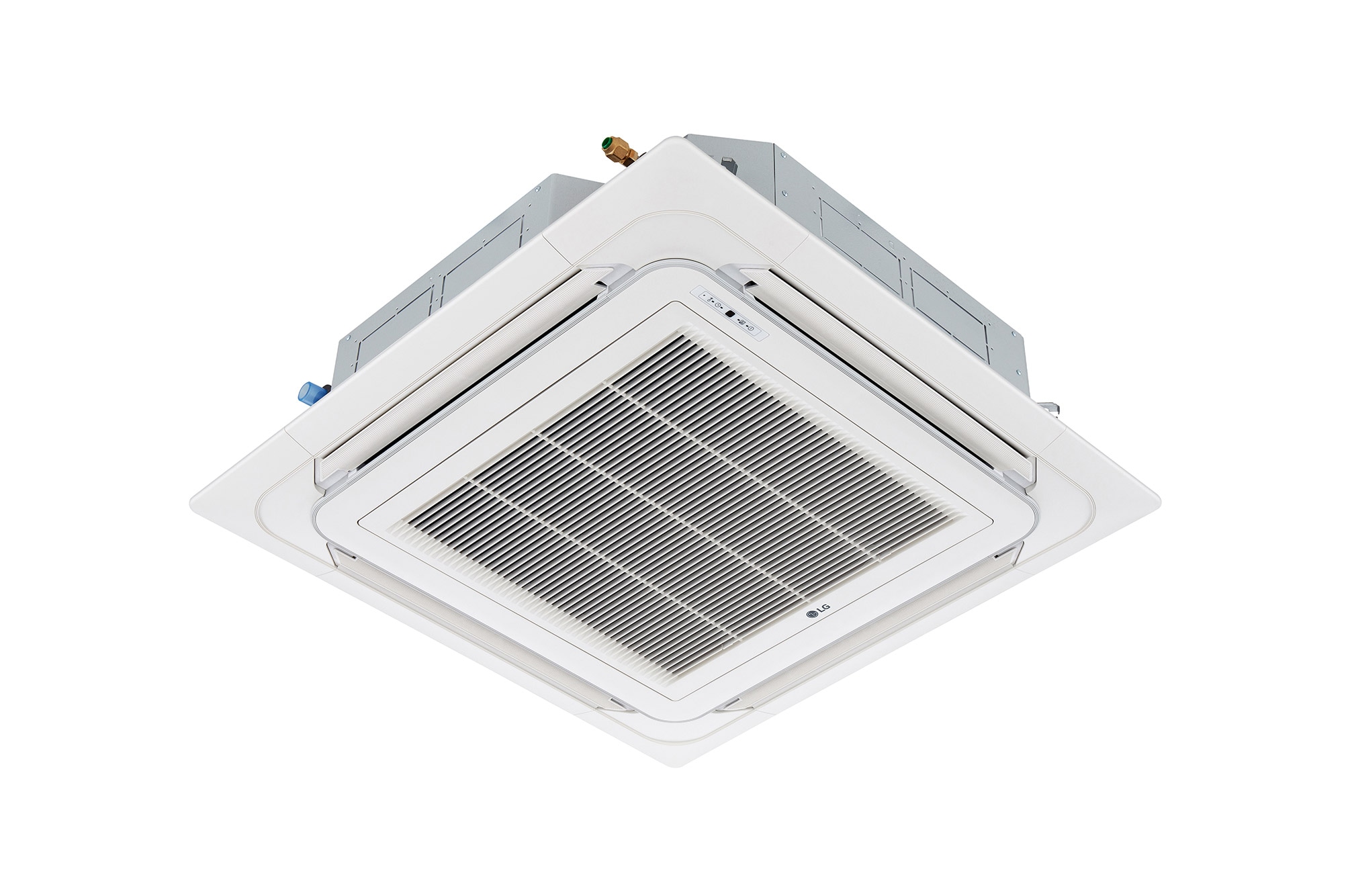

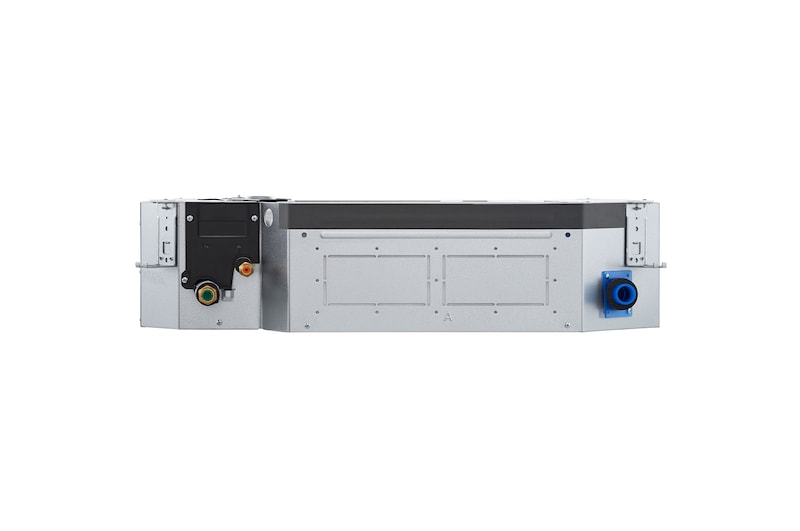

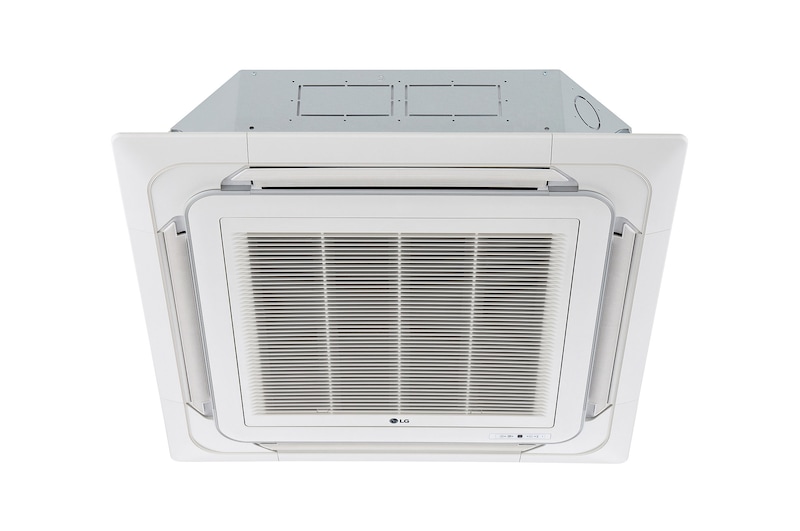

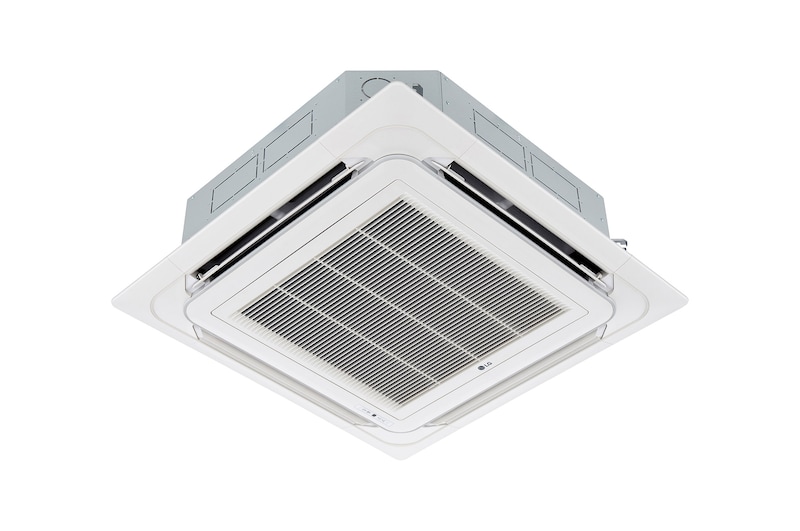

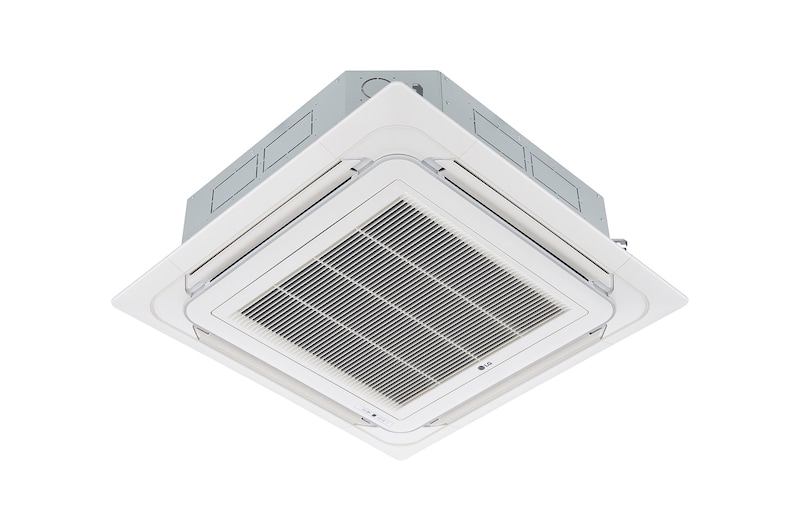

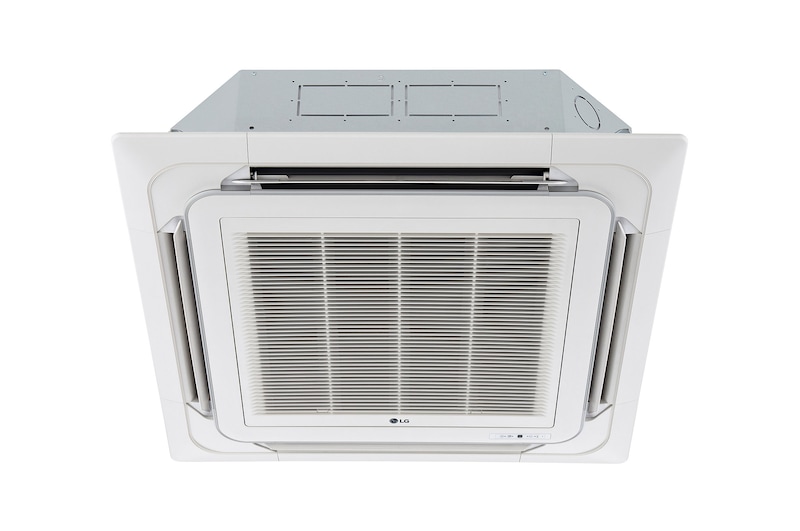

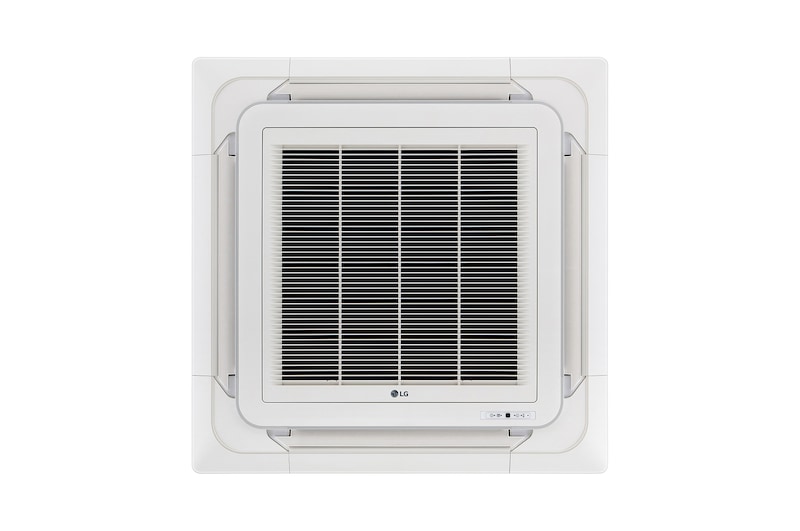

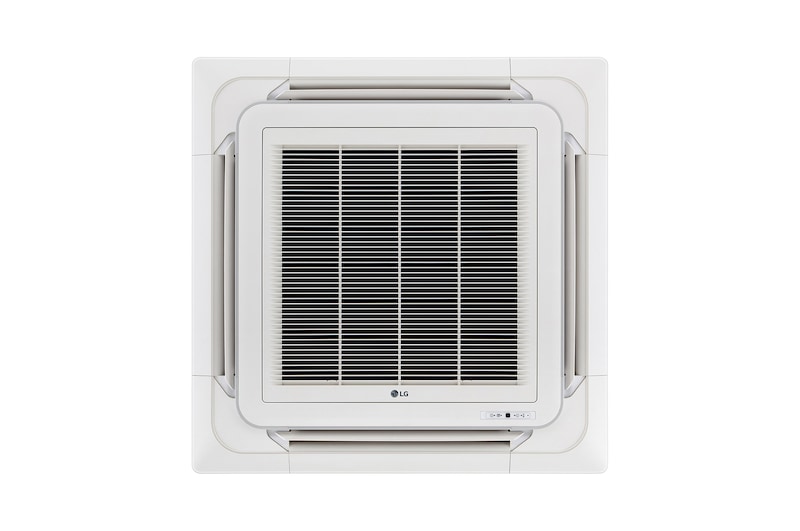

Ceiling Mounted Cassette

Memaksimalkan estetika dalam ruang dengan lingkungan nyaman

Desain & Ukuran Ringkas

Panel terbaru 4 Way Cassette mengadaptasi bentuk unibodi dengan ukuran panel pas dengan ubin plafon. Selain itu, unit indoor yang ramping dan ringkas telah mengurangi batasan yang membuatnya lebih dapat diaplikasikan di berbagai ruang

Auto Elevation Grille

Auto Elevation Grille memudahkan pembersihan filter dengan dukungan struktur 4 titik. Didukung pula dengan fitur Auto levelling, auto stop detection dan kemampuan mengingat ketinggian pengguna

Kontrol Vane Independen

Fitur pengoperasian vane independen menggunakan motor terpisah, memungkinkan kontrol empat vane secara mandiri

Kontrol Vane 6 Langkah

Terdapat 6 langkah berbeda untuk mengontrol arah aliran udara dengan 1 wat cassette. Hal ini juga memiliki vane untuk ayunan otomatis yang bergerak antara sisi kiri dan kanan hingga 120 derajat.

Ketinggian Yang Diminimalkan

Ketinggian 1 Way Cassette adalah 132mm, menjadikannya solusi ideal untuk pemasangan di ruang terbatas

Pemasangan Fleksibel

Akses untuk inspeksi pada 1 Way Cassette tak memerlukan ruang tambahan untuk saluran. Membuat lingkungan pemasangan tak rumit.

Pilihan Produk Ceiling Mounted Cassette

Hubungi Kami2

Hubungi Kami

Hubungi kami untuk informasi lebih lanjut terkait produk dan kami akan menghubungi Anda kembali segera
Hubungi Kami Pelajari Lebih Lanjut
Cetak

Semua Spesifikasi

CAPACITY

  • Cooling(Nom) - kW

    10.6

  • Cooling(Nom) - kcal/h

    9,100

  • Cooling(Nom) - Btu/h

    36,200

  • Heating(Nom) - kW

    11.9

  • Heating(Nom) - kcal/h

    10,200

  • Heating(Nom) - Btu/h

    40,600

POWER INPUT

  • Power Input(H / M / L) - W

    70 / 53 / 43

CASING

  • Casing

    Galvanized Steel Plate

DIMENSIONS (W × H × D)

  • Body - ㎜

    840 x 246 x 840

  • Body - inch

    33-1/16 x 9-11/16 x 33-1/16

  • Decoration Panel #1 - ㎜

    950 x 25 x 950

  • Decoration Panel #1 - inch

    37-13/32 x 31/32 x 37-13/32

COIL

  • Rows x Columns x FPI

    2 x 10 x 19

  • Face Area - ㎡

    0.57

FAN

  • Type

    Turbo Fan

  • Motor Output × Number - W

    135

  • Running Current - A

    0.56

  • Air Flow Rate(H / M / L) - CMM

    25 / 21 / 19

  • Air Flow Rate(H / M / L) - cfm

    883 / 742 / 671

  • Drive

    Direct

  • Motor type

    BLDC

TEMPERATURE CONTROL

  • Temperature Control

    Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing Thermal Insulation Material

    Foamed polystyrene

SAFETY DEVICE

  • Safety Device

    Fuse

PIPE CONNECTIONS

  • Liquid Side - ㎜(inch)

    Ø 9.52 (3/8)

  • Gas Side - ㎜(inch)

    Ø 15.88 (5/8)

  • Drain Pipe(Internal Dia.) - ㎜(inch)

    Ø 25 (1)

WEIGHT

  • Body - kg(lbs)

    23.5 (51.8)

SOUND PRESSURE LEVELS

  • H / M / L - dB(A)

    43 / 40 / 37

SOUND POWER LEVELS

  • H / M / L - dB(A)

    56 / 53 / 51

POWER SUPPLY

  • Power Supply - Ø, V, Hz

    1, 220-240, 50
    1, 220, 60

REFRIGERANT CONTROL

  • Refrigerant Control

    EEV

TRANSMISSION CABLE

  • Transmission Cable - mm² × Cores

    1.0 ~ 1.5 × 2C

PANEL COLOR

  • Panel Color

    Morning fog

PANEL NAME(ACCESSORY)

  • Panel Name(Accessory)

    PT-UMC(1)

Untuk mengakses lebih banyak dokumentasi teknis dan sumber daya, silakan kunjungi Portal Mitra LG B2B.
