Kasus 1
50/60 Hz 220-240 V~
Batas Rentang Tegangan (Kasus 1) (V)
198 - 264
Nominal (kW)
10.60
Nominal (Btu/h)
36200
Nominal (kW)
11.9
Nominal (Btu/h)
40600
H/M/L (W)
84 / 77 / 66
H/M/L (A)
0.46/0.44/0.42
Tipe
Cross Flow Fan
Laju Aliran Udara (Pendinginan,(SH)/H/M/L) (m³/min)
-/27.0/24.0/20.0
Tipe
BLDC
Penggerak
Direct
Output (No.)
1
Output (W)
125
Baris x Kolom x FPI
3 X 18 X 18
No.
1
Area Muka (m²)
0.46
Net(W x H x D) (mm)
1600 x 235 x 690
Shipping(W x H x D) (mm)
1715 x 320 x 772
Net (kg)
37.0
Shipping (kg)
45.5
Kontrol Suhu
Microprocessor, Thermostat for cooling and heating
Bahan Penyerap Suara / Isolasi Termal
Foamed polystrene
Sekring
Fuse
Tipe
R410A
Jumlah Pengisian Tambahan (kg(each))
0.79
Jenis Kontrol
EEV
O.D / I.D (mm(inch))
25.0 / 16.0
Cairan (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Cairan
Flare
Gas
Flare
Pendinginan((SH)/H/M/L) (dB(A))
- / 48 / 46 / 44
Standar Pengukuran (Tingkat Tekanan)
ISO 3745
Pendinginan((SH)/H/M/L) (dB(A))
- /68 / 66 / 64
Standar Pengukuran (Tingkat Daya)
ISO 3741
Kabel Komunikasi (VCTF-SB) (mm² × cores)
1.0 ~ 1.5 × 2C
Ampere Sirkuit Minimum (MCA) (A)
1.21
Motor Kipas Indoor_Full Load Ampere (FLA) (A)
0.97
Tipe

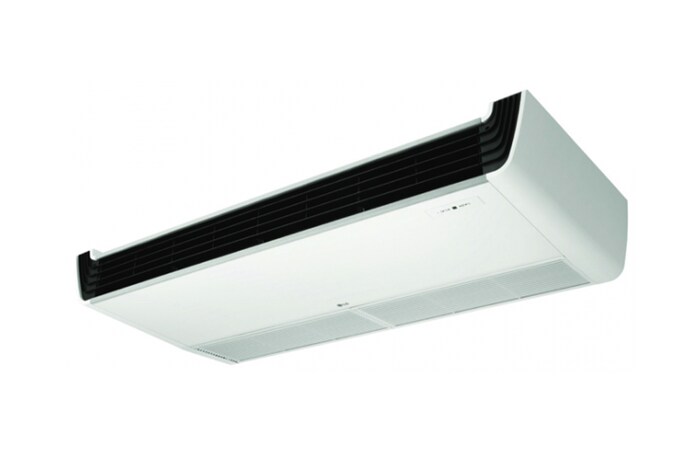

Ceiling Suspended
