Kasus 1
50 Hz 220-240 V~
Batas Rentang Tegangan (Kasus 1) (V)
198~264
Kasus 2
60 Hz 220 V~
Batas Rentang Tegangan (Kasus 2) (V)
198~242
Nominal (kW)
12.30
Nominal (Btu/h)
42 000
Panas Sensitif (kW)
8.90
Panas Sensitif (Btu/h)
30 368
Nominal (kW)
13.8
H/M/L (W)
86 / 78 / 69
H/M/L (A)
0.49 / 0.47 / 0.45
Tipe
Turbo Fan
Laju Aliran Udara (Pendinginan,(SH)/H/M/L) (m³/min)
- / 30 / 27 / 24
Laju Aliran Udara (Pemanasan,(SH)/H/M/L) (m³/min)
- / 30 / 27 / 24
Tipe
BLDC
Penggerak
Direct
Output (W)
135
Baris x Kolom x FPI
2 x 12 x 19
Area Muka (m²)
0.57
Net(W x H x D) (mm)
840 x 288 x 840
Shipping(W x H x D) (mm)
922 x 360 x 917
Net (kg)
25.6
Shipping (kg)
30.2
Warna
Morning Fog
RAL (Klasik)
RAL 9001
Tipe
Pre Filter
Kontrol Suhu
Microprocessor, Thermostat for cooling and heating
Bahan Penyerap Suara / Isolasi Termal
Foamed polystrene
Sekring
O
Tipe
R410A / R32
Jumlah Pengisian Tambahan (kg(each))
0.49 / 0.41
Jenis Kontrol
EEV
O.D / I.D (mm(inch))
- / 25(1)
Cairan (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Cairan
Flare
Gas
Flare
Pendinginan((SH)/H/M/L) (dB(A))
- / 44 / 41 / 38
Pemanasan((SH)/H/M/L) (dB(A))
- / 44 / 41 / 38
Standar Pengukuran (Tingkat Tekanan)
ISO 3745
Pendinginan((SH)/H/M/L) (dB(A))
- / 58 / 55 / 50
Pemanasan((SH)/H/M/L) (dB(A))
- / 58 / 55 / 50
Standar Pengukuran (Tingkat Daya)
ISO 9614
Kabel Komunikasi (VCTF-SB) (mm² × cores)
1.0~1.5 x 2C
Ampere Sirkuit Minimum (MCA) (A)
0.71
Motor Kipas Indoor_Full Load Ampere (FLA) (A)
0.56

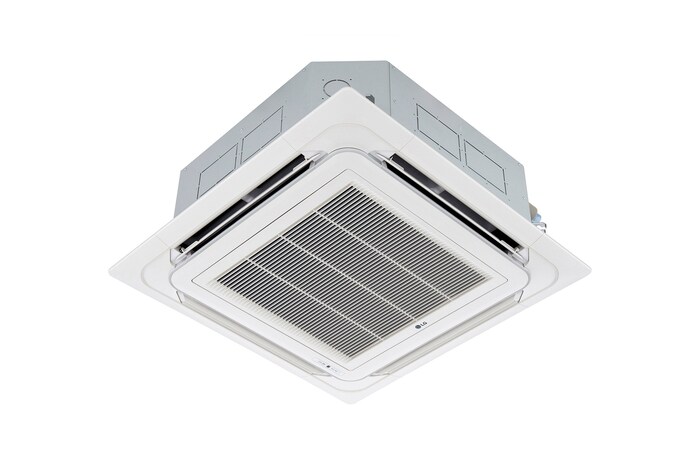

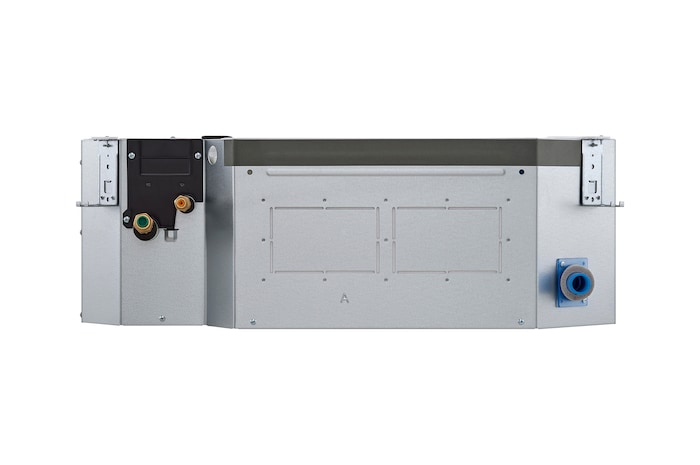

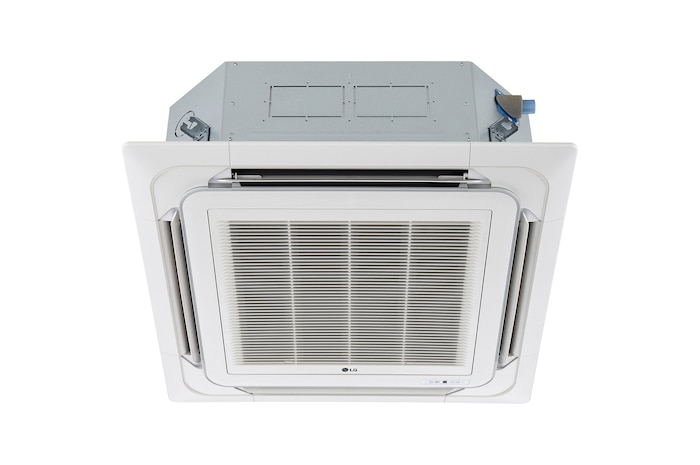

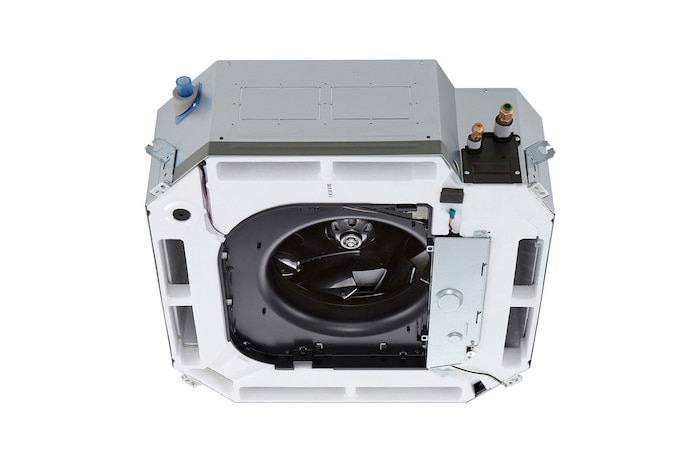

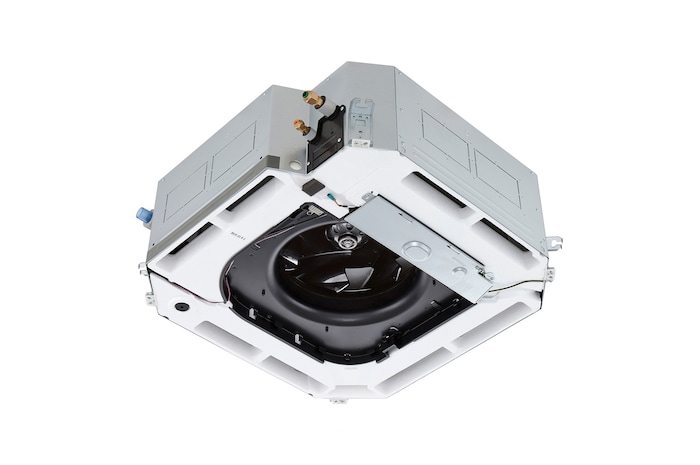

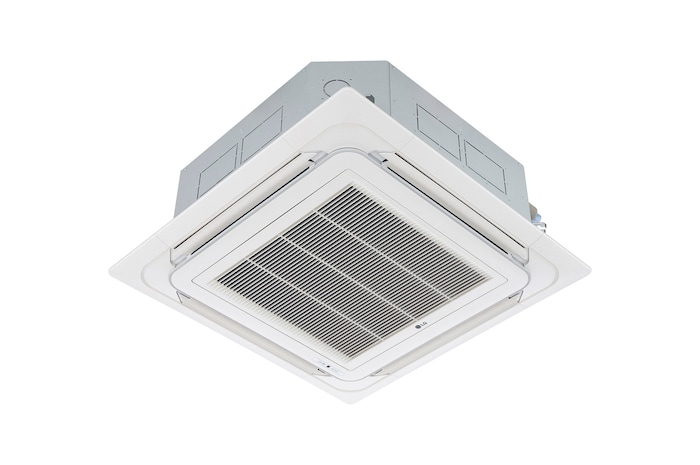

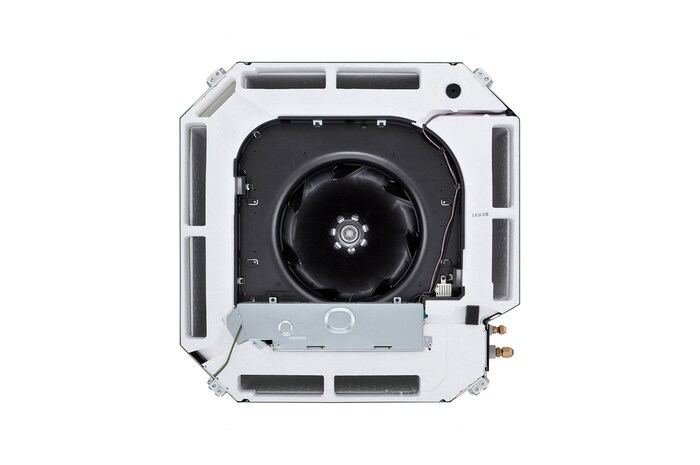

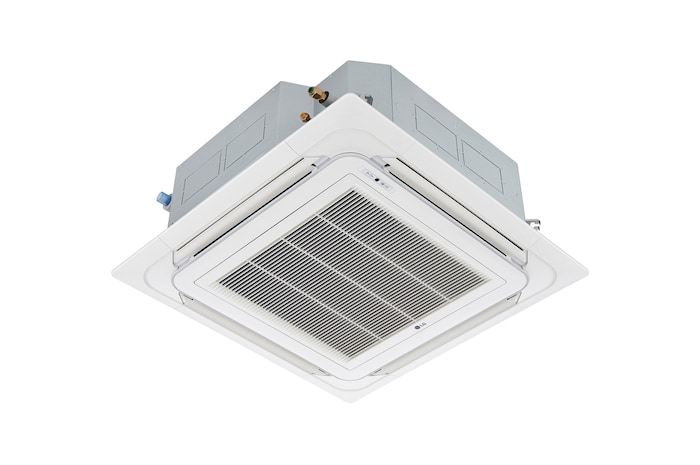

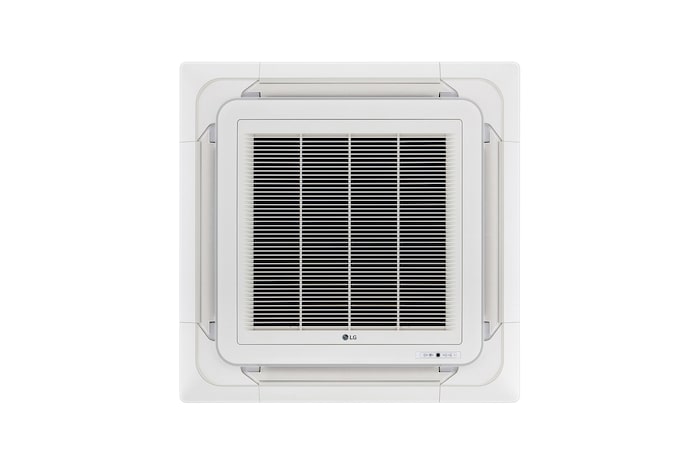

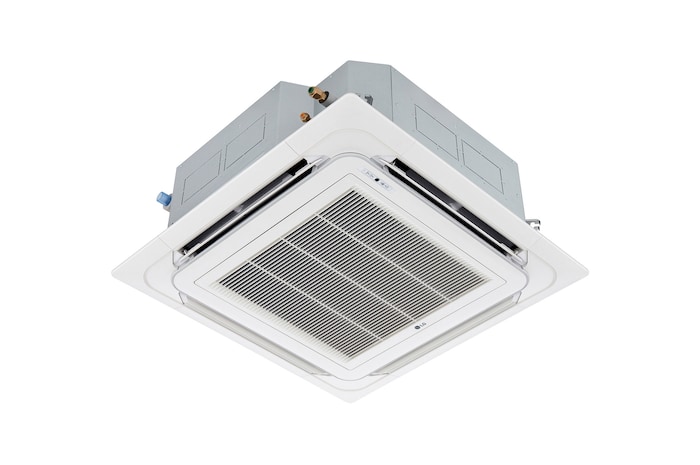

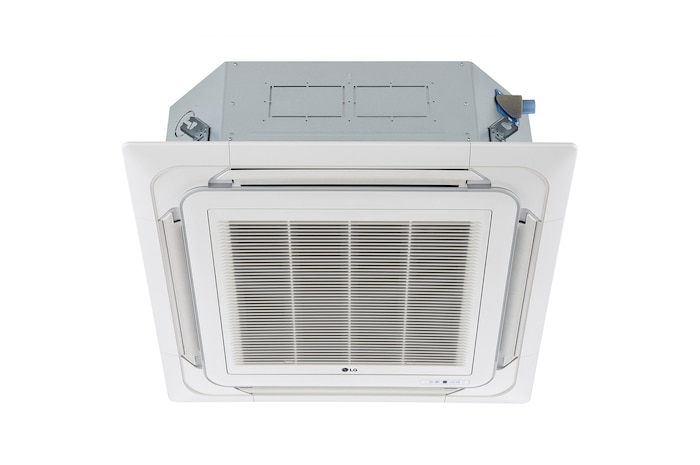

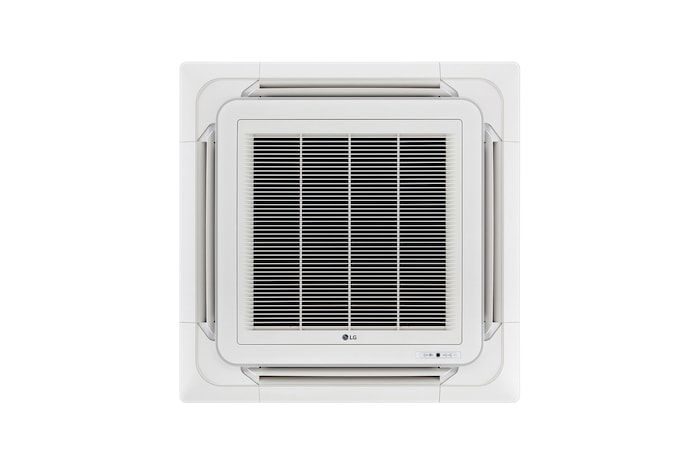

Tipe
Ceiling Cassette
