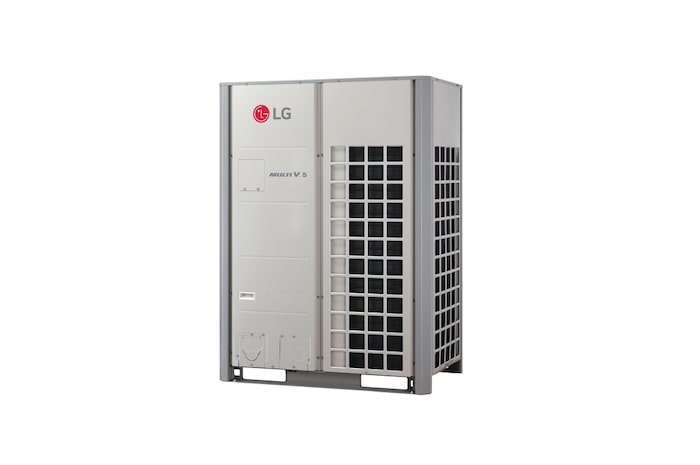

ARUN220LLS5

Semua Spesifikasi

CAPACITY

Cooling(Rated) - kW: 61.6

Cooling(Rated) - kcal/h: 53,000

Cooling(Rated) - Btu/h: 210,200

Heating(Rated) - kW: 61.6

Heating(Rated) - kcal/h: 53,000

Heating(Rated) - Btu/h: 210,200

HORSE POWER

Horse Power - HP: 22

INPUT

Cooling(Rated) - kW: 16.80

Heating(Rated) - kW: 17.80

EER

EER(Rated): 3.67

COP

COP(Rated): 3.46

POWER FACTOR

Rated: 0.93

EXTERIOR

Color: Warm Gray / Dawn Gray

RAL code: NL503K / NA507K

HEAT EXCHANGER

Type: Wide Louver Plus

COMPRESSOR

Type: Hermetically Sealed Scroll

Piston Displacement - ㎤/rev: 87.6

Number of Revolution - rev/min: 3,600

Motor Output × Number - W: 7,500

Starting Method: Direct On Line

Oil Type: FVC68D(PVE)

FAN

Type: Propeller fan

Motor Output × Number - W × No.: 900 × 2

Air Flow Rate(High) - ㎥/min: 320

Air Flow Rate(High) - ft³/min: 11,301

Drive: DC INVERTER

Discharge - Side / Top: TOP

PIPE CONNECTIONS

Liquid Pipe - ㎜(inch): Ø 15.88 (5/8)

Gas Pipe - ㎜(inch): Ø 28.58 (1-1/8)

DIMENSIONS (W × H × D)

Dimensions(W x H x D) - ㎜: (1,240 × 1,690 × 760)

Dimensions(W x H x D) - inch: (48-13/16 × 66-17/32 × 29-29/32)

NET WEIGHT

Net Weight - kg: 230

Net Weight - lbs: 507

GROSS WEIGHT

Gross Weight - kg: 244

Gross Weight - lbs: 538

SOUND PRESSURE LEVEL

Cooling - dB(A): 64.0

Heating - dB(A): 67.0

SOUND POWER LEVEL

Cooling - dB(A): 87.0

Heating - dB(A): 90.0

PROTECTION DEVICES

High pressure protection: High pressure sensor / High pressure switch

Compressor/Fan: Over-heat protection / Fan driver overload protector

Inverter: Over-heat protection / Over-current protection

COMMUNICATION CABLE

Communication Cable - No.×㎟(VCTF-SB): 2C × 1.0 ~ 1.5

REFRIGERANT

Refrigerant name: R410A

Precharged Amount in factory - kg: 7.5

Precharged Amount in factory - lbs: 16.5

GWP: 2087.5

tCO2-eq: 15.7

Control: Electronic Expansion Valve

POWER SUPPLY

Power Supply - Ø, V, Hz: 3, 380-415, 503, 380, 60

NUMBER OF MAXIMUM CONNECTABLE INDOOR UNITS

Number of Maximum Connectable Indoor Units - m(ft): 35 (56)
