MIL-STD-810H
*LG gram: MIL-STD-810 standard testing and certification by KOLAS Labs December 2022. Passed 7 different MIL-STD 810H Tests for durability conducted by an independent laboratory that conforms to U.S. military standards. Compliant with the following methods for MIL-STD-810H: Method 500.6 Low Pressure (Altitude) (Procedure I – Storage and Method and Procedure II - Operation); Method 501.7 High Temperature (Procedure I – Storage and Procedure II - Operation); Method 502.7 Low Temperature (Procedure I – Storage and Procedure II - Operation); Method 509.7 – Salt Fog Test; Method 510.7 - Dust; Method 514.8 – Vibration; Method 516.8 Shock (Procedure II) – Transportation Shock. Device may not perform as tested in all conditions. Test performed in controlled environment. Do not attempt.

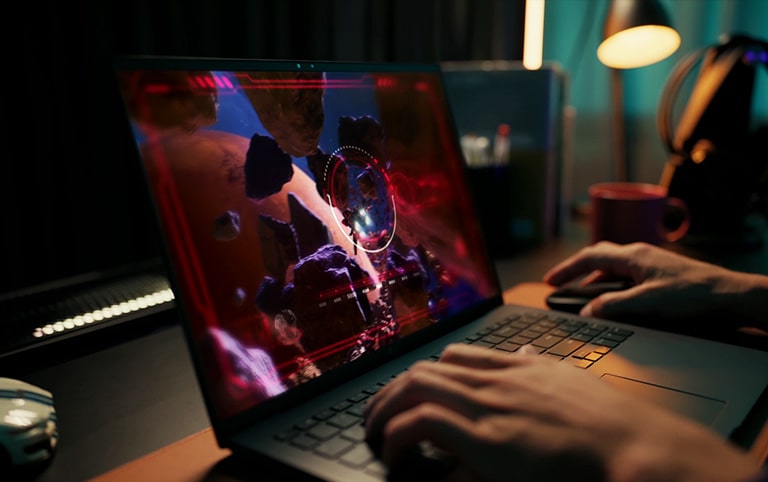

*It is not available to arbitrarily manipulate the refresh rate when the VRR is on.
*As the refresh rate is reduced when the mouse is not moved or in standby mode, the power consumption is decreased.
*The refresh rate range is 31Hz~144Hz.
**VRR LCD brightness is 400nits(Typ.) and 350nits(Min.).
Normal LCD brightness is 350nits(Typ.).
*The images simulated to enhance feature understanding. It may differ from actual use.

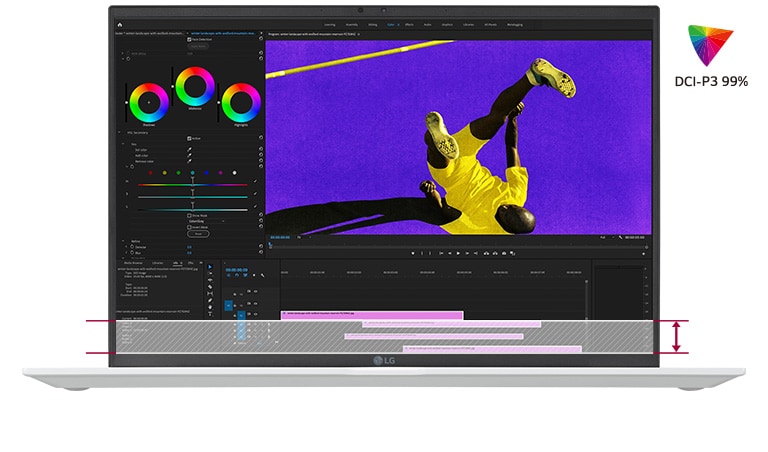

**DCI-P3 Typical 99%, Minimum 95%.
DCI-P3 : The color standard that is defined by the Digital Cinema Initiatives (DCI).
*The images simulated to enhance feature understanding. It may differ from actual use.
*The brightness is 350nits(Typ.).
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*This feature is only available when the product and mobile phone are connected to the internet.
*To use this function, scan the QR code generated by the PC app with your phone. In case not available to scan the QR, enter the 6-digit PIN code to connect.
LG 16Z90R-G It show that the security guard works when user leaves the gram and it sends an alert to its user.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The e-mail notification works only when the product is connected to the internet and the adapter is plugged in. The security guard works no matter whether the internet is connected or not.
Protects your privacy by automatically locking your gram or blurring the screen when you leave your laptop or others see your screen.
Tracks your gaze and moves the mouse pointer accordingly or transfer active content to the screen you’re working on.
Alerts you when you make a bad posture as well as when you continually work on for a long time.
It makes not only audiences can see your presentation and material at a same time but also offers convenient functionalities such as auto mute, mute warning and virtual camera.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The model image in the video and the feature cards might be different from the actual model.
*Actual battery life will vary from specifications depending on model, setup configuration, applications used, features utilized and power management settings.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
**Modified keyboard location to improve the airflow. Larger fan with more blades. Applied graphite sheet under the keyboard. The advanced cooling feature is in comparison to the preceding model.

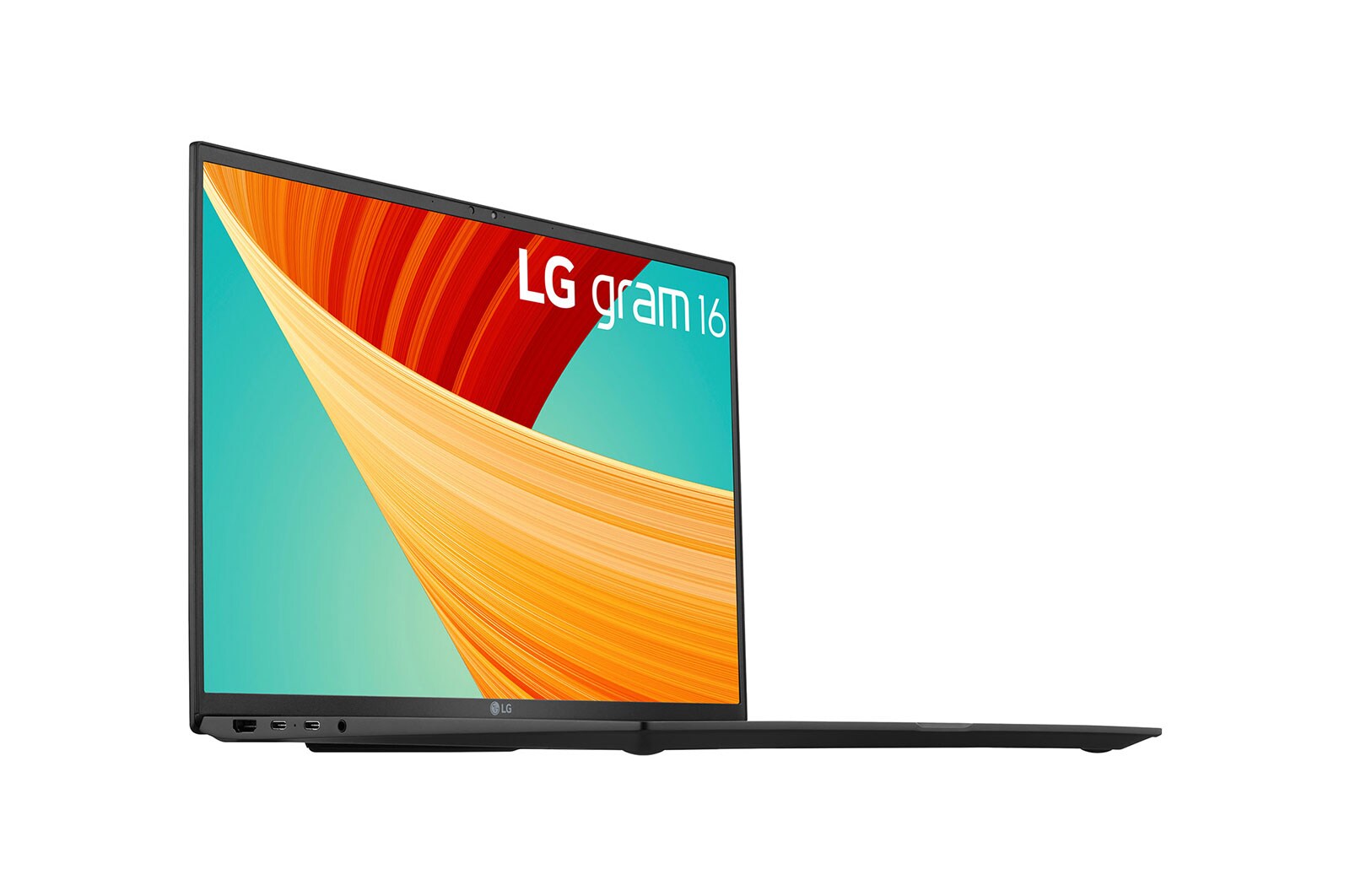

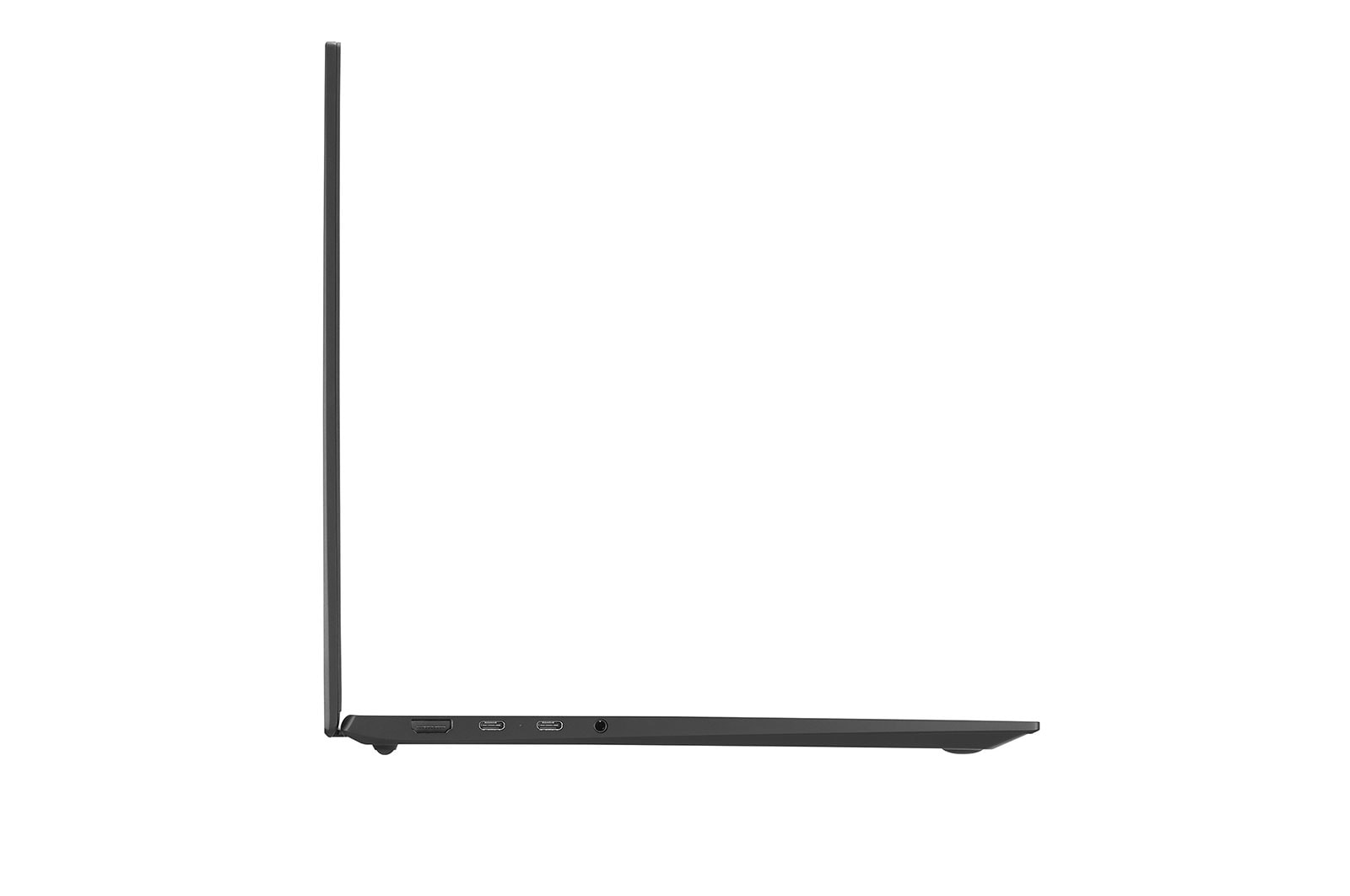

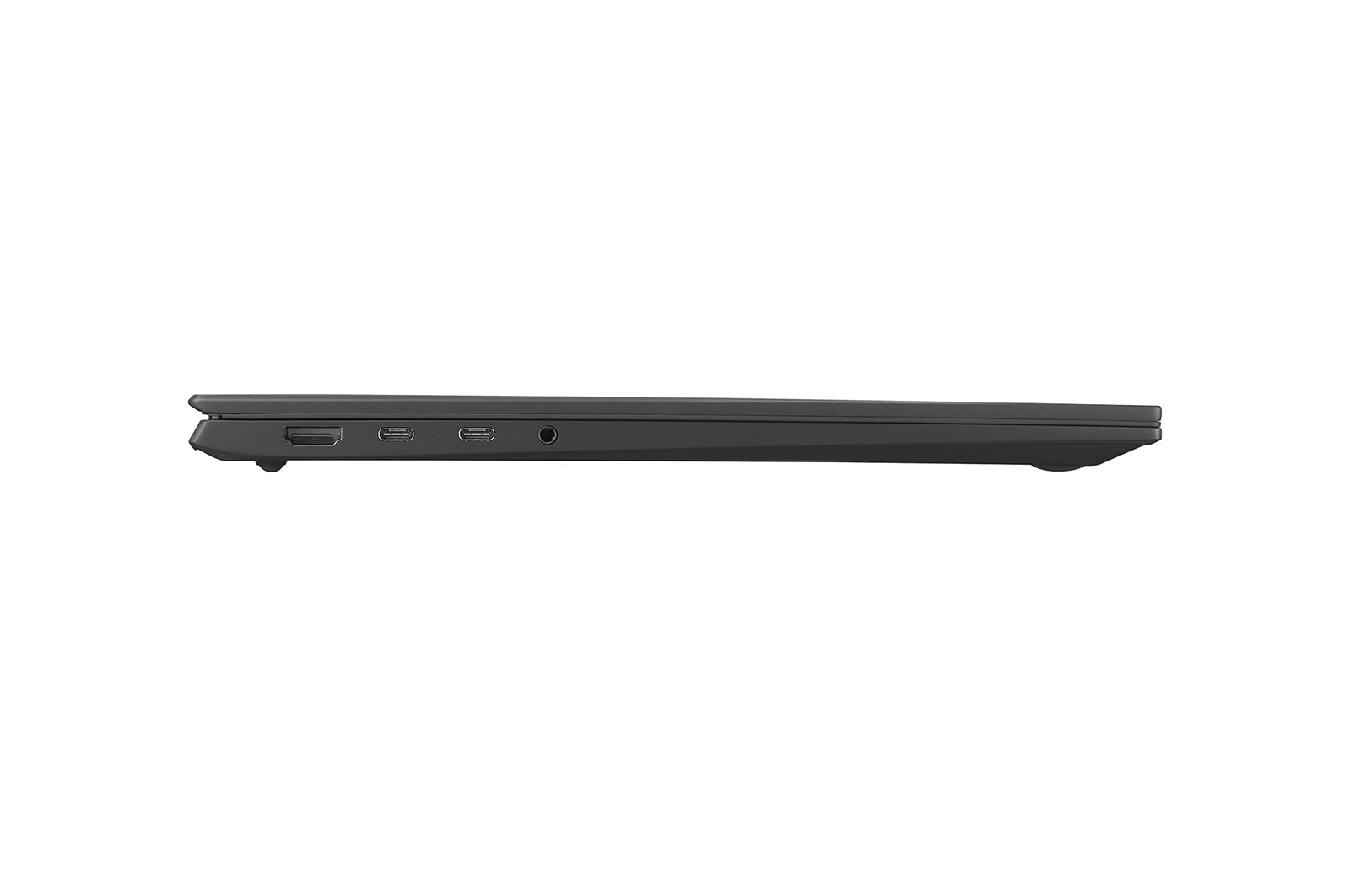

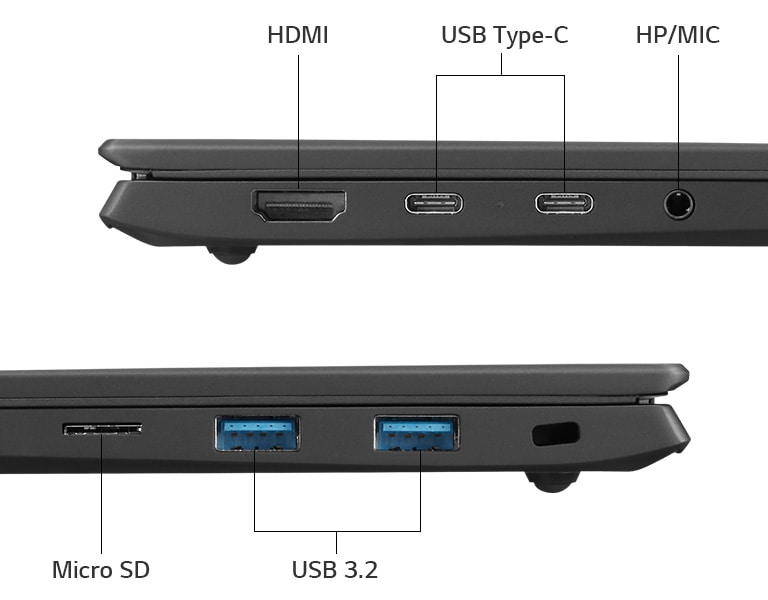

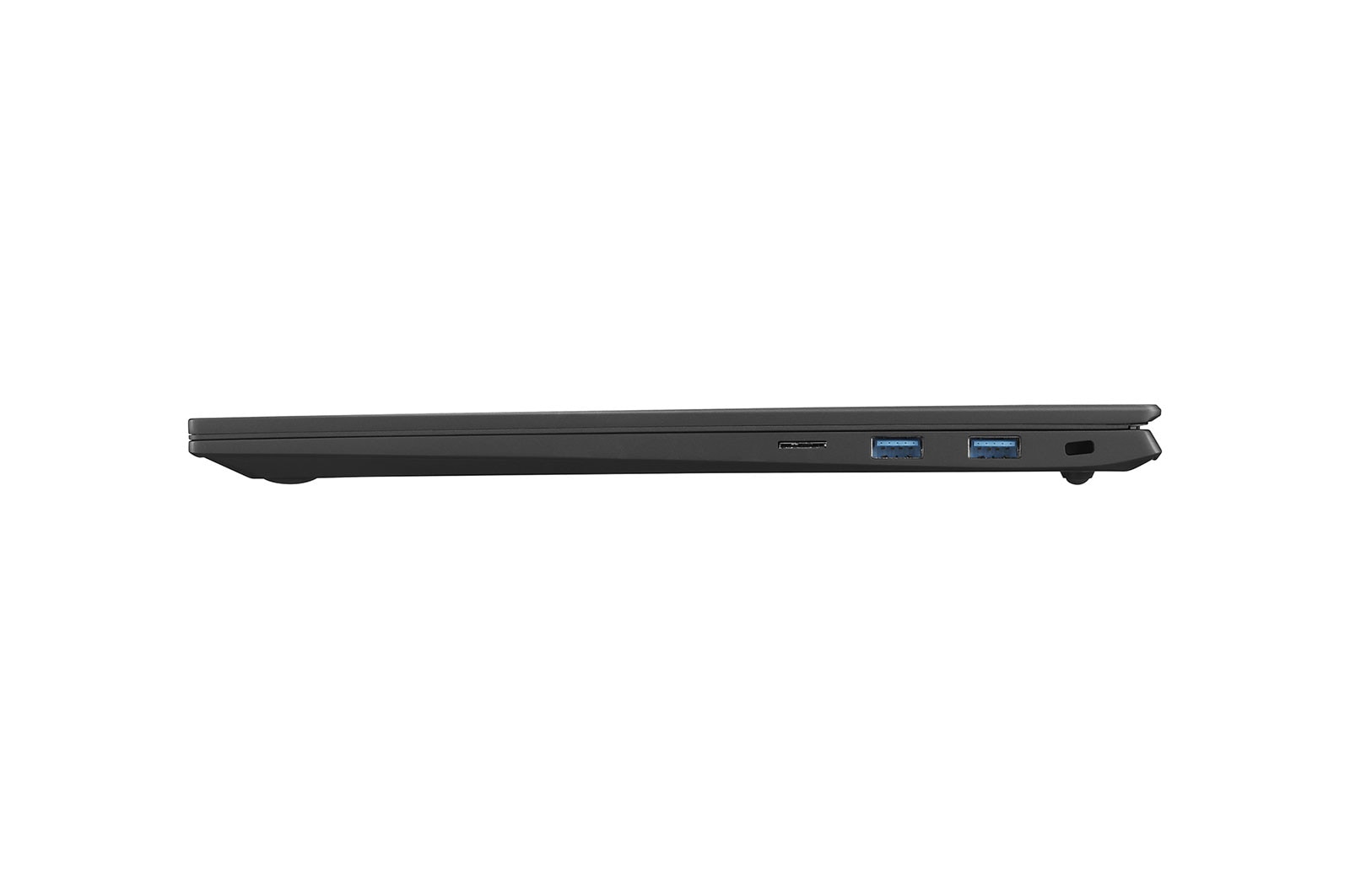

LG 16Z90R-G It shows various ports of LG gram.

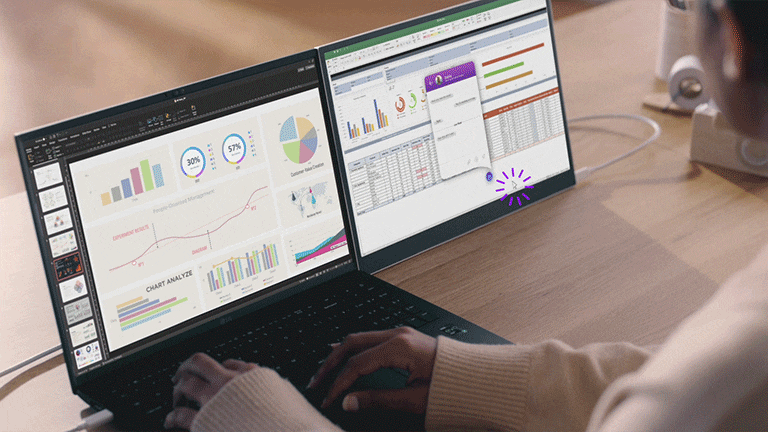

*The cable for connection to 2nd display is not included. It is sold separately.
*The images simulated to enhance feature understanding. It may differ from actual use.
Product Category
gram
Year
Y23
Processor
13th Gen Intel® Core™ Processor
i7-1360P (12 Cores: 4P + 8E, P: 2.2 up to 5.0 GHz / E: 1.6 up to 3.7 GHz), Intel Smart Cache 18 MB
Operating System
Windows 11 Home
Size (cm)
16(40.6cm)
Resolution
WQXGA (2560 x 1600)
Ratio
16:10
Panel Type
IPS Non Touch
Panel Multi
LGD
Pol
Anti-Glare
Refresh rate
60Hz / VRR(31Hz~144Hz, option)
Brightness
350nit / 400nit(VRR)
Color gamut
DCI-P3 99% (Typical, min 95%)
Contrast
1200:1 (Typical) / 1500:1 (Typical)
Memory
16 GB LPDDR5 (Dual Channel, 6000MHz)
SSD
M.2(2280) Dual SSD slots, Gen4
- NVMe: 512GB , Gen4
MMC Slot
Micro SD
Wireless
Intel® Wireless-AX211 (802.11ax, 2x2, Dual Band, BT Combo)
LAN
USB-C to RJ45 adapter (As Accessory)
BT
BT 5.1
Webcam
FHD IR Webcam with Dual Mic (Face recognition)
Audio
HD Audio with Dolby Atmos
Speaker
Stereo Speaker 2.0W x 2 (iGPU)
Stereo Speaker 3.0W x 2 (dGPU)
Smart Amp (Max 5W)
Security
SSD Security, fTPM/HW TPM(Option),
Slim Kensington lock
Keyboard
Full Size Backlit Keyboard (US: 97 Key, UK: 98 Key, Japan : 101 key w/ 3 Column Numeric Keypad)
Pointing Device
Precision Touch Pad w/ Scroll and Gesture Function
(size: 131.5 x 82.6mm)
HP-Out
4Pole Headset, US type
USB Type A
USB 3.2 Gen2x1 (x2)
USB Type C
USB 4 Gen3x2 Type C (x2, with Power Delivery, Display Port, Thunderbolt 4)
Battery
80 Wh Li-Ion (iGPU) / 90 Wh Li-on (dGPU)
MobileMark 2018: 14.5 hr / 14.0 hr
Video playback: 23.5 hr / 22.5 hr
JEITA 2.0: 24.5 hr / 25.5 hr
AC Adapter
- 65W (New, Small size) 3pole with external C to C 2m/5A cable, White/Black (Wall-mount 'I' type, for KR/EU)
- 65W (New, Small size) 2pole with external C to C 2m/5A cable, White/Black (Wall-mount 'I' type, for US/CA/JP/TW)
- 65W 3pole with Power cord, White/Black (Desktop type for IN/PK/NG)
- 65W 2pole with Power cord, White/Black (Desktop type for Global except KR/EU/US/CA/JP/TW/IN/PK/NG)
Thermal
Mega cooling system
Button
Power button without Fingerprint
LED
Power, Charging, Caps Lock, webcam
Dimension(mm)
355.1 x 242.3 x 16.8mm (iGPU / dGPU)
Dimension(cm)
35.50 x 24.23 x 1.67cm (iGPU / dGPU)
weight(kg)
1.199kg (iGPU) / 1,299 (dGPU)
* SKU
weight(lb)
2.64lbs (iGPU) / 2.86lbs (dGPU)
Shipping Dimension(mm)
475 x 290 x 60mm
Shipping Dimension(cm)
47.75 x 29.21 x 6.09cm
Shipping weight(kg)
2.2kg
Shipping weight(lb)
4.9 lbs
Color
Black
Accessory
USB-C to RJ45 adapter (B2B option)
Net Quantity
1
Country of Origin
China
Manufactured By
LG ELECTRONICS NANJING NEW TECHNOLOGY CO. LTD., 346, YAOXIN ROAD, ECONOMIC & TECHNICAL DEVELOPMENTZONE, NANJING 210038, CHINA
Imported By
LG ELECTRONICS INDIA PVT LTD, A-24/6, MOHAN COOPERATIVE INDUSTRIAL ESTATE, MATHURA ROAD, NEW DELHI - 110044
Download product manuals and latest software for your product.
Find helpful how-to videos for your product.
Check your product warranty information here.
Discover accessories for your product.
Registering your product will help you get faster support.
Find manual, troubleshoot and warranty of your LG product.
Track your order and check order FAQ.
Repair request service conveniently online.
16Z90R-G.CH75A2

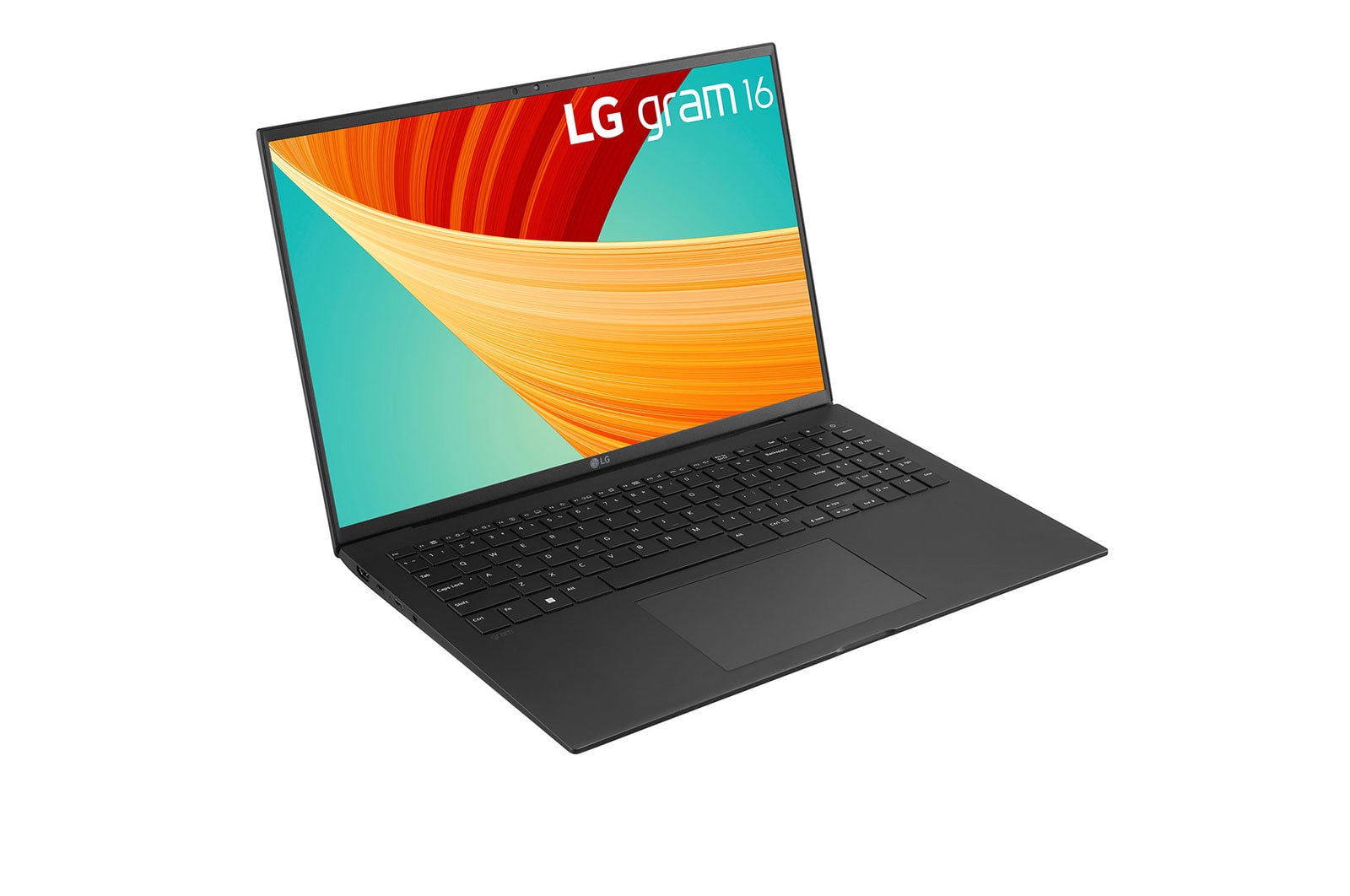

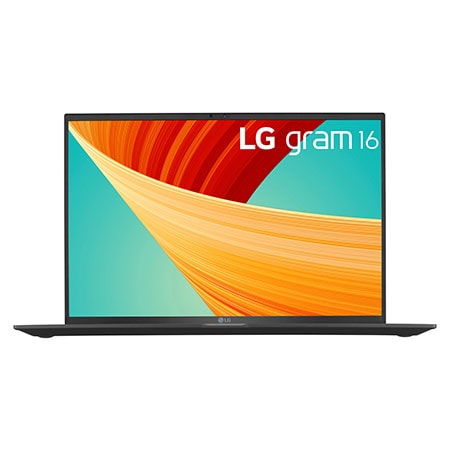

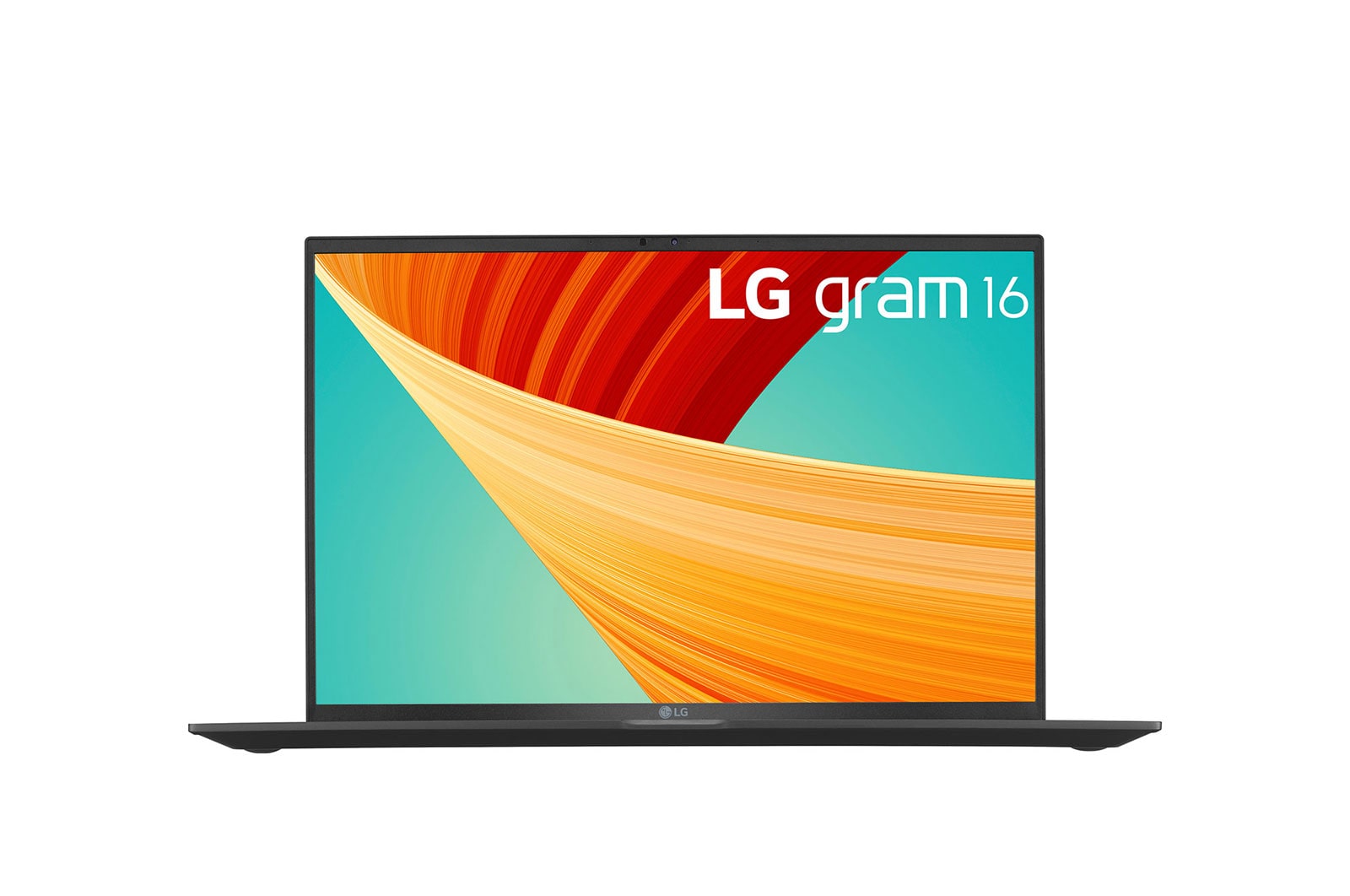

LG gram 16 (40.64) Ultra-lightweight with 16:10 IPS Anti glare Display and Intel® Evo 13th Gen. Processors
