All Spec
PANEL
-
Screen Size
43"(108cm)
-
Panel Technology
IPS
-
Aspect Ratio
16 : 9
-
Native Resolution
1,920 x 1,080 (FHD)
-
Refresh Rate
60Hz
-
Brightness
700 cd/m²
-
Viewing Angle (H x V)
178 x 178
-
Surface Treatment (Haze)
Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))
-
Operation Hours
24 Hrs
-
Orientation

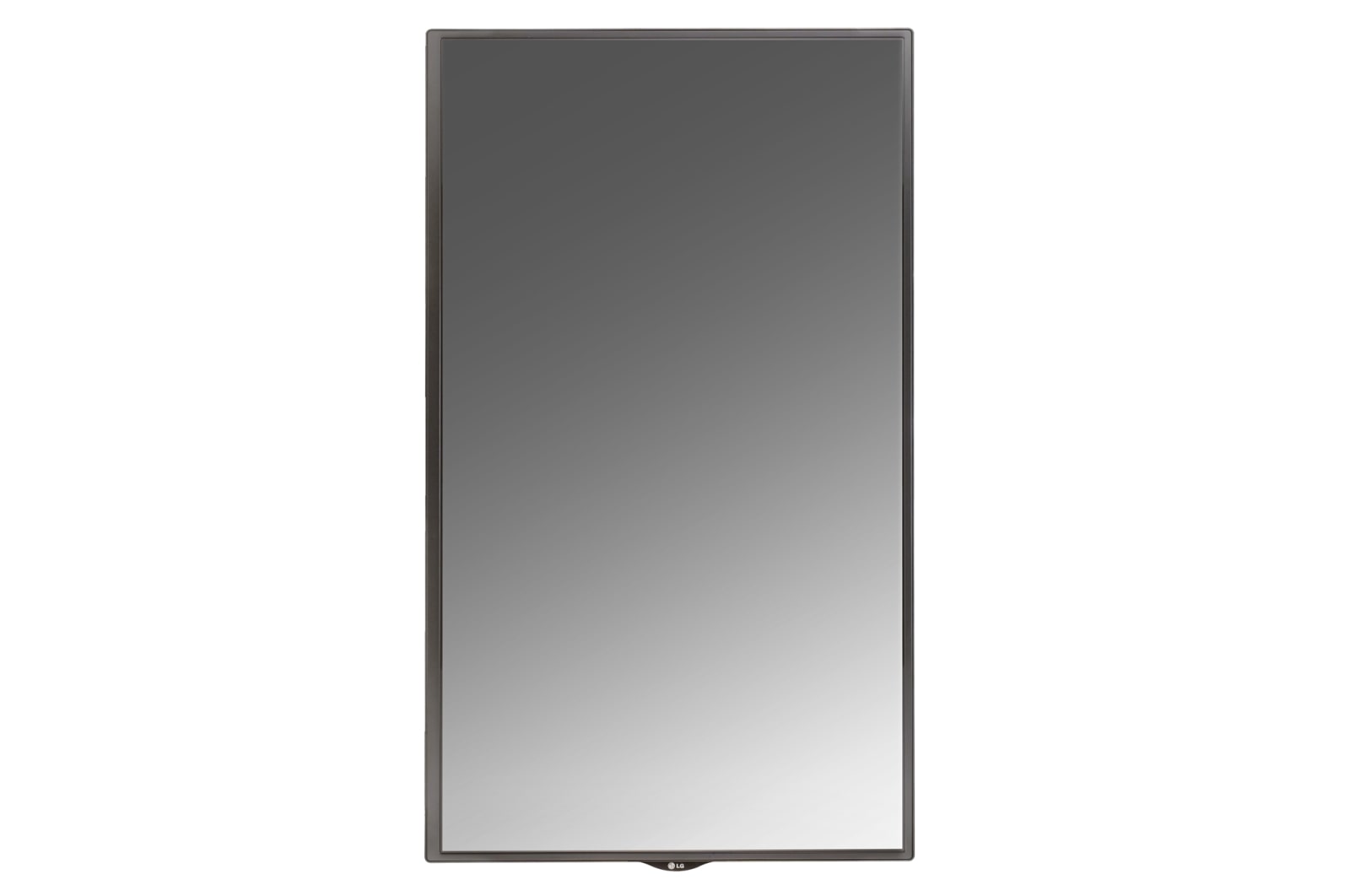

Landscape & Portrait
CONNECTIVITY
-
Input
HDMI (3), DP, DVI-D, Audio, USB 3.0
-
Output
DP (SST), Audio (Off/Fixed/Variable)
-
External Control
RS232C In/out, RJ45 In, IR In
MECHANICAL SPECIFICATION
-
Bezel Colour
Black
-
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
-
Monitor Dimension (W x H x D)
969.6 x 563.9 x 54 mm
-
Weight (Head)
10.5 kg
-
Monitor Dimension with Optional Stand
969.6 x 622.2 x 193 mm
-
Weight (Head+Stand)
13.0 kg
-
Carton Dimensions (W x H x D)
1,052 x 650 x 123 mm
-
Packed Weight
12.6 kg
-
VESA™ Standard Mount Interface
200 x 200 mm
ENVIRONMENTAL CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 80%
POWER
-
Power Type
100-240V~, 50/60Hz
-
Power Supply
Built-In Power
-
Power Consumption-Typ./Max.
95 W / 125 W
-
Power Consumption-Smart Energy Saving
66.5 W
CERTIFICATION
-
Safety
AS/NZS 60950,CB Scheme
-
EMC
AS/NZS CISPR32,RCM(Class A)
-
ErP / Energy Star
N/A / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
-
OPS Type Compatible
Yes
-
External Media Player Attachable
Yes
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control / Control+
ACCESSORIES
-
Basic
Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
-
Optional
Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T43E)
