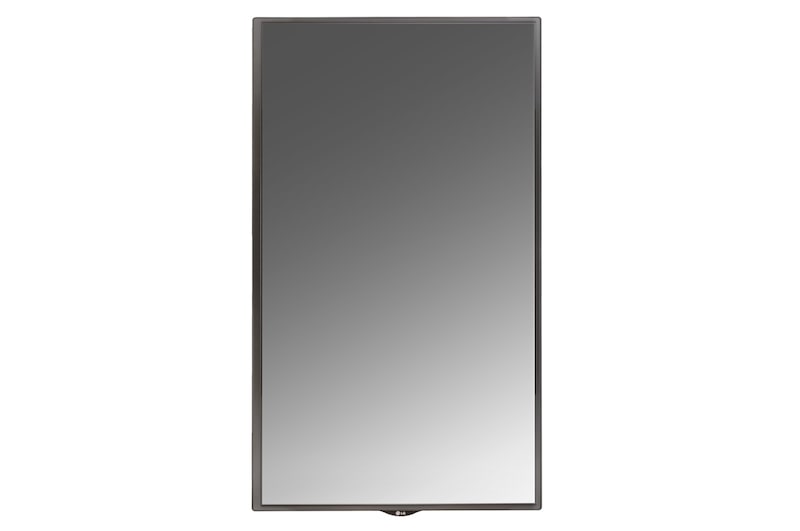

55" 700 nits FHD 60 Hz Standard Signage
All Spec
PANEL
Screen Size
55"(139cm)
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
700cd/m²
Viewing Angle (H x V)
178 x 178
Surface Treatment (Haze)
Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))
Operation Hours
24 Hrs
Orientation
Landscape & Portrait
CONNECTIVITY
Input
HDMI (3), DP, DVI-D, Audio, USB 3.0
Output
DP (SST),Audio (Off/Fixed/Variable)
External Control
RS232C in/out, RJ45 in, IR in
MECHANICAL SPECIFICATION
Bezel Colour
Black
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
Monitor Dimension (W x H x D)
1,238 x 714.9 x 54 mm
Weight (Head)
17.5 kg
Monitor Dimension with Optional Stand
1,238 x 773.4 x 219.6 mm
Weight (Head+Stand)
20.8 kg
Carton Dimensions (W x H x D)
1,330 x 807 x 170 mm
Packed Weight
21.7 kg
VESA™ Standard Mount Interface
300 x 300 mm
ENVIRONMENTAL CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
POWER
Power Type
100-240V~, 50/60Hz
Power Supply
Built-In Power
Power Consumption-Typ./Max.
130 W / 150 W
Power Consumption-Smart Energy Saving
91 W
CERTIFICATION
Safety
AS/NZS 60950,CB Scheme
EMC
AS/NZS CISPR32,RCM(Class A)
ErP / Energy Star
N/A / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
External Media Player Attachable
Yes
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
ACCESSORIES
Basic
Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional
Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
White Paper
To access more technical documentation and resources, please visit the LG B2B partner portal.
