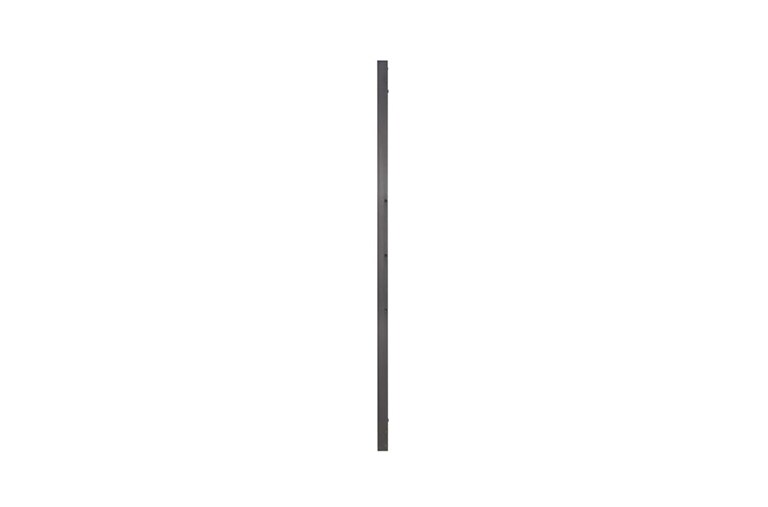

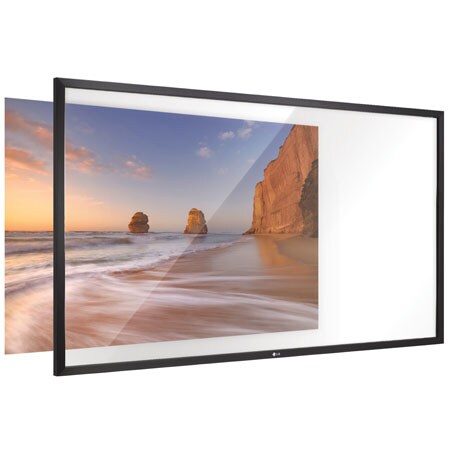

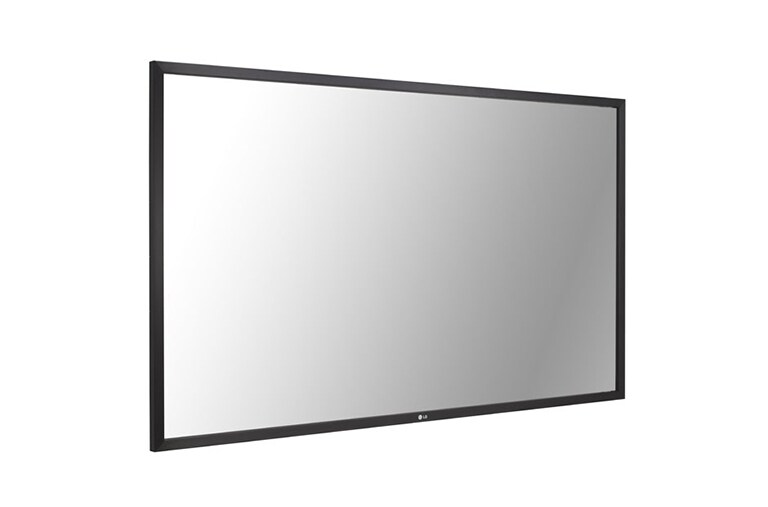

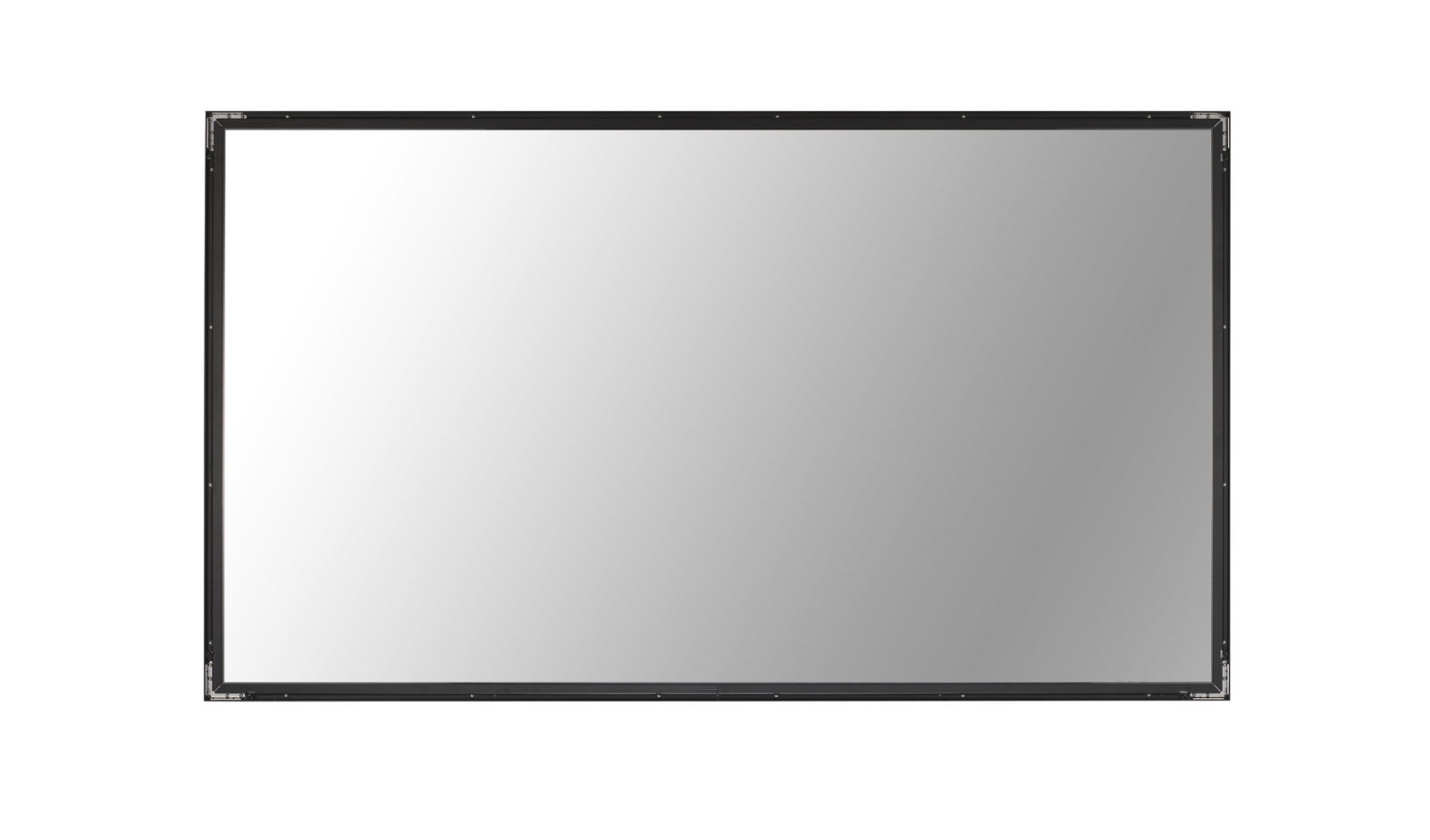

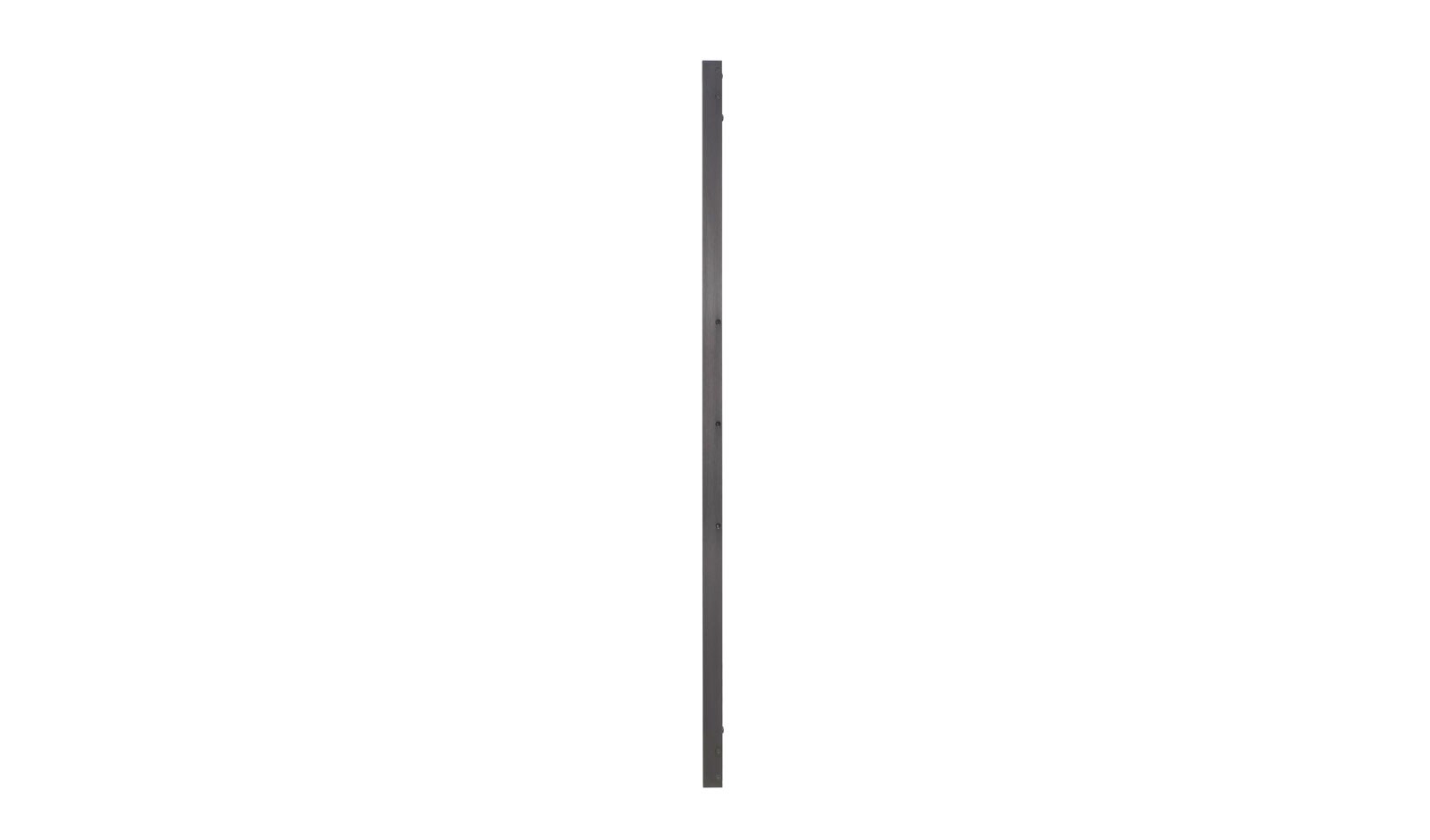

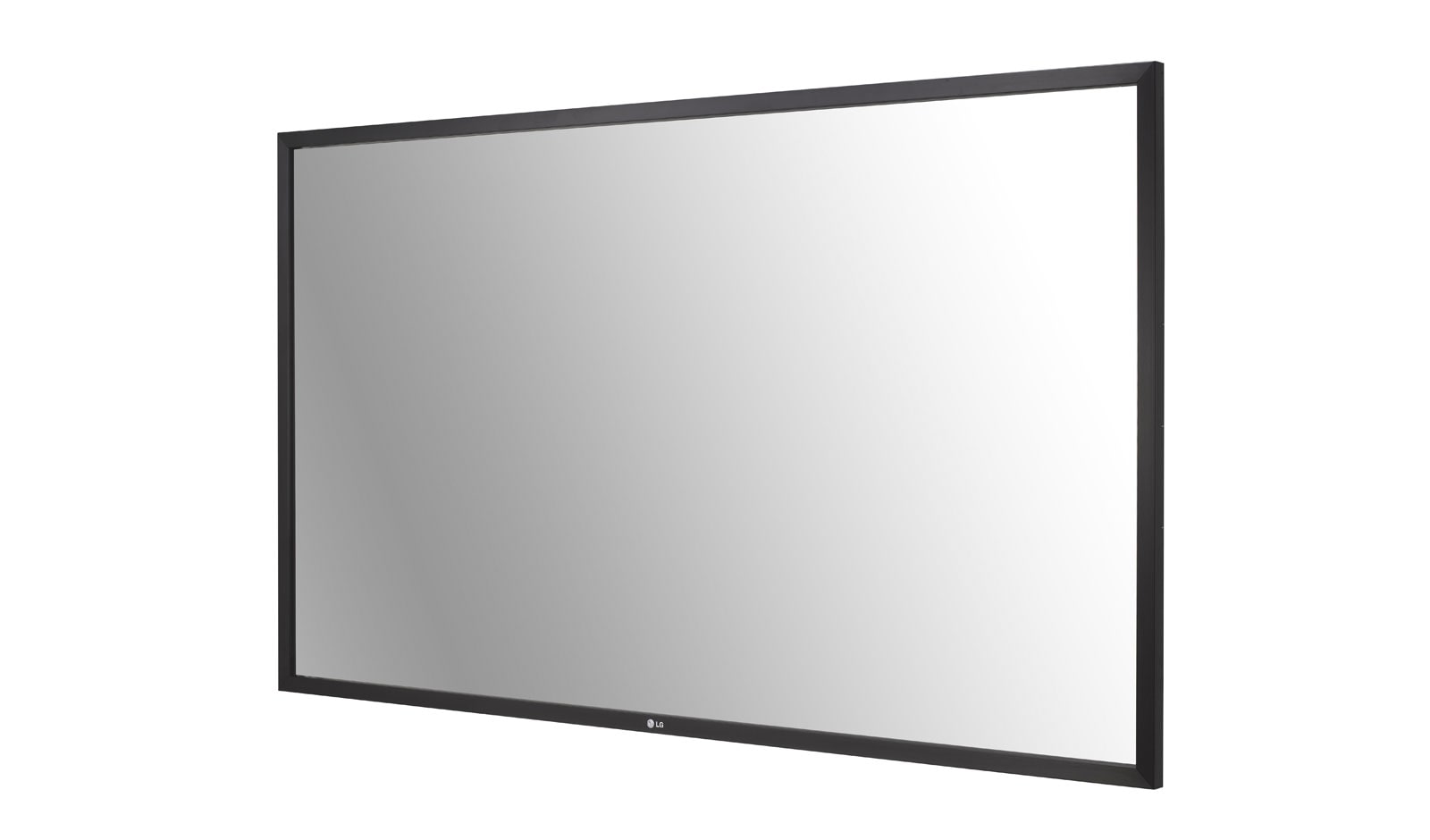

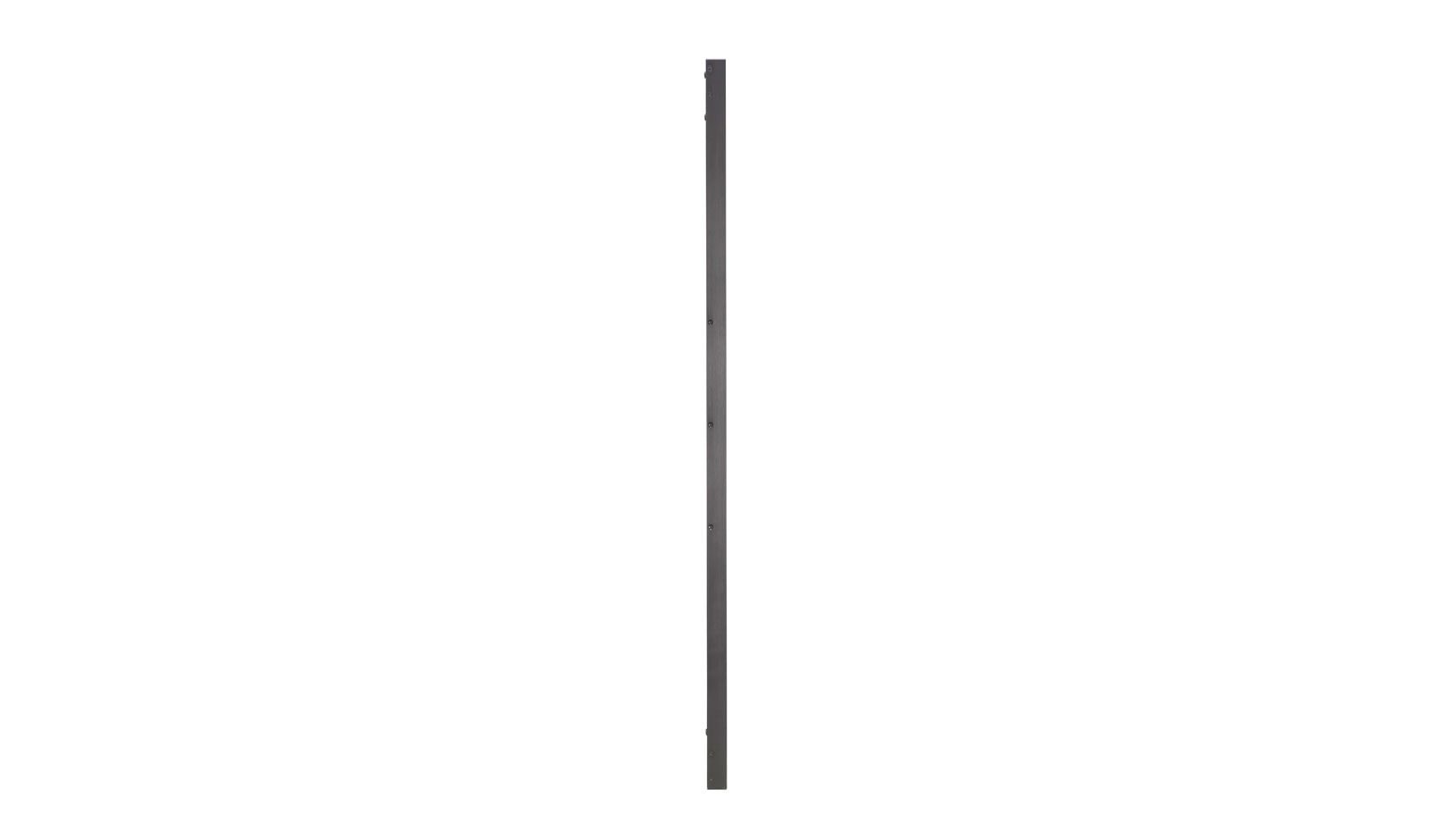

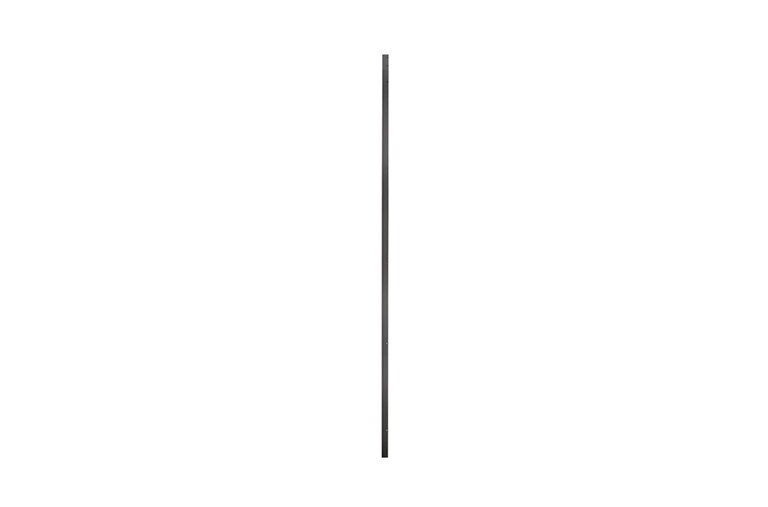

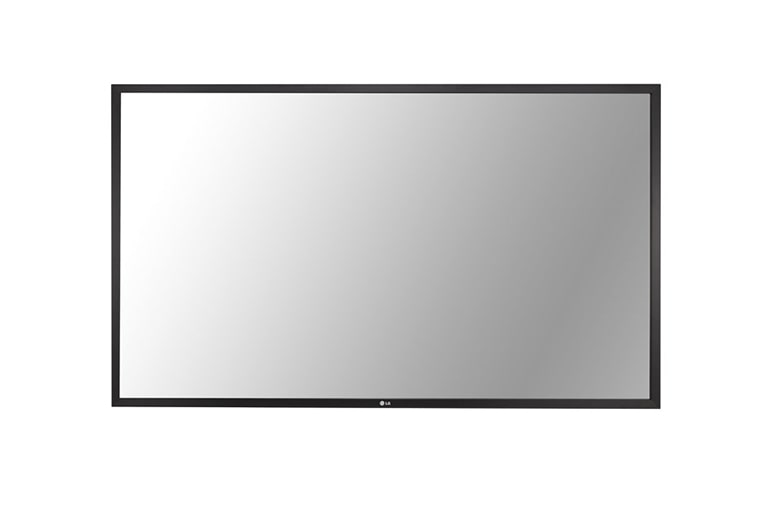

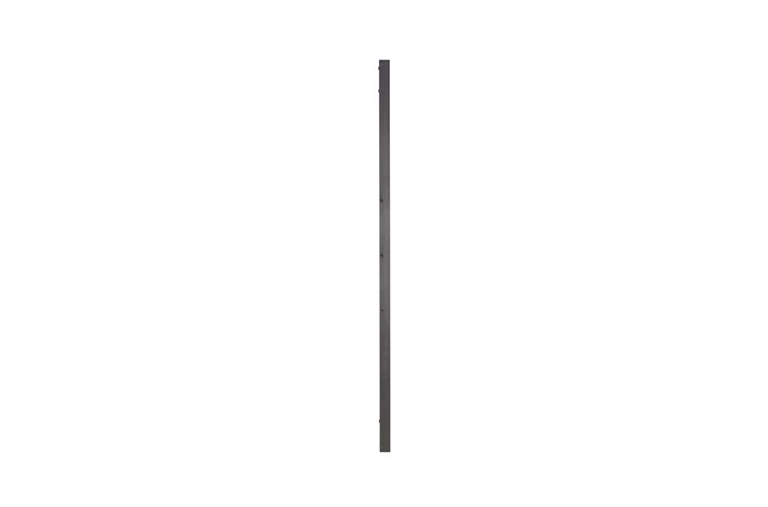

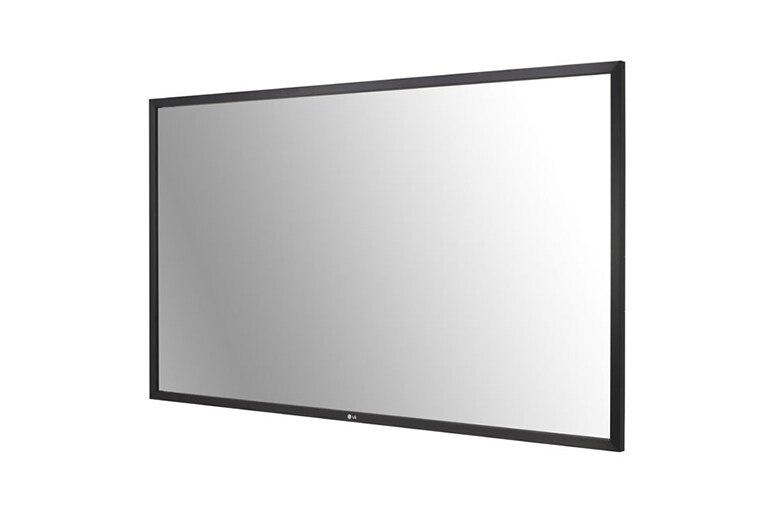

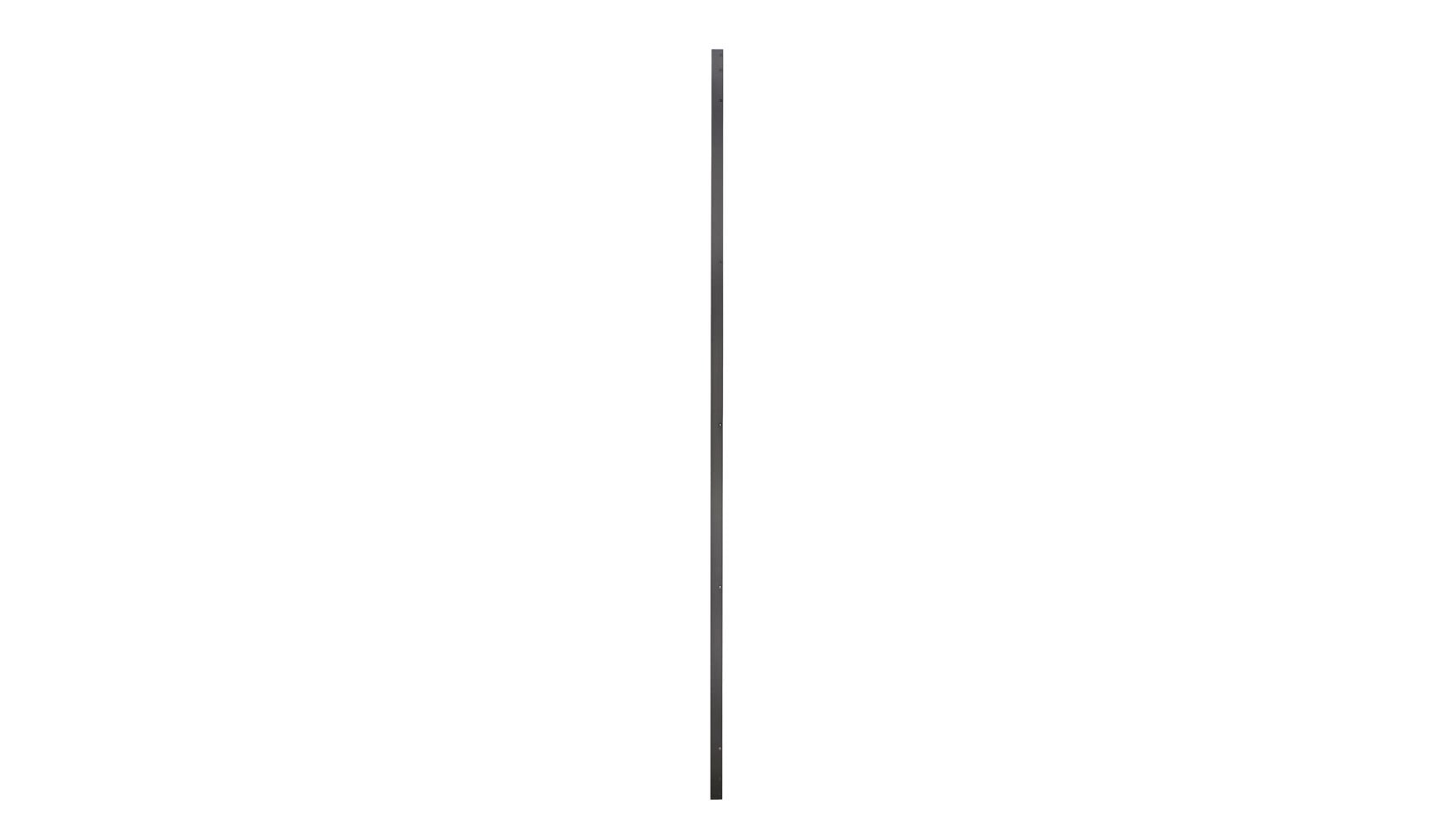

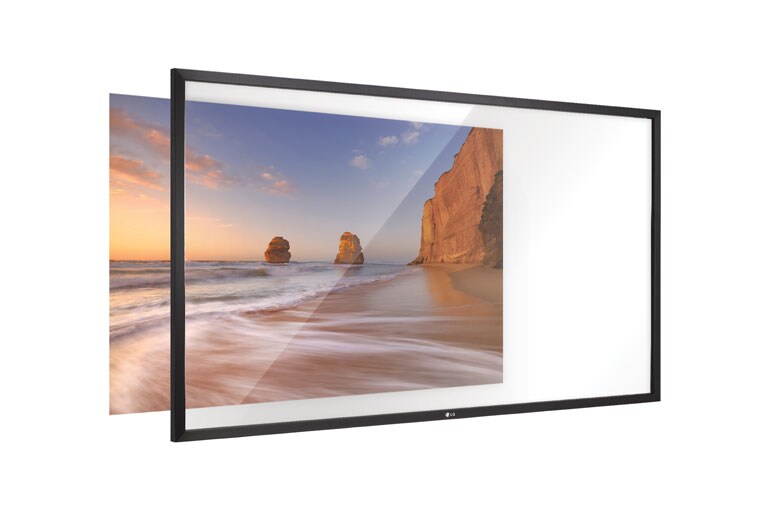

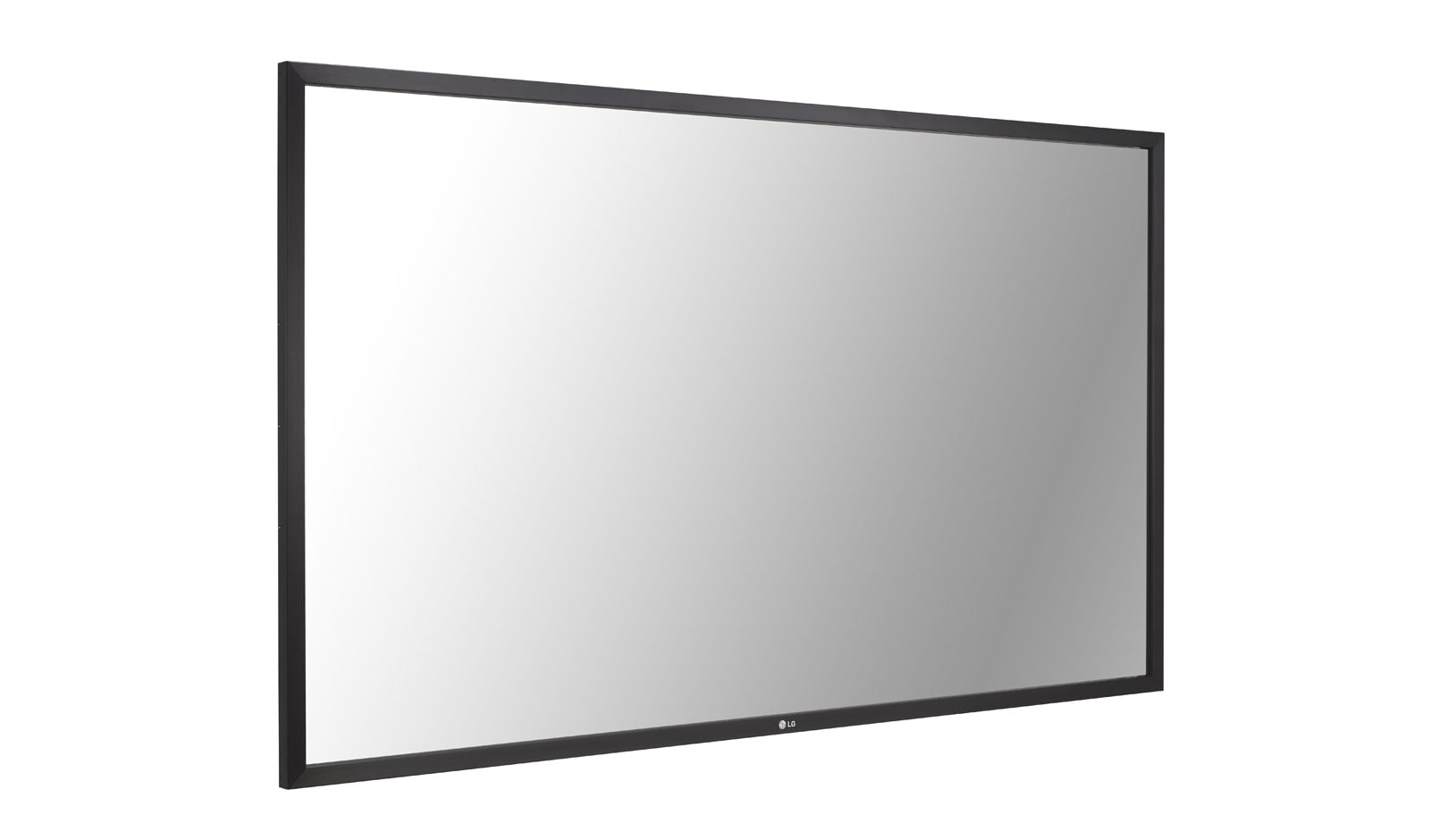

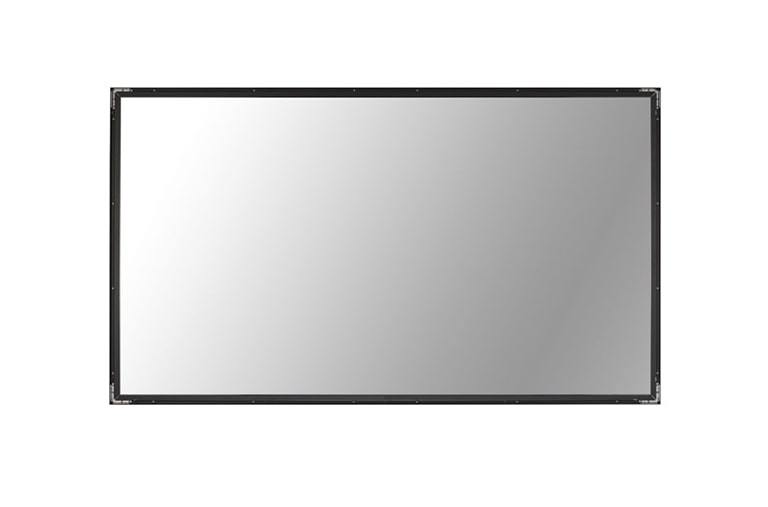

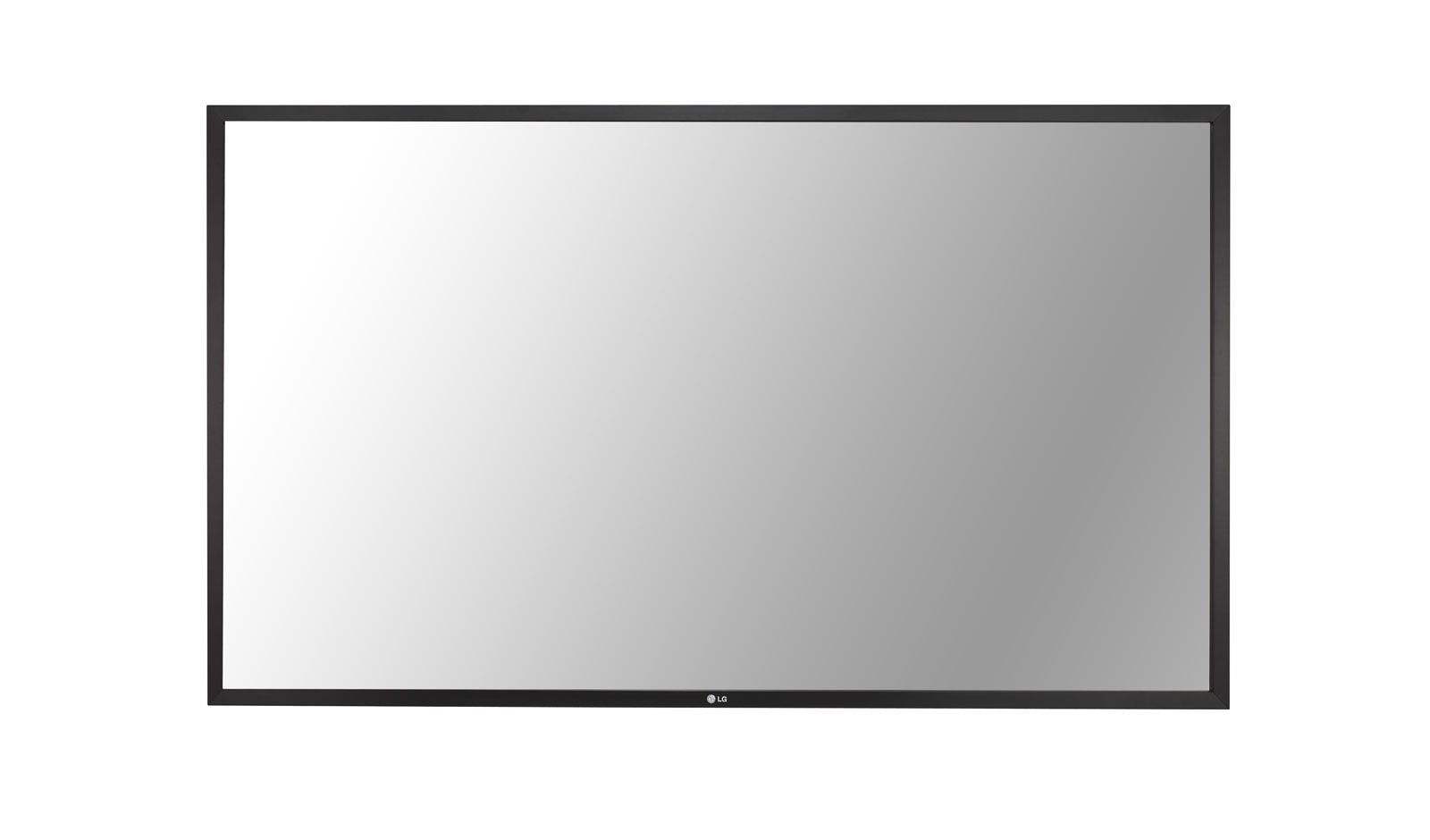

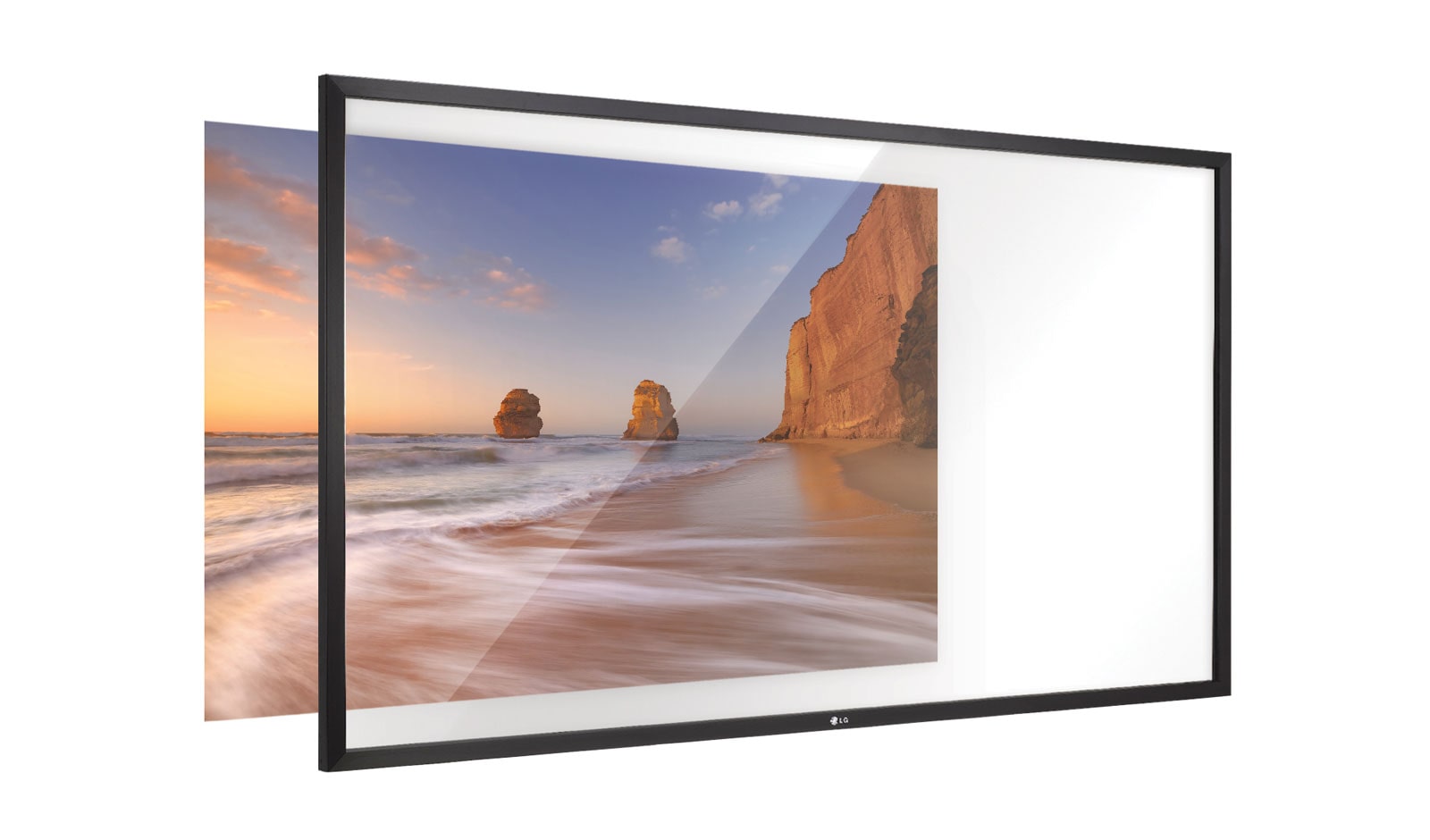

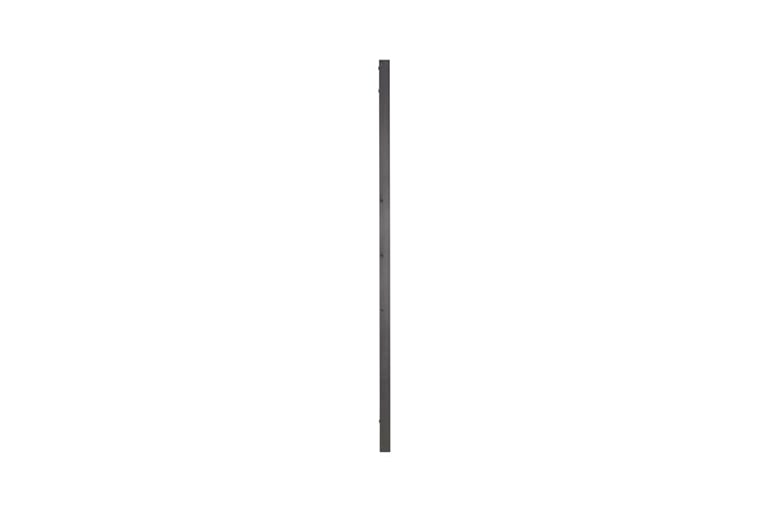

Touch Overlay Kit
Screen Size
75” (189cm)
Brightness
N/A (Max 20% brightness reduction with protection glass)
Orientation
Portrait and Landscape
Compatible Products
UH5C, UM5C
USB
Yes
Bezel Width
32.0mm
Overlay Dimension (W x H x D)
1715 x 1050.7 x 138.6 mm
Weight (head)
22.7kg
Carton Dimensions (W x H x D)
1,854 x 1,116 x 209 mm
Packed Weight
30.7kg
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 85%
Power Supply
USB
Power Consumption (Max)
1.8 W
Basic
Manual (Overlay), CD (Writing S/W), Pen (2), Tray, Install accessories
Touch type
IR (Infrared) Rays Spread
Available object size for touch
Ø 8 mm
Scan Time
10ms (1point) - 30ms (10points)
Accuracy
1 mm
Interface
USB 2.0
Protection Glass Thickness
3.2T (Anti-Glare)
Protection Glass Transmission
85 +- 5%
Operating System Support
Windows 7/8/8.1/10, Mac OSX (10.7 or later), Android
Multi Touch Point
Max 10 points
Touch Resolution
1,428 x 803
To access more technical documentation and resources, please visit the LG B2B partner portal.
