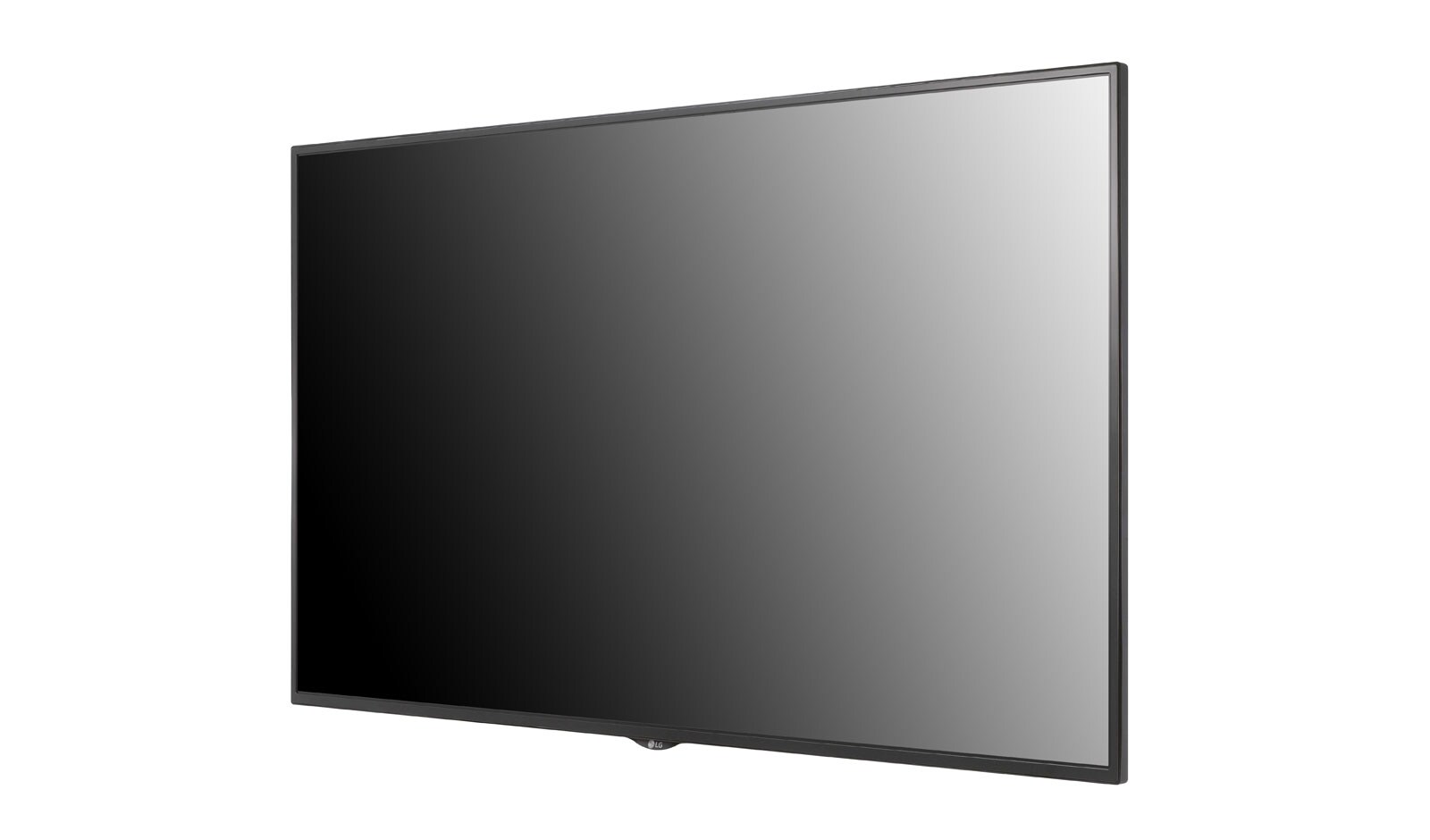

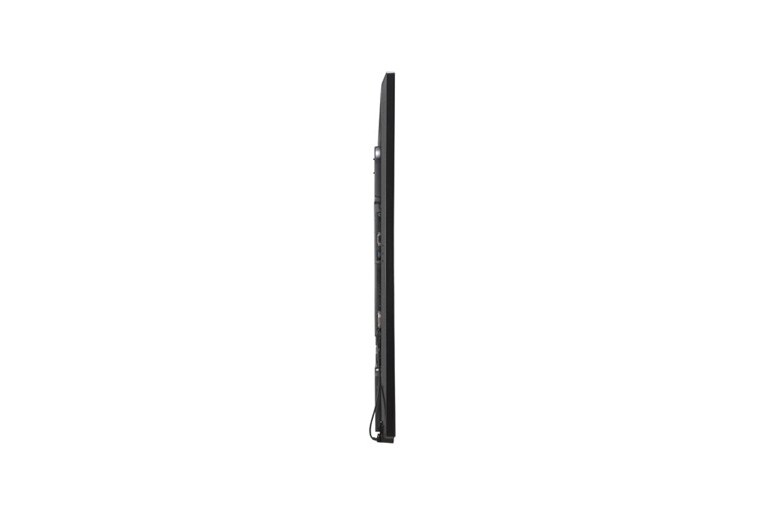

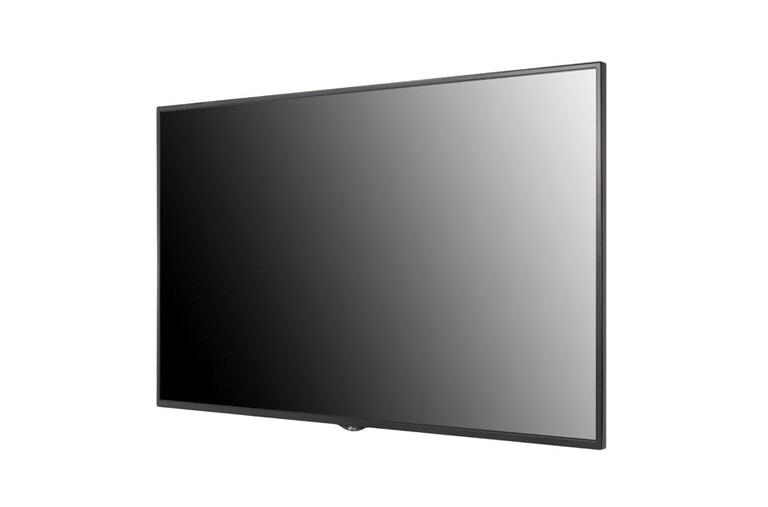

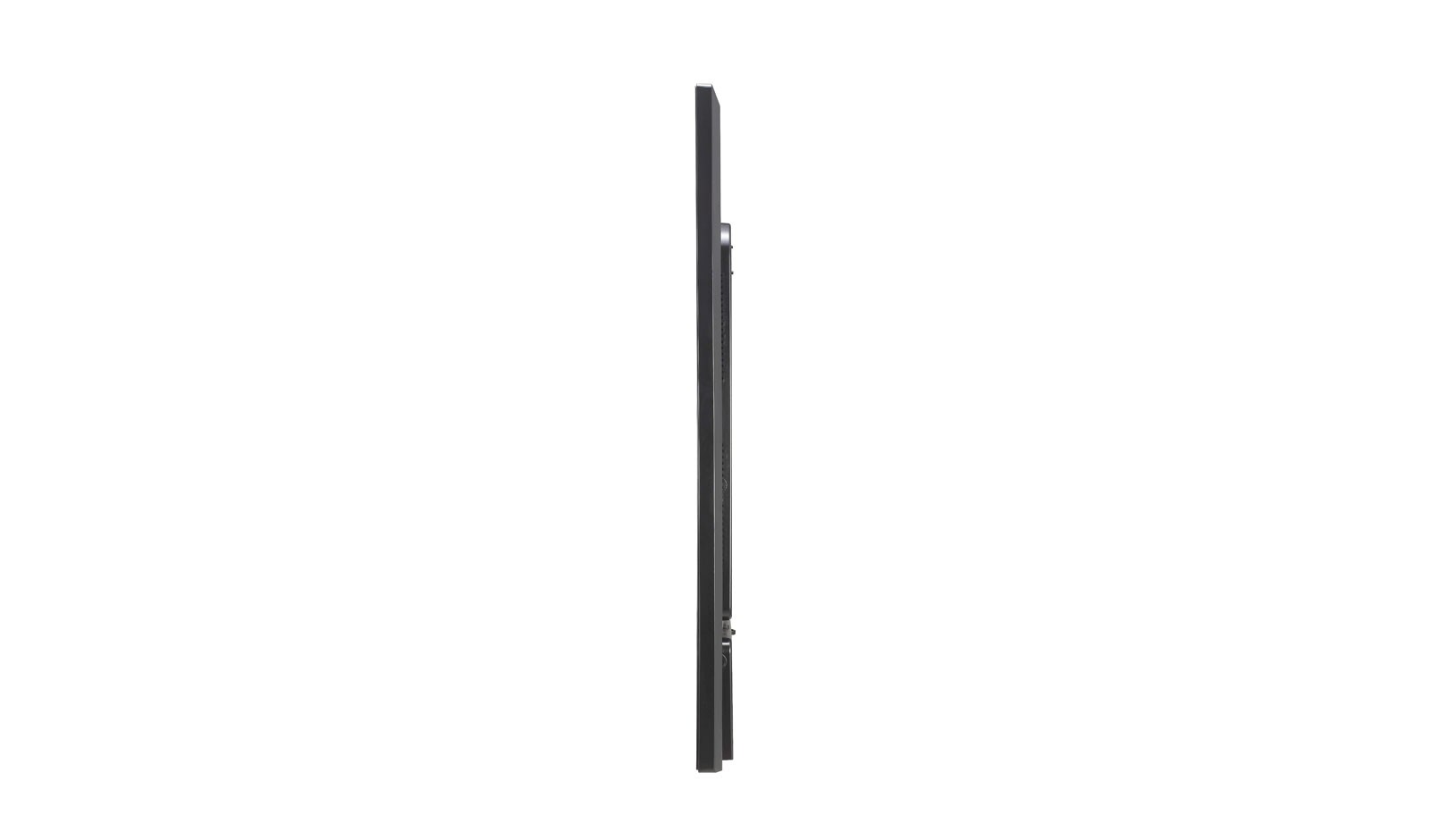

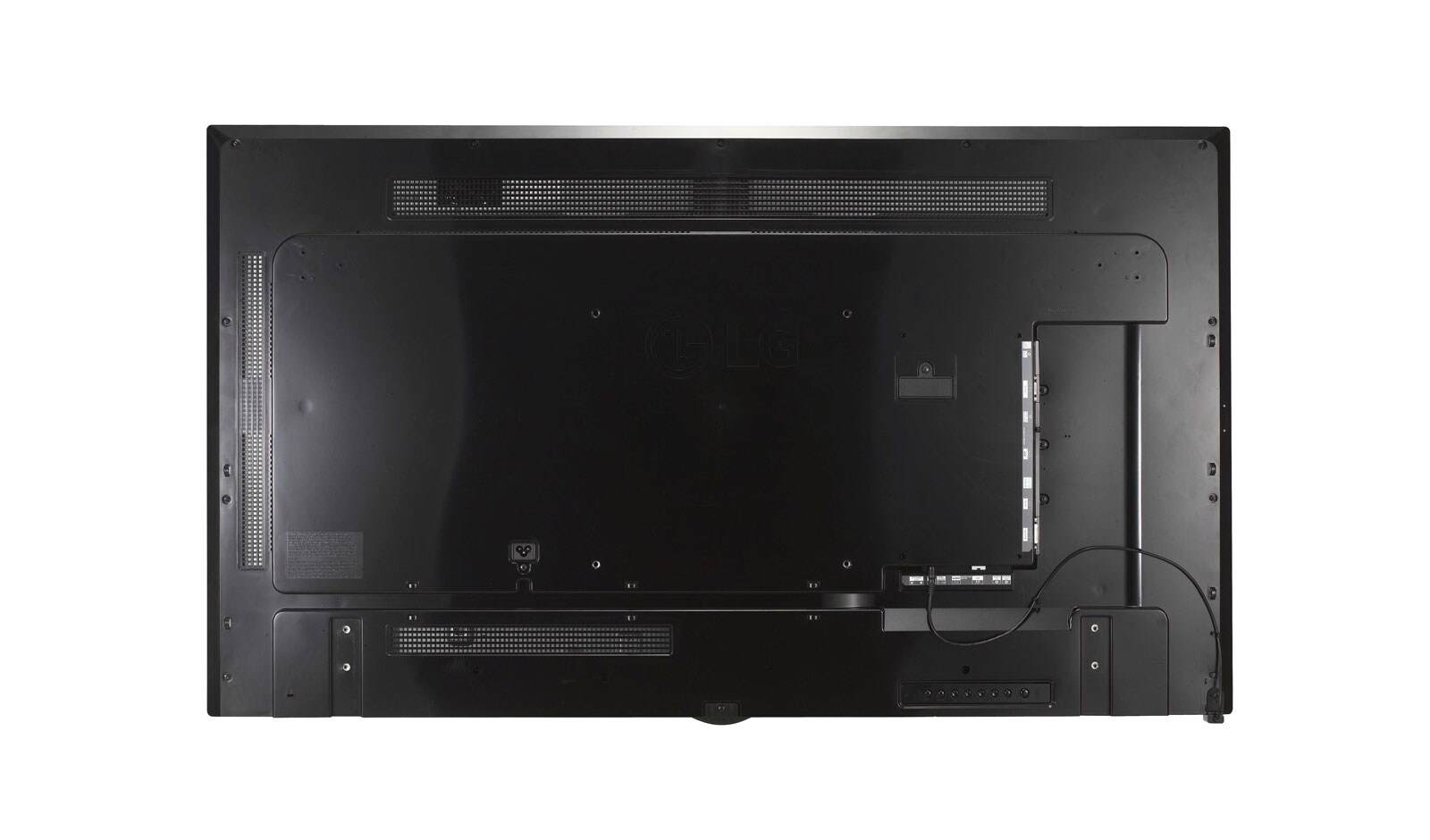

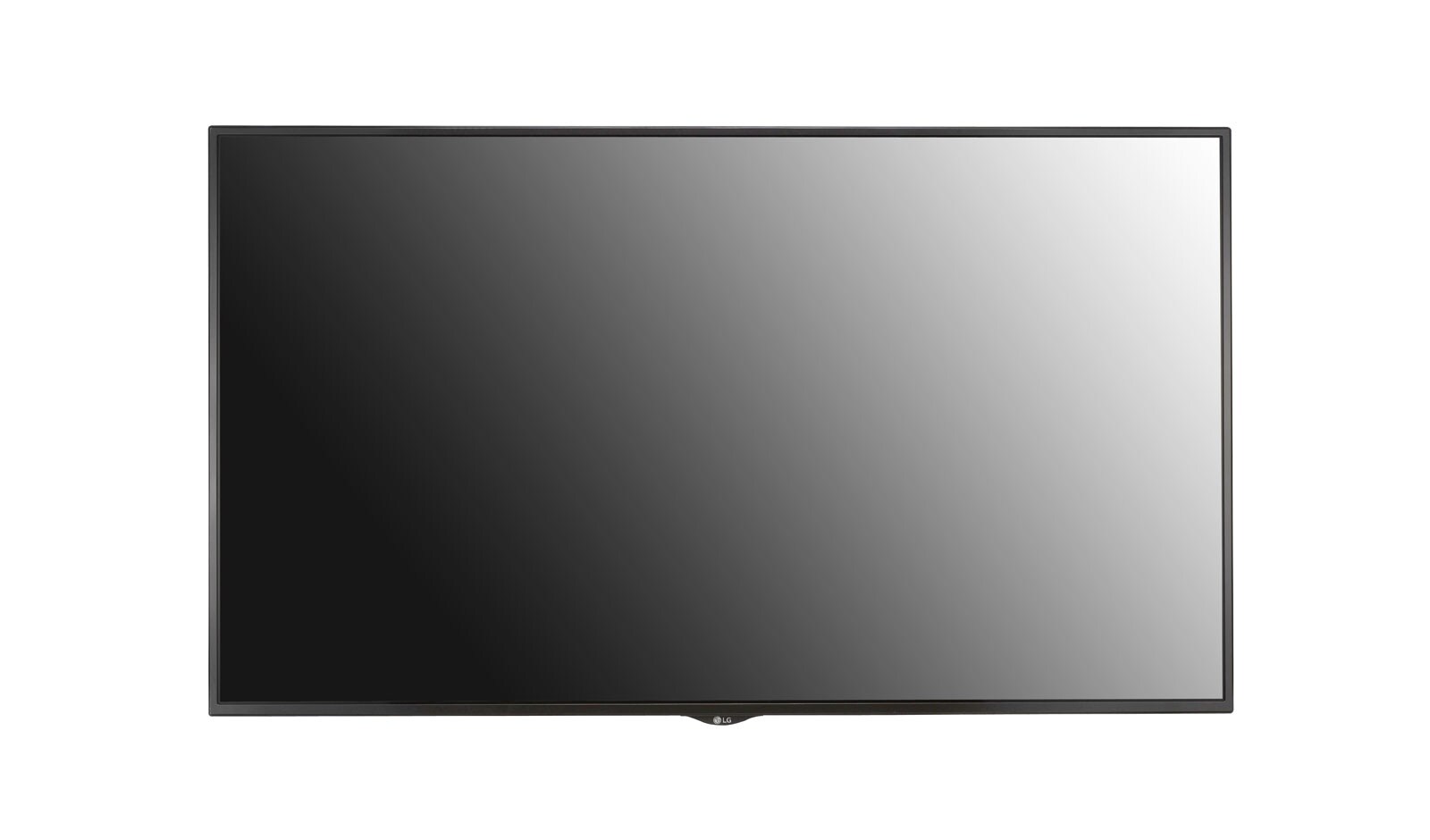

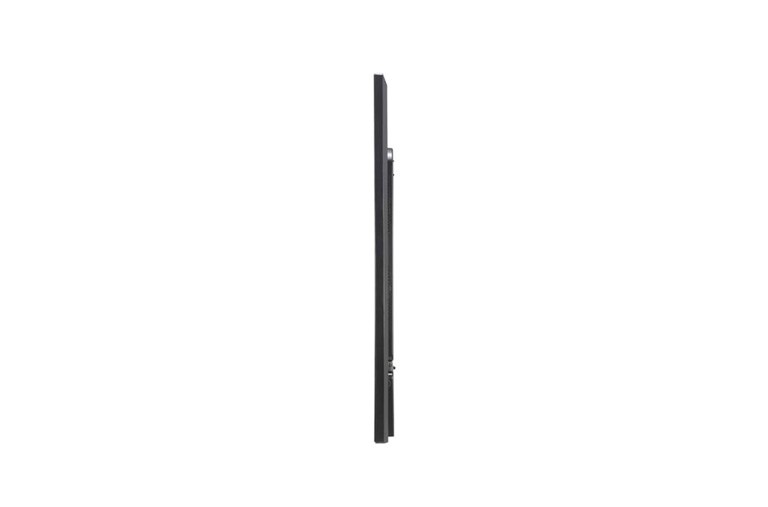

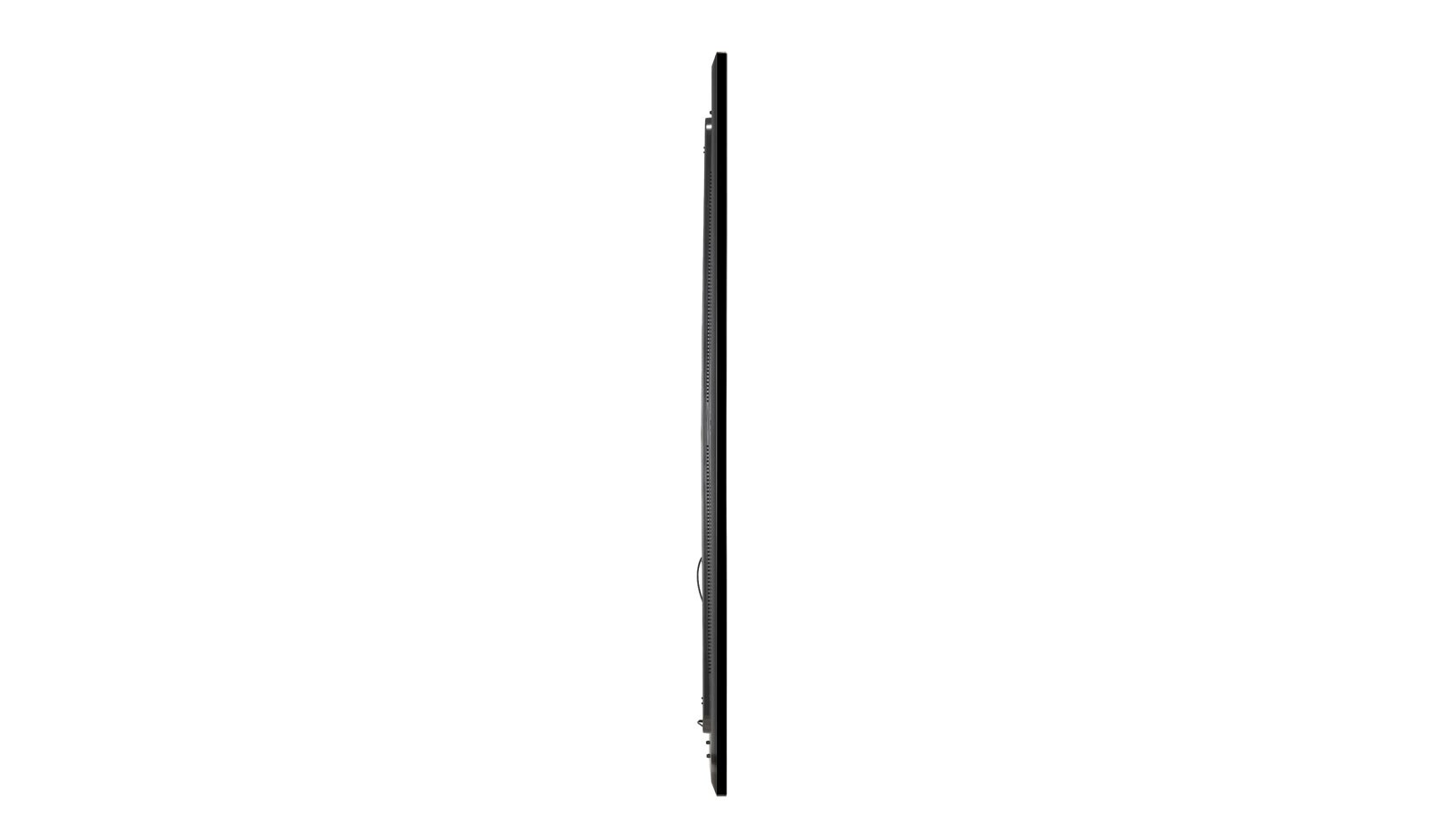

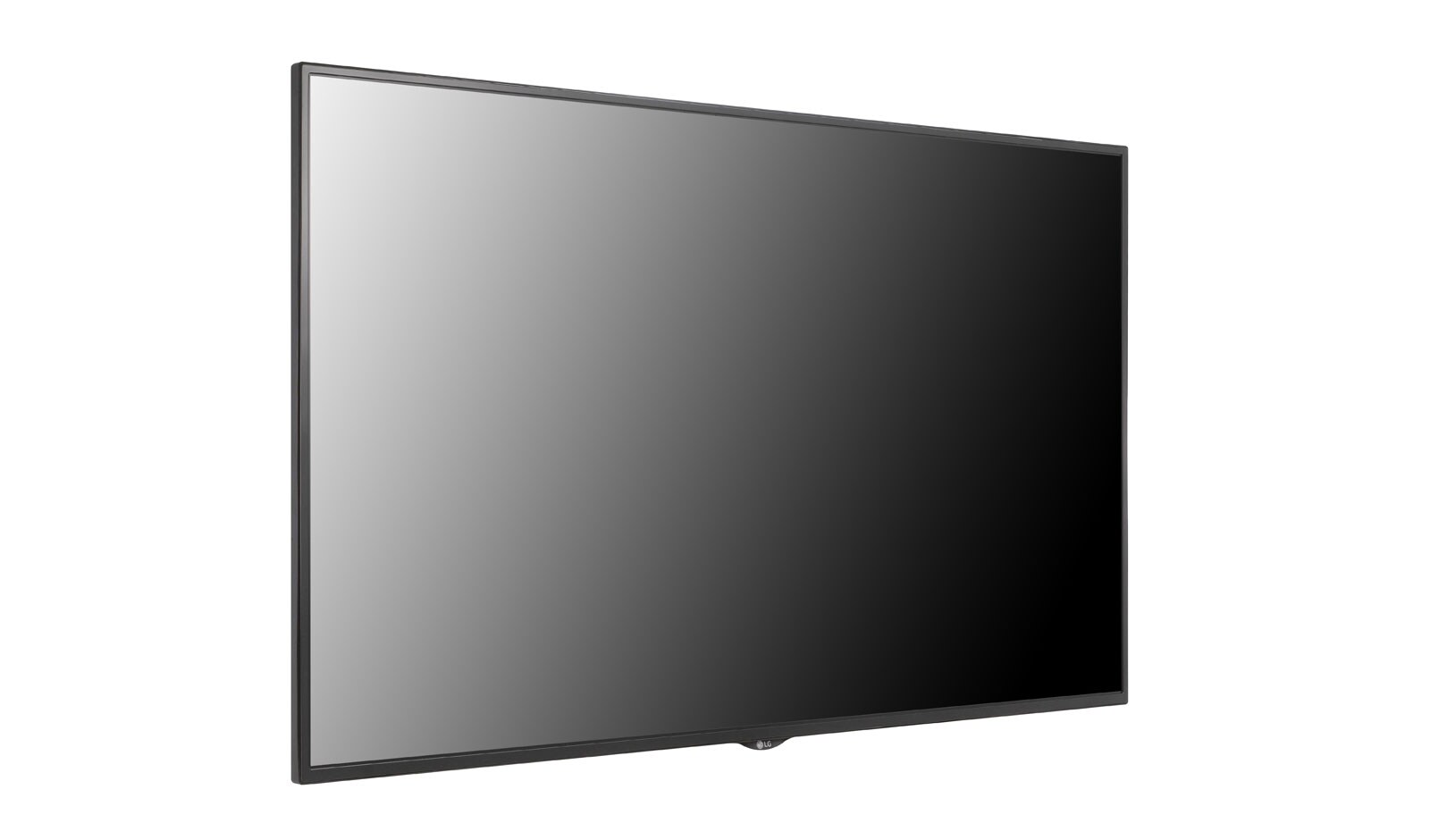

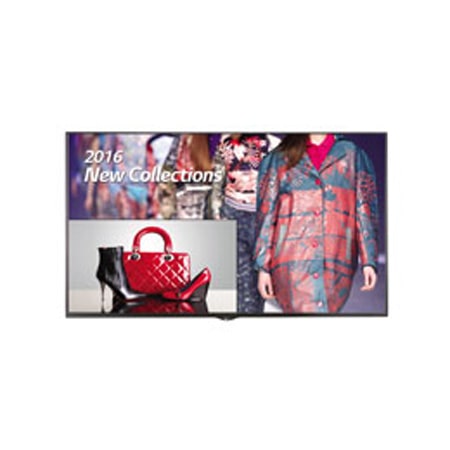

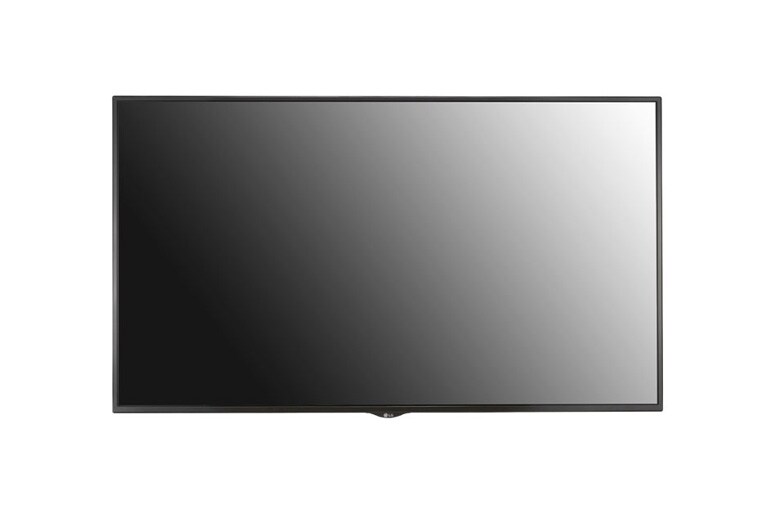

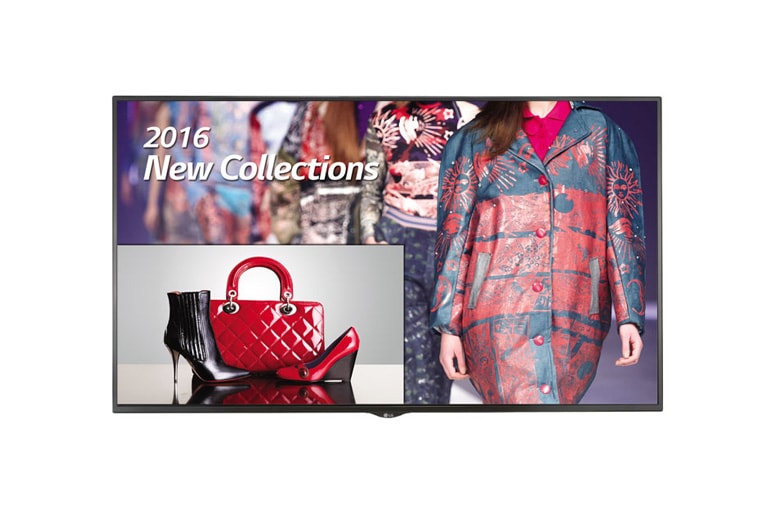

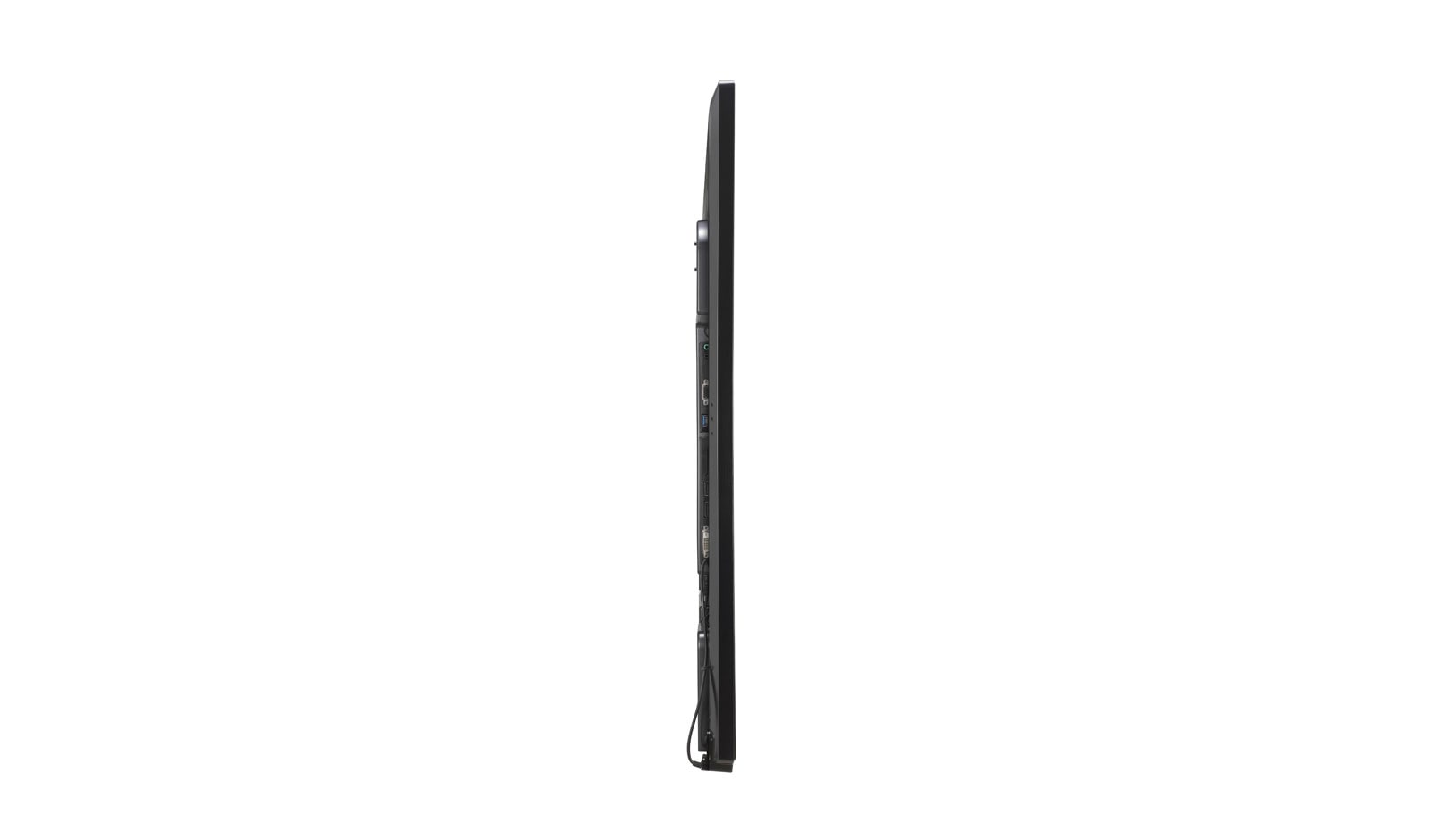

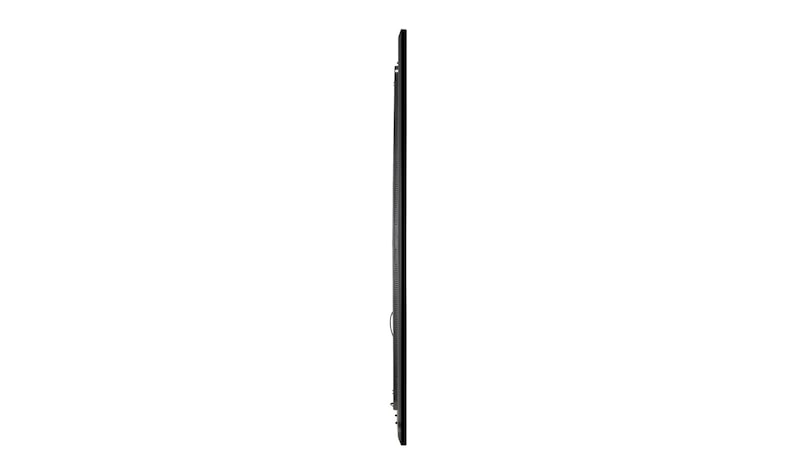

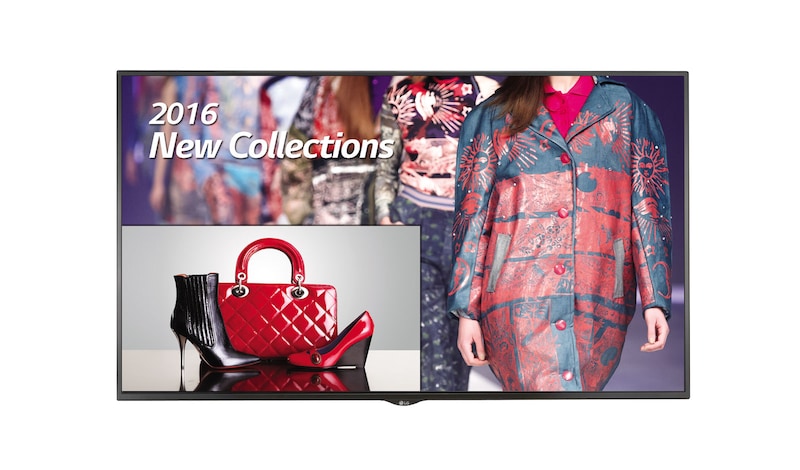

65" 500 nits UHD Signage
All Spec
PANEL
Screen Size
65” (164 cm)
Panel Technology
IPS
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Brightness
500 cd/m²
Contrast Ratio
1,000:1
Viewing Angle (H x V)
178 ° x 178 °
Guaranteed Operating Hour
24 hrs / 7 days
CONNECTIVITY
Input
HDMI, DP, DVI-D, Audio,USB 3.0, SD Card
Output
DP, Audio
External Control
RS232C, RJ45, IR Receiver,Pixel Sensor
PHYSICAL SPECIFICATION
Bezel Width
12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Monitor Dimension(W x H x D)
1,458.6 x 848.9 x 40.1 mm
Weight (Head)
26 kg
Carton Dimensions(W × H × D)
1,561 x 971 x 190 mm
Packed Weight
32.5 kg
VESA™ Standard Mount Interface
300 x 300 mm
ENVIRONMENT CONDITION
Operation Temperature
0˚C to 40˚C
Operation Humidity
10 % to 80 %
POWER
Power Supply
100-240V~, 50/60Hz
Power Consumption (Typical)
134W
Power Consumption (Smart Energy Saving)
90W
STANDARD(CERTIFICATION)
Safety
AS/NZS 60950, CB Scheme
EMC
AS/NZS CISPR32, RCM (Class A)
ErP / Energy Star
Yes (EU Only) / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
External Media Player Attachable
Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
SuperSign Premium
Yes
SuperSign C
Yes
ACCESSORY
Basic
Remote Controller (include battery 2 ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Memory Cover
Optional
Speaker (SP-5200), Stand ( ST- 651T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AMB330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)
