LSCB Series
LG Ultra Slim LED Signage

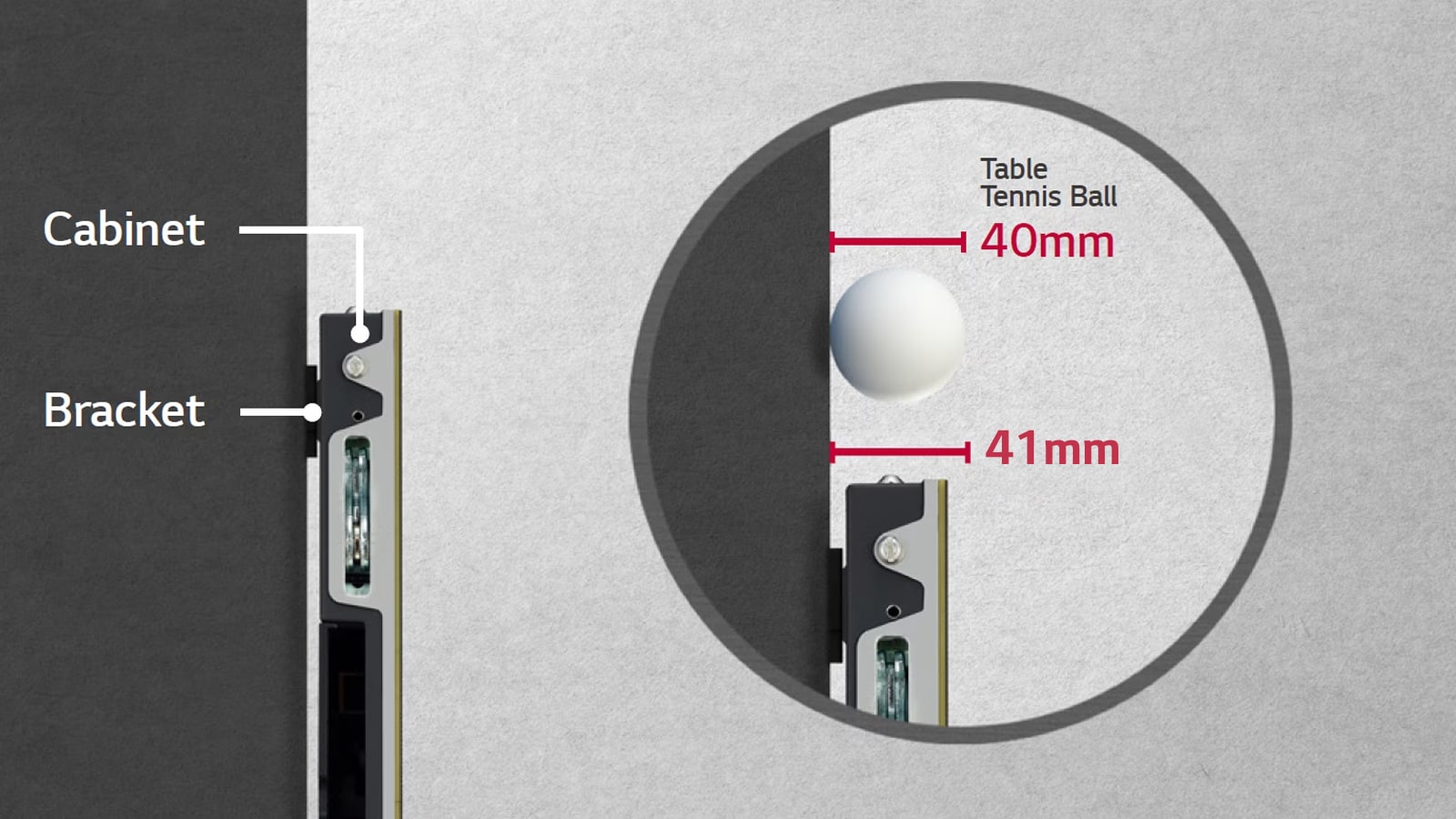

Ultra Slim Depth
90° Corner Design Available
Model name
LSCB012-CKF
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.25
Module Resolution (WxH)
240x135
Module Dimensions(WxH,mm)
300x168.75
Weight per Module (kg)
0.37
No. of Modules per Cabinet (WxH)
1x2
Cabinet Resolution (WxH)
240x270
Cabinet Dimensions (W x H x D, mm)
300x337.5x58 (Cabinet Mounting depth changes for different curve)
Cabinet Surface Area (㎡)
0.1
Weight per Cabinet (kg/unit)
2.6 (Weight changes for different curve)
Weight per Square Meter (kg/㎡)
25.78
Physical Pixel Density (pixels/㎡)
640,000
Flatness of Cabinet (mm)
±0.1
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
800
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
75
Power Consumption (W/Cabinet, Avg.)
25
Power Consumption (W/㎡, Max.)
740
Heat Dissipation (BTU/h/Cabinet, Max.)
256
Heat Dissipation (BTU/h/Cabinet, Avg.)
85
Heat Dissipation (BTU/h/㎡, Max.)
2,528
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0~80%RH
IP rating Front
IP30
IP rating Rear
IP30
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, ETL, EMC Class-B, BS476 Part7 Class1, EN13501-1
Environment
RoHS, REACH
Controller
CVCA
90 degree corner cut
O
