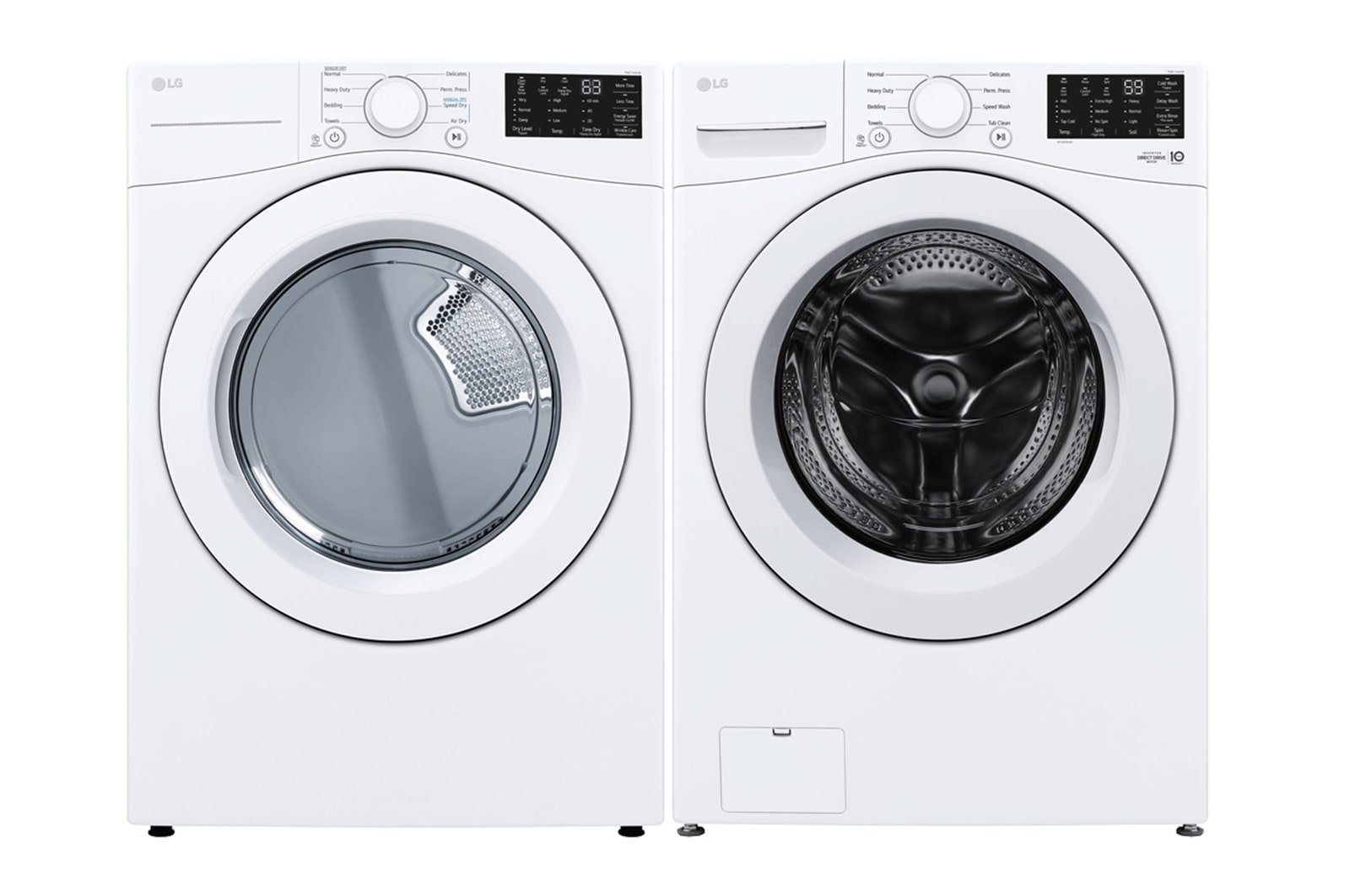

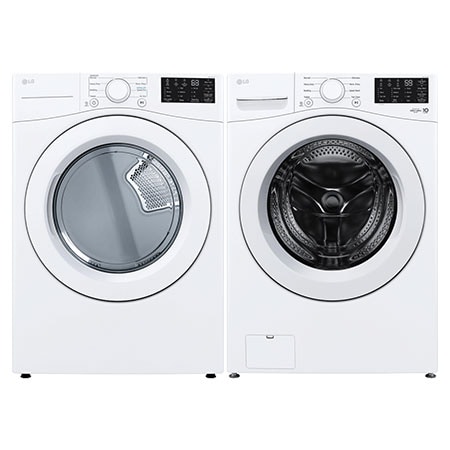

5.8 cu.ft and 7.4 cu.ft Mega Capacity Front Load Washer and Dryer

Support

5.8 cu.ft and 7.4 cu.ft Mega Capacity Front Load Washer and Dryer

WD3470CW

()

Key Features

GO BIG TO SAVE TIME AND GET MORE DONE
COUNT ON QUIET, EFFICIENT PERFORMANCE
SMOOTH SURFACE HELPS PREVENT SNAGS
Smart Diagnosis™
ENERGY STAR^® Certified

DLE3470W

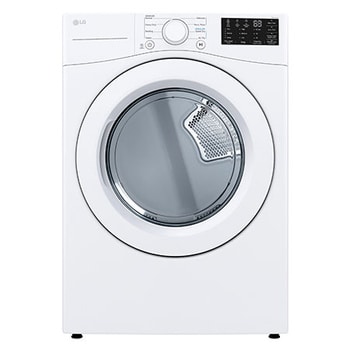

7.4 cu.ft Ultra capacity Front Load Dryer with Sensor Dry

WM3470CW

5.8 cu.ft Mega Capacity Front Load Washer with 6Motion™ Technology

GO BIG TO SAVE TIME AND GET MORE DONE

Say never again to never-ending piles of laundry—this mega capacity washer fits more clothes in every load and helps you power through laundry day in less time. With 5.8 cu. ft. capacity, you can fit a king-size comforter and more in a single load,

COUNT ON QUIET, EFFICIENT PERFORMANCE

Backed by a 10-year limited warranty, the LG Direct Drive Motor delivers peace of mind with every load. Fewer moving parts means less noise and vibration, greater stability and durable performance you can depend on for years to come.

SMOOTH SURFACE HELPS PREVENT SNAGS

Unlike drums made from porcelain or plastic, the LG NeveRust stainless steel drum avoids the chips and nicks that can snag fabrics and ruin clothing.

Smart Diagnosis™

Troubleshoot issues 24/7 through Smart Diagnosis™. In the event of a problem, your phone will identify error codes that will help LG customer service assist you. LG Smart Diagnosis™ System allows you to directly report an issue to the service center so it can be resolved quickly - providing comfort and reliability.

ENERGY STAR® Certified

LG washers are ENERGY STAR^® rated, meaning they use less energy than current federal standards.

Mega Capacity - Go Big To Save Time And Get More Done

Say never again to never-ending piles of laundry—this mega capacity washer is one of the largest top load in its class* to fit more clothes in every load and help you power through laundry day in less time. How big is 6.3 cu. ft.? Big enough to fit a king-size comforter and a full set of bedding in a single load, for big time savings every week.

Sensor Dry

LG’s Sensor Dry System measures the moisture and humidity levels during the cycle and automatically adjusts the drying time to ensure you get perfectly dried laundry every time.

Keep Clothes Wrinkle Free

Always forgetting to remove your laundry? No problem. Choosing the Wrinkle Care option periodically tumbles your laundry to keep clothes wrinkle free.

FlowSense® Duct Clogging Indicator

Know when it's time to clean the ducts to ensure great drying & lower utility bills.

7.4 cu.ft Ultra capacity Front Load Dryer with Sensor Dry
5.8 cu.ft Mega Capacity Front Load Washer with 6Motion™ Technology

SUMMARY

Dimension (mm)

Key Spec

Body Color: White

Dimensions (WxHxD inch): 27 x 38 11/16 x 31 3/8

DUAL Inverter HeatPump: No

Auto Cleaning Condenser: No

Heat Source Type: Electric Heater

Reversible Door: Yes

Smart Pairing: No

ThinQ(Wi-Fi): No

All Spec

SMART TECHNOLOGY

Download Cycle: No

Smart Pairing: No

Energy Monitoring: No

Proactive Customer Care: No

Remote Start and Cycle Monitor: No

Smart Diagnosis: Yes

ThinQ(Wi-Fi): No

Voice Control (3rd party device): No

ADDITIONAL OPTIONS

Dry Mode: No

Condenser Care: No

Control Lock: Yes

Custom PGM: No

Damp Dry Signal: Yes

Drum Care: No

Drum Light: No

Dry Level: 5 Levels

Easy Iron: No

Energy Saver: Yes

Less Time: Yes

More Time: Yes

Rack Dry: No

Reduce Static: No

Remote Start: No

Signal: Yes

Steam: No

Temp.: 3 Levels

Time Dry: Yes

TurboSteam: No

Wi-Fi: No

Wrinkle Care: Yes

BAR CODE

Bar Code: 195174056455

CONTROL & DISPLAY

Display Type: Dial + Touch LED

Delay Timer: 1-19 hours

Door Lock Indication: No

Timer Display: 88

DIMENSIONS & WEIGHTS

Carton Dimensions (WxHxD inch): 28 31/32 x 43 3/16 x 31 27/64

Dimensions (WxHxD inch): 27 x 38 11/16 x 31 3/8

Product Depth with door open 90˚ (inch): 51

Weight include packing (lbs): 121.7

Weight (lbs): 117.3

ENERGY

ENERGY STAR® Qualified: Yes

CEF: 3.94

ENERGY STAR® Most Efficient: Yes

FEATURES

Type: Vented Dryer

3 Minute Installation Check: Yes

6 Motion DD: No

ADA Compliant: No

AI DD: No

AI Sensor Dry: No

Auto Cleaning Condenser: No

Auto Restart: No

Drum Light: No

DUAL Inverter HeatPump: No

Dual Lint Filter: No

EasyLoad Door: No

Embossing Inner Drum: No

End of Cycle Signal: Yes

FlowSense Duct Clogging Indicator: Yes

Heat Source Type: Electric Heater

Inverter DirectDrive: No

Inverter Motor: No

Leveling Legs: Yes

LoadSense: No

NeveRust Stainless Steel Drum (drum side): No

Reversible Door: Yes

Sensor Dry: Yes

SteamFresh: No

TrueSteam: No

TurboSteam: No

Venting Option: 4 Way Venting

MATERIAL & FINISH

Body Color: White

Door Type: Round Door (No Cover)

Drum Back: Painted Steel

Drum Side: Alcosta

OPTIONS/ACCESSORIES

Matching Pedestal: WDP6W

POWER SOURCE

Electrical Requirements: 115/230V, 60Hz, 24A

PROGRAMS

AI Dry: No

Air Dry: Yes

Antibacterial: No

Bedding: Yes

Delicates: Yes

Downloaded: No

Freshen Up: No

Heated Dry: No

Heavy Duty: Yes

Jumbo Dry: No

Normal: Yes

Perm. Press: Yes

Power Dry: No

Rack Dry: No

Small Load: No

Speed Dry: Yes

Sportswear: No

Steam Fresh: No

Steam Sanitary: No

Super Dry: No

Towels: Yes

Key Spec

Dimensions (WxHxD inch): 27 x 39 x 33 1/8

ezDispense: No

Steam: No

ThinQ(Wi-Fi): No

All Spec

MATERIAL & FINISH

Body Color: White

Door Type: Round Door (No Cover)

CONTROL & DISPLAY

Display Type: Dial + Touch LED

Delay Timer: 3-19 hours

Door Lock Indication: Yes

Timer Display: 88

CAPACITY

Capacity(cu.ft): 5.8

FEATURES

Type: Front Load Washer

6 Motion DD: Yes

ADA Compliant: Yes

Add Item: No

AI DD: No

Auto Restart: No

Centum System: No

ColdWash: Yes

Drum Lifter: Stainless Steel Slim Lifter

Drum Light: No

Embossing Inner Drum: Yes

End of Cycle Signal: Yes

ezDispense: No

TurboWash: No

Foam detection system: Yes

Inverter DirectDrive: Yes

Leveling Legs: Yes

LoadSense: Yes

NeveRust Stainless Steel Drum: Yes

Steam: No

TrueBalance Anti-Vibration System: Yes

TurboWash360˚: No

Vibration Sensor: Yes

Water Level: Auto

ADDITIONAL OPTIONS

Add Item: No

ColdWash: Yes

Control Lock: Yes

Delay Wash: Yes

Detergent Level: No

Drum Light: No

Extra Rinse: Yes

Fresh Care: No

Pre-wash: Yes

Remote Start: No

Rinse + Spin: Yes

Signal: Yes

Softener Level: No

Soil: 3 Levels (Light to Heavy)

Spin: 5 Levels

Spin Only: Yes

Steam: No

Temp.: Tap Cold / Cold / Semi Warm / Warm / Hot

Tub Clean: No

TurboWash: No

Wi-Fi: No

ENERGY

ENERGY STAR® Qualified: Yes

ENERGY STAR® Most Efficient: Yes

IMEF: 2.92

IWF: 2.90

POWER SOURCE

Electrical Requirements: 120 V, 60 Hz, 6 A

PROGRAMS

AI Wash: No

Allergiene: No

Baby Wear: No

Bedding: Yes

Bright Whites: No

Bulky/Large: No

Delicates: Yes

Downloaded Cycle: No

Hand Wash/Wool: No

Heavy Duty: Yes

Jumbo Wash: No

Normal: Yes

Perm. Press: Yes

Quick Wash: No

Quick Wash+Dry: No

Quick Wash (Speed Wash): Yes

Refresh: No

Rinse+Spin: No

Sanitary: No

Small Load: No

Spin Only: No

Sportswear(Activewear): No

Steam Refresh: No

Towels: Yes

Tub Clean: Yes

Wash+Dry: No

Whites: No

DIMENSIONS & WEIGHTS

Carton Dimensions (WxHxD inch): 29 x 42 x 33 1/2

Dimensions (WxHxD inch): 27 x 39 x 33 1/8

Product Depth with door open 90˚ (inch): 57 3/4

Weight include packing (lbs): 207.5

Weight (lbs): 191.8

SMART TECHNOLOGY

Download Cycle: No

Energy Monitoring: No

Proactive Customer Care: No

Remote Start and Cycle Monitor: No

Smart Diagnosis: Yes

ThinQ(Wi-Fi): No

Tub Clean Coach: No

Voice Control (3rd party device): No

Smart Pairing: No

OPTIONS/ACCESSORIES

Matching Heat Pump Dryer: NA

Matching Electric Dryer: DLE3470W

Matching Pedestal: WDP6W

Matching Sidekick Pedestal Washer: WD300CW

BAR CODE

Bar Code: 195174048375
