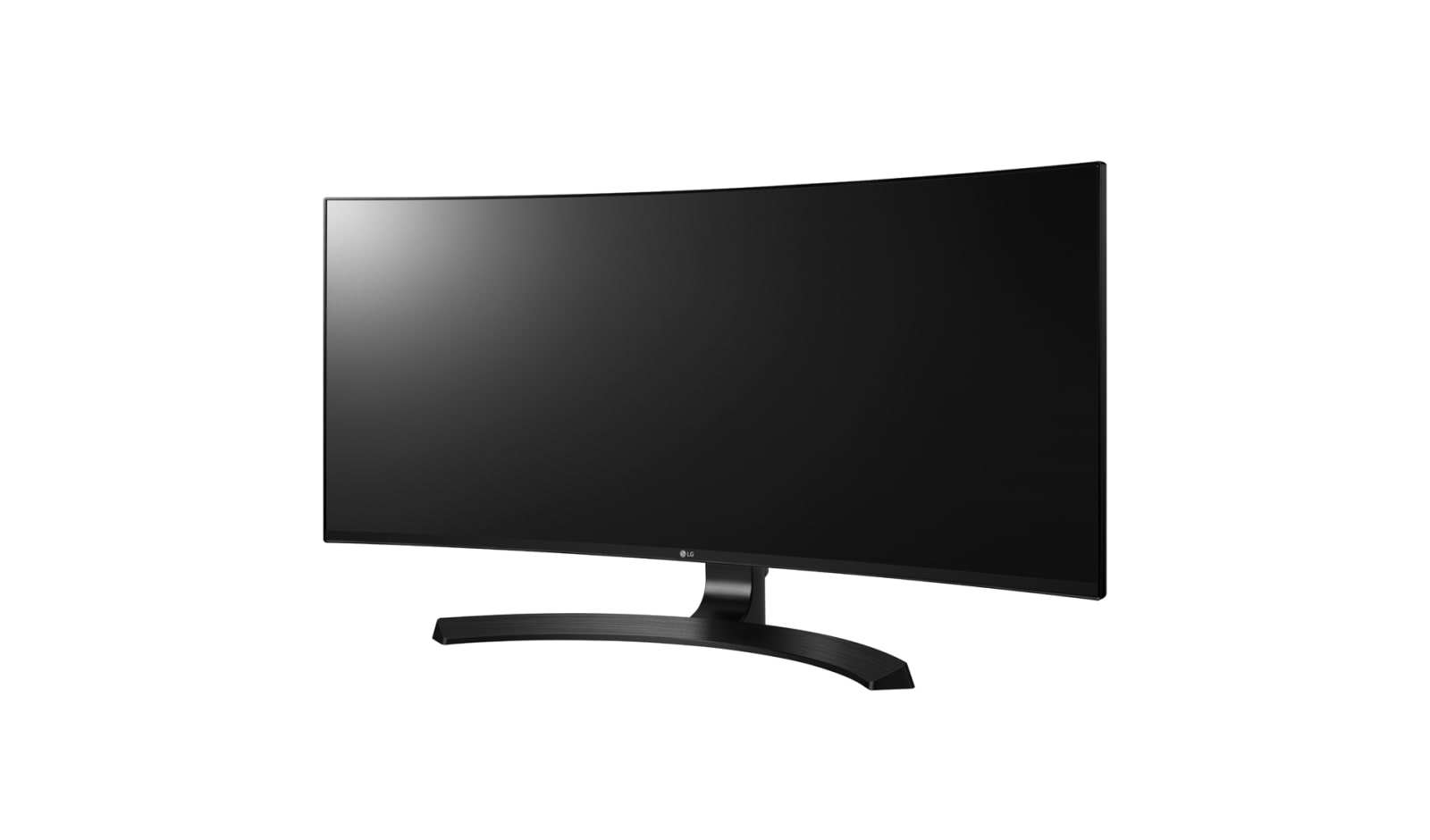

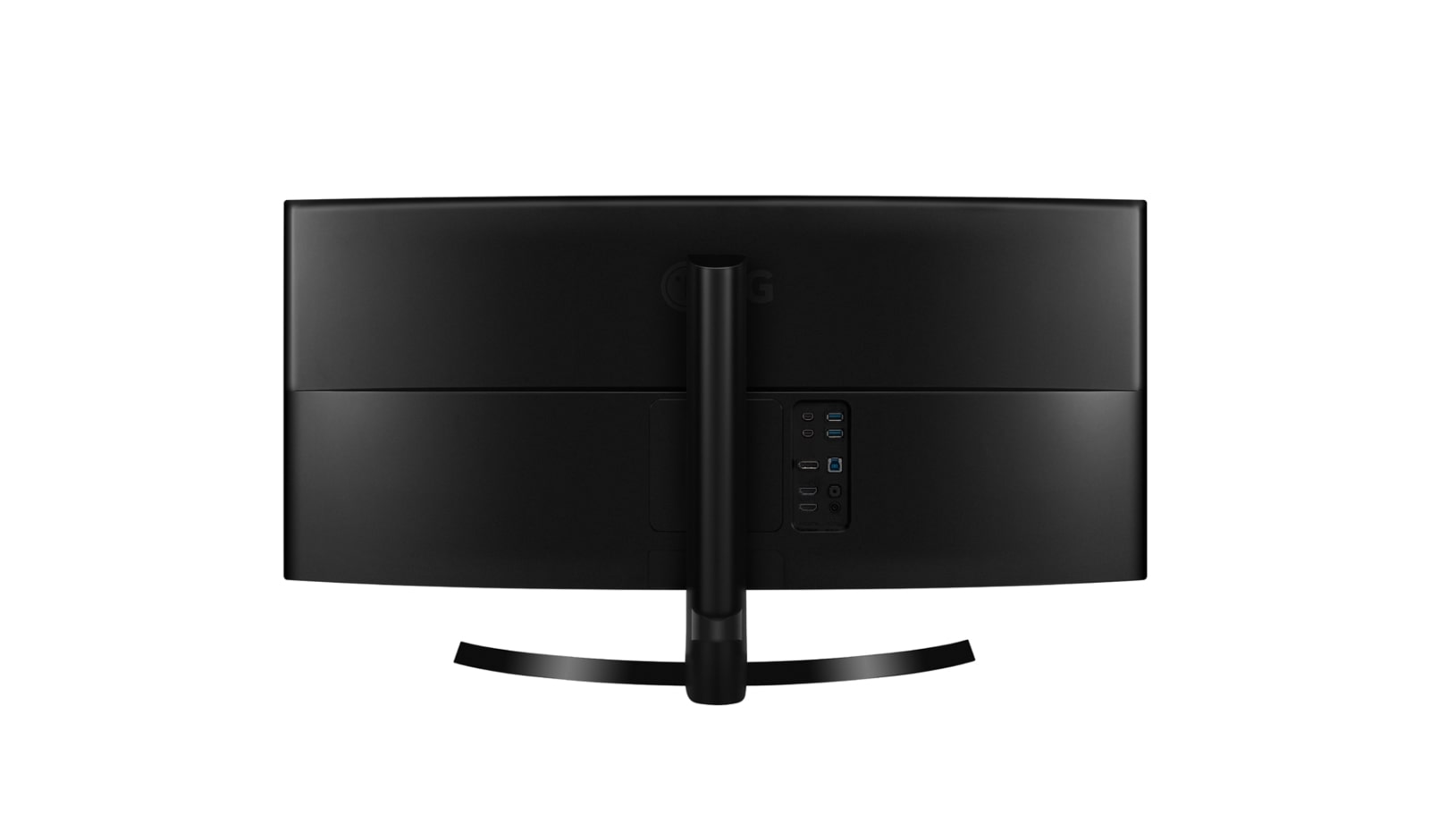

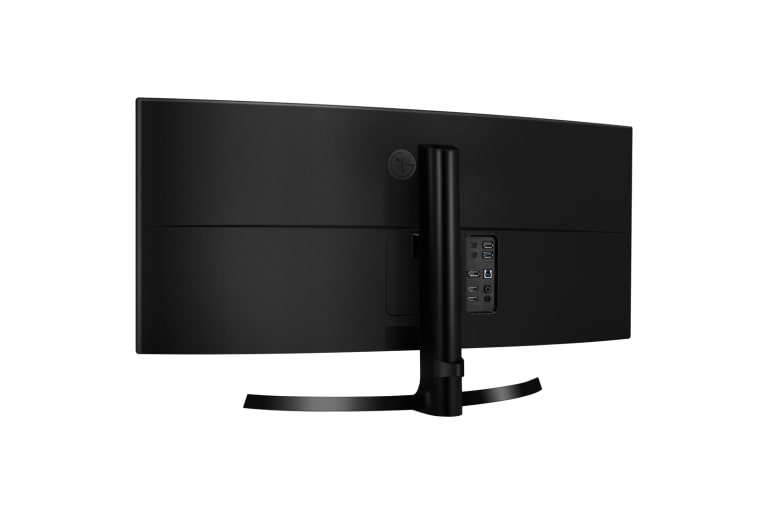

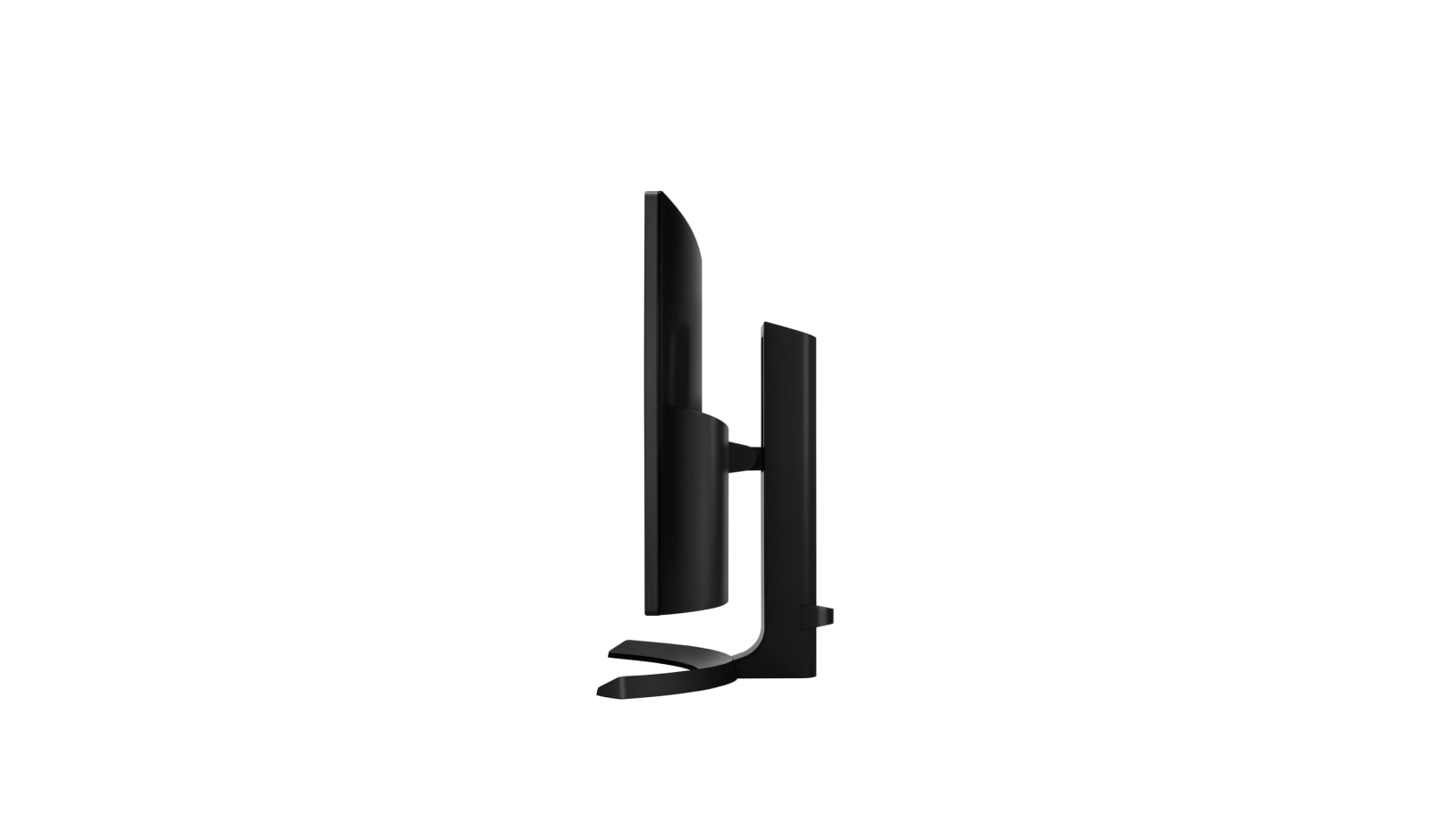

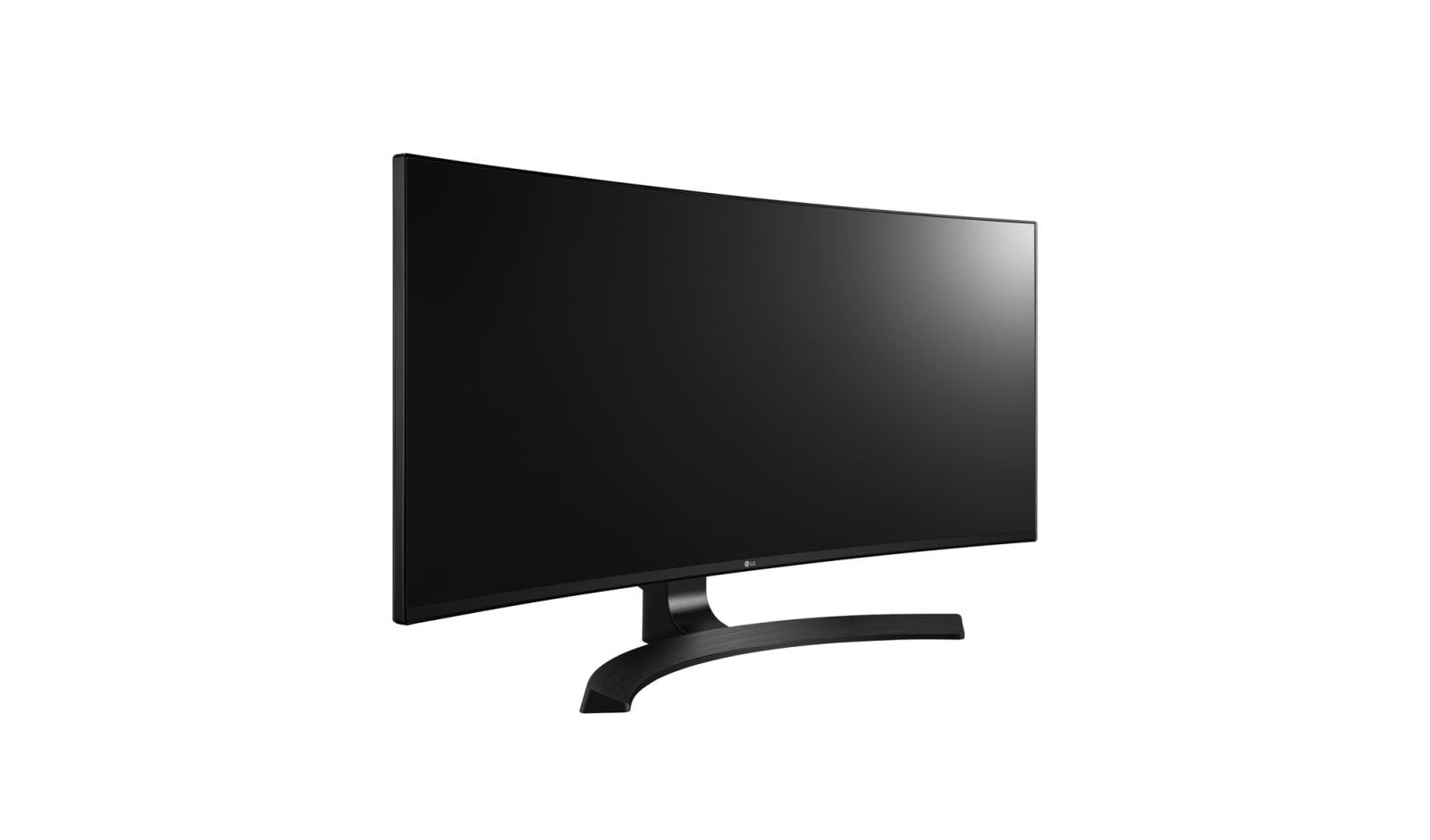

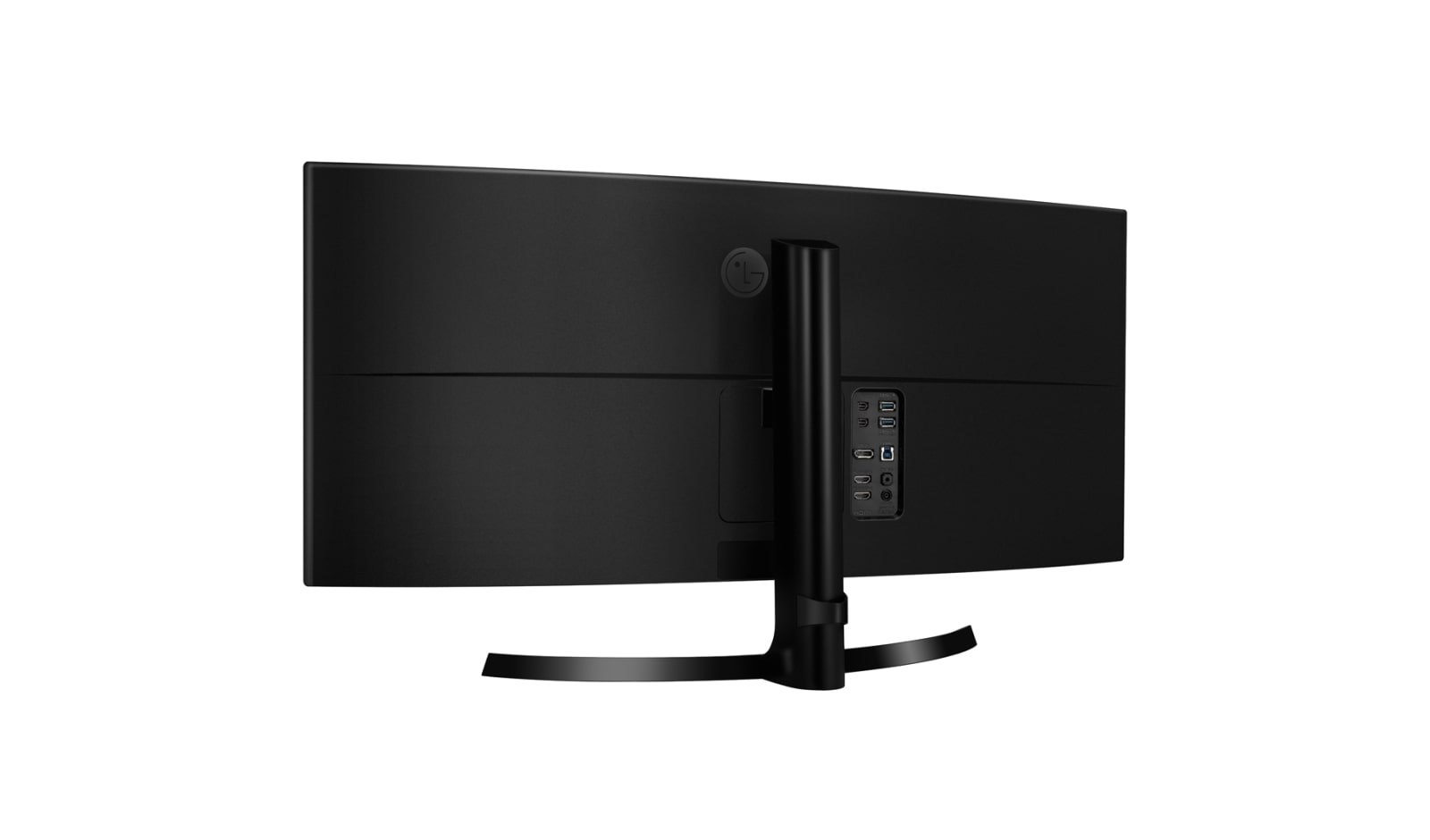

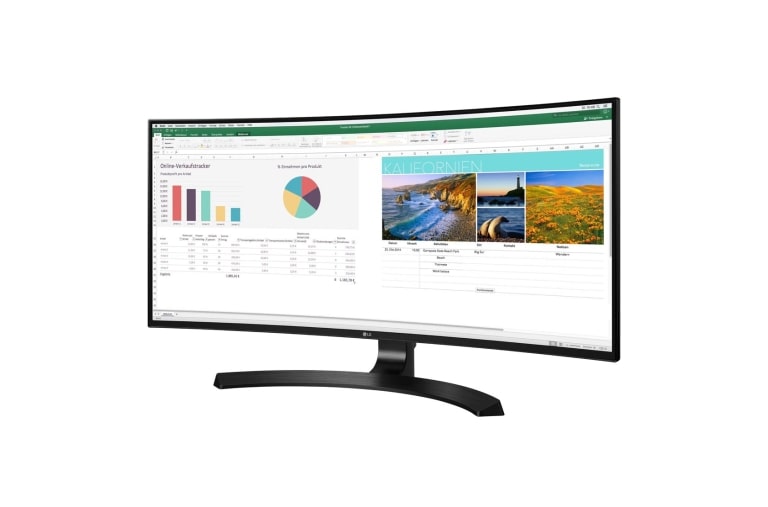

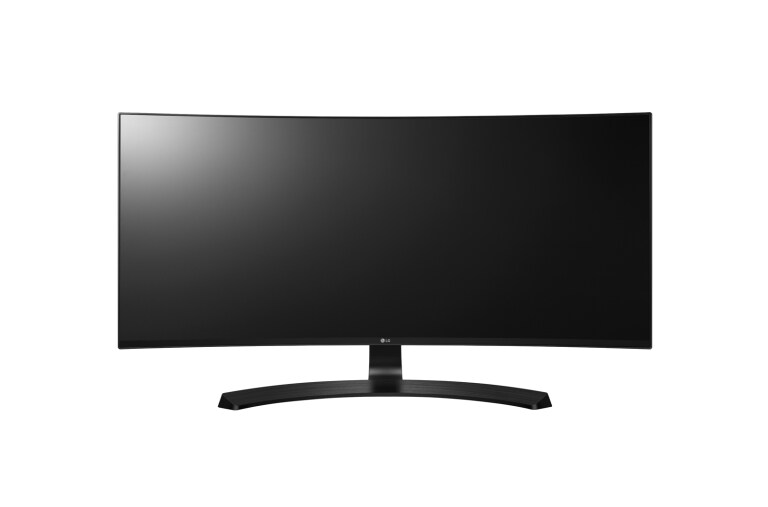

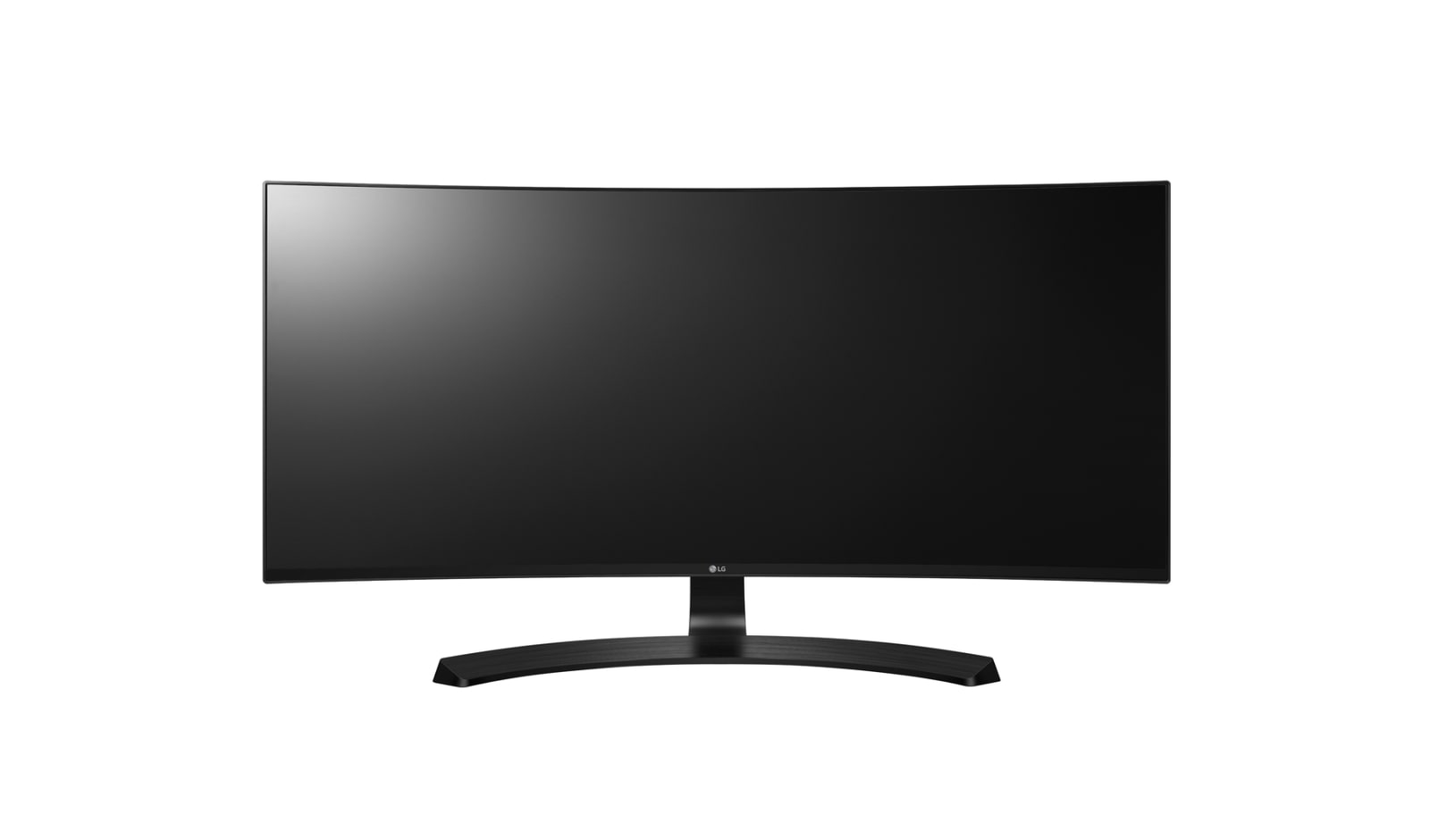

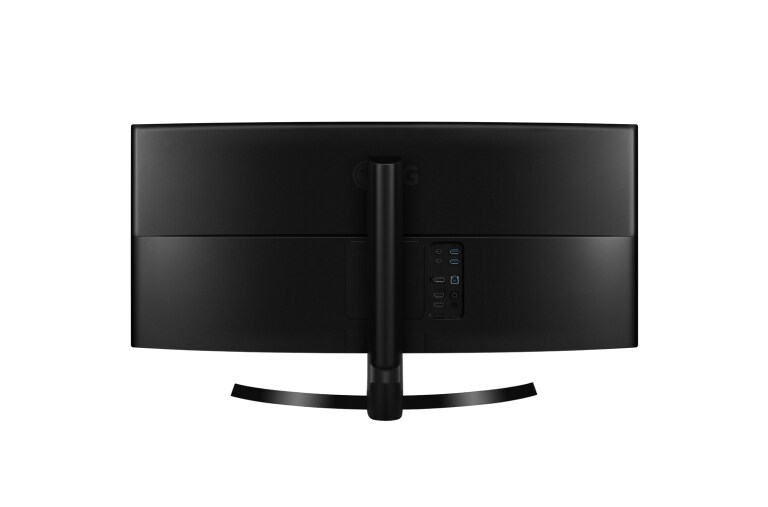

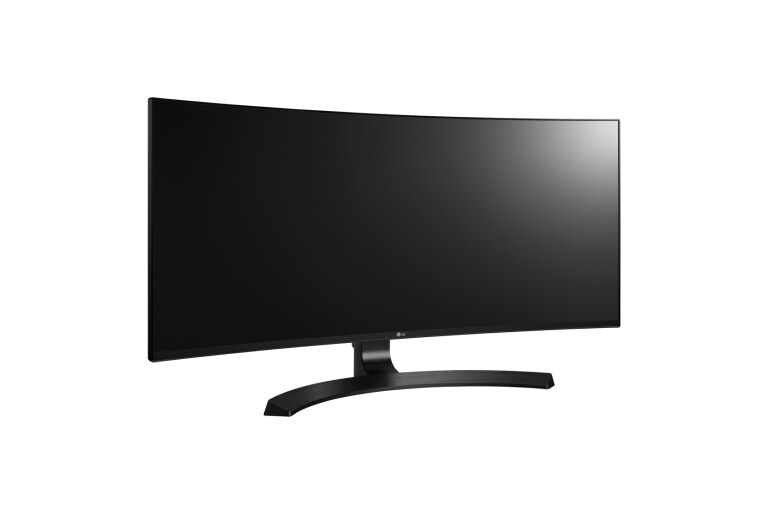

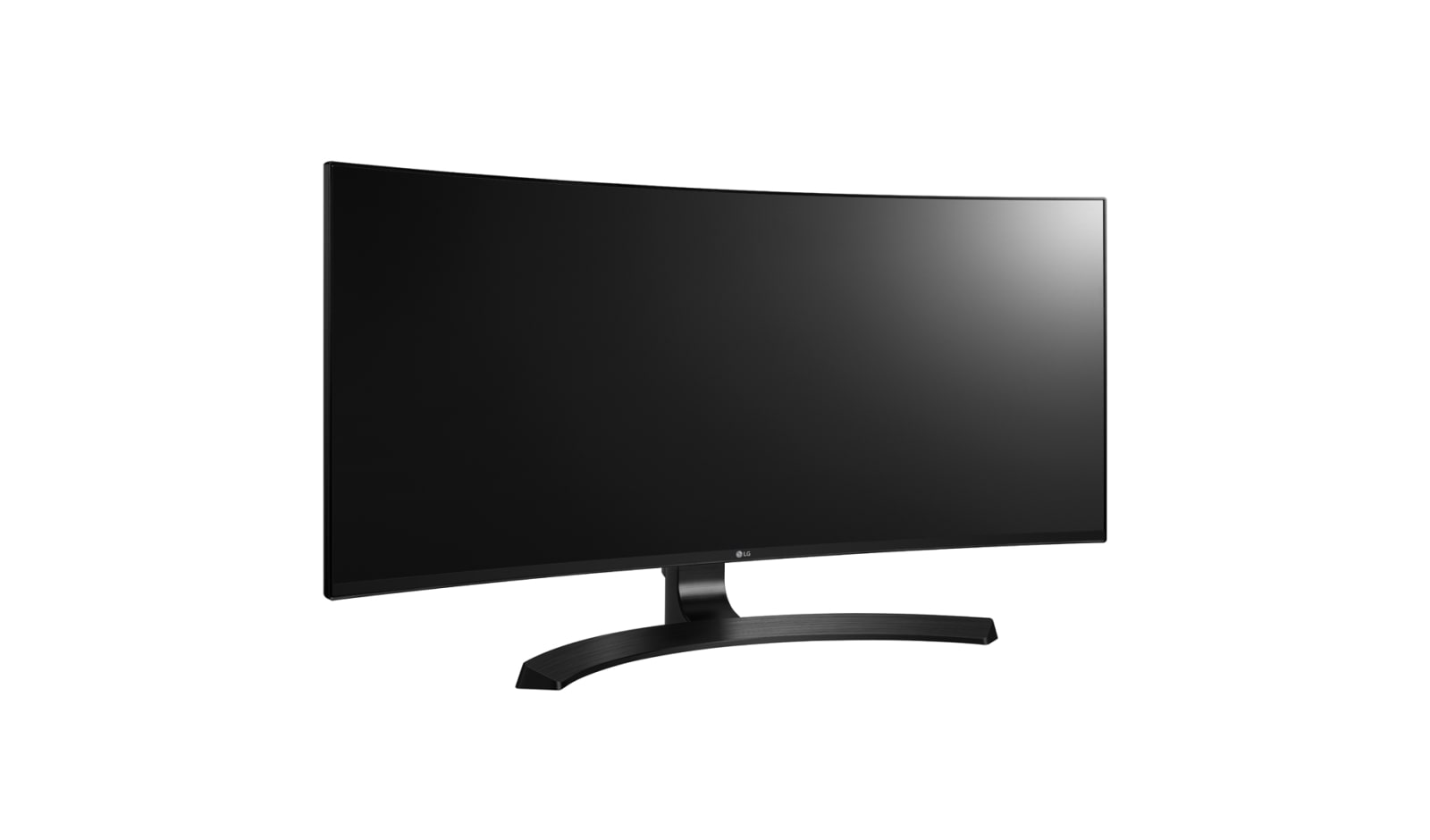

LG IPS 21:9 Curved UltraWide™ QHD Monitor mit 86,36 cm (34 Zoll) Bildschirmdiagonale
Alle Spezifikationen
DISPLAYTYP
Displaytyp
Curved TFT-LCD Aktiv Matrix mit 1,9 m Radius und White LED Backlight
Bildschirmdiagonale
86,36 cm / 34"
Aktive Bildfläche
796,63 mm x 333,46 mm
Pixel Pitch
0,2325 mm x 0,2325 mm
Pixelkonfiguration
RGB Streifen
Weitwinkeltechnologie
AH-IPS (Advanced High Performance In Plane Switching)
Oberflächenvergütung
Hard Coating (3H) Anti-glare
Hintergrundbeleuchtung
White LED
Bildformat
21:9
Native Auflösung
3440 x 1440
max. Auflösung
3440 x 1440 @ 60 Hz Displayport / HDMI / Thunderbolt
Farbdarstellung
1,073 Mrd (10Bit) bei DisplayPort; 16,7 Mio. (8Bit) bei HDMI und Thunderbolt
Farbsteuerung
6 Achsen Farbkontrolle
Helligkeit (cd/m²)
300
Kontrastverhältnis DFC
5.000.000:1
Kontrastverhältnis (statisch)
1000:1
Betrachtungswinkel horizontal (CR 10:1)
178 °
Betrachtungswinkel vertikal (CR 10:1)
178 °
Reaktionszeit (ISO)
5 ms
Multiscan Support
Ja
Eingangssignal
Digital
Synchronisation
Digital
Formatumschaltung
Wide, Cinema 1, Cinema 2, Original, 1:1
MONITOR
Gehäusefarbe
Front Schwarz, Rückseite Weiß, Standfuß Silber/Weiß
Eingangsbuchse

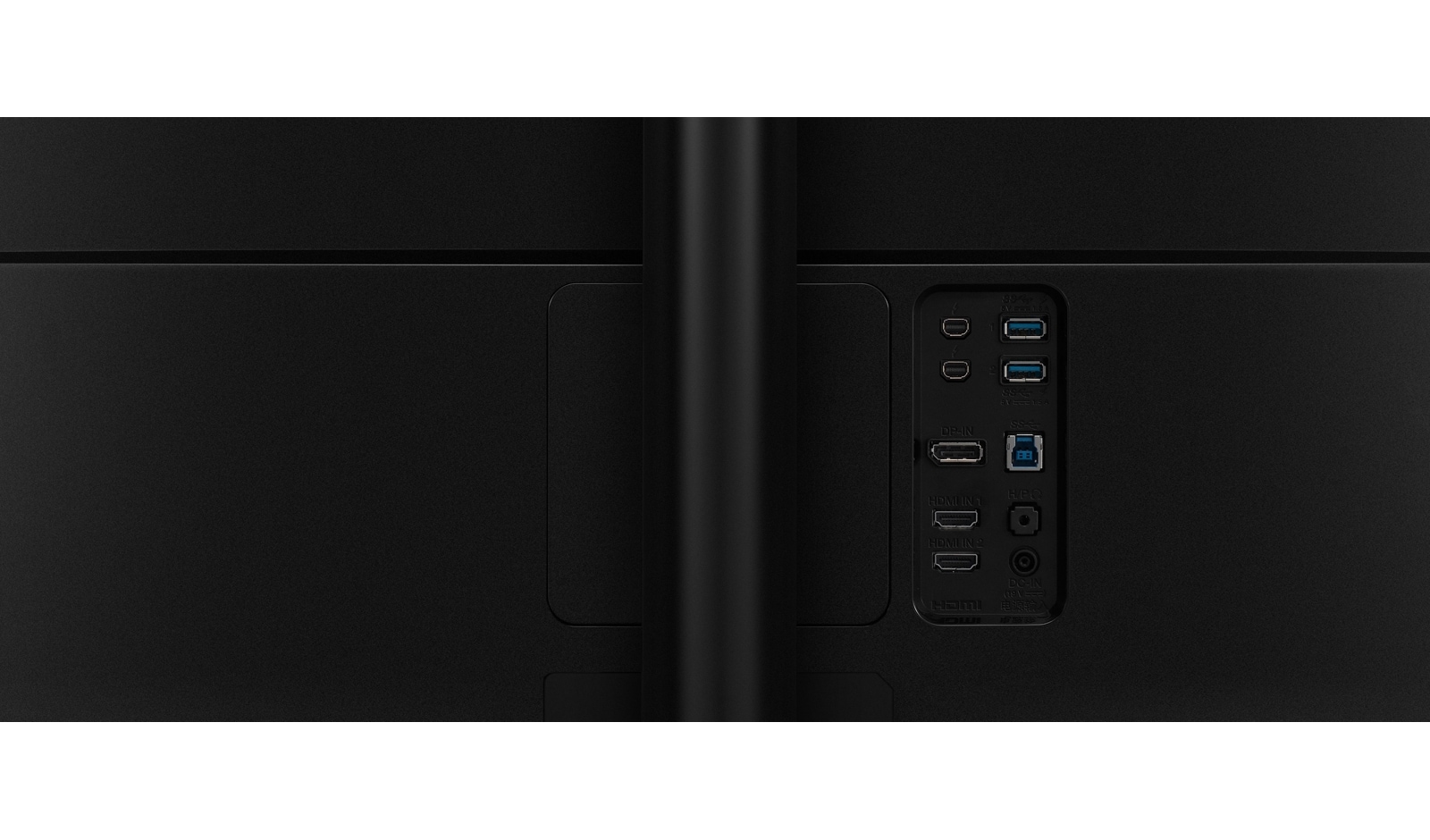

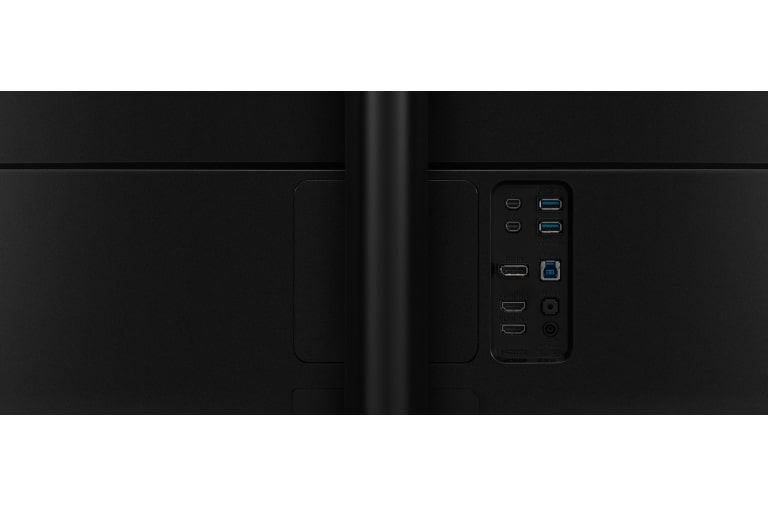

2 x HDMI, 2 x Thunderbolt™ 2, DisplayPort, USB 3.0 (1 upstream / 2 downstream) inklusive USB Quick Charge für Port 1
Ausgangsbuchse
Audio out 3,5 mm Klinke
VESA Plug & Play
DDCCI
Prüfzeichen
TÜV-Typ, UL, FCC-B, CE (EMC Direktive 2004/108/EC: EN 55022:2006 ClassB / EN 61000-3-2 2006 / EN 55024/EN 61000-3-3 / Niederspannungsrichtlinie 2006/95/EC: EN 60950-1 2006, EPA Energy Star 7.0
Monitoreinstellung
Digital über Joystick oder OnScreen Control
BEDIENUNG
OSD-Sprachen
CN, FI, FR, ES, SE, PL, GR, JP, UK, IT, KR, DE, RU, PT, u.a.

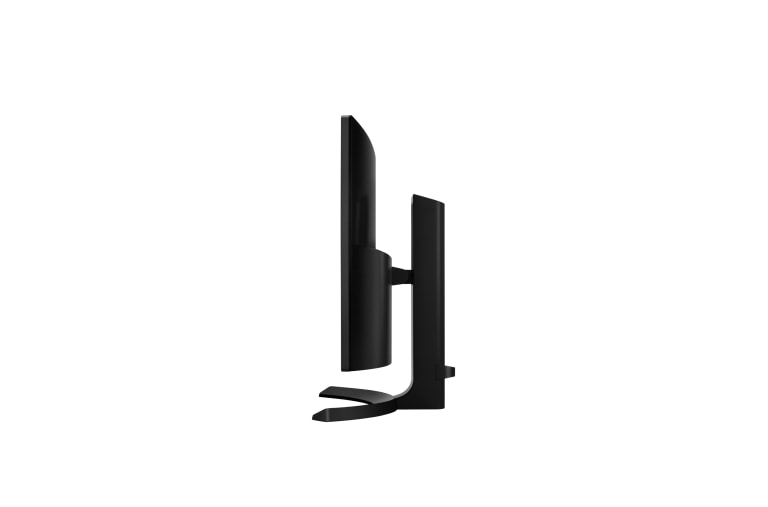

Neigungswinkel vertikal
5<sup>o</sup> nach unten, 20<sup>o</sup> nach hinten
Drehwinkel horizontal
-
Höhenverstellung
110 mm
TON
Lautsprecher
Integrierte Lautsprecher
Ausgangsleistung
2 x 7 W
Tonmodi
Stereo
Surround
MaxxAudio Surround
Equalizer
Bass / Höhen / Dialog / 3D / Nachtmodus (Begrenzung) Rücksetzen
ALLGEMEINE DATEN
Energieeffizienzklasse
B (Spektrum: A++ bis E)
Energieverbrauch/Jahr (kWh)
79
Leistungsaufnahme in Watt (maximal EIN / Standby / AUS)
70 / 0,3 / 0,3
Leistungsaufnahme in Watt nach EPA Energy Star (EIN / Standby / AUS)
< 54 / 0,5 / < 0,3
Maße ohne Standfuß (B x H x T) in mm
817,6 x 360,8 x 88,7
Maße mit Standfuß (B x H x T) in mm
817,6 x 451,4 - 561,4 x 230,4
Maße inkl. Verpackung (B x H x T) in mm
977 x 207 x 505
Halterung
Vorbereitet für Monitorarme und Wandhalterungen nach VESA FDMI™ 100 mm
Gewicht brutto
11,20 kg
Gewicht ohne Standfuß
6,2 kg
Gewicht mit Standfuß
7,8 kg
ZUBEHÖR
Lieferumfang
Netzkabel, Handbuch auf CD, Treiber – CD, HDMI Kabel, DisplayPort Kabel, Kabelhalter, Kurzbedienungsanleitung, externes Netzteil
Software
Dual Controller, OnScreen Controller inkl. 4Screen Split Software mit PIP (Mac kompatibel)
Besonderheiten
Curved AH-IPS Panel mit 1,9 m Radius, Stromsparendes LED Backlight, 99% sRGB Farbraum, 6 Achsen Farbkontrolle, Werkskalibrierung, Flicker Safe Backlight Technologie, Reader Mode, Int. Lautsprecher 2 x 7 W, MAXXAUDIO Surround, Kopfhörerausgang, USB 3.0 (1/2), USB Quick Charge, Kensington Lock vorbereitet, 110 mm Höhenverstellung, Mac kompatibel, 2 x HDMI, Display Port, 2 x Thunderbolt™ 2, Smart Energy Saving, Mega Kontrast, Color Weakness Mode, DAS Mode (Dynamic Action Sync), Black Stabilizer, Game Mode, Dual Link up, Ext. Netzteil, FreeSync, OnScreen Controll Software, My Display Presets, Split Screen Software, Dual Controller, 4-Screen Split, Fuß abnehmbar, Kabelhalter, OSD Sperre
SERVICE
Garantie
36 Monate inkl. Backlights und SWAP-Service (Defektes Produkt wird durch ein neuwertiges Gerät getauscht. Dazu erhalten Sie ein Austauschgerät, in dessen Verpackung Sie das Defektgerät zur Reparatur schicken)
HINWEIS
Hinweis
Minimum Systemvoraussetzungen Grafikkarte Windows: Intel: HD4400 und höher / AMD: HD7000 oder höher / Nvidia: GeForce 600 und höher, GeForce 650 und höher. Über HDMI muss die Auflösung in der Nvidia Systemsteuerung eventuell angepasst werden. Es wird empfohlen die Grafikartentreiber zu aktualisieren. Die Auflösung wird teilweise von Geräten Inhalten oder Schnittstellen nicht unterstützt. , MACOS: Nur New Mac Pro mit DUAL AMD Fire Pro D300, D500 oder D700. 4- Screen Split verfügbar über Thunderbolt, DisplayPort und HDMI.
ECO
Stromverbrauch Betrieb in Watt (IEC62087 Edition 2)
54,1
Stromverbrauch Stand-by in Watt
0,30
Luminanz (%)
66
Quecksilber im Gerät enthalten
Nein
Compliance-Informationen
- Erweiterung
- Erweiterung
- Erweiterung
- Erweiterung
