Signage Display UHD Layar Besar

Specs

Support

Resource

Signage Display UHD Layar Besar

Signage Display UHD Layar Besar

98UM5J-B
  • Tampak depan dengan gambar sisipan
  • LG Signage Display UHD Layar Besar, 98UM5J-B
  • LG Signage Display UHD Layar Besar, 98UM5J-B
  • LG Signage Display UHD Layar Besar, 98UM5J-B
  • LG Signage Display UHD Layar Besar, 98UM5J-B
  • LG Signage Display UHD Layar Besar, 98UM5J-B

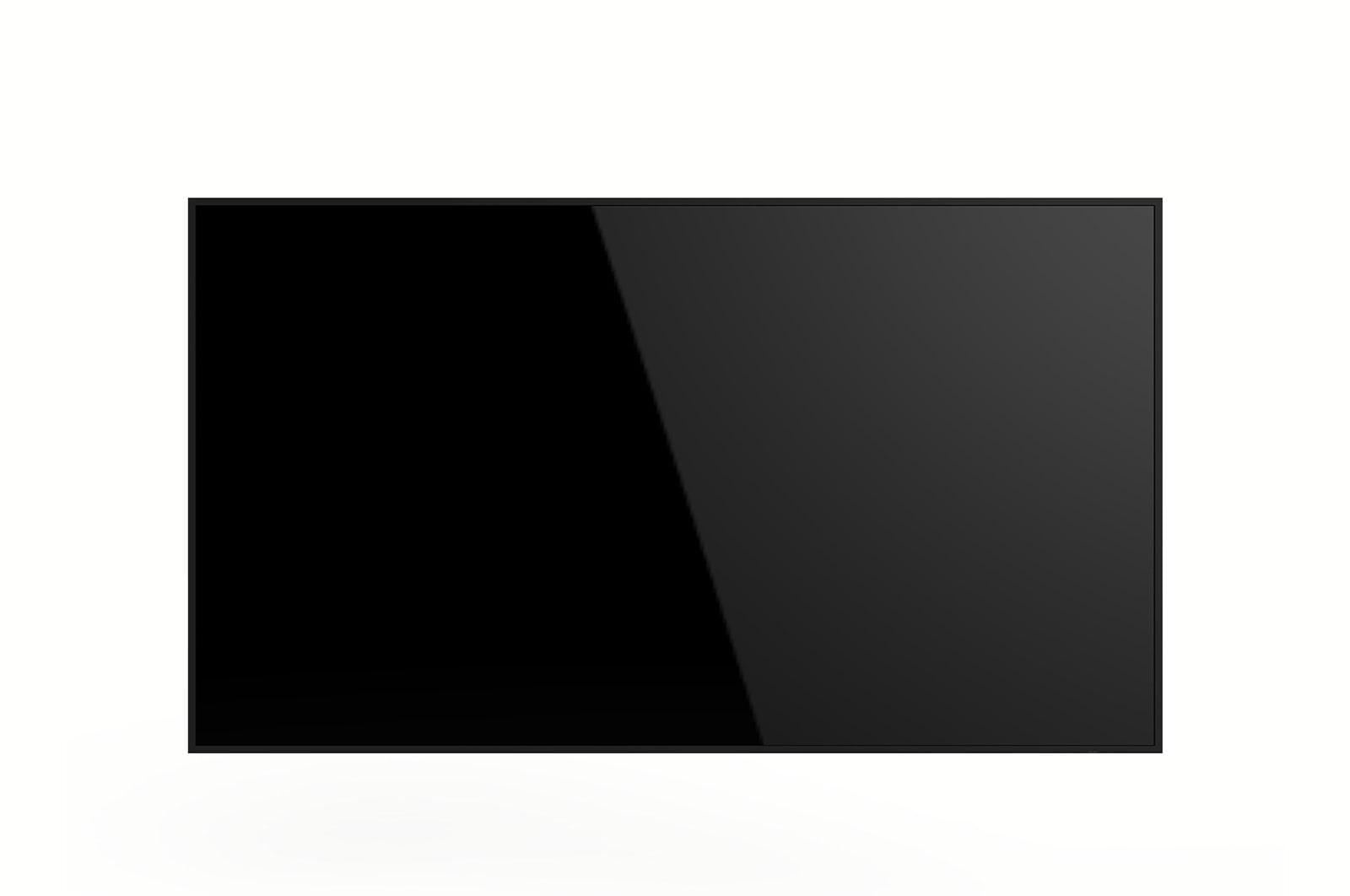

Tampak depan dengan gambar sisipan
LG Signage Display UHD Layar Besar, 98UM5J-B
LG Signage Display UHD Layar Besar, 98UM5J-B
LG Signage Display UHD Layar Besar, 98UM5J-B
LG Signage Display UHD Layar Besar, 98UM5J-B
LG Signage Display UHD Layar Besar, 98UM5J-B

Fitur Utama

  • Kecerahan : 500 nit (Typ.), 400 nit (Min.)
  • Resolusi : ULTRA HD (3.840 x 2.160)
  • Wi-Fi / Bluetooth Internal
  • Speaker Internal (10 W + 10 W)
More
Print

All Spec

PANEL

  • Ukuran Layar

    98"

  • Teknologi Panel

    IPS

  • Tipe Cahaya Latar

    Langsung

  • Rasio Aspek

    16:9

  • Resolusi Asli

    3840x2160 (UHD)

  • Refresh Rate

    60Hz

  • Kecerahan

    500nit (Umum)

  • Rasio Kontras

    1.200:1

  • CR Dinamis

    200.000:1

  • Gamut warna

    DCI 85%

  • Sudut Menonton (H x V)

    178 Deg.(H) x 178 Deg.(V)

  • Kedalaman Warna

    1,07Miliar warna(8bit + FRC)

  • Waktu Respons

    8ms

  • Perlakuan Permukaan (Kabut)

    25%

  • Masa pakai

    30.000Jam (Typ)

  • Jam Operasi (Jam/Hari)

    16/7

  • Potret/Lanskap

    Yes/Yes

KONEKTIVITAS - INPUT

  • Digital-HDMI

    Yes(3)

  • RJ45(LAN)

    (1) Pembaruan FW saja

  • IR IN

    No (Built-in IR)

  • USB

    USB2.0 Type A(2)

KONEKTIVITAS - OUTPUT

  • Audio Out

    SPDIF (1), Phone Jack (1)

SPESIFIKASI MEKANIS

  • Warna Bezel

    Hitam

  • Lebar Bezel

    T/B/L/R: 17mm

  • Berat (Head)

    78kg

  • Berat di dalam Kemasan

    105kg

  • Dimensi Monitor (P x T x L)

    2198 x 1253 x 79,5mm

  • Dimensi Karton (P x T x L) (Ukuran luar kotak)

    2440 x 1468 x 275mm

  • Antarmuka Pemasangan Standar VESA™

    800 x 400 atau 800 x 800

FITUR UTAMA -HW

  • Memori Internal

    16GB (berdasarkan EMMC)

  • Bluetooth-Built-in

    Yes

  • Wi-Fi-Built-in

    Yes(Pembaruan FW saja)

  • Indikator Daya

    Yes

  • Operasi Kunci Lokal

    Yes (7key, Power/UP/DOWN/ LEFT/RIGHT/INPUT/MENU)"

FITUR UTAMA -SW

  • Versi webOS

    Platform Non Smart/ Non webOS

  • Gambar Latar Belakang-Mem-boot Gambar Logo

    No (Logo LG saja)

  • Rotasi-Rotasi Layar

    Yes (Ubah secara manual)

  • HDMI-CEC

    Yes (hanya kontrol daya hidup/mati)

KONDISI LINGKUNGAN

  • Suhu Operasional

    0 °C hingga 40 °C

  • Kelembapan Pengoperasian

    10%～80%

DAYA

  • Sumber Listrik

    AC 100-240V~, 50/60Hz

  • Jenis Daya

    Daya Internal

PENGGUNAAN DAYA

  • Biasa

    560W

  • Maks.

    590W

  • BTU (Satuan Panas Britania)

    1706 BTU/Hr(Typ.), 1911 BTU/Hr(Max)

  • Daya mati

    0,5 W

SUARA

  • Speaker

    Yes (10W+10W)

SERTIFIKASI

  • Keamanan

    UL, CB

  • EMC

    FCC Class "A" / CE Class "A"

  • ERP / Energy Star

    Yes(NewErP)/ No

BAHASA

  • OSD

    Bahasa Inggris, Bahasa Prancis, Bahasa Jerman, Bahasa Spanyol, Bahasa Italia, Bahasa Korea, Bahasa Mandarin (Sederhana), Bahasa Mandarin (Asli), Bahasa Portugis (Brasil), Bahasa Swedia, Bahasa Finlandia, Bahasa Norwegia, Bahasa Denmark, Rusia, Bahasa Jepang, Bahasa Portugis (Eropa), Bahasa Belanda, Bahasa Ceko, Bahasa Yunani, Bahasa Turki, Bahasa Arab, Bahasa Polandia

AKSESORI

  • Dasar

    Remote Control LG (termasuk baterai 2AA), Kabel Listrik, Buku Panduan

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
