55EW5F-A Salin nama model
Layar Info OLED Transparan
  • Kecerahan ((Umum)): 400 cd/m²
  • Transparansi (Umum) : 38% (Panel)
  • Bezel : 7.9 mm (A/B/Ki), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR

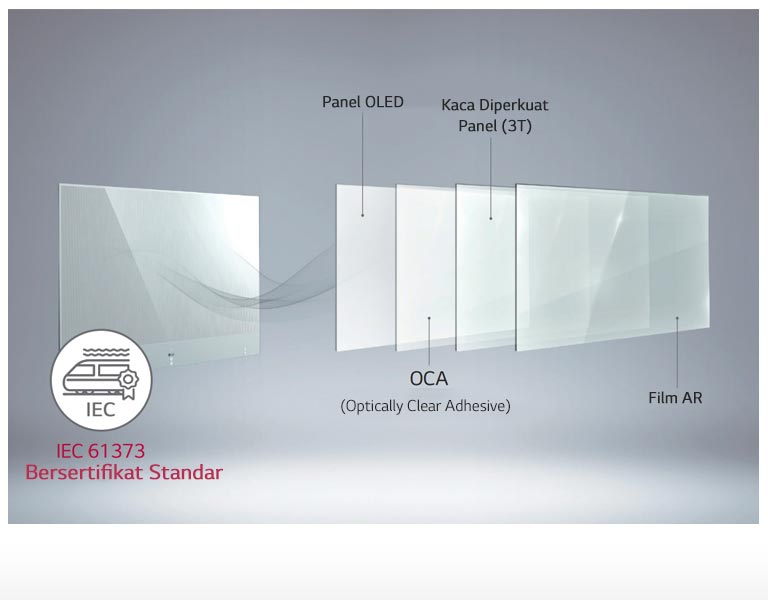

  • IEC 61373 Bersertifikat Standar

component-OBScountrySelectDesc

Layar Info OLED Transparan
*Semua gambar hanya digunakan untuk tujuan ilustrasi.
PANEL
  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400
    Brightness (APL100%, Typ., cd/m²)
    150
  • Transparency (Typ.)
    38% (Panel)
CONNECTIVITY
  • Input
    HDMI, DP, USB (2)
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)
    Monitor Dimension (W × H × D)
    (Head) 1,225.53 x 810.1 x 6.6 mm
    (Signage Box) 782.8 x 238.4 x 34.7 mm
  • Weight
    (Head) 13.9 kg
    (Signage Box) 3.4 kg
    Carton Dimensions (W × H × D)
    1,329 x 898 x 191 mm
  • Packed Weight
    22.4 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    309 W *8 color bar
    Max.
    318 W *8 color bar
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Tapes, Screws, Shield Cover Assy', Rubber Dampers
