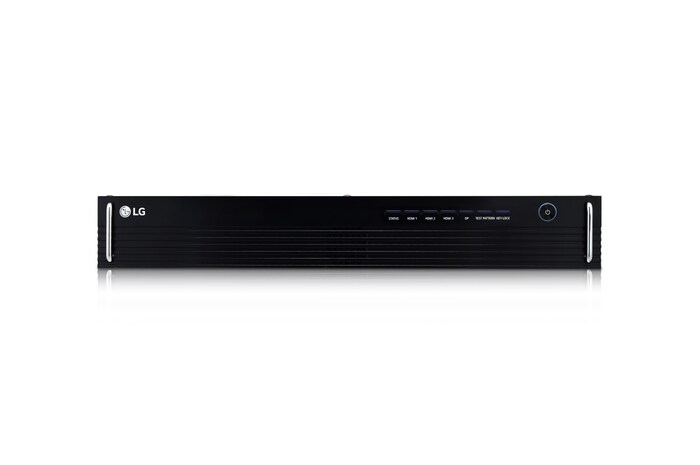

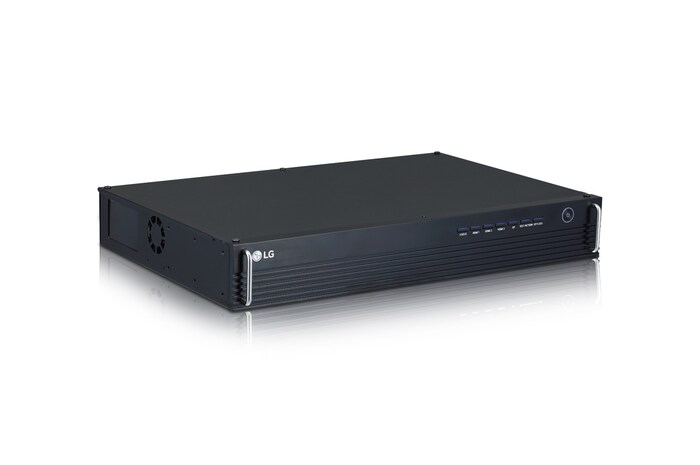

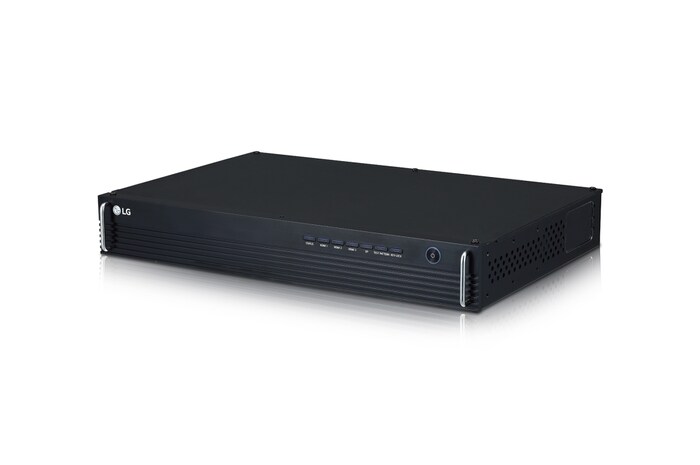

Controller
CSAA-012X
Power Consumption (W/Cabinet, Max.)
107
Power Consumption (W/Cabinet, Avg.)
64
Power Consumption (W/㎡, Max.)
527
Power Consumption (BTU/Cabinet, Max.)
364
Power Consumption (BTU/Cabinet, Avg.)
218
Power Consumption (BTU/㎡, Max.)
1,798
Brightness (After Calibration)
600nit (Typ.) 1,200nit (Peak)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
97%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
Peak. 9,000:1 Typ. 5,000:1
Pixel Pitch(mm)
1.25
Module Resolution (WxH)
240x90
Weight per Module (kg)
0.20
Cabinet Resolution (WxH)
480x270
Cabinet Surface Area (㎡)
0.259
Weight per Cabinet (kg/Cabinet)
6.9
Weight per Square Meter (kg/m²)
34.1
Physical Pixel Density (pixels/m²)
640,000
Flatness of Cabinet (mm)
±0.5
Optional Accessary
Wall Mount Kit (WM-L1080)Frame Kit (KT-BZ1080)
